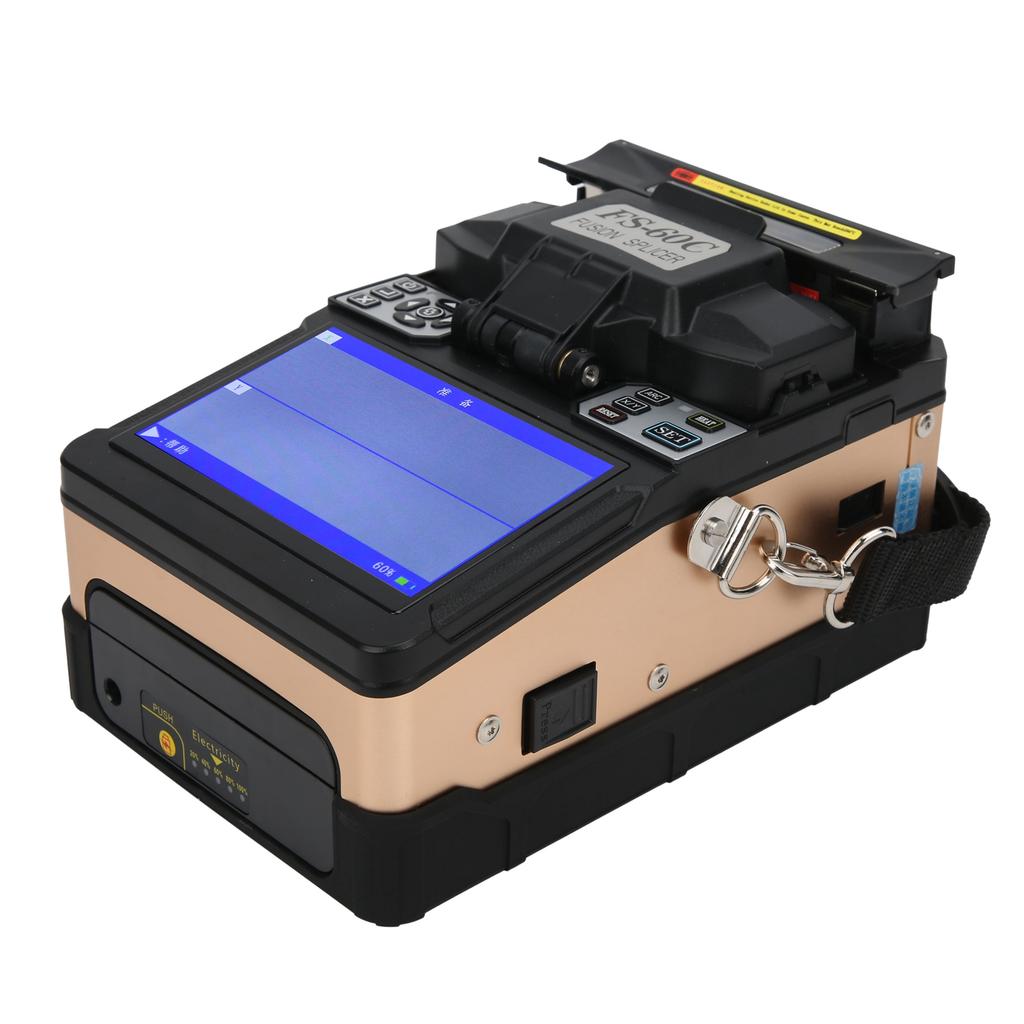

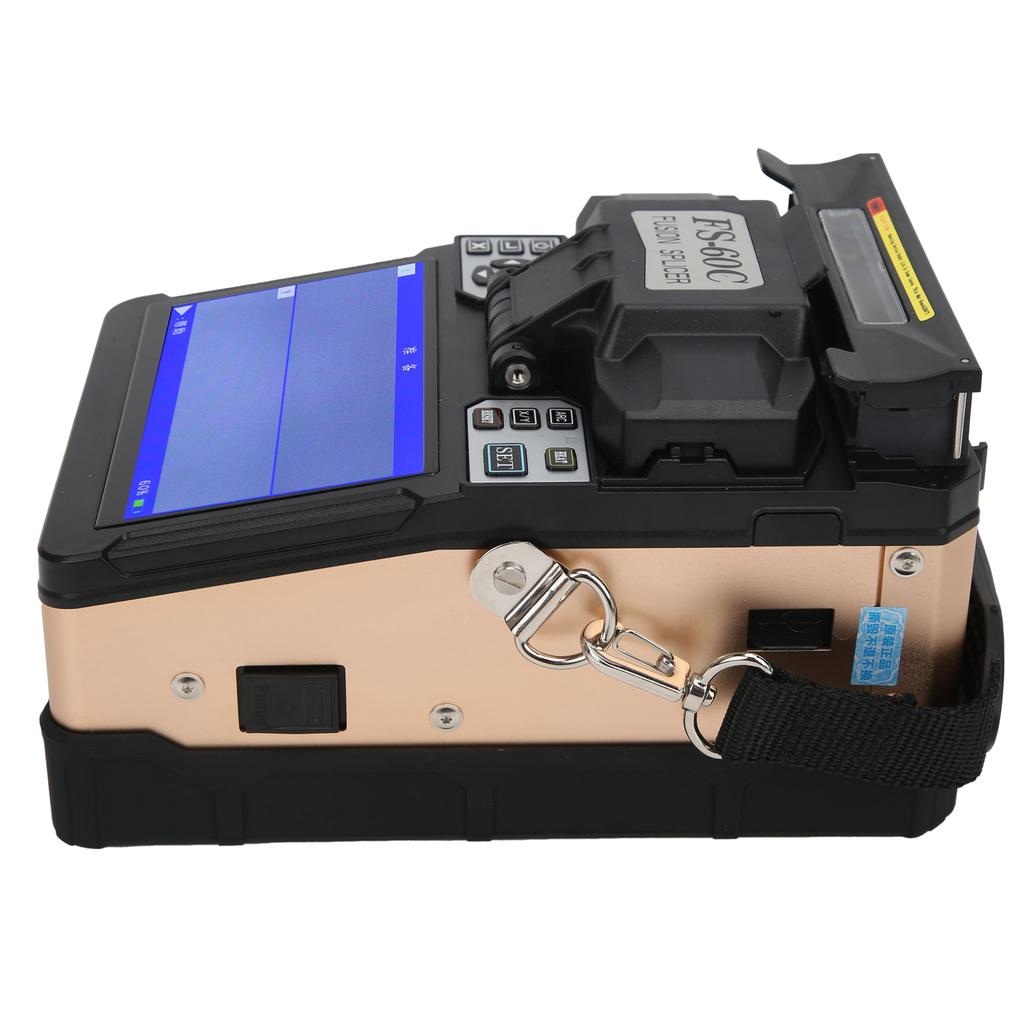

Feature:
1. This machine is mainly used for the connection of optical fibers, and can be connected to ordinary sheathed optical cables, jumpers, and single mode, multi mode, and dispersion shifted quartz fibers with a cladding Diameter of 80micrometer 150micrometer
2. The high accuracy optical fiber fusion splicer adopts high speed image processing technology and special accurate positioning technology, which can automatically complete the entire process of optical fiber fusion within 9 seconds
3. Light weight, easy to carry, possess simple operation, fast welding speed, low welding loss
4. Especially suitable for telecommunications, radio and television, railway, petrochemical, electric power, military, public security and other communication fields
5. Can be used for optical fiber and cable engineering, maintenance, scientific research, and teaching
Specification:
Item Type: Fiber Fusion Splicer
Applicable Fiber: SM (G.652 and G.657), MM (G.651), DS (G.653), NZDS (G.655) and custom fiber types
Connection Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS NZDS)
Return Loss: Better than 60dB
Typical Connection Time: 9 Seconds
Typical Heating Time: 26 Seconds (heating time can be set, heating temperature can be adjusted)
Fiber Alignment: Fine alignment, core alignment, cladding alignment
Fiber Diameter: Cladding Diameter 80 150micrometer, coating Diameter 100 1000micrometer
Cutting Length: Coating Layer Below 250micrometer: 8 16mm; Coating Layer 250 1000micrometer: 16mml
Fiber Clamp: Multi functional clamp, suitable for bare fiber, pigtail, jumper, and leather cable; the replacement clamp can be used for SC and other connectors for various FTTx fiber optic cables
Magnification: 300 Times (X axis or Y axis)
Heat Shrink Tubing: 60mm, 40mm and a series of miniature tubing
Display: 5.0 inch TFT color LCD display. The content can be flipped for easy two way operation
External Interface: USB interface, convenient for data download and software update
Splicing Mode: 17 Groups of use modes
Heating Mode: 9 Groups of use modes
Splice Loss Storage: 5000 latest splice results stored in the built in memory
Built in Battery: Continuous welding and heating not less than 200 times
Power Saving Function: 15percent Lithium battery power can be saved in a typical environment
Working Environment: Temperature: 10 +50 celsius , Temperature: <95percent RH (non condensing), Working Altitude: 0 5000meter, Maximum Wind Speed: 15meter s
Body Size(LxWxH): Approx. 205 x 140 x 123mm 8.1 x 5.5 x 4.8in
Lighting: Convenient to place fiber at night
Body Weight: 1434 g 50.6 oz(approx.)(without battery), 1906 g 67.2 oz(approx.)(with battery)
1. Liquid and foreign matter enter the inside of the fusion splicer;
2. The fusion splicer is subject to strong vibration and shock;
3. It is forbidden to repair wrongly after disassembling the fusion splicer;.

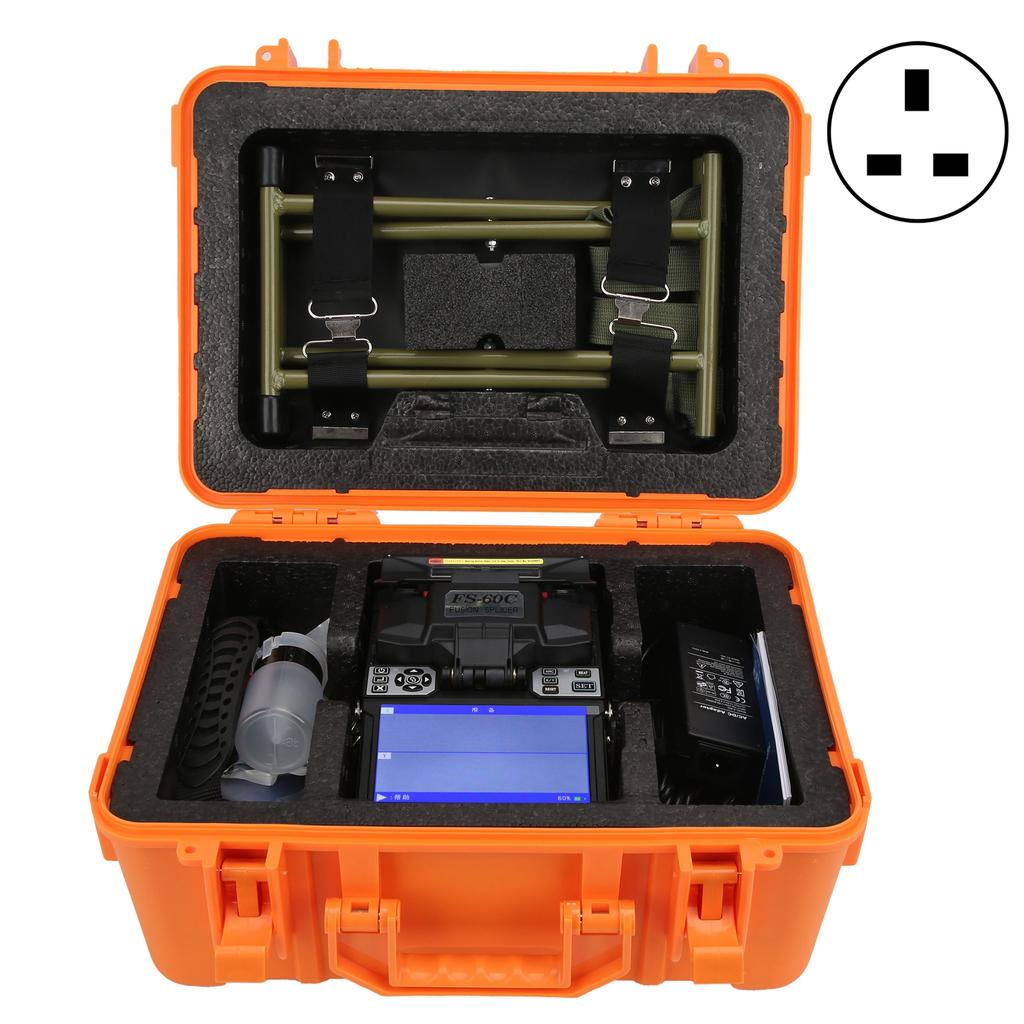

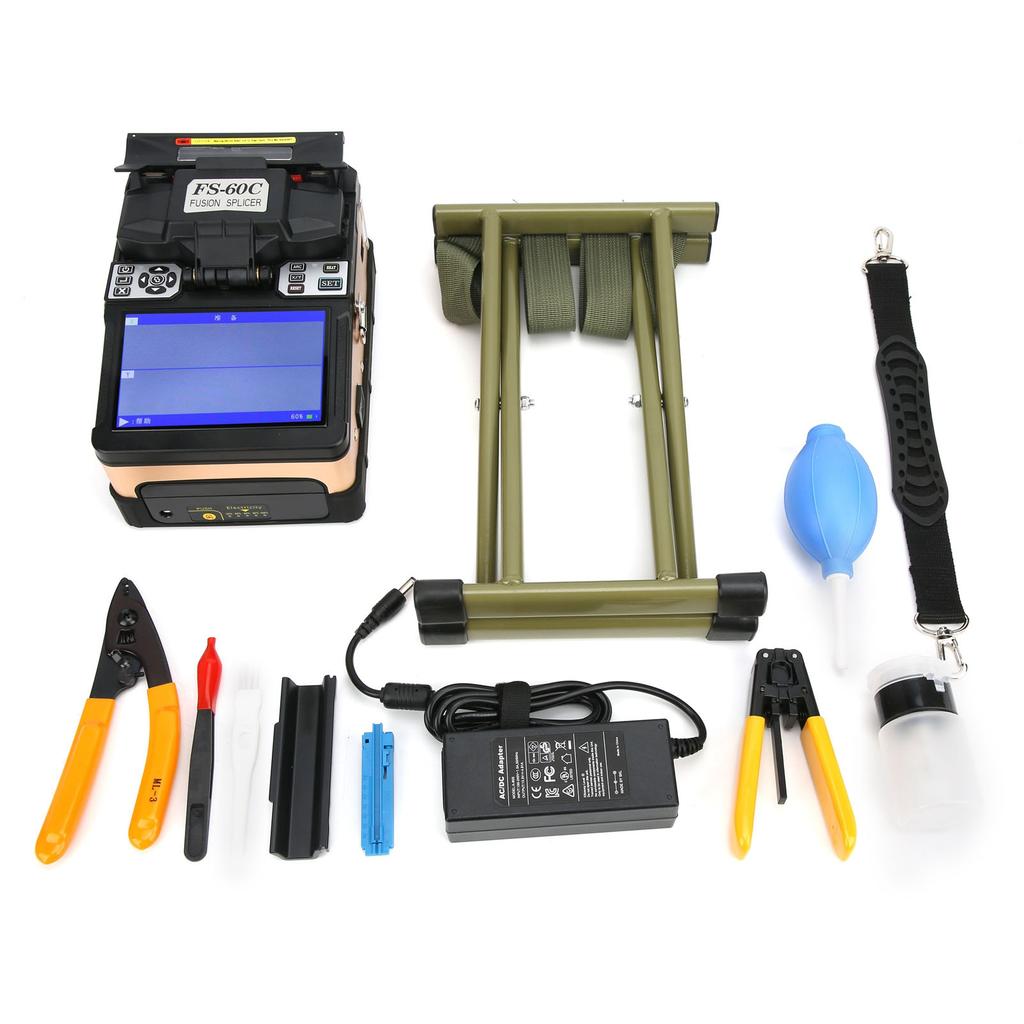

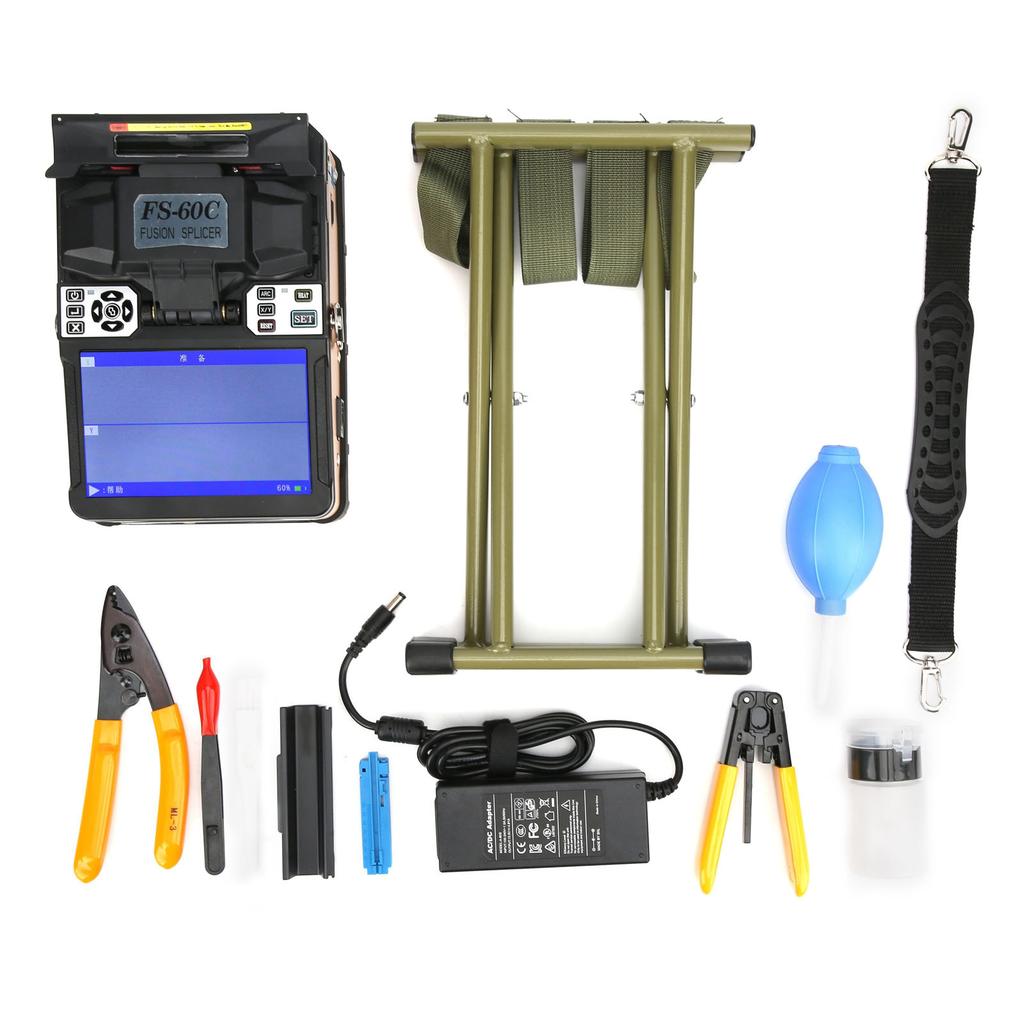

Package List:
1 x Fusion Splicer1 x Leather Wire Stripping Pliers1 x Three Port Miller Pliers1 x Blow Balloon1 x Bottle1 x Stool1 x Hand Strap1 x Power Cord1 x Adapter1 x Plastic Length Fixer1 x Brush1 x Tweezers1 x Cooling Rack1 x User Manual
