Feature:
1. High quality electrode, with the advantages of high hardness, good wear resistance, good strength and toughness.
2. Fast splicing in 7 seconds and efficient heating in 18 seconds, more convenient to use and easy to operate.
3. 3 in 1 fixture, applicable to bare fiber, tail fiber, jumper wire and rubber‑insulated fiber wire.
4. Application of high‑speed motor, new technical method greatly reduce fusing splicing and heat shrinking time, small size, light weight, high reliability, etc.

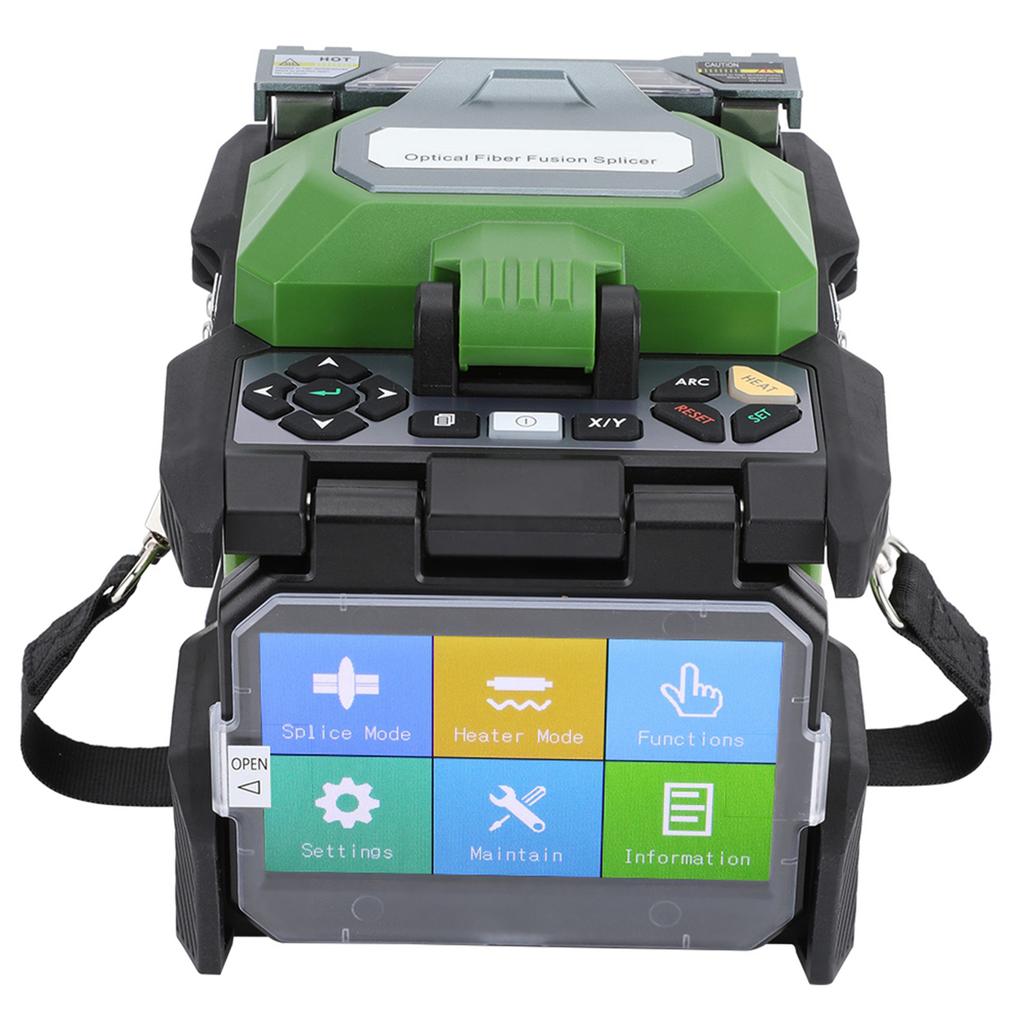

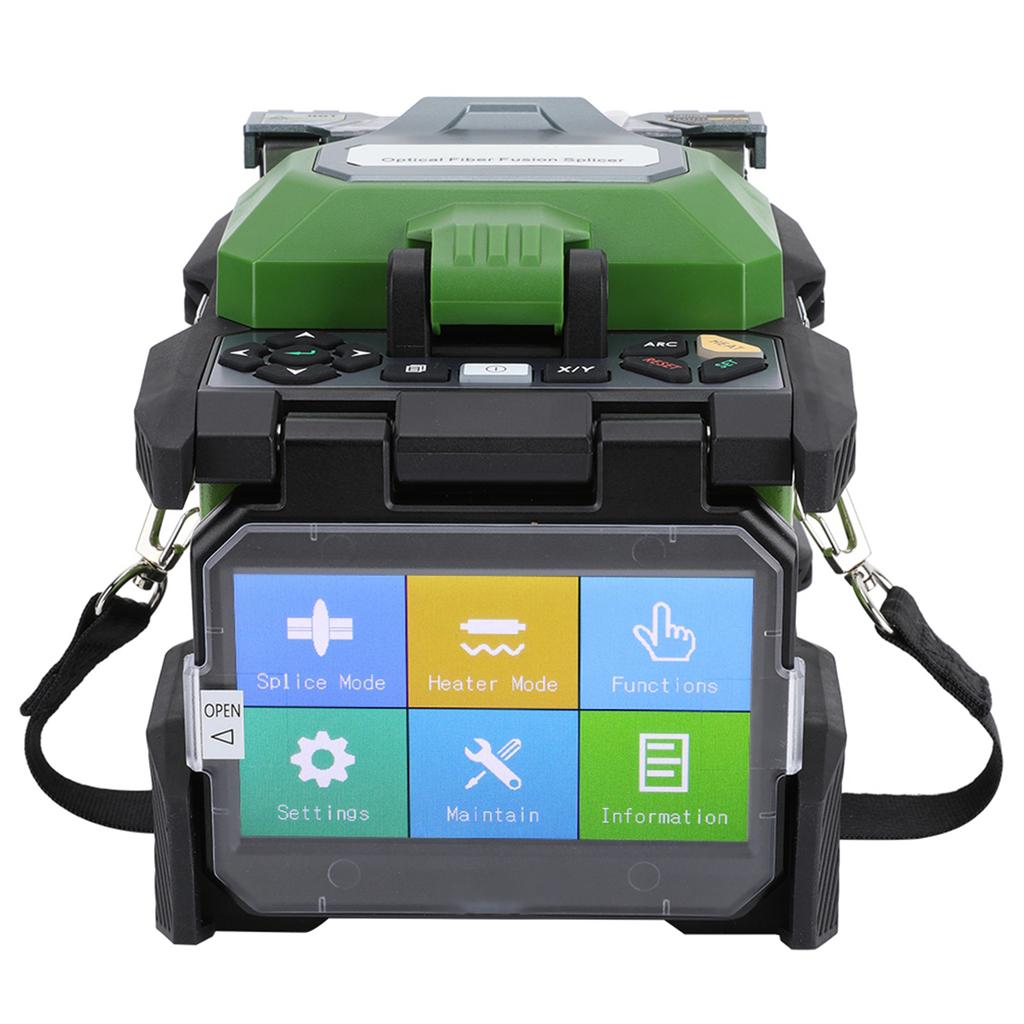

5. High‑definition LCD display and high‑strength protective panel observe the X‑axle and Y‑axle optical fibers at the same time.
Specification:
Condition: 100percent Brand New
Item Type: Fusing Splicer
Material: ABS + Iron
Model
JW4106S
Alignment Method
Precise core alignment and cladding alignment
Applicable Fibers
Any common optical fibers, rubber insulated fibers and jumpers that meet requirements of ITU TG.651 653, ITU TG.655 and ITU TG.657.
Optical Fiber Diameter
Cladding: 80 150micrometer, coating layer: 0.1 3mm
Cutting Length
5 16mm (coated optical fiber Diameter less than 250micrometer); 10mm (coated optical fiber diameter: 0.25 3mm)
Fusing Splicing Consume (Typical Value)
0.02dB(SMF); 0.01dB(MMF); 0.04dB(DSF); 0.04dB
Return Loss
(NZDSF) Better than 60dB
Fusing Splicing Time (Typical Value)
7s
Heating Time (Typical Value)
18s
Pulling Force Test
1.96 2.25N
Built in Drive Motor
4 Motor
Thermal Shrinkage Tube
60mm, 40mm and series of thermal shrinkage tubes
Graphical Display
High performance 4.3 inch LCD Display
Magnification Time
320 Times 88 Times
Fusing Splicing Record
10000 Groups
Battery Capacity
11.1V, 6400mAh, typical value of fusing splicing and thermal cycle is 220 times
Battery Service Life
Cycle charging time reaches 300 500 times, can be replaced by customers
Electrode Service Life
Typical value is 4000 times, can be replaced by customers
Construction Lighting
Built in lights with high brightness and wide lighting area
Working Environment
Temperature: 10 50 celsius ; Humidity: 0 95percent RH, Height above Sea Level: 0 6000m
Operation Interfaces
GUI graphical operation interfaces
External Power Supply
AC: 0 1.5A; DC: DC10 15V
External Port
USB Memory Card Interface
Product Size
Approx. 165 x 125 x 140 mm 6.5 x 4.9 x 5.5 in
Weight
Approx. 5910g 208.5oz
Function:
1. Precise fiber core alignment, ultra low fiber fusing splicing consumption.
2. 320 times image magnification, 5mm fusing splicing for fibers of ultra short cutting length.
3. 7s fast fusing splicing, 18s highly efficient heating.
4. 300 groups of fusing splicing modes, 100 groups of heating modes.
5. High definition liquid crystal display and high strength protective panel to observe X axle and Y axle optical fibers at the same time.
6. 3 in 1 fixture can weld single core, rubber insulated wire, tail fiber
7. Small size and light weight.
8. USB and memory card interface, U disk automatic software upgrade. Built in modular lithium battery, supports 220 times of splicing and heating cycles..

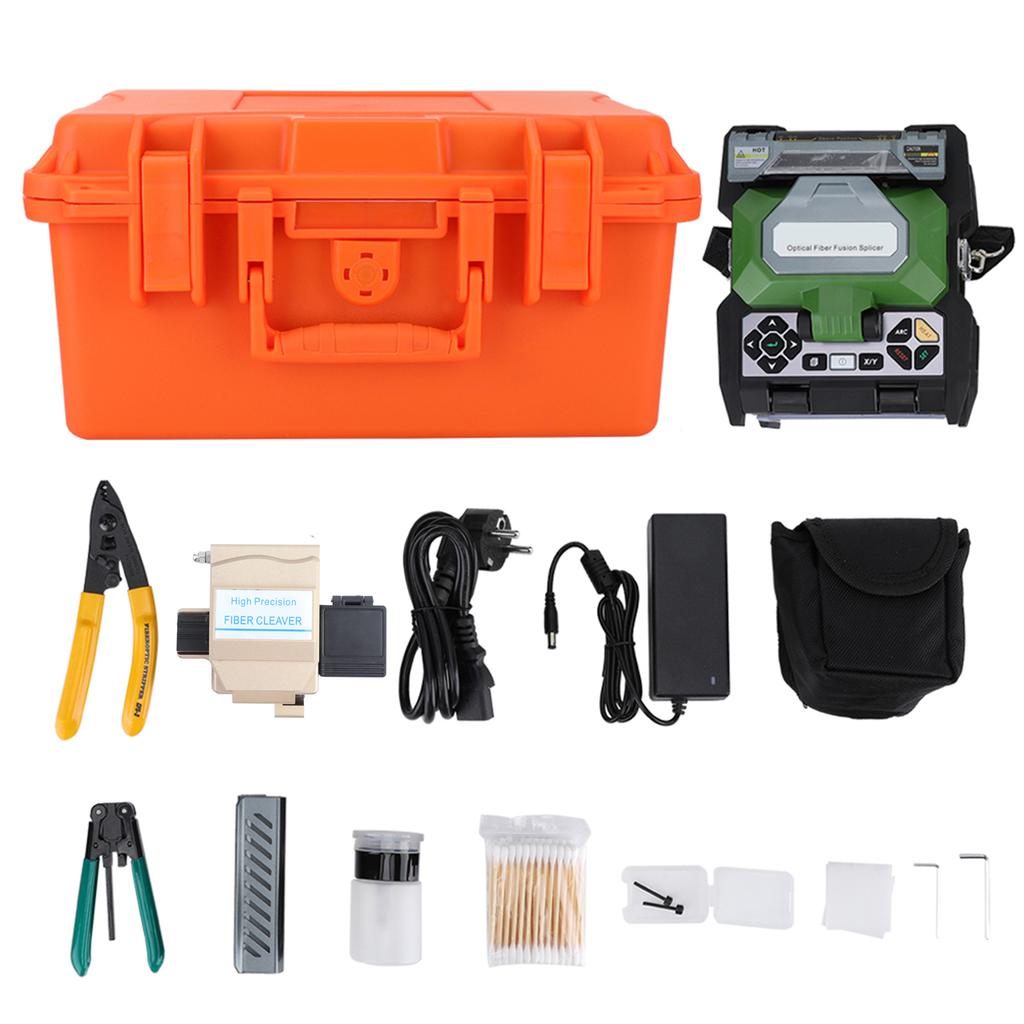

Package List:
1 x Fusing Splicer1 x Wire Stripping Plier1 x Fiber Cleaver1 x Three port Fiber Stripping Plier1 x Alcohol Bottle1 x AC Power Cord1 x AC Power Adapter2 x Spare Electrode1 x Cooling Tray1 Bag x Cotton Swabs1 Bag x Paper1 x Case1 x Brush2 x Hex Key1 x Bag (Holding Cutting Knife)
