High-concerned chemical : none
Type : Speed Controls
Origin : Mainland China
Brand Name : occkic
Features:
1. Support two-way operation, suitable for model boats, tanks and other types of RC models.
2.Support 5A current to ensure strong and stable power output.
3.Adapt 2S/3S lithium batteries to meet different power requirements.
4. Adopting high quality material and heat dissipation structure to ensure long time stable work.
5. Modular design for quick installation, suitable for DIY enthusiasts.
Parameter:
Support voltage: 6V-14V
Support current: single 5A, single peak 7A (for 2/3S lithium batteries)
Each group of motor wires directly connected to the motor, do not connect the wrong, otherwise it will damage the ESC
Function Introduction:
Mixed control mode (default)
(Throttle/steering mode): 2 or 3 channels (2 channels are recommended because 2 channels automatically return to the center) to control the throttle 1 channel (or 4 channels) to control the speed difference steering, throttle ratio 100%, steering ratio 100%, steering priority. Suitable for: Tanks, 4WD cars
Dual independent: equivalent to two independent ESCs.
Dual-channel synchronization: under the mixed control mode, the single yellow wire is not connected, or the single yellow wire is connected to the receiver “-”, the two motors will be synchronized by the throttle control.
With runaway protection (loss of signal (in an accident, the signal line is broken), in order to protect the safety motor, need to throttle back to the center, to re-unlock.
Power-down protection: supply voltage below 4V, ESC restart protection (for example: high-current discharge, poor performance of the battery voltage drop is too large, ESC protection, protection of the motor after the motor stops, and the motor stops after the battery voltage is restored to return to the center, and then hear the motor unlocking sound)
There is overcurrent protection (but the use of repeated overcurrent, there may be burned out short circuit)
Overheating protection (around 130℃)
BEC output: 5V maximum 1.5A to meet the needs of the receiver, flight control power supply (Note: the on-board microcontroller is also 5V power supply, if the 2S lithium plug directly into the receiver, the microcontroller burned in seconds (maximum withstand voltage 6.5V))
Package include:

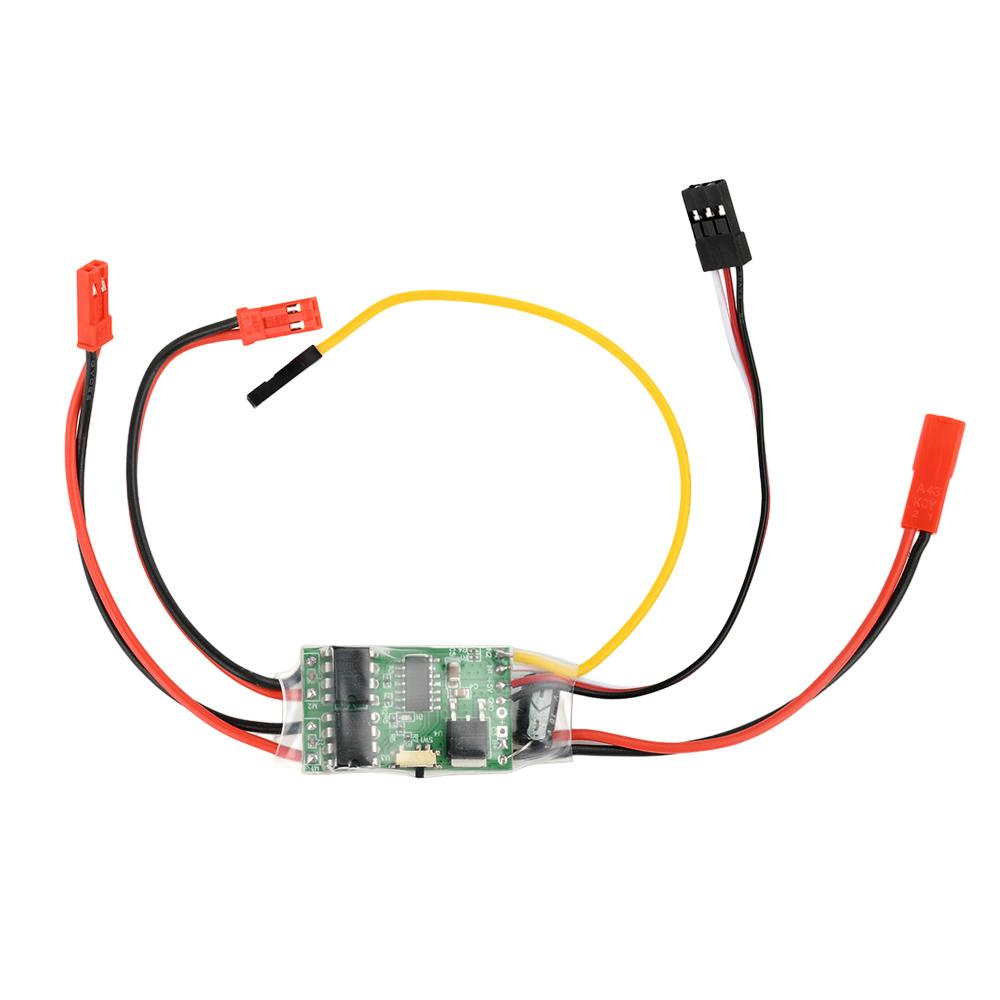

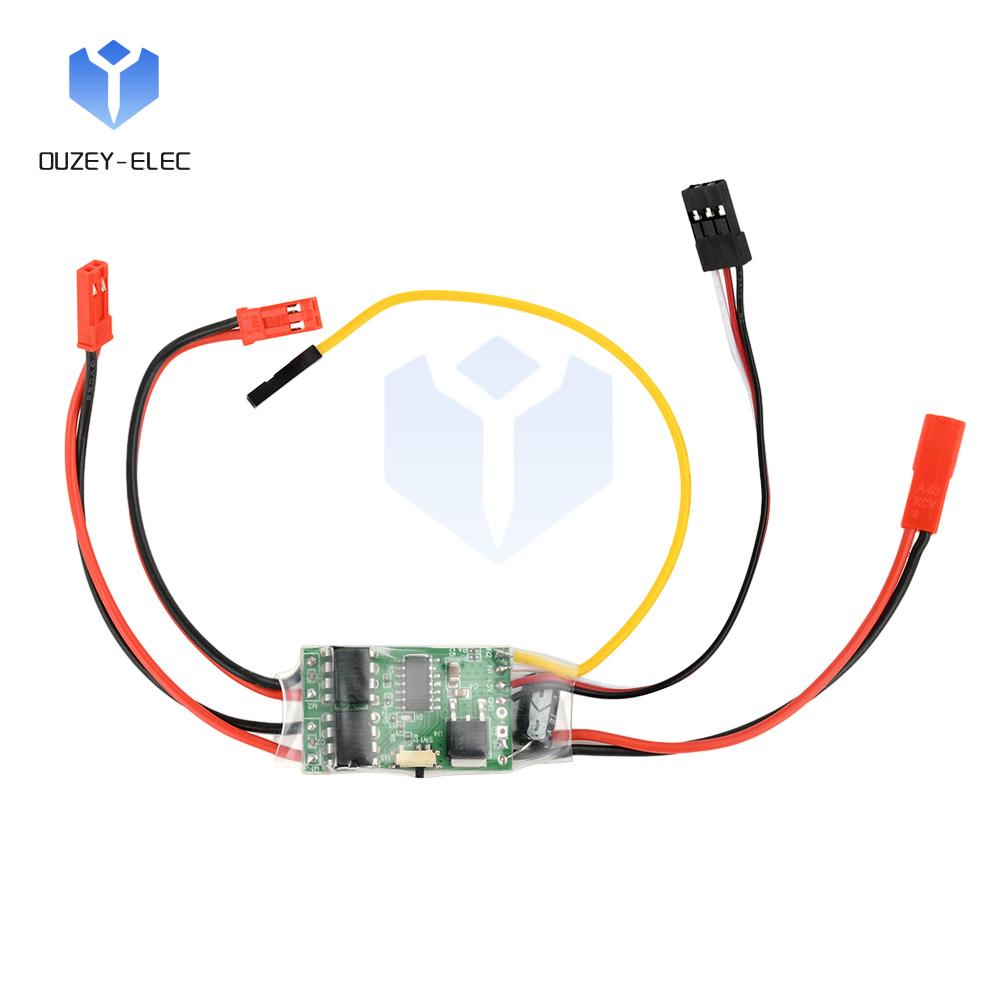

Brush ESC module *1
label:yes
