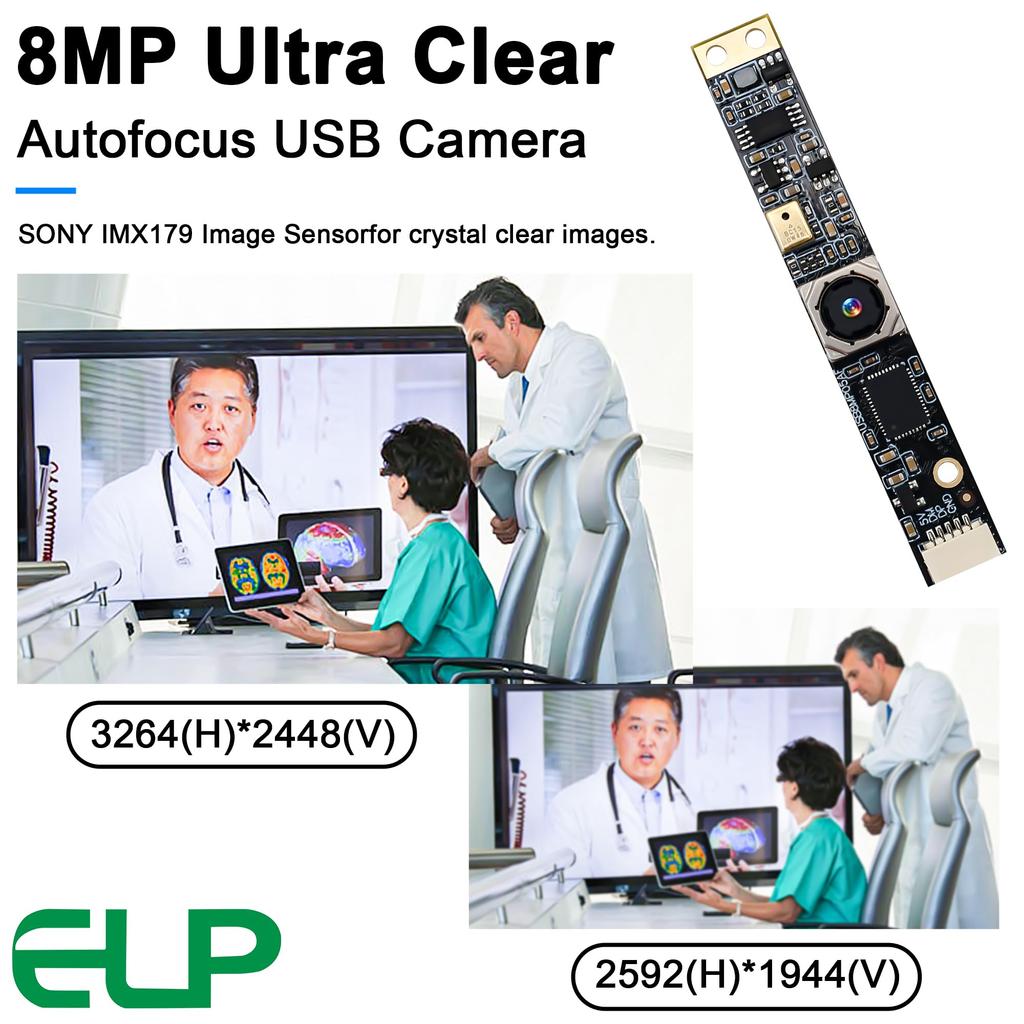

Ultra HD: Features a built-in 1/3.2-inch IMX179 image sensor for superior image performance, with a maximum still image resolution of 3264x2448. 38x38/32x32mm mini-strip USB camera with a 1-meter/3.3-foot USB cable for laptops. Supports MJPEG and YUV video streaming at 3264x2448@15fps, 3200x2440@25fps, and 800x600@30fps.

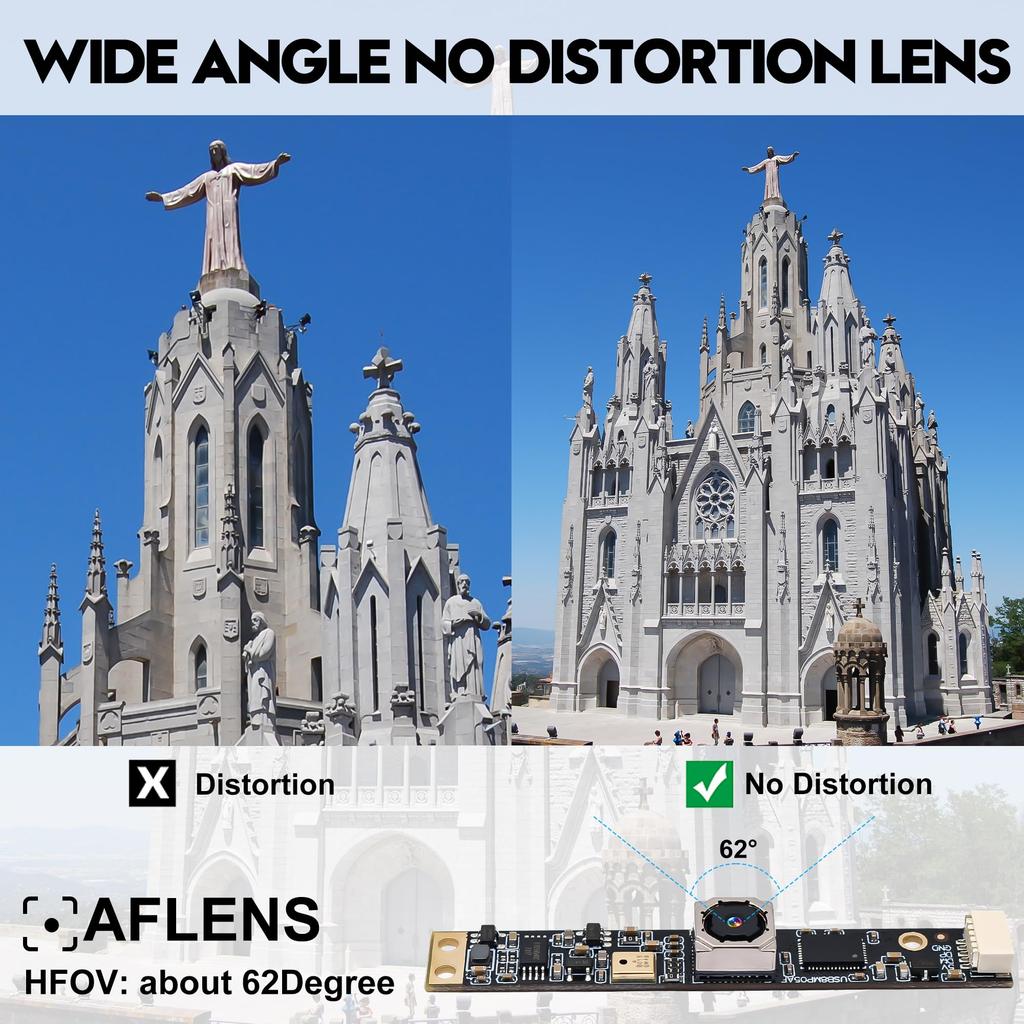

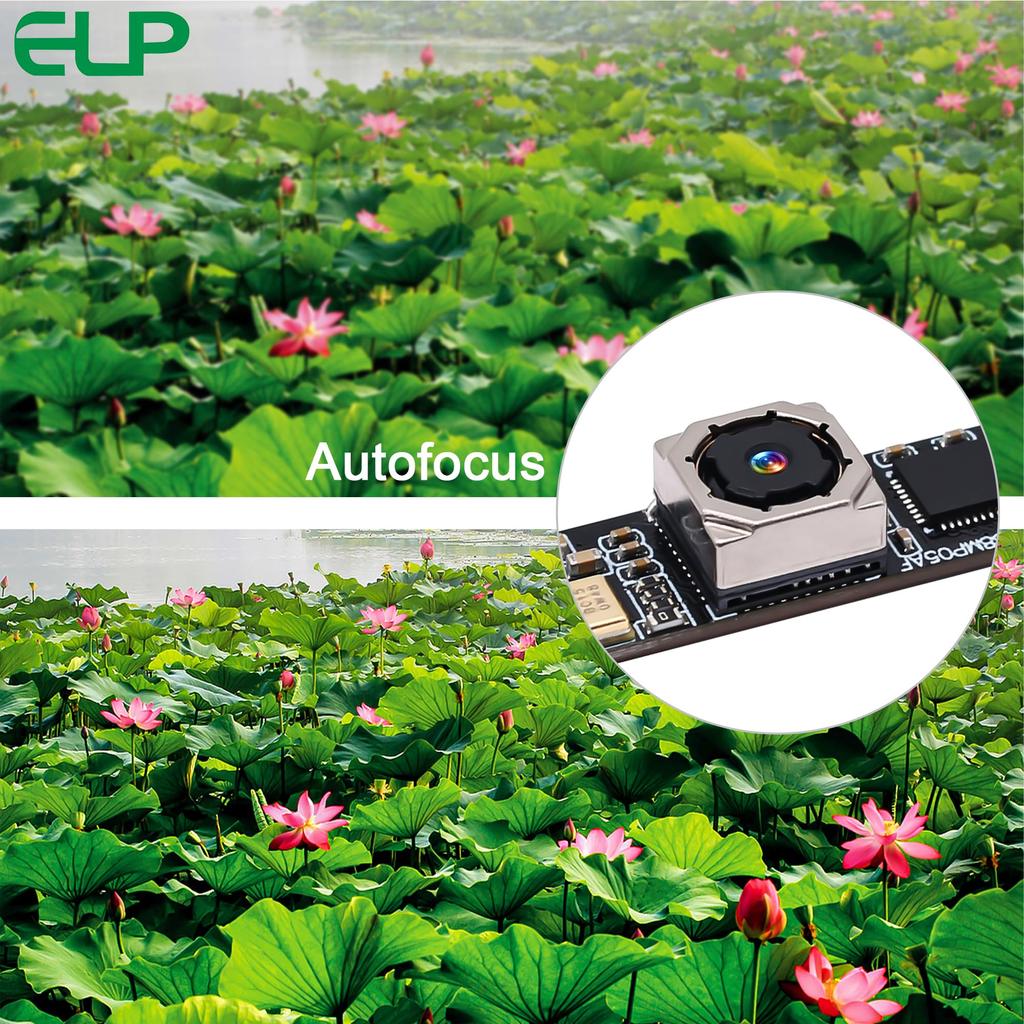

Autofocus: Shoot both near and far objects with the same camera, automatically controlled without lens adjustment tools, resulting in sharper and easier images than fixed-focus cameras. Mini USB autofocus camera with distortion-free lens, HFOV is approximately 62 degrees.

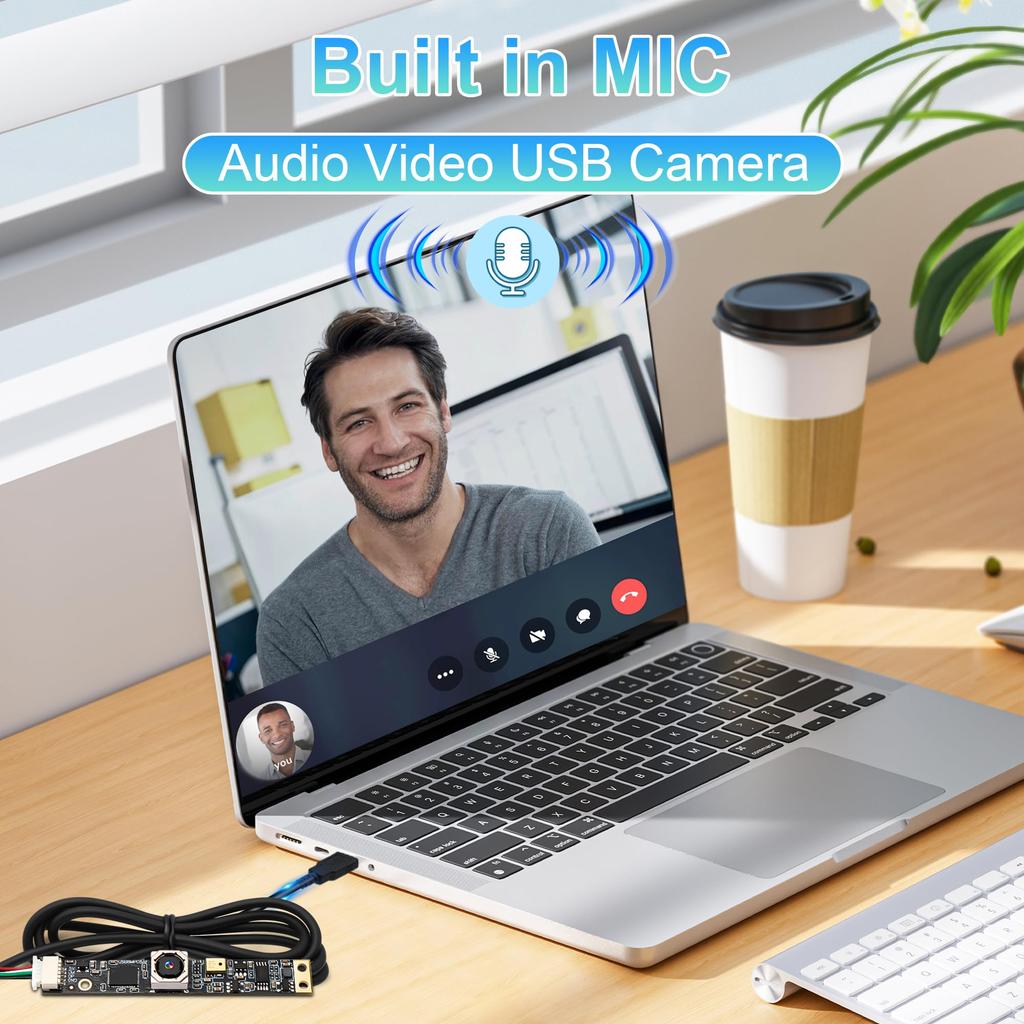

Built-in microphone: Captures video with audio, 1/3.2-inch IMX179 Lightburn camera. Image formats MJPEG or YUY2 are optional, and the high-resolution camera can be in any personal or industrial video system. Ultra-miniature mini-strip size for Lightburn laser engraving machines. Compact Lightburn laser camera for all types of machine vision.
Plug and Play: UVC compliant. Simply connect the camera to your PC, laptop, or Android device using the included USB cable; no additional drivers need to be installed. Compatible with Raspberry Pi, Ubuntu, OpenCV, Amcap, and many other USB webcam software and hardware.
Applications: The ELP 8mp autofocus USB camera with microphone is highly recommended for home surveillance systems, 3D printer monitoring, object recognition and tracking, barcode and QR code identification and scanning, or other machine vision applications requiring high resolution.
Model ELP-USB8MP05AF-V62
Sensor: SONY IMX179
Sensor size: 1/3.2 inch
Pixel size: 1.4µm x 1.4µm
Image area 6.18mm x 5.85mm
Maximum resolution: 3264(H) x 2448(V) 8 megapixels
Compression formats: MJPEG / YUY2 (YUYV)
Resolution and frame rate:
3264X2448 MJPEG@15fps YUY2@1fps 2592X1944 MJPEG@15fps YUY2@2fps
2048X1536 MJPEG@15fps YUY2@3fps 1600X1200 MJPEG@30fps YUY2@5fps
1920X1080 MJPEG@ 25fps YUY2@5fps 1280X960 MJPEG@30fps YUY2@5fps
1280X720 MJPEG@30fps YUY2@10fps 1024X768 MJPEG@30fps YUY2@10fps
800X600 MJPEG@30fps YUY2@25fps 640X480 MJPEG@30fps YUY2@30fps
320X240 MJPEG@30fps YUY2@30fps
Auto Focus
S/N ratio 34dB
Dynamic range 72.5dB
Sensitivity 0.65V/Lux-sec@550nm
Minimum illuminance 0.5 Lux
Shutter type: Electronic rolling shutter / Frame exposure
Connection port type: USB 2.0 High Speed
Free Drive Protocol USB Video Class (UVC)
OTG protocol USB2.0 OTG
AGC automatic
AEC auto
AWB auto
Adjustable parameters: Brightness, contrast, saturation, hue, sharpness, gamma, gain.
White balance, backlight, contrast, exposure
Lens parameters: AF LENS HFOV approx. 62 degrees
Power supply USB BUS POWER 4P-2.0mm socket
Operating voltage: DC 5V
Operating current 150mA~240mA
Operating temperature -10~70℃
Storage temperature -20~85℃
Board size / weight: 62.3 x 9 x 6 mm / approx. 20 g
Standard cable length: 1m
Operating system requirements:
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
UVC-compatible Linux (as shown above: linux-2.6.26)
MAC-OS X 10.4.8 or later
UVC compatible Android 4.0 or later
