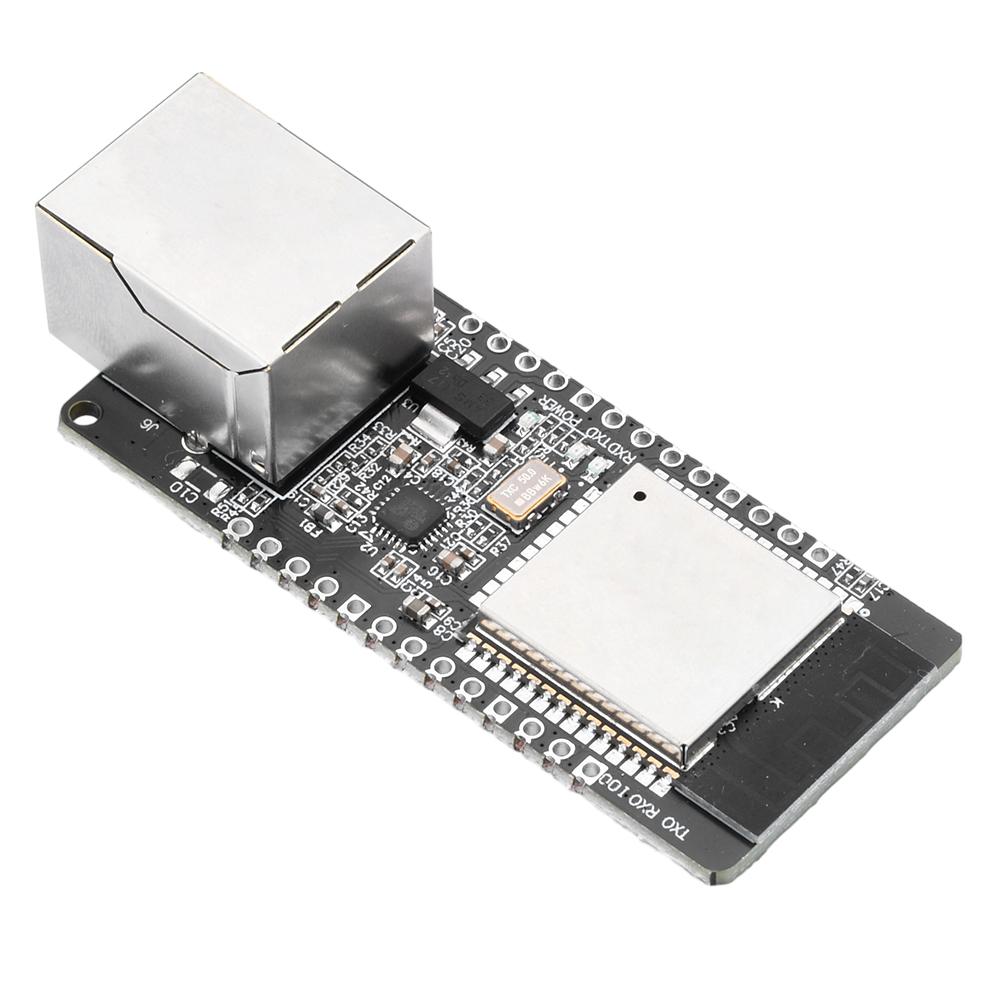

WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth-compatible WIFI Combo MCU ESP32 Electronic Wireless Module Board
Features:
1.ESP32-ETHO1 is an embedded serial-to-Ethernet module based on the ESP32 series.
2.The module integrates an optimized TCP/IP protocol stack, which makes it easy for users to complete the networking function of embedded devices, greatly reducing the development time cost.
3.The module is compatible with half-pad and connector through-hole design, and the board width is a universal width. The module can be directly soldered on the board, the connector can also be soldered, and it can also be used on the breadboard, which is convenient for users to use in different scenarios.
4.ESP32 series Ic is a Soc that integrates 2.4GHz Wi-Fi and Bluetooth dual-mode, with good functional performance.
5.The module has ultra-high RF performance, stability, versatility and reliability, as well as ultra-low power consumption.
Feature parameters:
Wi-Fi:
Protocol: 802.11 b/g/n/e/i (802.11n, up to 150 Mbps; A-MPDU and A-MSDU aggregation, support 0.4 _s protection interval
Frequency range: 2.4~2.5 GHz
Bluetooth:
Protocol: Compliant with Bluetooth v4.2 BR/EDR and BLE standards
RF: NZIF receiver with -97 dBm sensitivity
Hardware:
Network port specifications: RJ45, 10/100Mbps, cross-connection and direct connection adaptation
Serial port baud rate: 80~5000000
Onboard Flash: 32Mbit
Operating voltage: 5V or 3.3V power supply (select one)
Operating current: average 80mA
Power supply current: minimum 500 mA
Operating temperature range: -40°C~+85°C
Software:
Wi-Fi Mode: Station/softAP/SoftAP+station/P2P
Wi-Fi security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
Encryption type: AES/RSA/ECC/SHA
Firmware upgrade: Remote OTA upgrade via network
Software development: SDK for user secondary development
Network protocol: IPv4, TCP/UDP
IP acquisition method: Static IP, DHCP (default)
Simple transparent transmission method: TCP Server/TCP Client/UDP Server/UDP Client
User configuration: AT+ instruction set
Size: 63mm*25mm*16mm
Power supply voltage:
The power supply voltage of the module can be selected from 5V or 3V3, and only one of the two can be selected.
Power supply mode:
Users can freely choose according to their needs:
1) Through hole (welding pin header): Power supply by Dupont line connection; Power supply by breadboard connection;
2) Half pad (directly welded on the board): User board power supply.
Instructions for use:
Power-on instructions:
If using the Dupont line method: find the 3V3 or 5V power input port, connect the corresponding voltage, and the indicator light (LED1) lights up, indicating that the power-on is successful.
Indicator light description:
LED1: Power indicator light, power-on is normal, the light is on;
LED3: Serial port indicator light, when RXD2 (IO5) has data flow, the light is on;
LED4: Serial port indicator light, when TXD2 (IO17) has data flow, the light is on;
4.3 Instructions for use
Three methods of use, users can choose according to their needs:
1) Through hole (welding pin header): use Dupont line to connect;
2) Through hole (welding pin header): use on a breadboard;
3) Half solder pad: users can directly solder the module on their own board.
Network port working indicator light description
Green light: connection status indicator, the green light is on when correctly connected to the network
Yellow light: data indicator, flashes when the module receives or sends data, including when the module receives a network broadcast packet
Product list:
1X module
2X pin headers (unsoldered/soldered pin headers are optional)
