Quantity : 1
High-concerned chemical : none
Package : SMD
is_d : Yes
Dissipation Power : STM32H750VBT6 Development Board
Supply Voltage : 5V
Type : Module
Brand Name : Gaqqee
Origin : Mainland China
Condition : New
Operating Temperature : 0-50C
Features:
1. High performance microcontroller: using ARM Cortex-M7 core, with excellent computing performance.
2. Enrich peripherals and security features: meet high-performance and high security requirements in multiple fields.
3. Wide application: Suitable for industrial automation, medical equipment, and consumer electronics.
4. Advanced security features: Ensure the data security and reliability of smart devices.
5. Flexible and multifunctional: Suitable for complex application scenarios of the Internet of Things and Industry 4.0.
Product Introduction:
STM32H750VBT6 is a high-performance microcontroller belonging to the STM32H7 series products. This series is designed based on the ARM Cortex-M7 core, aiming to provide high computing performance and advanced security features. The STM32H7 series was developed to meet the demands for high performance, energy efficiency, and safety in industries such as healthcare and consumer electronics.
STM32H750VBT6 is widely used in various complex embedded systems due to its high-performance CPU, rich peripherals, and security features. These applications include but are not limited to industrial automation, medical equipment, consumer electronics, communication devices, automotive electronics, and industrial control systems. For example, it can be used in industrial robots, medical imaging equipment, advanced audio/video processing systems, communication gateways, and in car infotainment systems.
It combines high-performance computing power and advanced security features, which are crucial for the reliability and data security of modern smart devices. With the development of the Internet of Things and Industry 4.0, there is an increasing demand for microcontrollers that can handle large amounts of data, run complex algorithms, and resist network attacks. Its versatility and flexibility make it one of the platforms for modern electronic designers.
Parameter:
Main frequency 480MHZ, on-chip 128KFlash, 1M SRAM

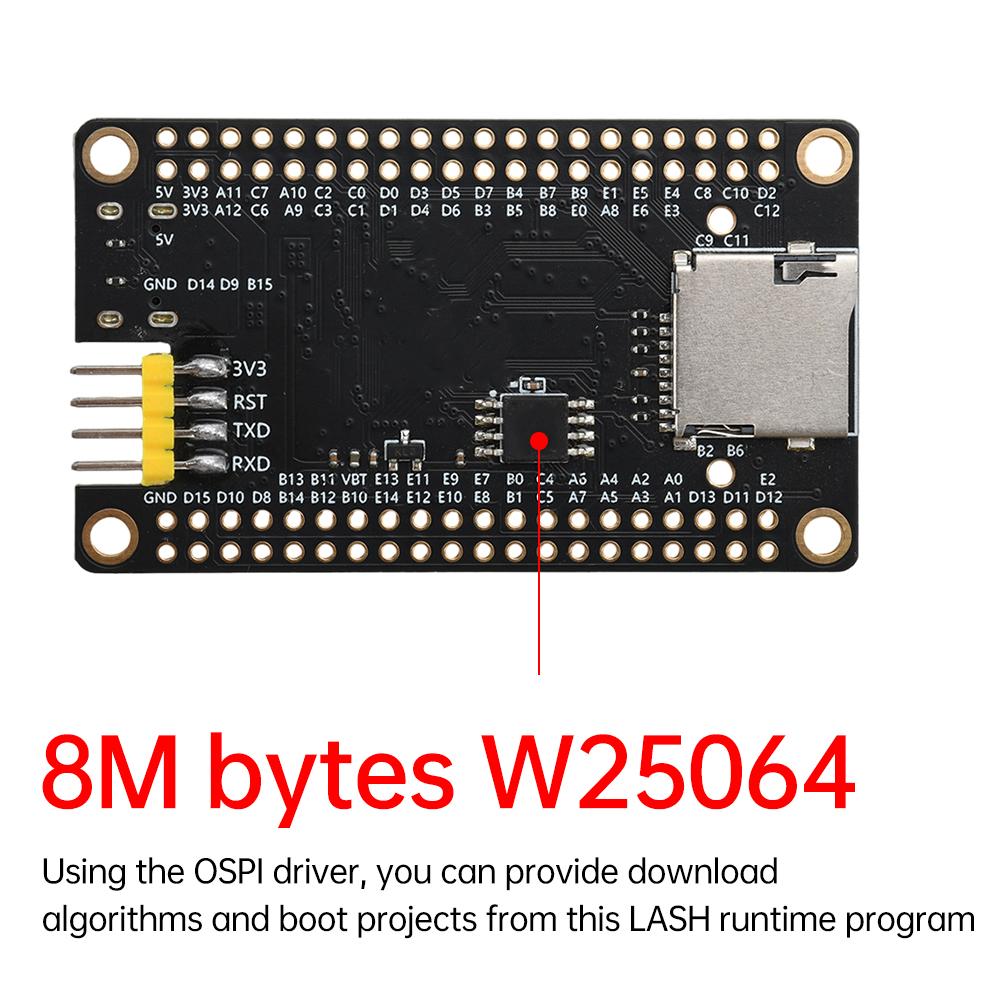

External expansion W25Q64, capacity 8M bytes

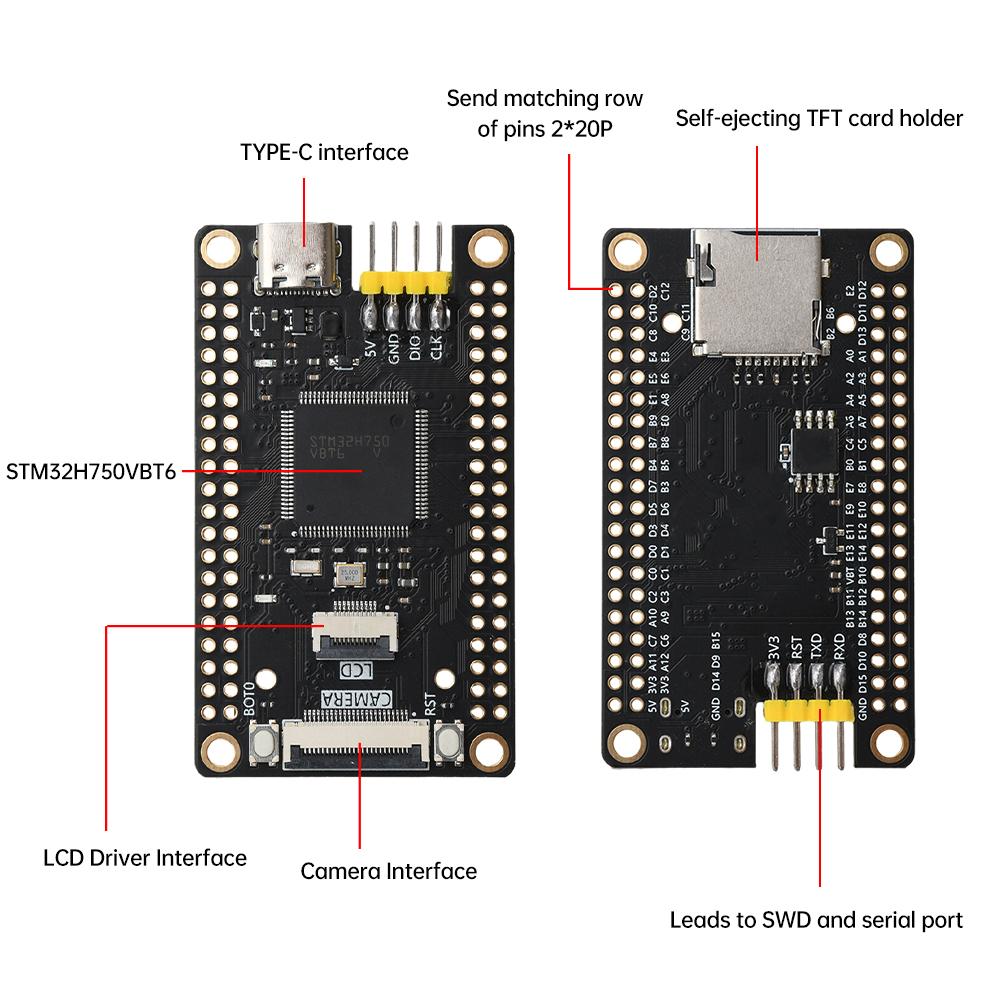

1 reset button, 1 user button, 1 B0OT button
1 user LED, 1 TypeC interface, 1 TF card interface
1 SPI LCD and camera interface
Introduce 73 I0 ports
Working environment temperature -30~80 ℃
Size 63.2mm * 36.2mm (with a deviation of approximately ± 0.4mm)
Power supply instructions: It is recommended to use 5V or USB to power the core board. [Choose one of the two power supply routes. Due to the high power consumption of 750, if using 3.3V power supply, please ensure that the 3.3V power supply has sufficient power supply capacity (above 400mA).]
Power consumption description:
When STM32H7 is disabled in all peripherals, as shown in a typical power consumption table, running at a frequency of 480M will result in very high power consumption and severe microcontroller heating. Therefore, it is recommended to use a USB voltmeter and ammeter to monitor the power consumption status of the core board in daily development.
Note: It is strongly recommended to use 5V or USB to power the core board, which can minimize the risk of burning out the microcontroller due to connecting the wrong power supply. Many boards burn out due to connecting the wrong power supply. Using the built-in voltage regulator IC on the core board can reduce the impact of external power on the microcontroller.
Package Include:
1 * Development board

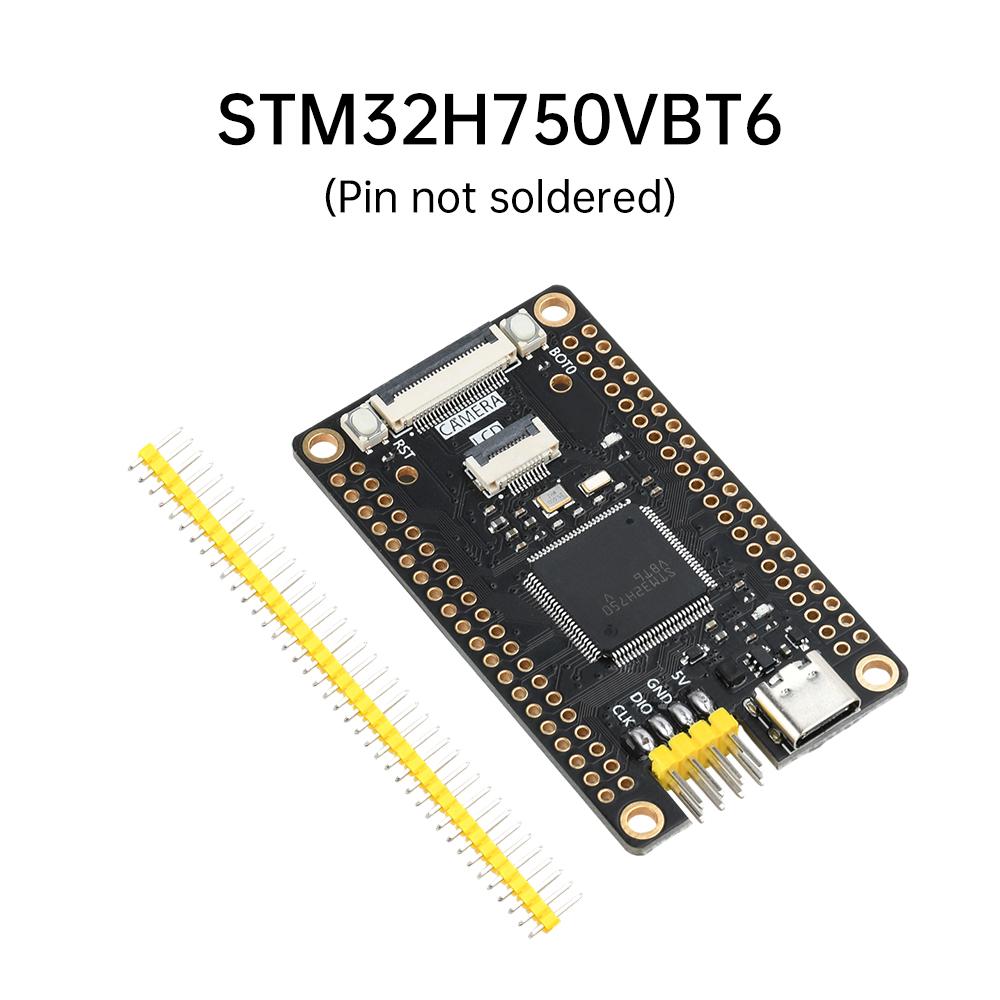

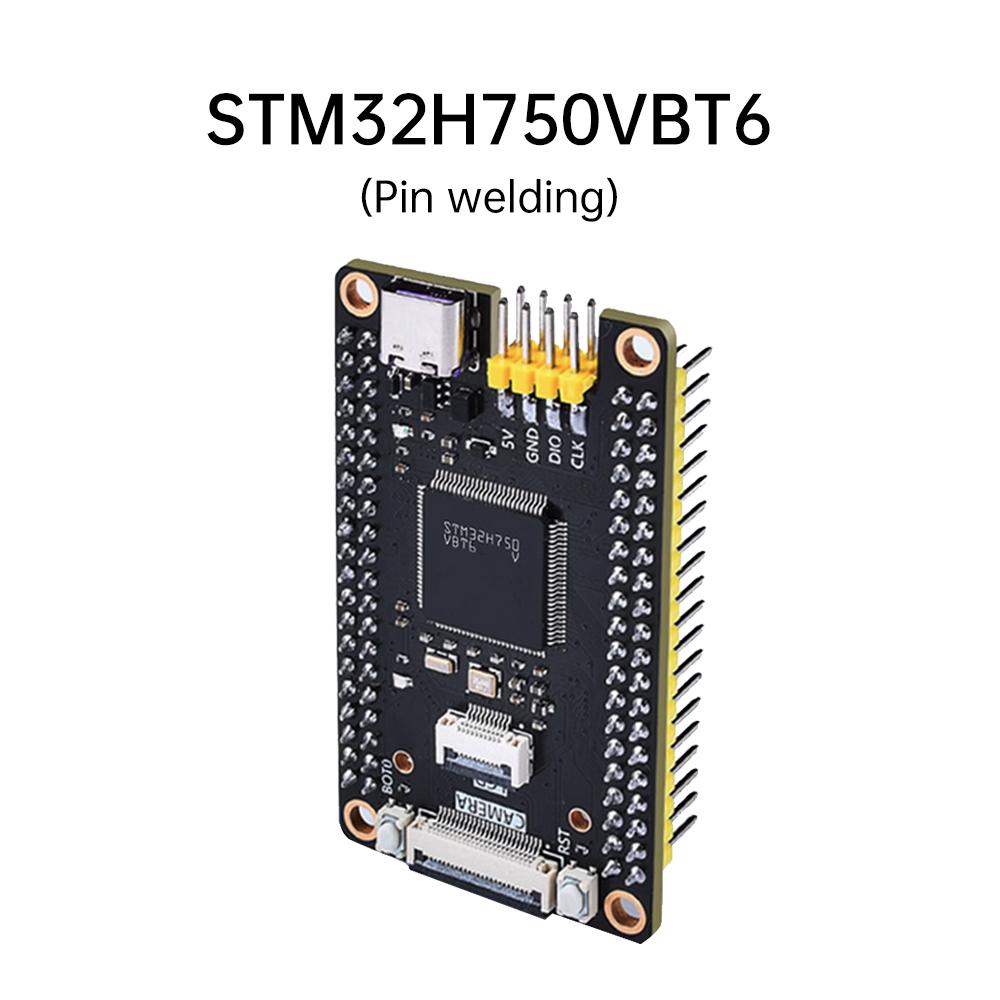

1 * 40P dual pin (non welded/welded pin can be selected)
label:yes
