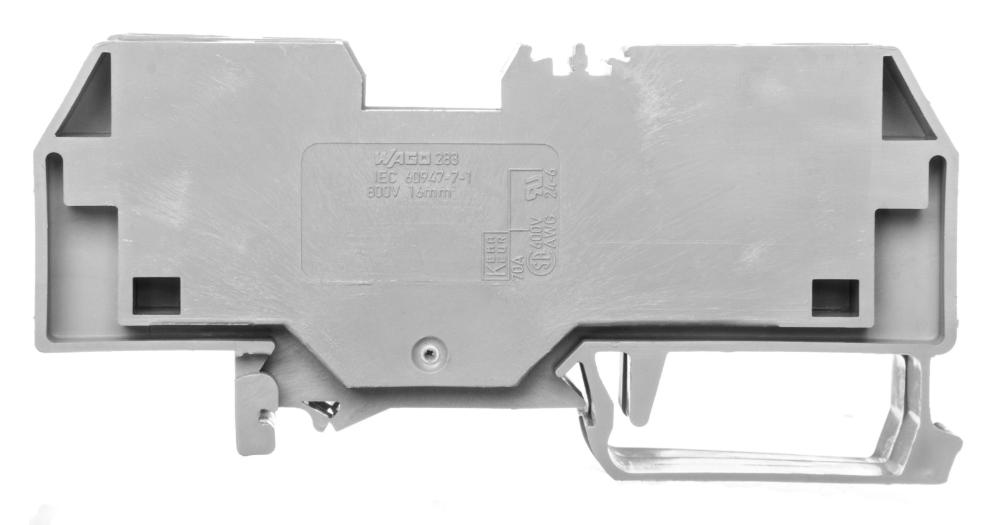

2-Wire Rail Connector 16mm2 Gray 283-901

Length [mm]: 94.5

Manufacturer's index: 283-901

Insulating material flammability class according to UL94: V0

Rated current In [A]: 76

Cross-section of the connected solid wire [mm2] up to: 16

Cross-section of a solid conductor [mm2] from: 0.2

Cross-section of a stranded conductor without ferrule: 16

Cross-section of a multi-core conductor [mm2] up to: 16

Cross-section of a multi-core conductor [mm2] from: 0.2

Type of electrical connection 1: Spring terminal

Type of electrical connection 2: Spring terminal

series: 283

Width / grid size [mm]: 12

Explosion-proof version "EEx e": No

Height with lowest mounting type [mm]: 37.5000

Operating temperature range from/to [°C] to: 105

Operating temperature range from/to [°C] from: -35

CN: 85369010 Length: 95 EAN: 4044918297615 Color: Gray Number of levels: 1 Number of terminals per level: 2 Connection position: From above/top Type of insulating material: Thermoplastic Mounting method: DIN mounting rail 35 mm Width: 45 Weight: 0.0400 Internal floors bridged: No Closing plate required: Yes Height: 12
