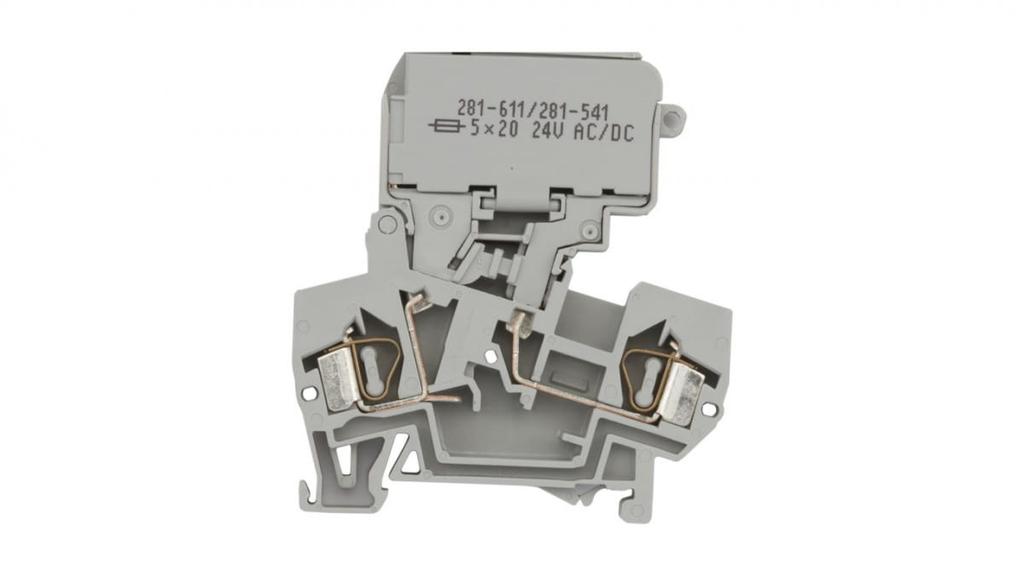

Fuse Connector 4mm2 Gray 10A 5X 20mm 281-611/281-541

Length [mm]: 60

Manufacturer's index: 281-611/281-541

Insulating material flammability class according to UL94: V0

Rated current In [A]: 10

Cross-section of the connected solid wire [mm2] to: 4

Cross-section of a solid wire to be connected [mm2] from: 0.08

Cross-section of a stranded wire without ferrule: 4

Cross-section of a multi-core wire to be connected [mm2] up to: 4

Cross-section of a multi-core wire to be connected [mm2] from: 0.08

Type of electrical connection 1: Spring terminal

series: 281

Width / grid size [mm]: 8

Height at lowest mounting position [mm]: 60

Operating temperature range from/to [°C] to: 105

Operating temperature range from/to [°C] from: -35

CN: 85369095 Length: 70 EAN: 4045454871451 Color: Gray Number of levels: 1 Connection position: From above / at the top Type of insulating material: Thermoplastic Type of fuse holder: Plug-in Type of fuse insert: G fuse 5x20 mm Type of operating indicator: LED Mounting method: DIN mounting rail 35 mm Width: 60 Weight: 0.0200 Closing plate required: Yes Height: 10 Size: 20mm
