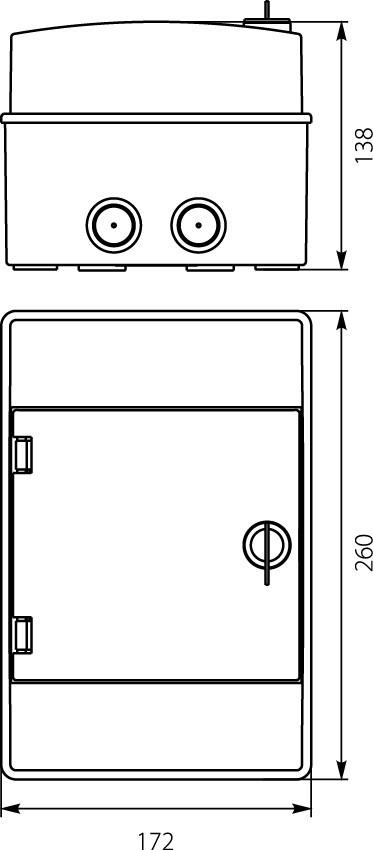

RH-4B Surface-mounted distribution board 36.03
Hermetic distribution boards of the RH series with IP65 protection degree are used in industrial construction.
They are equipped with a TH35 rail and N and PE terminal blocks as standard.
The IP degree in the RH switchboard is ensured by two types of sealing, consisting of a seal within the enclosure and the front part of the cover and an additional seal for the cover and glass.
The front part of the switchboard has a door in transparent color or the color of the housing.
The door can be opened to the left or right by turning the hinges to the appropriate side, and can be locked using a metal lock with a key.
High-quality product, made of the highest quality materials.
Suitable for indoor use.
Products of Elektro-Plast Sp. z o.o. were recognized by being awarded the TÜV Rheinland certificate.
RH "NEO" series hermetic switchboards are designed for home and industrial use with the possibility of installing overcurrent circuit breakers and electrical devices.
They are available in a surface-mounted version and are widely used in installations performed outside buildings.
Distribution boards equipped with white doors opening to the side (left or right).
Adapted to mount a key lock, available with a transparent, tinted door. color.
Made of high-quality plastic - ABS - resistant to high temperatures up to 960°C (hot wire test - applies to the terminal strip).
Operating stability from -25°C to +60°C.
Impact resistance (IK grade 07).
Possibility to install devices with a depth of 68 and 75 mm.
Models with 12 modules and larger are equipped with knockouts in the walls for cable entries and installation tubes.
Possibility to seal the door.
The switchboards are equipped with terminal strips for N and PE tracks, a TH 35 mounting bracket, and a self-adhesive label for descriptions.
application | industrial construction
quantity modules | 4
number of rows | 1
N+PE rails | yes
PE clamps | 5x (1.5-16)
N Clamps | 5x (1.5-16)
degree of protection |
protection class |
100A / AC
ABS / PC material
case color | white
application in temperatures | from -25°C up to +60°C
mechanical impact resistance | IK 07
DIN rail (TH/TS 35) | yes
possibility of sealing access to the interior of the switchboard (sealing pads) | yes
self-adhesive label for the description of modular equipment | yes
terminal strips for N and PE | yes
standards | PN-EN 62208:2011
manufacturer's identification | 36.03
symbol | RH-4/B
EAN code | 5905548284415
weight | 0.2 kg
