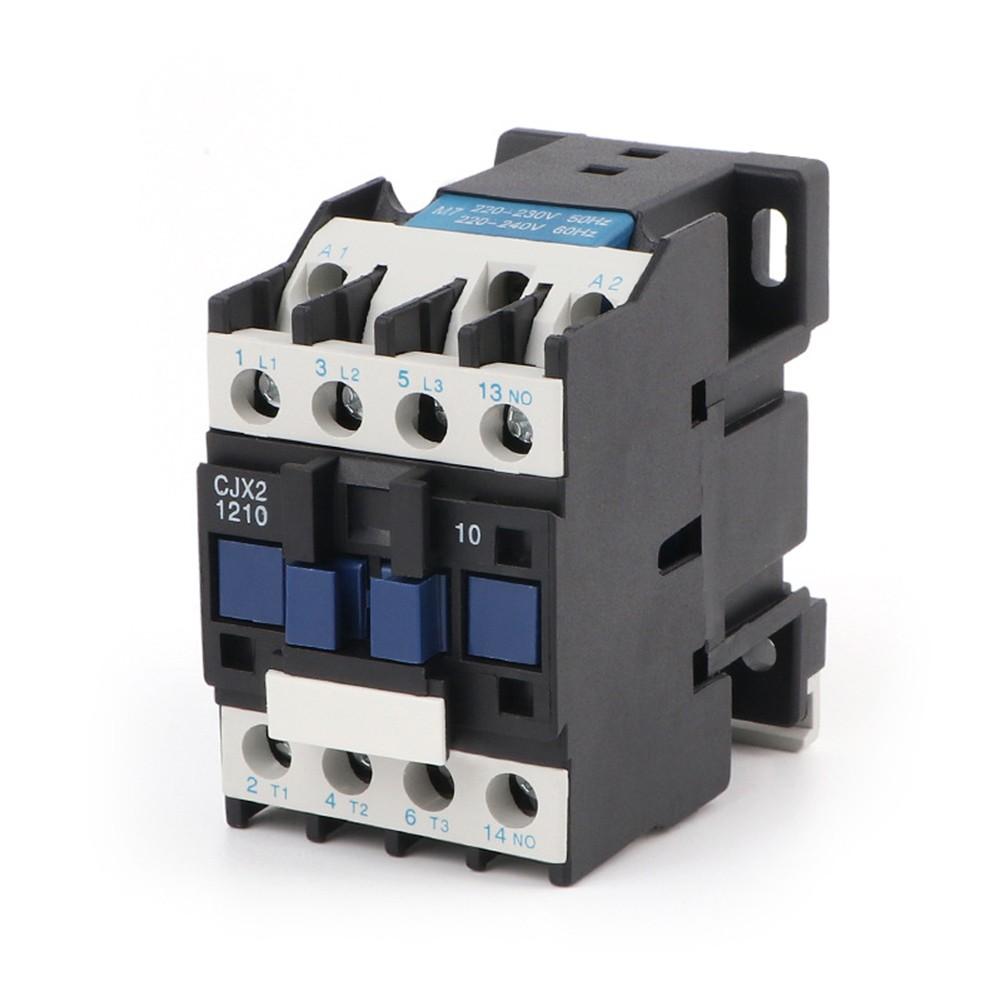

AC220V Coil Voltage AC Contactor Din Rail Contactor Rated Current 12A

Features: 3P 12A AC for Contactor – Provides reliable switching control for single-phase motors, pumps, and industrial equipment, stable operation under rated loads. Household & Industrial Use – for Model CJX2-1210 with a 220V AC 50/60Hz coil, rated at 12A. Universally for compatible with standard control voltage systems for easy integration. 1 Normally Open Auxiliary for Contacts – Offers an additional control circuit for automation and signal control, enhancing functionality in complex setups.

for DIN Rail Mounting Design – Compact dimensions (82 x 76 x 47mm) allow for quick and easy installation in control panels, saving space and simplifying assembly. AC-Optimized Design – Specifically for AC power input, with key components such as the electromagnetic and contacts systems optimized for AC characteristics. Important: Only use within the specified AC voltage range. Do not power with DC supply, as it is designed to work stably with AC power only.

Specification: Part Name: AC for Contactor Color: as show Material: Plastic Model: CJX2-1210 Coil Rated Voltage: AC220V Rated Current: 12A Auxiliary for Contacts for Type: 1NO Number of Poles: 3P Electrical Life: 1 million cycles Mechanical Life: 10 million cycles Size: 82*76*47mm

Package Content: 1*AC for Contactor

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your and light brightness. 2. Please allow slight manual measurement deviation for the data.
