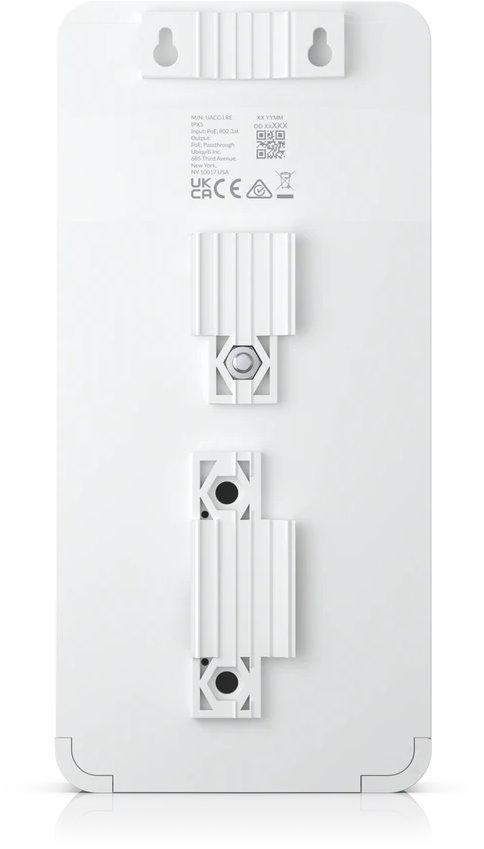

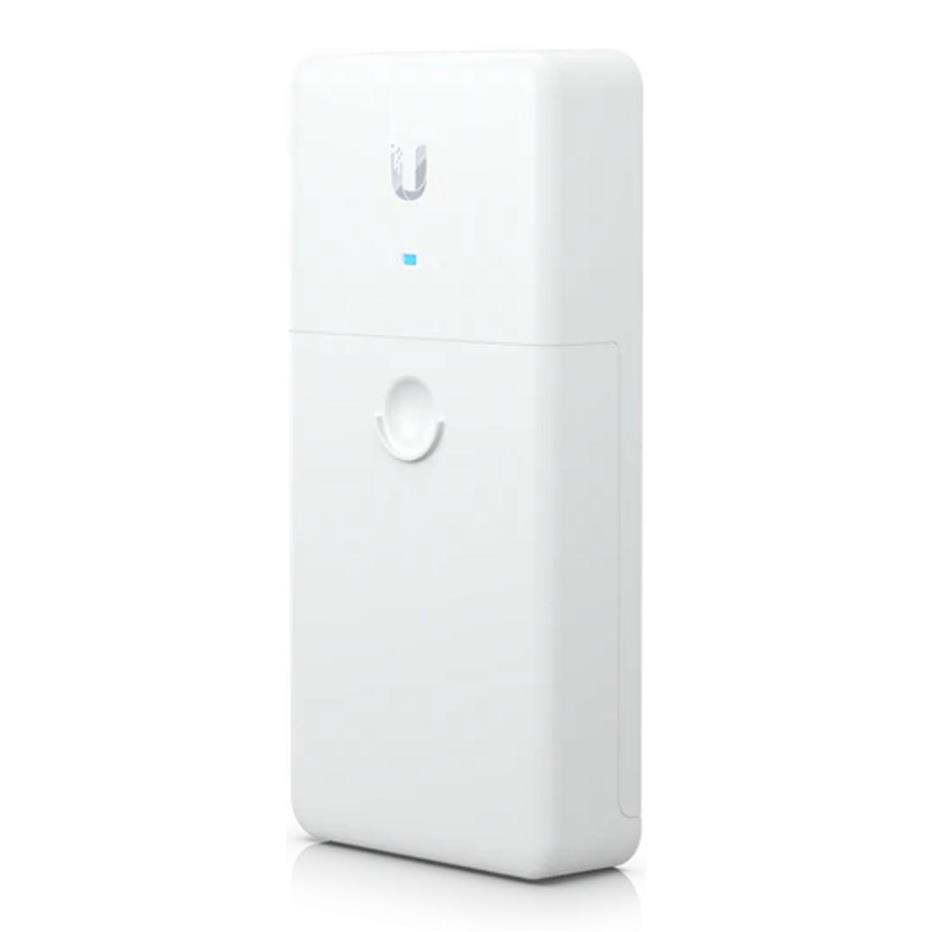

UBIQUITI REPEATER POE (UACC-LRE)
UBIQUITI REPEATER POE - Key features:
• Increases the range of Ethernetcable and PoE power
• 2x gigabit ports Ethernet
• PoE IN and PoE OUT
• Surge protection 10kA+
• Housing adapted for outdoor use (from -40 to 80° C)
• Support for PoE 802.3af/at
UBIQUITI POE REPEATER - Application:
• Ubiquiti Long-Range Ethernet Repeater (UACC-LRE) is a PoE extender (up to 1km) with 2 Gigabit Ethernet ports. This long-range Gigabit Ethernet adapter receives 802.3af/at PoE/PoE+ and offers pass-through PoE output.
• The UACC LRE can receive 802.3af/at PoE/PoE+ while also providing PoE output. You can also chain multiple UACC LRE adapters together to connect access points and cameras that are far from a PoE switch.
The UACC LRE also offers 10kA+ surge protection and operates reliably in extreme temperatures (-40 to 80°C) to protect your deployment from weather and electrical damage. Supports links up to 1km.
• Deployment tests: 9x UACC LRE daisy-chained to an end device (e.g., camera, access point) via 10x 100m UISP Cable Pros, all powered by a UniFi PoE+ switch.
1km link distance is only possible for devices with a maximum power consumption of 7W or less.
UBIQUITI POE REPEATER - Specifications Technical data:
• Dimensions:196.5 x 93.5 x 39 mm (7.7 x 3.7 x 1.5")
• Weight:350 g (12.3 oz)
• Housing material:UV-stabilized polycarbonate
• Mounting material:Stainless steel
• Protection class:IPX5
• Hardware:

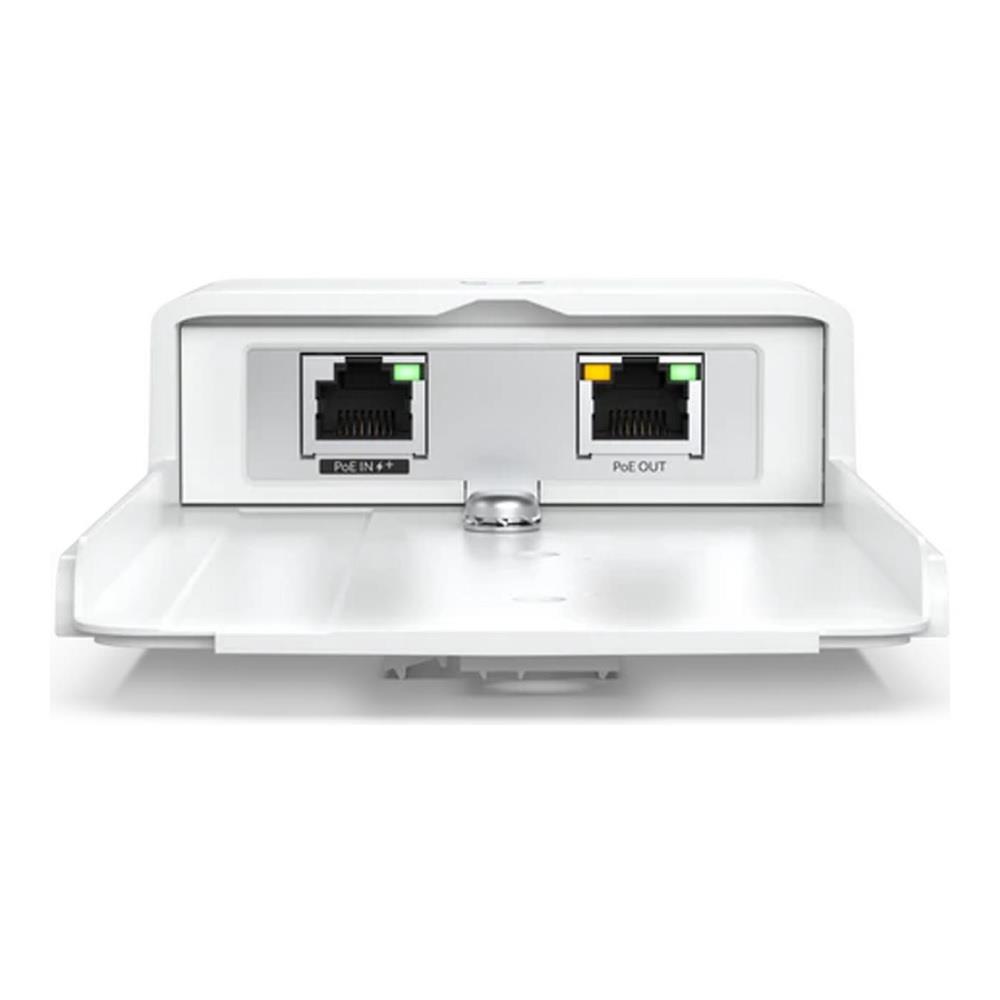

• Network interface:2x Gigabit Ethernet RJ45 ports
• Power supply:802.3af/at PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-)
• Max. power consumption (not including PoE out): 1.5W
• Voltage range: 37 to 57VDC
• PoE interface: 1x Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)
• ESD/EMP protection: Air/contact: ± 30kV
• DC pulse breakdown voltage: 90V at 100V/s
• Maximum pulse breakdown voltage: 700V at 1kV/μs
• Discharge current: 10kA+
• Modes: Long-range indoor
• Outdoor ethernet repeater
• Operating temperature: -40 to 80° C (-40 to 176° F)
• Operating humidity: 10 - 95% non-condensing
• Certifications: CE, FCC, IC
• LEDs:
• System: 1x blue: power ON
• Ethernet: 2x green: 1 Gb/s, amber: 10/100 Mb/s
• PoE: 1x amber: passthrough PoE out
