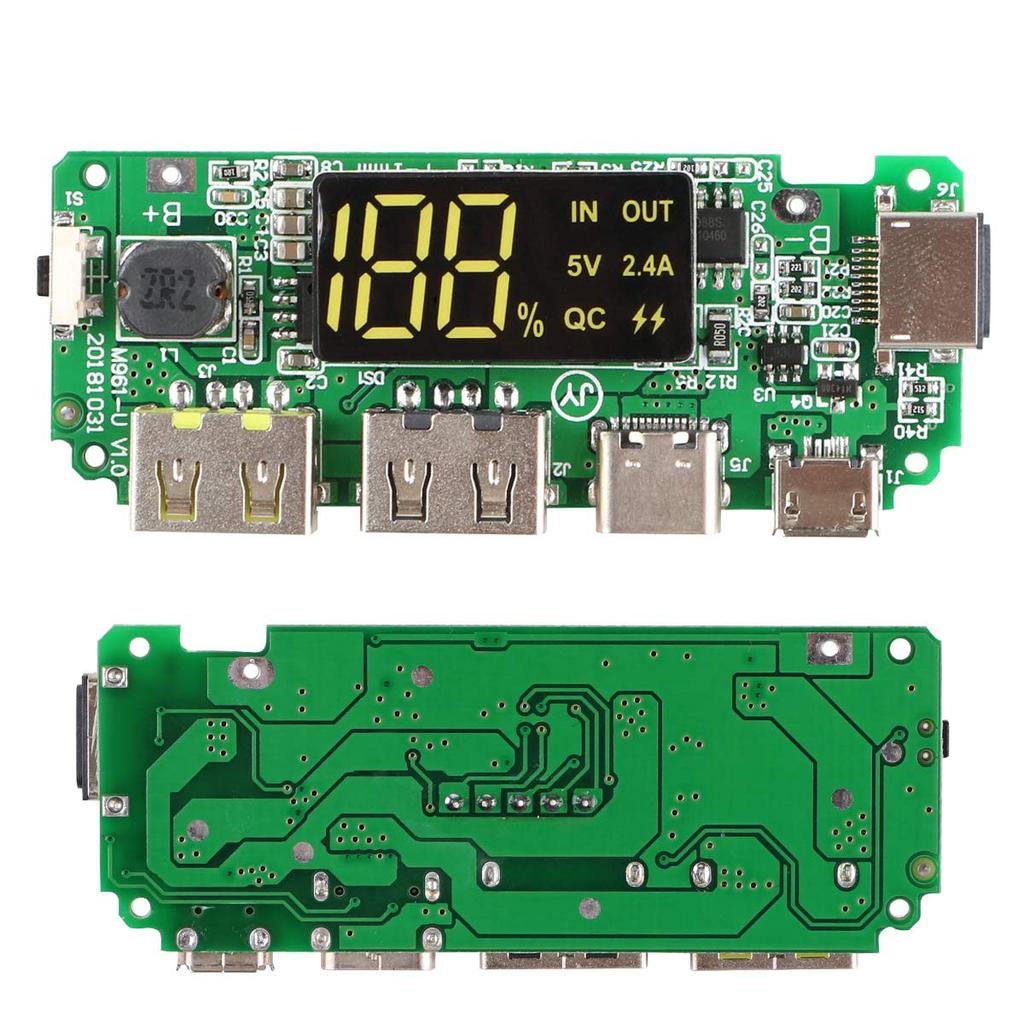

LED Dual USB 5V 2.4A Micro/for Type-C/ for USB Power Bank 18650 Charger Board Overcharge Overdischarge Short Circuit Protection

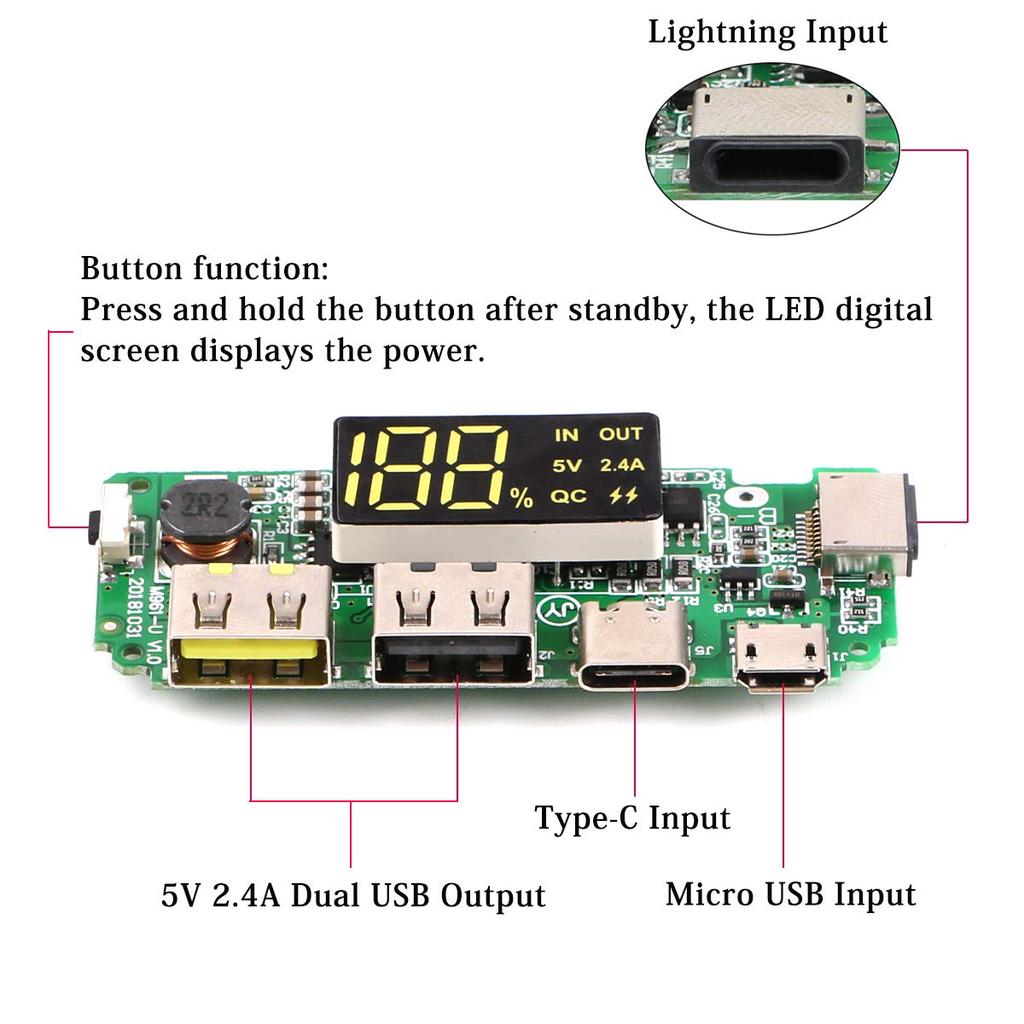

Description Item type: Dual USB 5V 2.4A 18650 Charger Power Bank Charging Board Size: 6.5 * 2.5 * 0.1cm Weight: 10.8G IR of PCM : 65 m&; or less Allowed 0V change: Yes Constant current: 2.4A Dual output current: 5V 2.4A Input voltage B+ to B-: 3.0 - 4.2V Charging cable: support three type of USB Cables for iPhone & Andriod Type-C Micro USB Button function: Press and hold the button after standby, the LED digital screen displays the power Prevent Overcharge Protection Detection voltage: 4.20+-0.05V Release voltage: 4.100+-0.05V Detection delay time: less than 200 ms [Prevent Overdischarge Protection] Detection voltage: 3.0+-0.10V Release voltage: 3.10+-0.10V Detection delay time: less than 100 ms Short Circuit Protection: Short detection delay time: less than 50μS Release Conditions: Cut off load [Normal Current Consumption] Normal current consumption of PCM: Max 60μA Stanby current consumption: Max 50μA Suggest Working Conditions: Max continuous charge/discharge current: 1.5/2.4A Suggest working temperature: -5～45℃

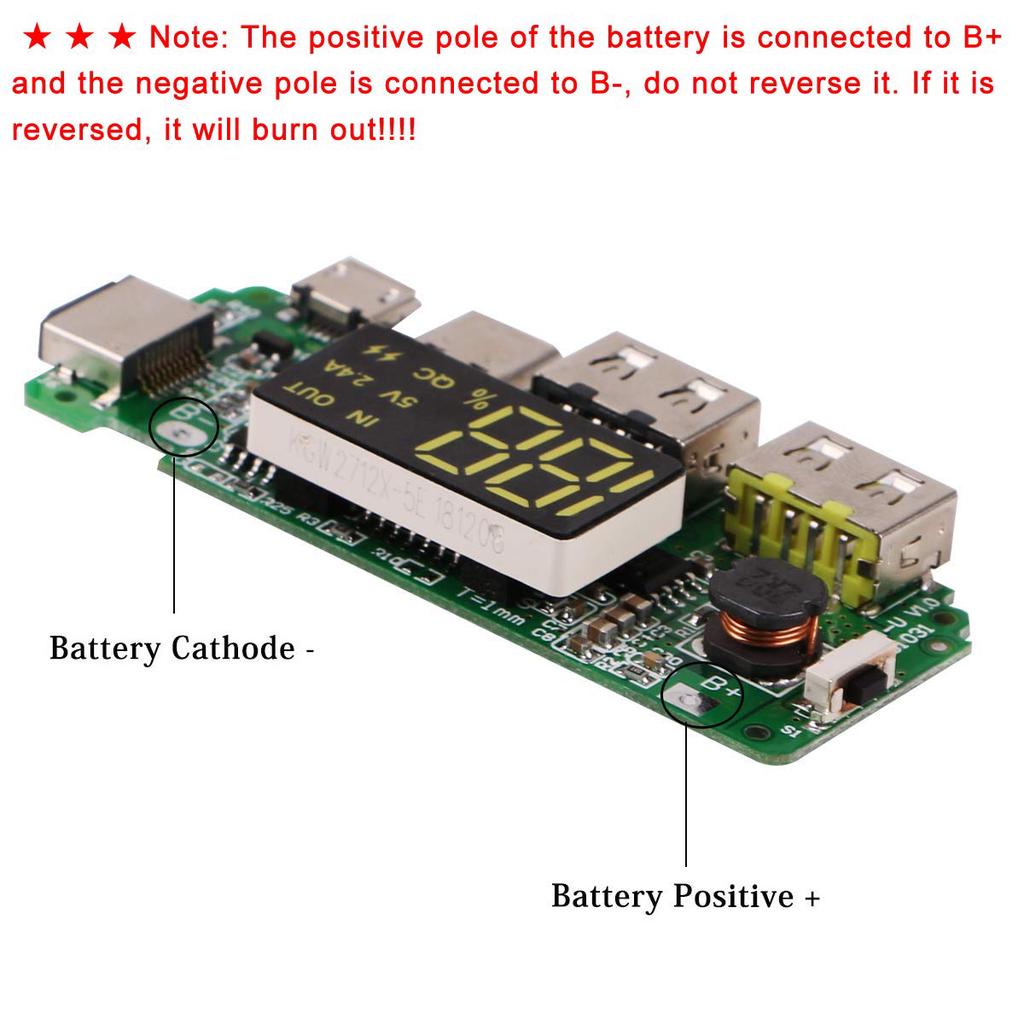

Packing list: 1 * Dual USB 5V 2.4A 18650 Charger Power Bank Charging Board Note: The positive pole of the battery is connected to B+ and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out! This module is a portable backup power supply with an input that matches the 5.0V adapter to charge the internal battery. Use built-in battery for portable device to provide 5.0V/3.0A USB2.0 supply output for external devices. The colors deviation might differ due to different monitor settings.
