300/box Waterproof Solder Seal Heat Shrink Butt Wire Connectors Terminals Electrical Wire Cable Connectors Terminals

Does it include wireless functionality? : No Does it include a Battery? : No EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc High-concerned chemical : none Model Number : soldering connector is_customized : Yes Type : Splice Origin : China

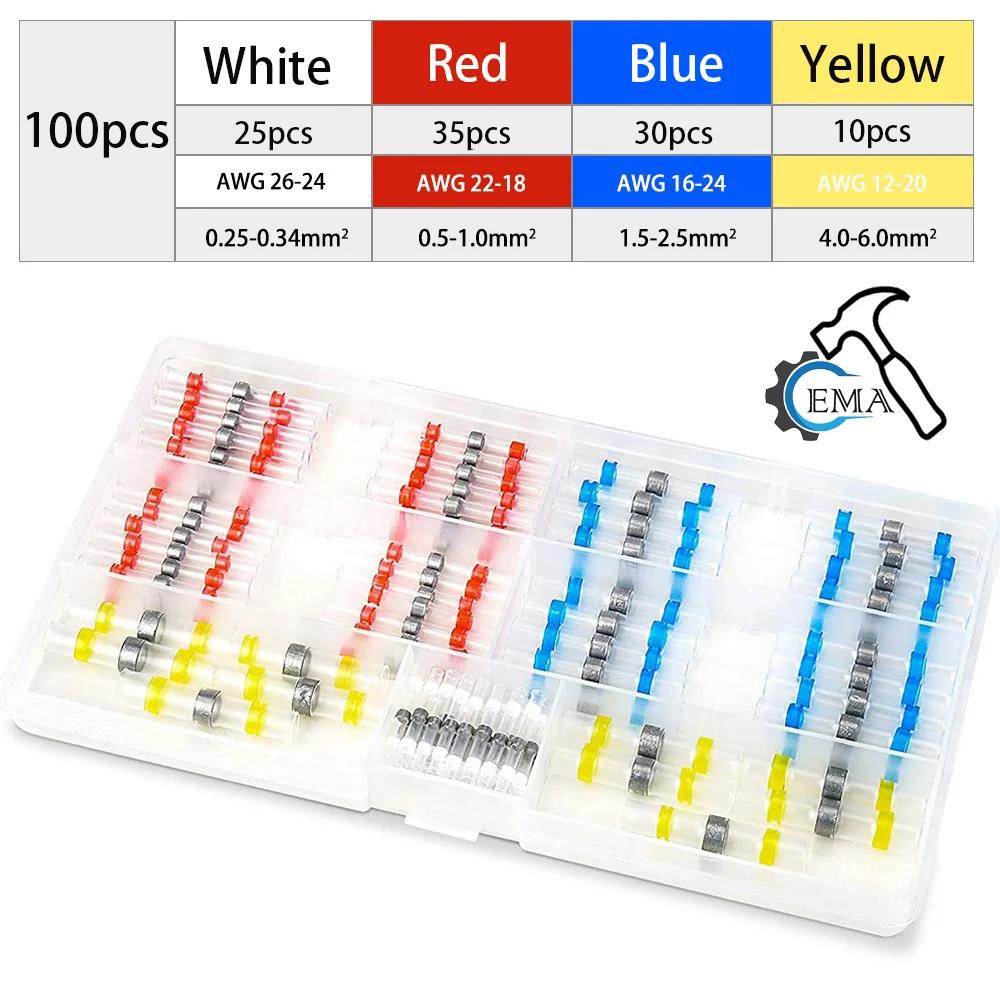

Wire Range (mm) : 0.25-0.34mm 0.5-1.0mm 1.5-2.5mm 4.0-6.0mm Wire Range (AWG) : 26-24AWG 22-18AWG 16-14AWG 10-6AWG Unit Type : piece Package Weight : 0.1kg Package Size : 10cm x 1cm x 1cm (3.94in x 0.39in x 0.39in)

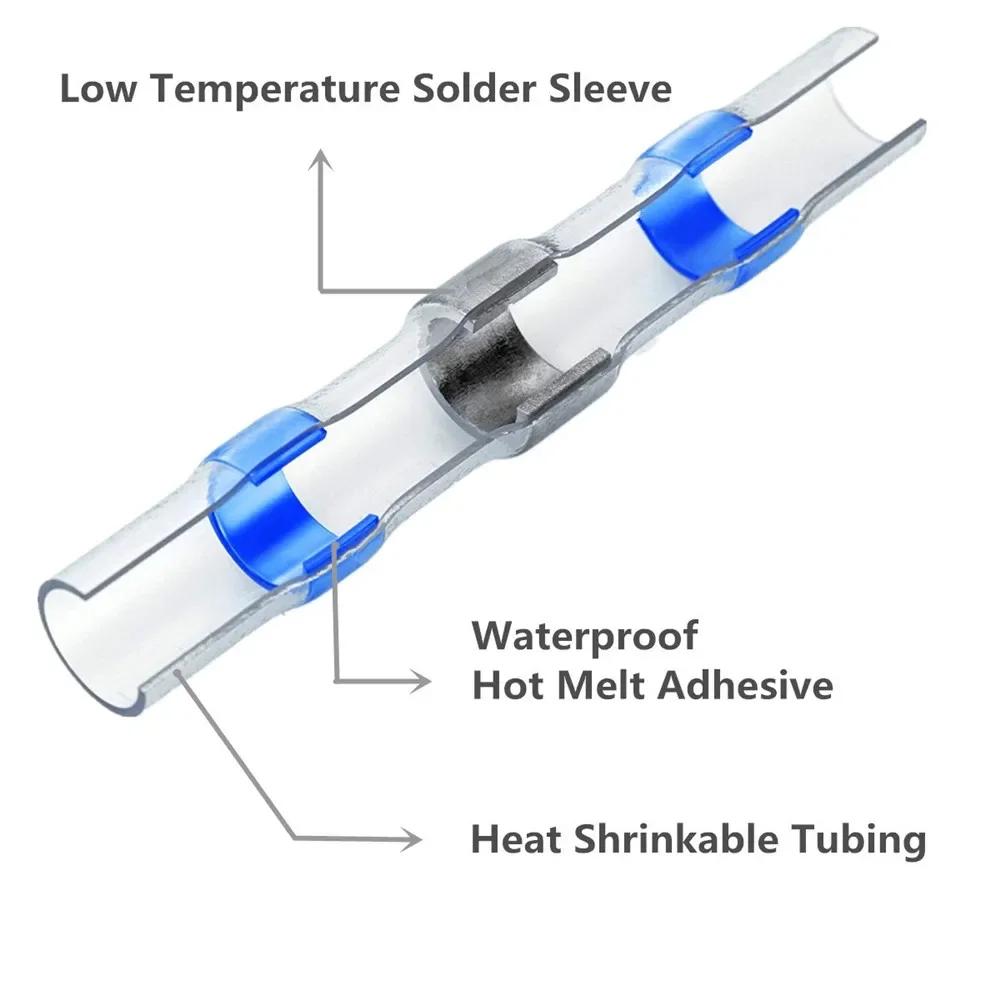

● color: yellow, blue, red, white，Green ● minimum melting temperature of solder: 138 ° C ● minimum shrinkage temperature: 80 ° C ● working temperature: - 55 ℃ - 125 ℃ ● shrinkage temperature: ＞ 160 ℃ ● 12-10A.W.G 4.0-6.0mm²(YELLOW) ● 16-14A.W.G 1.5-2.5mm²(BLUE) ● 22-18A.W.G 0.5-1.0mm²(RED) ● 26-24A.W.G 0.25-0.34mm² (White) ● 18-16 AWG / 0.75-1.5 mm²（Green） ● 14-12 AWG / 2.5-4.0mm² （Green） shrinkage is 2:1 double wall design pipe: the outer part is polyolefin pipe and the inner part is hot melt adhesive color coding connector tube heat activated waterproof adhesive low temperature welding sleeve the internal solder and hot melt adhesive can be completely waterproof. waterproof solder connector can prevent wire corrosion. meet RoHS, ISO 9001:2008, SGS and CE standards.
