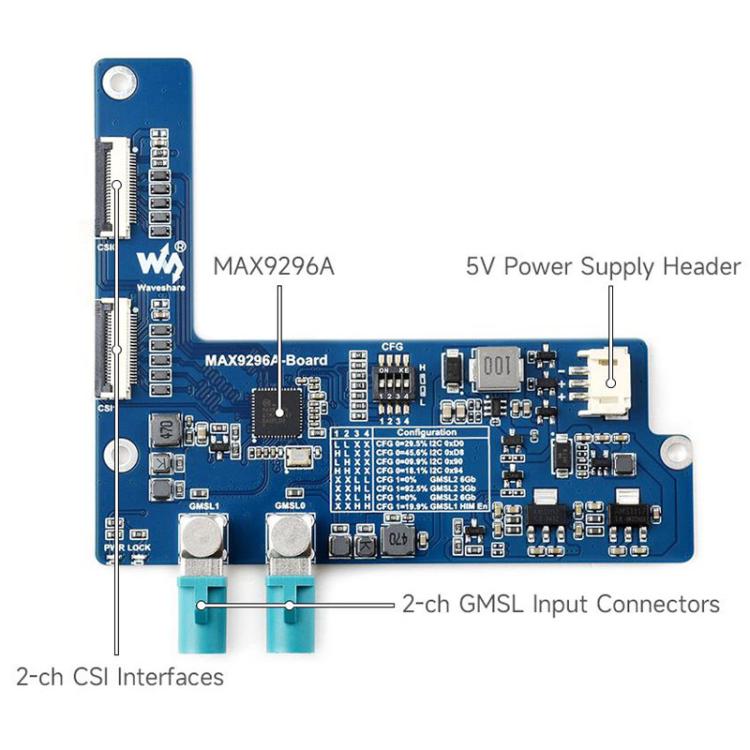

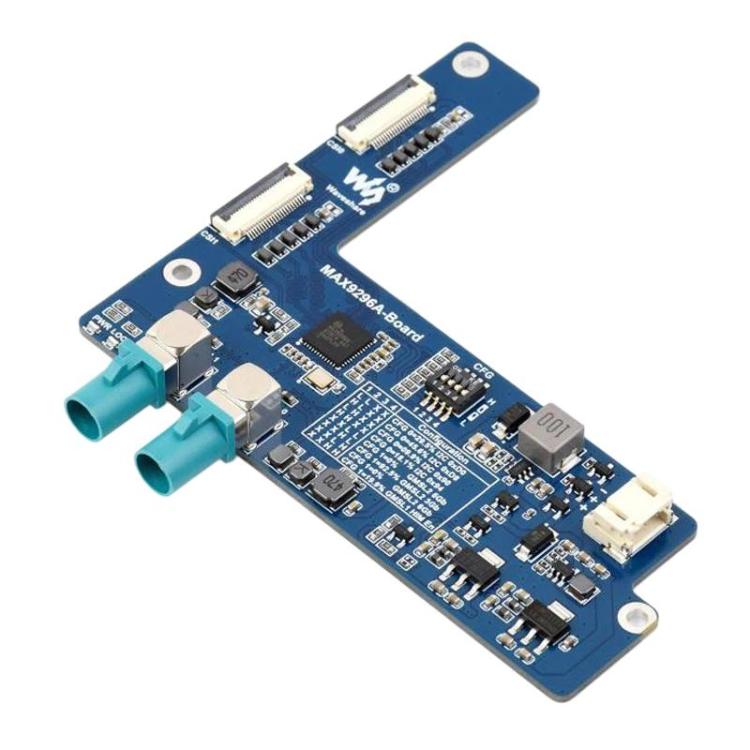

2-Ch GMSL Camera Adapter Board Equipped With MAX9296A Deserializer High-Speed And Low-Latency Serial Transmission

2-Ch GMSL Camera Adapter Board Equipped With MAX9296A Deserializer High-Speed And Low-Latency Serial Transmission

1. Deserializer: MAXIM (ADI) MAX9296A 2. Supported hosts: Raspberry Pi 5, Jetson Orin NX/Nano development kits 3. Supported serializer models: MAX9295, MAX96717, MAX96705, etc. 4. GMSL input: 2 x GMSL2 (GMSL1 compatible) cameras 5. Input interface: 2 x MATE_AX FAKRA Z connectors 6. Output interface: 22-pin CSI interface 7. Supported GMSL camera models: ISX031, etc. 8. Power supply: 5V input Package contents: - MAX9296-GMSL-DESER-MODULE x 1 - 22-pin FFC cable (about 100mm) x 2 - PH2.0 3-pin connector cable x 1 - Screw kit x 1
