Feature:

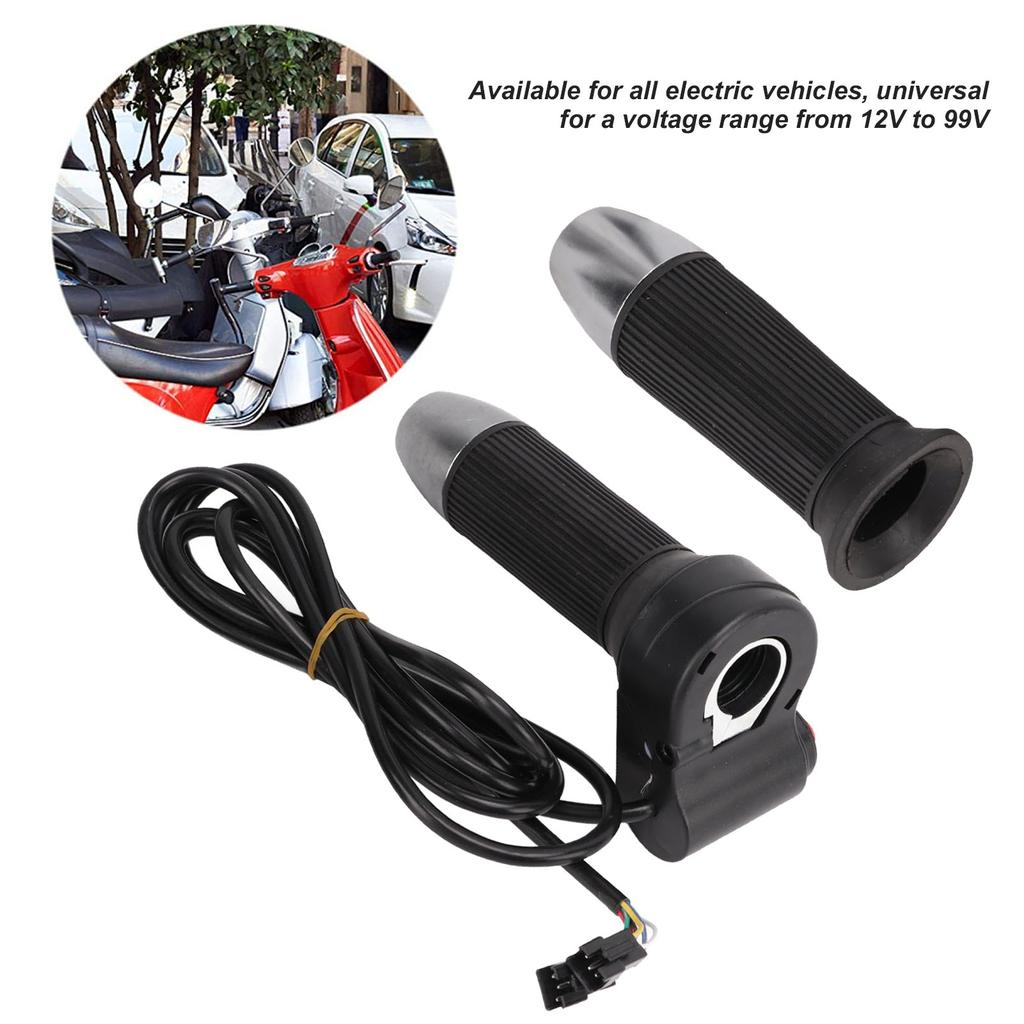

1. High Compatibility: Available for all electric vehicles, universal for a voltage range from 12V to 99V with automatic identification function.
2. Suitable Range: Suitable for the handle bar with a diameter of 2.3cm/0.9in, please check the size before placing your order.
3. Wide Application: Has a wide application, no matter about the battery type is sealed or lithium battery, water battery or dry battery.
4. 6 Cores: Adopts 6 core wires, yellow wire connects to the positive pole of the power supply, the blue wire and the white wire are the functional wire.
5. Friendly Tips: Please wiring while checking controller function line, can not simply connect controller wires by colors, the wrong connection will cause damage to the controller or handle.
Specification:

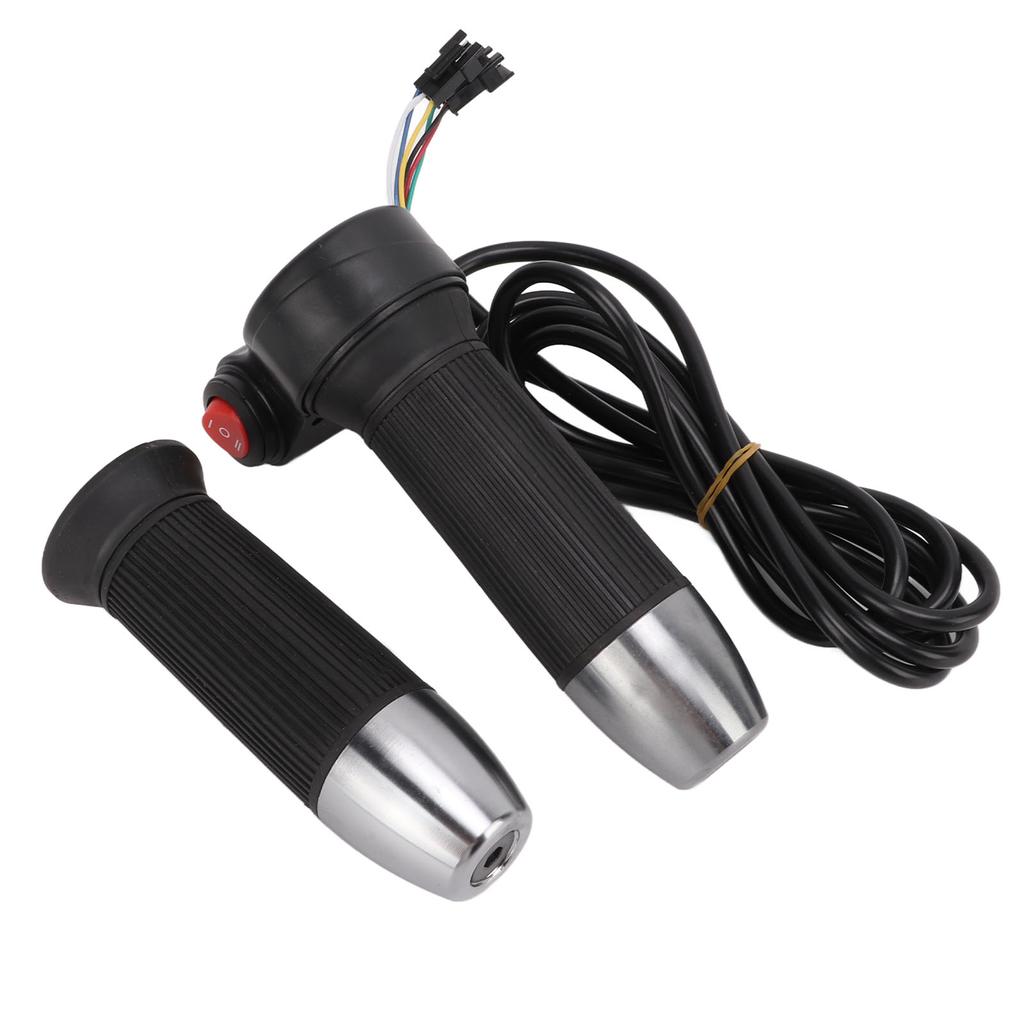

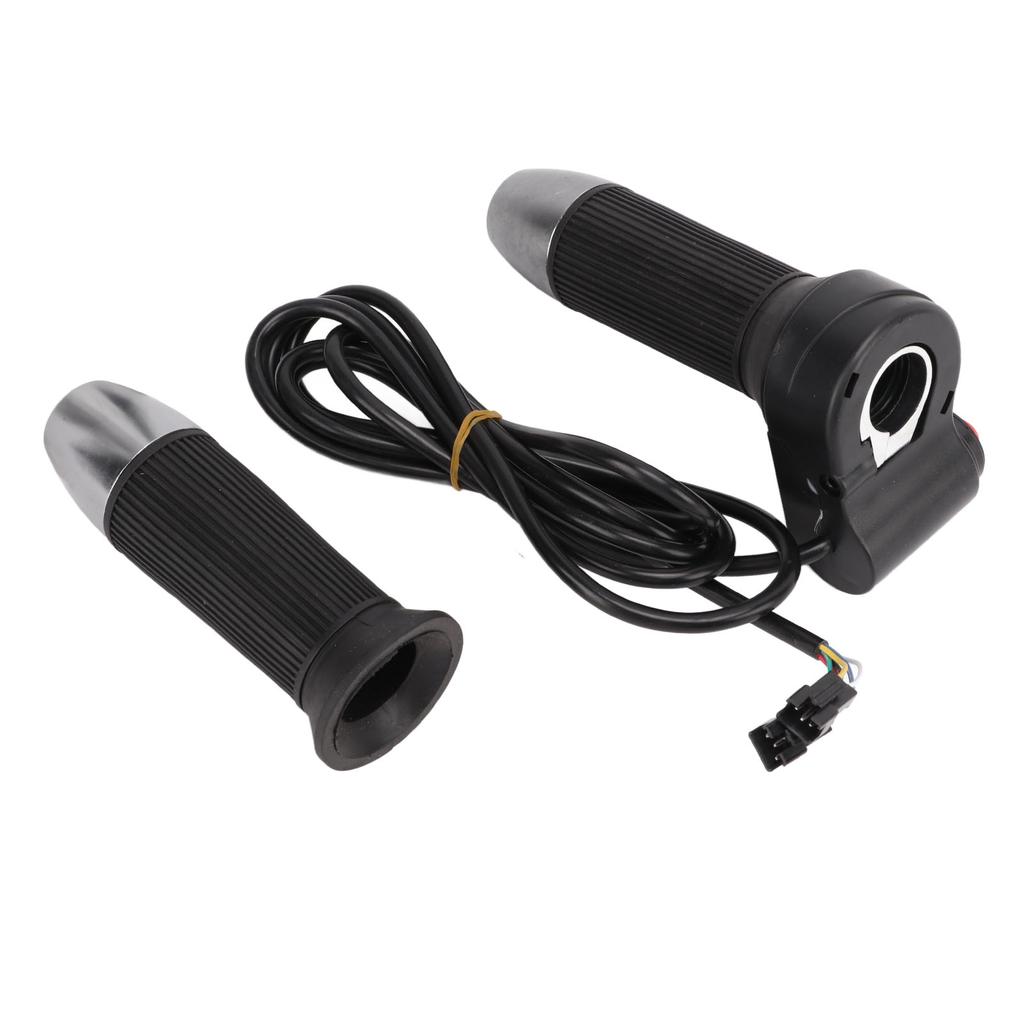

Item Type: Twist Throttle Grip
Material: Plastic
Model :S Series (5V-99V Automatic Identification Of Electric Vehicle Voltage)

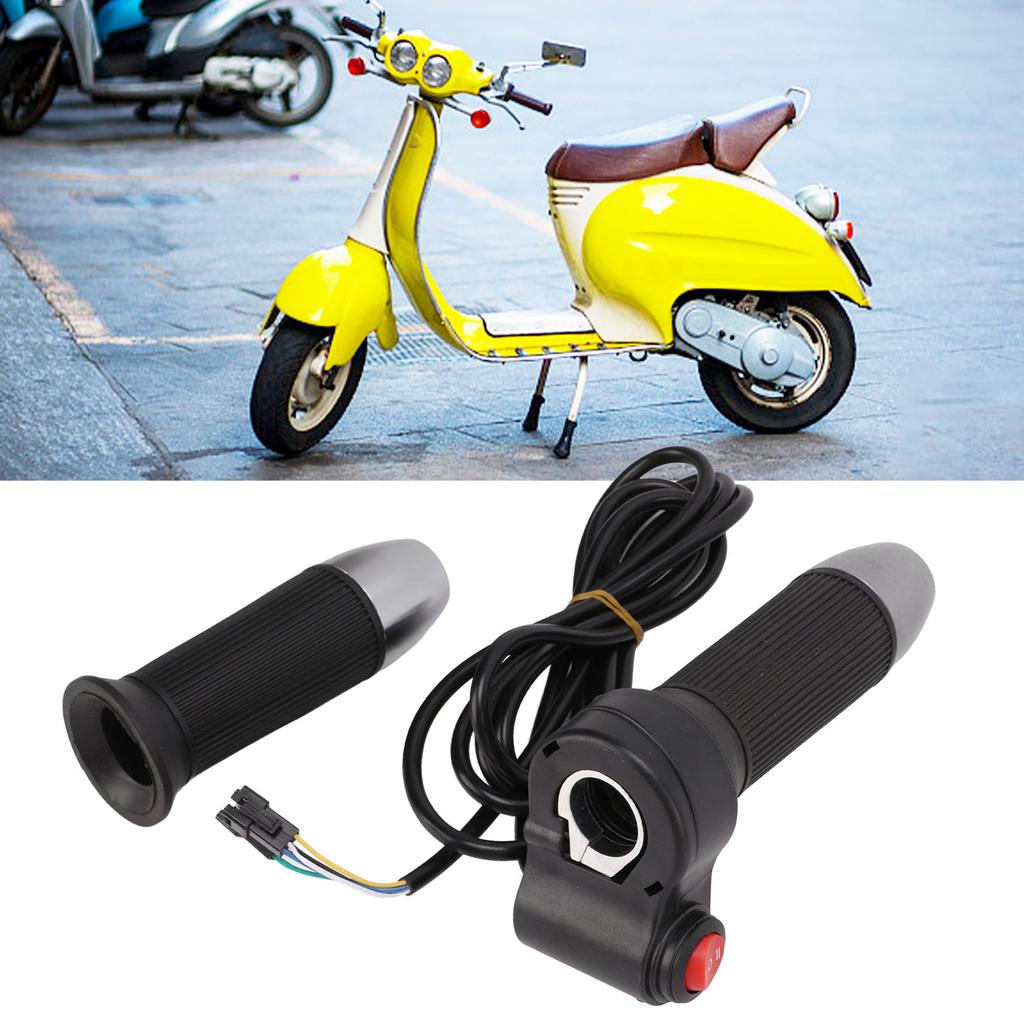

Application: For Electric Bike, Electric Scooter
Display: Without

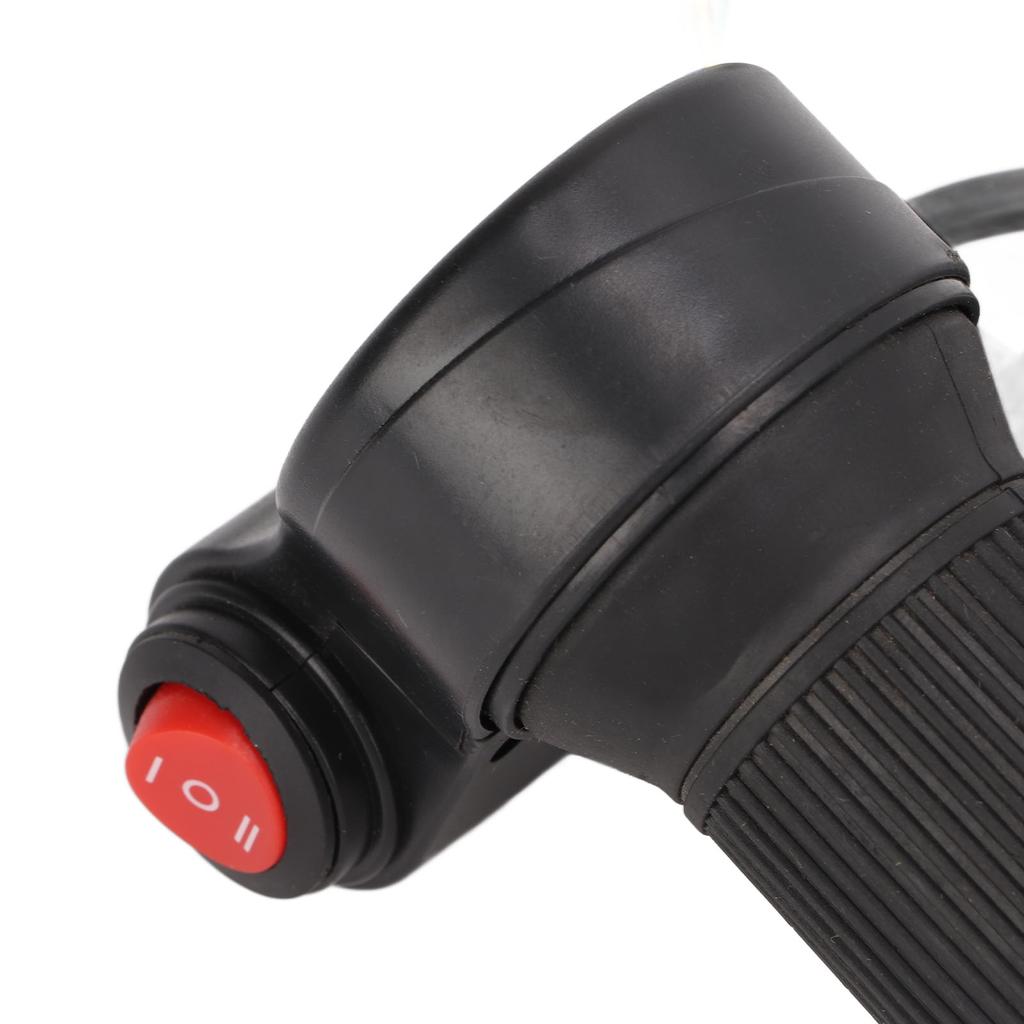

Speed Gear: 3 Speed Gear, Low Middle High Speed

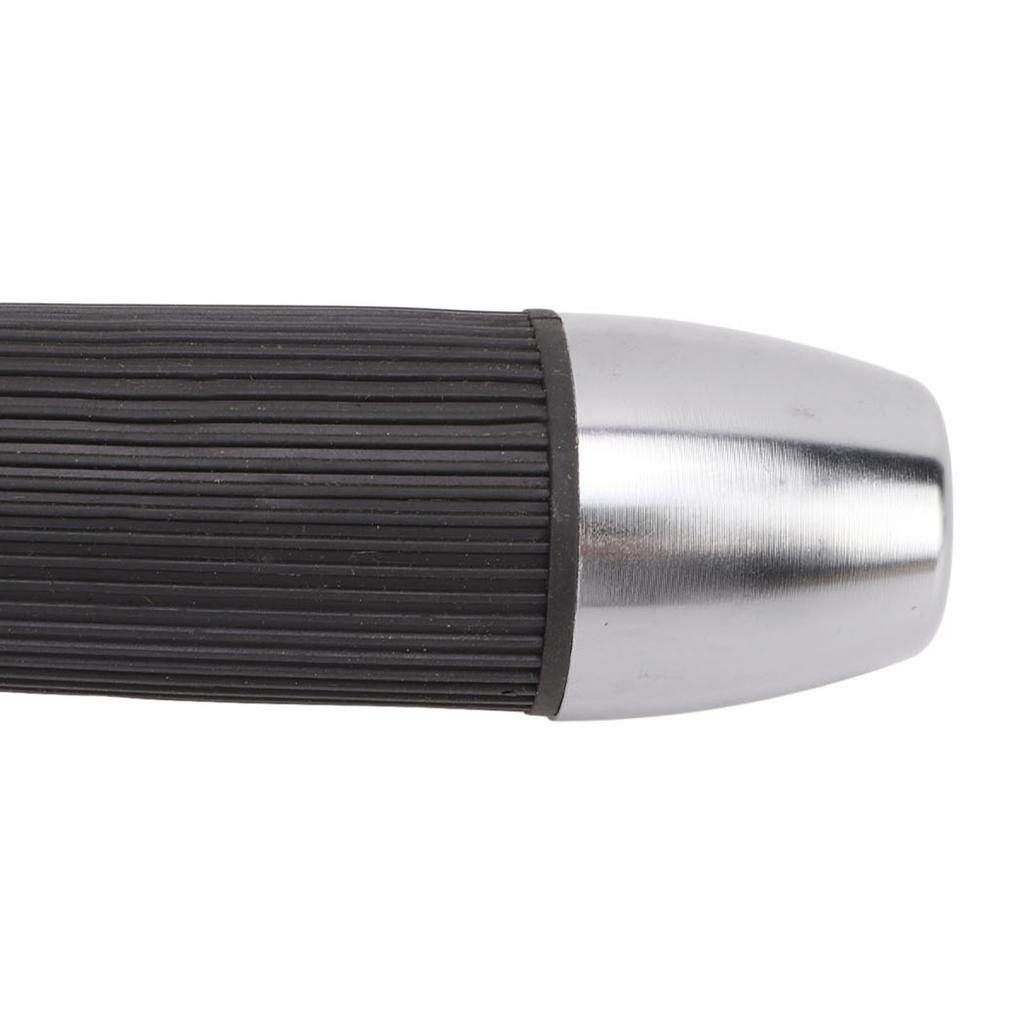

Product Size: Suitable Handlebar Diameter: Approx.2.3cm/0.9in.
Weight: Approx.334g/11.8oz
Efficiency: ≥98%
Hall Scale: Linear Hall
Working Voltage: Twist Handle Grip: DC0.8V-4.2V
Power Adaptive: Regardless Of Sealed Or Lithium Battery, Regardless Of Voltage (12V, 24V,36V,48V,60V,72V Electric Vehicles Can Be Directly Used, Part Of 84V Electric Vehicles Can Also Be Used)
Basic Parameters :(According To Different Battery Materials, Different Old And New Status, Different Batches, The Voltage Values Will Be Different, Please Test A Few Times To Get Your Own Electric Vehicle Battery Parameters,)
For 12V Electric Bike, Max Voltage Is About 12.6V, Mini Is About 9V Or Above,
For 24V Electric Bike, Max Voltage Is About 29.4V, Mini Is About 21V Or Above,
For 36V Electric Bike, Max Voltage Is About 42V, Mini Is About 29V Or Above,
For 48V Electric Bike, Max Voltage Is About 54.6V/58.8V, Mini Is About 40V Or Above,
For 60V Electric Bike, Max Voltage Is About 72V, Mini Is About 49V Or Above,
For 72V Electric Bike, Max Voltage Is About 84V, Mini Is About 60V Or Above,
For Other Electric Bike With Above Voltage There Should Be A Voltmeter Installed.
How to Use:
Installation method: 3 wires for twist handle grip, red is the positive pole, black is the negative pole, green is the signal wire, separate yellow wire is the positive pole of power supply,
Package List:
1 x Handlebar Grip
1 x Twist Grip
Note:
Please pay attention to the wiring sequence when non professional personnel install, do not connect the wrong line, otherwise it is easy to cause hall burn.
