Feature:
1. Premium Material: Made of plastic and aluminum alloy materials, proportional braking with 4 level maximum braking force adjustment and 8 level resistance braking force adjustment.
2. Strong Current Resistance: The ESC has strong anti current ability, good heat dissipation performance and long service life.
3. Multiple Protection Functions: Low voltage cut off protection, overheating protection, throttle signal loss protection and motor stall protection.
4. RC Brushless ESC: Built in 5.8V 3A BEC, external programming port, easy to connect program card when setting ESC, compatible with digital LED program card.
5. Waterproof Dustproof: With XT60 plug, waterproof and dustproof, specially designed for 1/10 RC model car.
Specification:

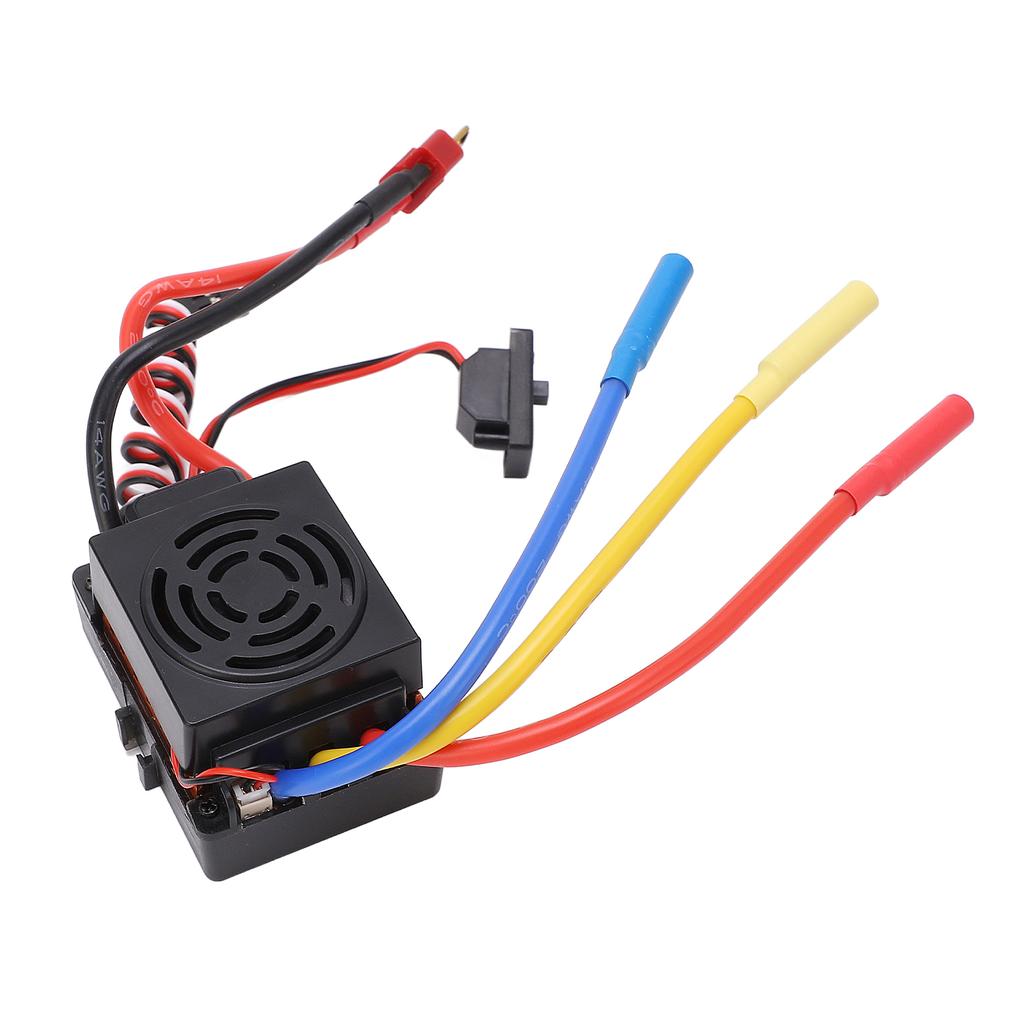

Item Type: RC Brushless ESC
Material: Plastic, Aluminum Alloy
Colour: Black
Continuous Current: 60A
Maximum Current: 320A
Resistance: 0.0007ohm
Battery: 2-3s Cells Lipo
Motor Support: Sensorless Brushless
Bec Output: 5.8V 3A (switch Mode)
Product Size: Approx. 50 x 36 x 31mm / 0.2 x 1.4 x 1.2in(without Wire)
Suitable For: Suitable for 1/10 1/12 1/16 RC Cars, Suitable for Brushless Motors Such As 540/3650
How to Use:
1. Connect the BEC cable to the receiver2. Connect the motor leads to the ESC3. Turn on the transmitter4. Connect the battery pack to the ESC, then turn on the ESC5. After the connection between the motor and the battery is completed, the motor emits a "beep beep" sound6. When the throttle stick is in the neutral position, the motor makes a "beep beep" sound again7. The ESC is normal
Package List:
1 xRC Brushless ESC
1 x User Manual
Note:
1. Due to manual measurement, please allow 1‑3mm error, thank you!
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3. Please remove the cooling fan before using the ESC in water: please clean and dry it as soon as possible after use to prevent the connector from rusting.
