Feature:

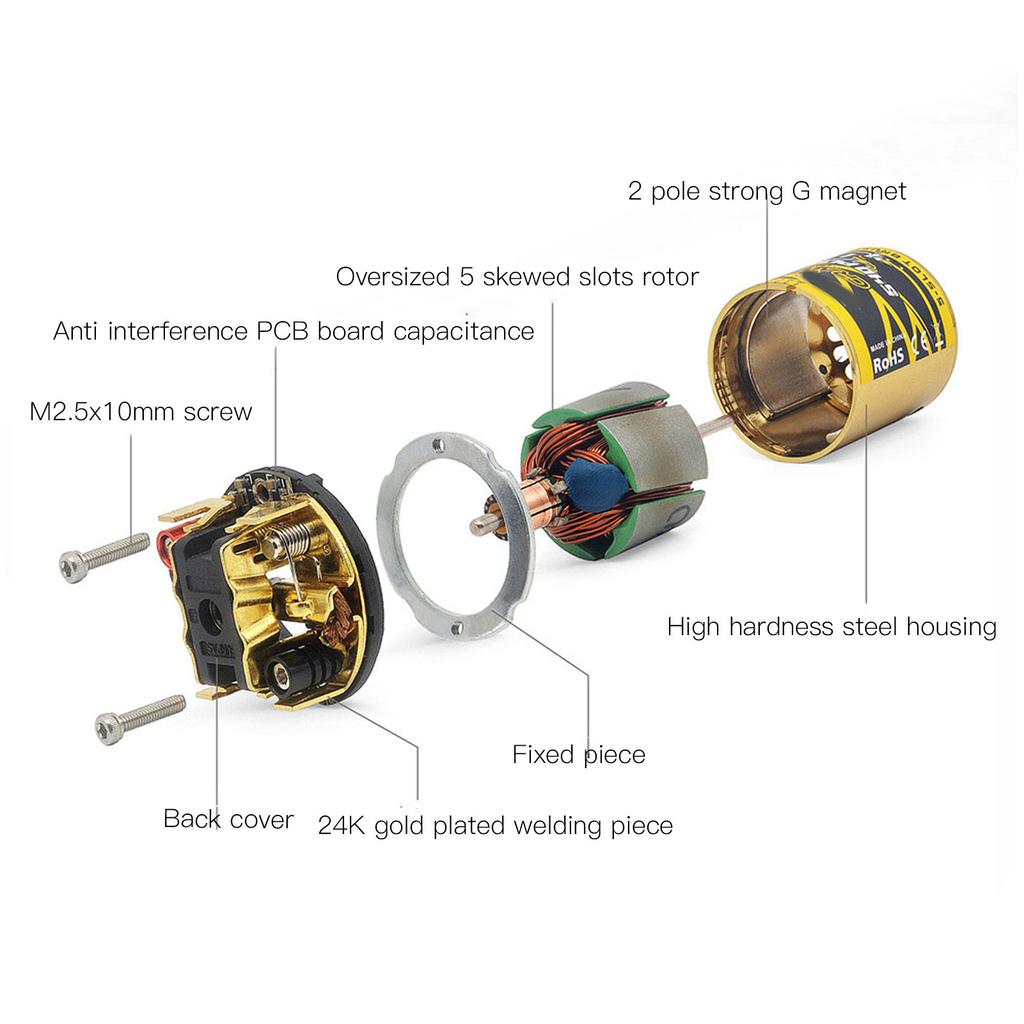

1. Exterior and Interior: CNC precision measured high hardness steel shell and gold plating process, the appearance presents a high end texture. The motor adopts super large precision balanced 5 skewed slot rotor inside, which is stable, reliable and has high torque.
2. Stator, Carbon Brush, Welding Piece: Ultra thin (0.35mm) silicon steel sheet stator, wear resistant ultra high current high quality low resistance carbon brush. 24K gold plated low internal resistance terminals are connected to the soldering piece, equipped with double PCB board capacitors to effectively prevent interference.
3. Applicable Models: With detachable and replaceable structure, the motor is easy to clean and maintain and is specially designed for RC Crawlers that require precise motion control. And the motor and ESC set fits for 1/10 1/12 RC Crawler, Car, Boats.
4. 80A ESC: Active brake can provide powerful ramp parking capability and is compatible with brushed motors. The 80A ESC has a strong ability to withstand current and has a good heat dissipation effect.
5. BEC: Built in super switch mode BEC with 6.4V / 7.4V voltage and 5A current. Continuous 5A current can easily drive powerful steering gears, high voltage steering gears and winches, etc.
6. Multiple Protection Functions: The ESC has multiple protection functions, such as lithium battery or nickel battery low voltage cut off protection, overheat protection, and accelerator signal loss protection.
Specification:

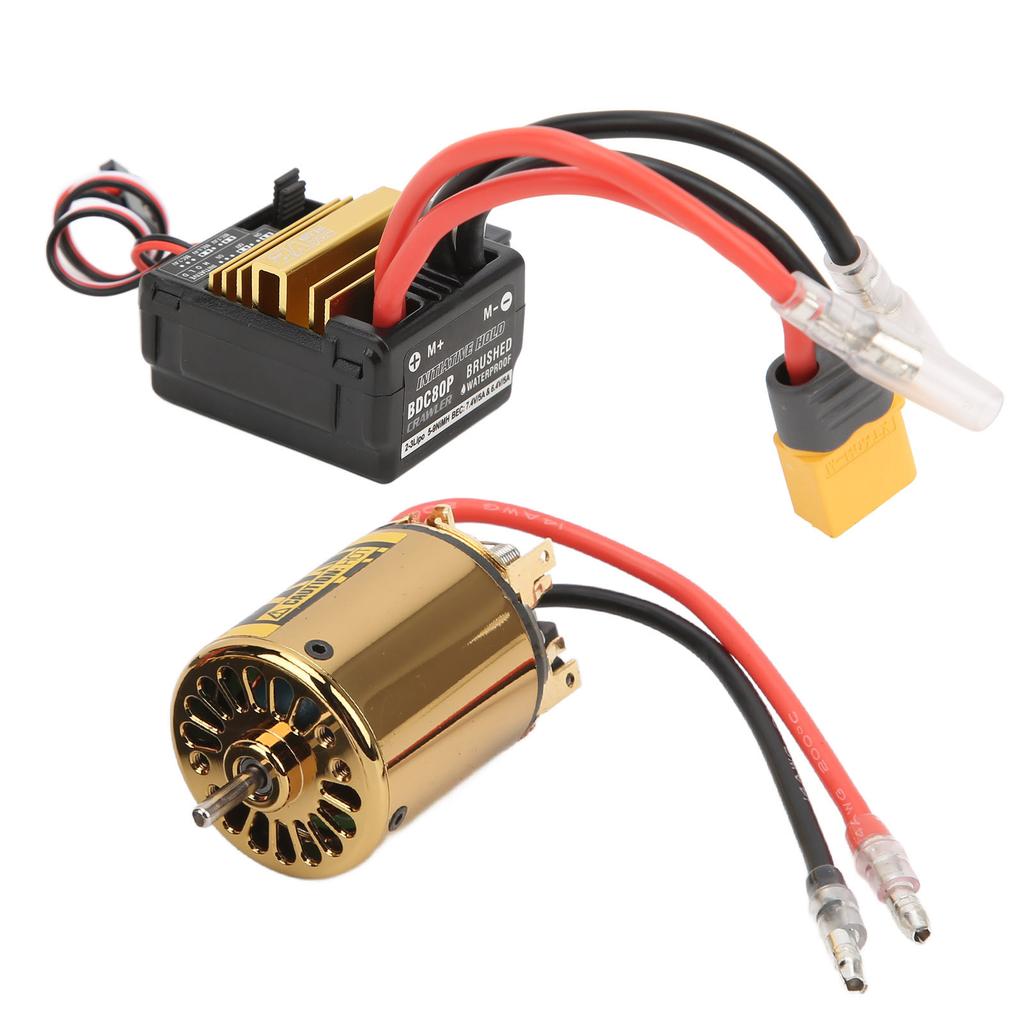

Item Type: 540PLUS V2 Brushed Motor with 80A ESC
Model: 540PLUS V2
Material: Steel + Copper + Plastic
Product Color: Gold
Product Weight: Approx. 338g / 11.9oz
Applicable Models: Fit for 1/10, 1/12 RC Crawler, Car, Boats
Motor Parameters:
Motor Type: Brushed Motor
Motor Diameter: 36mm / 1.4in
Motor Length: 69mm / 2.7in (with shaft)
Motor Shaft Diameter: 3.175mm / 0.1in
Voltage (Lipo): 7.4V
Rotation: CCW

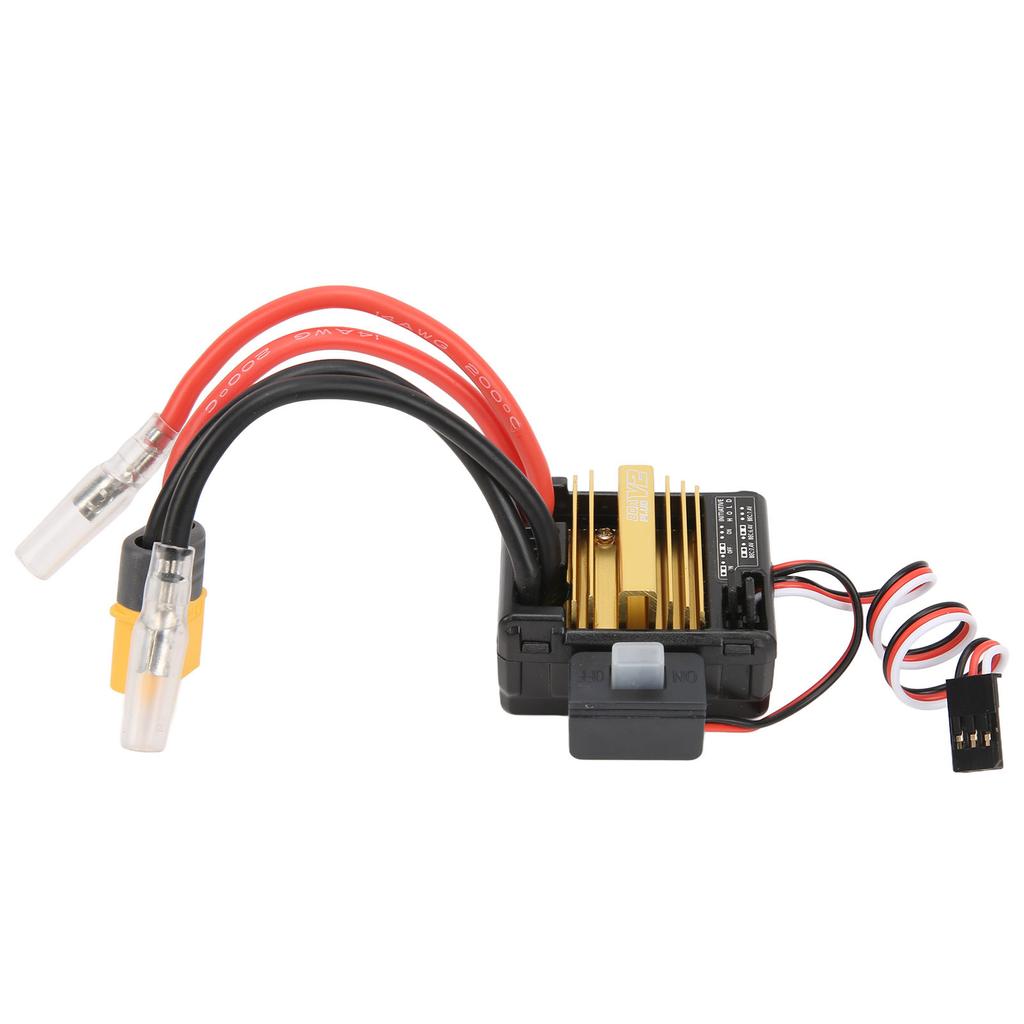

ESC Parameters:
Model: 80A PLUS V2
Continuous Current / Peak Current: 80A/320A
Battery: 2-3S Lipo, 4-9S NIMH
Internal Resistance: 0. 0014ohm
BEC: 6.4V / 7.4V Switchable 5A (switch mode)
ESC Size: 35x42x27mm / 1.4x1.7x1.1in
Applicable Models: Fit for 1/10 Brushed Crawler
Recommended Programming Card:
80A PLUS Programming Card V1, V2 Universal
How to Use:
Installation and Maintenance:1. Replace the motor mounting screws and use the same model and size as the original equipment of your vehicle.2. Do not overtighten the motor mounting screws. Doing so may peel off the mounting hole threads.3. Connect the "+" and "‑" motor leads to the corresponding leads on the electronic speed governor (ESO).4. To adjust the time, slightly loosen the main screw and twist the end until the desired setting is reached, then re‑tighten the screw. It is recommended to use the factory settings. Never exceed +/‑20.5. When cleaning the motor, gently brush off the dirt regularly, paying particular attention to the area around the ball bearing. Do not spray cleaners or solvents into the motor.6. Check the brushes regularly to make sure they move freely inside the hood.7. When the brushes wear out or show signs of discoloration, please replace them.How to Use ESC:
1. Connect the BEC cable to the receiver.2. Connect the motor cable to the ESC.3. Turn on the remote controller.4. Connect the battery plug to the ESC and turn on the ESC switch.5. When the battery motor is connected, the motor will beep once.6. If you hear a motor beep again, it means that the ESC has received the correct remote control center signal.7. The ESC is successfully connected.
Package List:
1 x 540 Brushed Motor
1 x 80A ESC
2 x Manual
Note:
1. Please allow 1‑3mm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
3. Avoid working temperature exceeding 65°(150°F).
4. Do not touch the motor after use, because it may be very hot.
5. Allow the motor to cool completely between uses.
6. Be sure to use suitable size motor mounting screws.
7. Do not overtighten the motor mounting screws.
8. When switching from a lower voltage battery to a higher voltage battery (for example: from 7.4V to 11.1V), it may be necessary to change the gear ratio or lower the rated KV motor. Otherwise, the motor or ESC may overheat and be permanently damaged.
