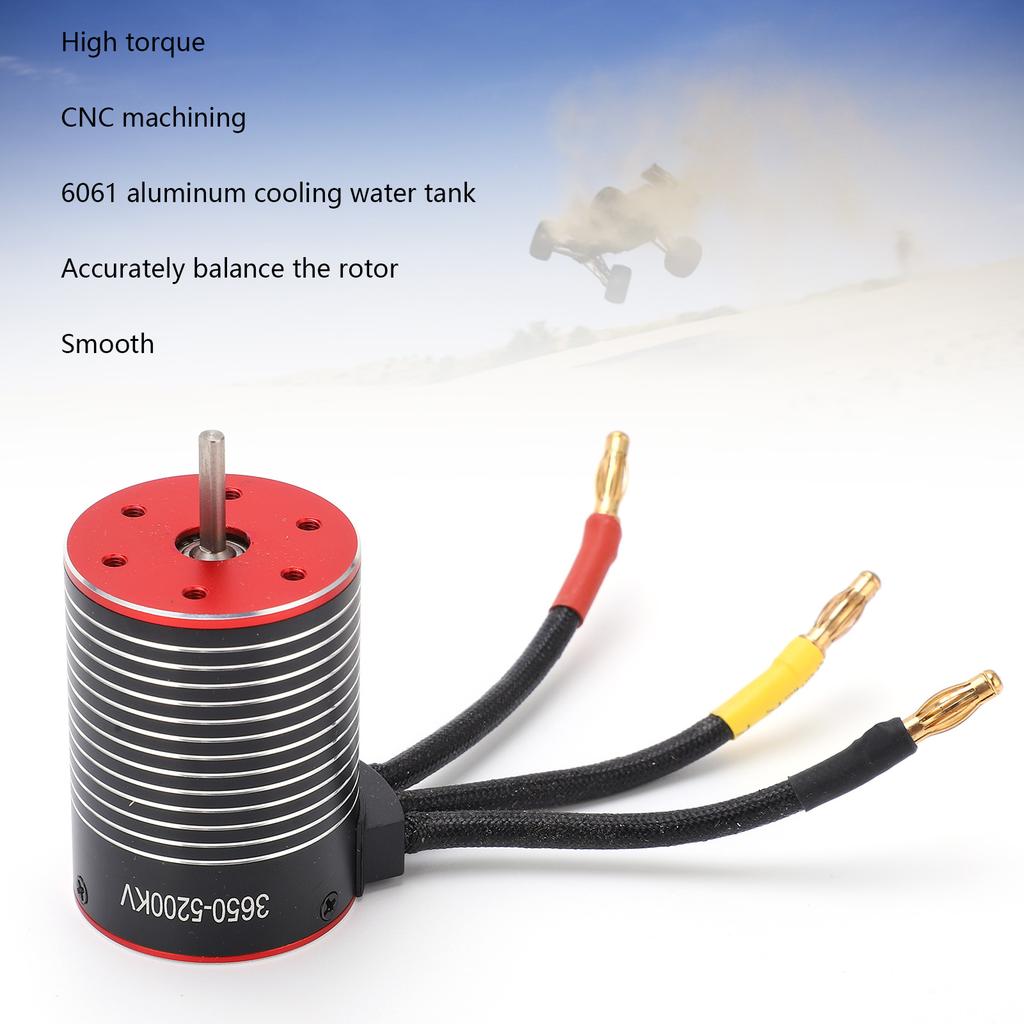

Feature:
1. 4-pole 12-slot high-torque motor design. CNC machined 6061T6 billet aluminum radiator water tank.
2. High‑purity copper windings can maximize efficiency, high‑speed large bearings.
3. The Accurately balanced rotor, stable, with best reliability and maximum RPM.
4. Completely waterproof design, suitable for various environments and reliable in use.
5. Multiple protection functions, low voltage protection, over temperature protection. Throttle control protection, stall protection.
Specification:

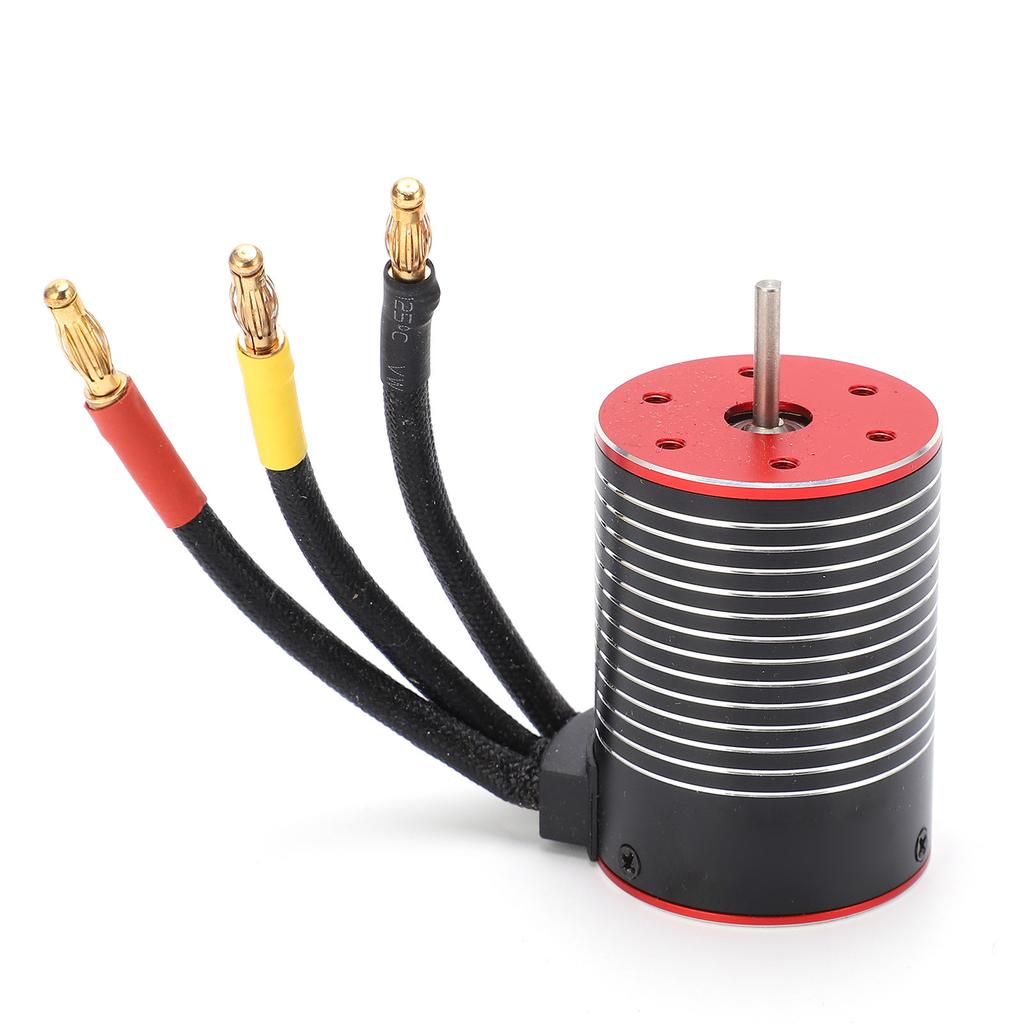

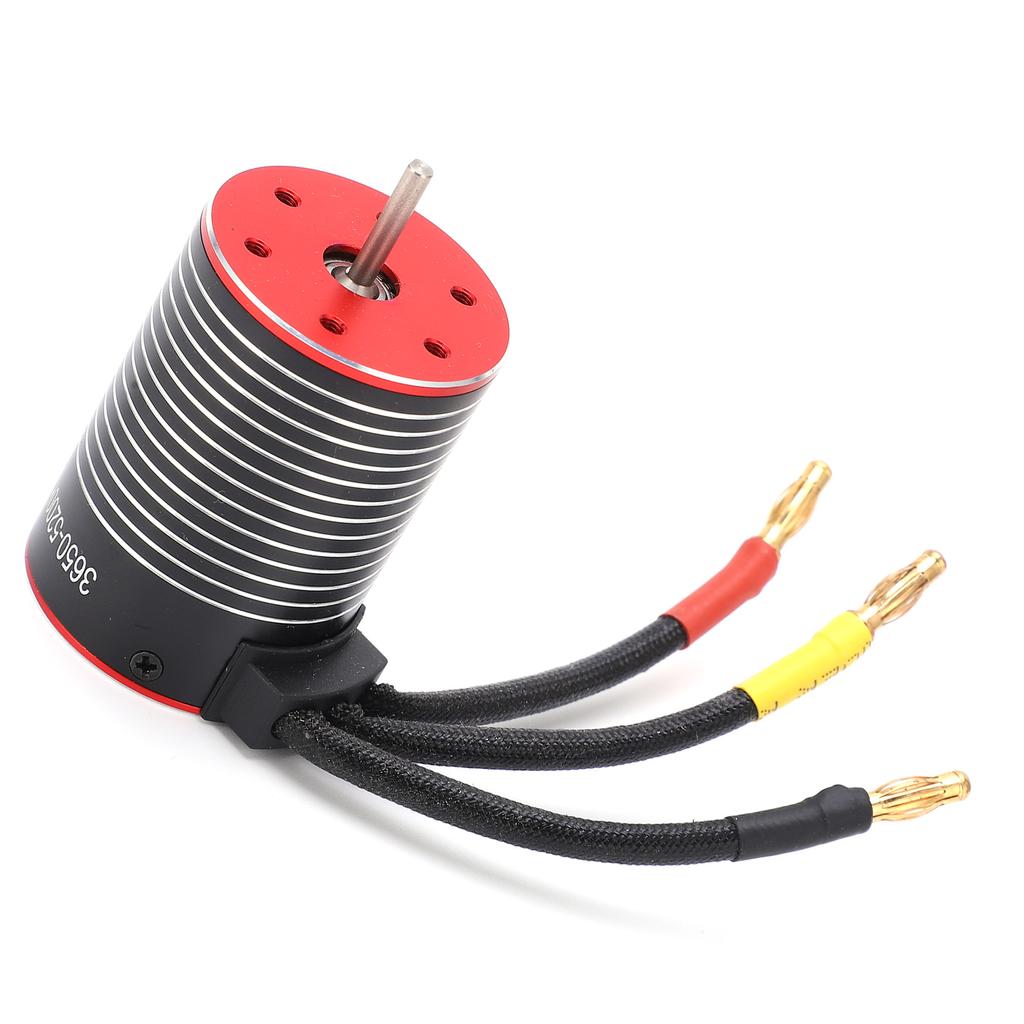

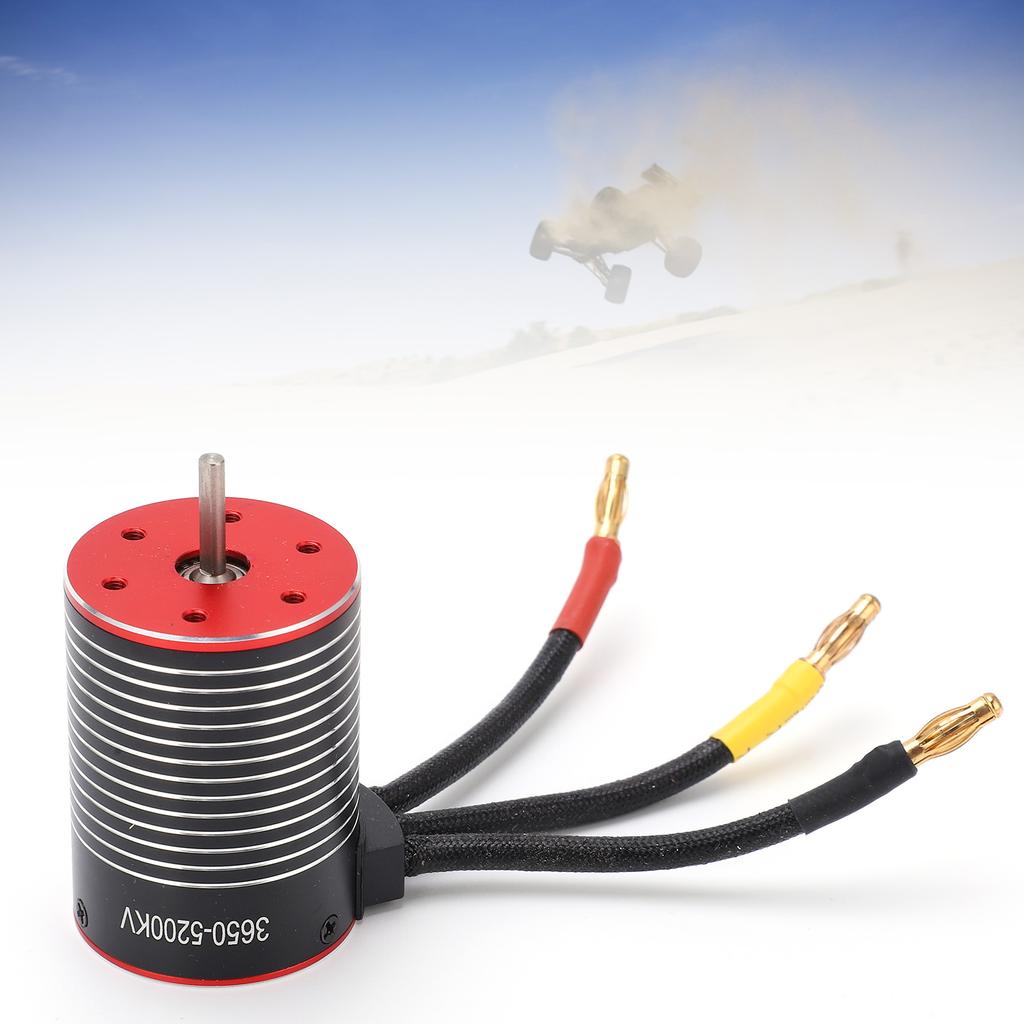

Item Type: Brushless RC Motor
Color: Black and Red
Material: Aluminum Alloy+Copper
KV(RPM/Volt): 5200KV
Wattage: 900W
Maximum Revolving Speed: 50000
Maximum Voltage: Maximum Ampere: 94A
IO: 3.7A
Resistance: 0.0051
Rotor Pole: 4
Motor Size: Approx. 36x50mm/1.4x2in (Diameter x Length)
Motor Shaft Size: Approx. 3.2x15mm/0.1x0.6in (Diameter x Length)
Connector: 4mm Banana Connector
Compatible with: for Traxxas/HSP/Redcat/Tamiya/Axial SCX10 D90/HPI
Weight: Approx. 179g/6.3oz
How to Use:
1. After fixing the motor, link the battery assembly to the electronic speed controller (ESC).2. Link the corresponding colors of the three wires of the motor to the governor. If the direction of rotation is not correct, replace any two wires.3. Connect the receiver, the third receiving channel (CH3) to the electronic governor, and start the test.
Package List:
1 x 3650 Brushless Motor
Note:
1. Please allow 0‑2 cm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
Precautions:
1. Before using this motor, please make sure that the power mix is reasonable. Unreasonable power mix will cause the motor to be overloaded and damaged.
2. When installing the motor, do not overtighten the screws. Be sure to use suitable motor mounting screws.
3. Before connecting the motor, please make sure that the parts that need insulation are handled well, as a short circuit will destroy the product.
4. Before the gear is installed, full throttle operation is prohibited. High‑speed operation without load may damage the motor.
5. Please make sure to connect the components correctly. If the remote control model car is connected incorrectly, it may not work properly, or the components may be damaged or other unpredictable conditions.
6. Avoid excessively high working temperature of the motor, which may cause the rotor to demagnetize and cause damage to the motor.
7. Do not touch the motor after use to avoid overheating and scalding. Wait until the motor is completely cooled down before using it.
