Product Description
Chip: TPA3116D2 + NE5532
Maximum Power: 100W * 1
Full Frequency Response: 20Hz to 20kHz (±3dB)
Speaker Impedance Compatibility: 4-8Ω
Number of Channels: Mono
Operating Voltage: DC12-24V (Adapter DC19V 4.74A)
THD: 0.03% @ 1W Output
SNR: ≥106dB
Input Sensitivity: 0.2mV
Dimensions: 118.5 x 98 x 33MM (excluding protruding knob)
Low-Frequency Cutoff Range Adjustment: 40-300Hz
Controls: Potentiometer knob and toggle switch
Audio Input: RCA
Audio Output: Gold-plated interface
Low-Frequency Attenuation Slope: -12dB slope

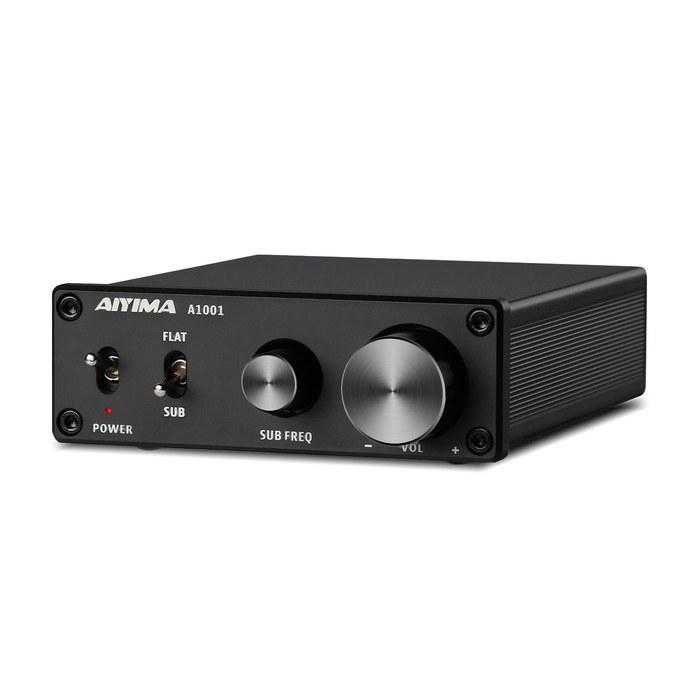

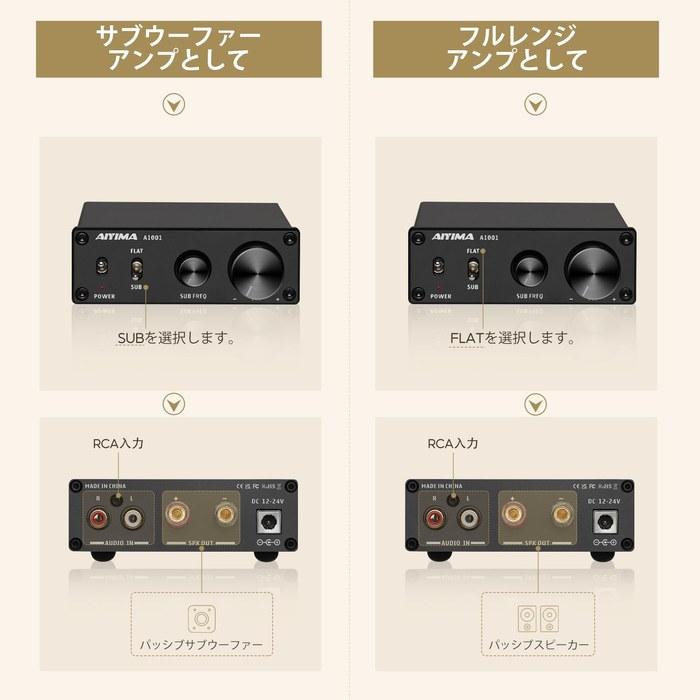

・❶ [AIYIMA] A1001 adopts the Tpa3116 high-performance power amplifier chip and NE5532 operational amplifier. Low-frequency cutoff is adjustable. It can be switched between a full-range stereo amplifier and a subwoofer amplifier as needed. A mini desktop power amplifier.

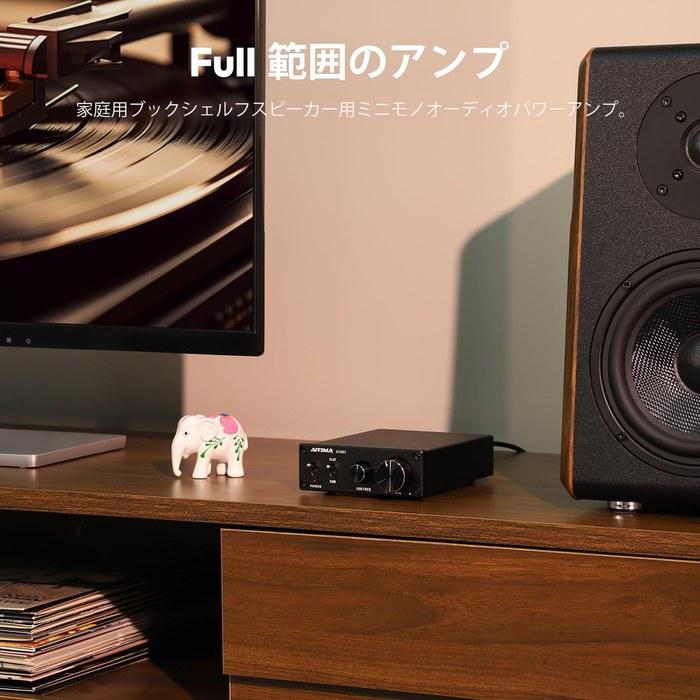

・❷ A Hi-Fi mono Class D amplifier board with 100W (2-8Ω) output. It can drive most household passive speakers and passive subwoofers. Compatible with various devices such as smartphones, PCs, tablets, and televisions.
・❸ Simple RCA audio input, gold-plated audio output terminals, built-in subwoofer low-pass filter, low-frequency control function, and noise reduction. It adopts a dual control system of potentiometer knobs and microswitches to prevent impact sounds during switching. Designed for users pursuing Hi-Fi sound quality.

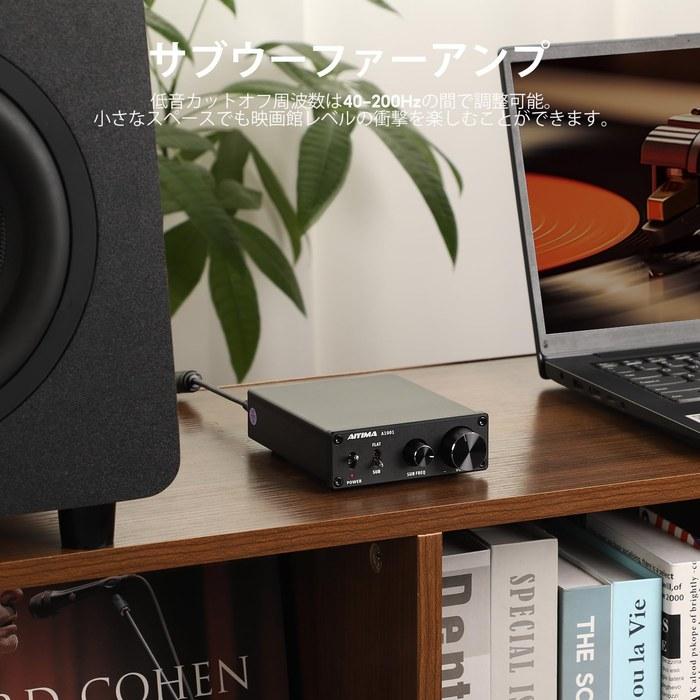

・❹ A1001 Features: Low-frequency attenuation slope: -12dB slope, low-frequency cutoff range adjustment: 40-300Hz, a high-quality subwoofer amplifier.

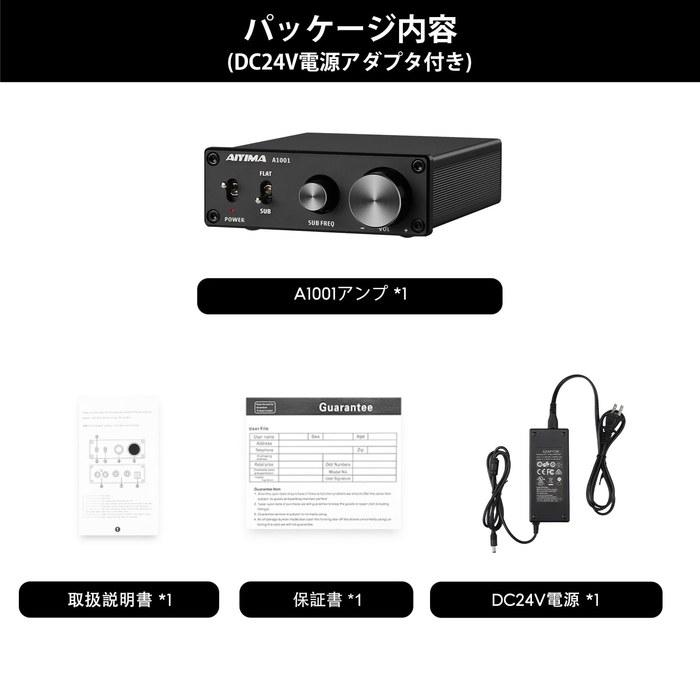

・❺ A cost-performance subwoofer amplifier. It adopts a simple and compact design. Package Contents: A1001 Subwoofer Amplifier x 1, 24V Power Adapter x 1, Instruction Manual x 1.
【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device's requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
