SFP+ passive cable assemblies are a high-performance, cost-effective I/O solution for 10G Ethernet and 10G Fibre Channel applications. SFP+ copper modules enable hardware manufacturing to achieve high port density, configurability, and utilization with very low cast, reducing power budgets. These high-speed cable assemblies meet and exceed Gigabit Ethernet and Fibre Channel industry standard requirements in terms of performance and reliability.
These assemblies are called “passive” copper cables and do not include signal conditioning circuitry (e.g., Crossstalk or Echo Cancell) within the SFP+ connector. These assemblies are sometimes referred to as “DAC” or “Direct Attached Copper” cables. SFP+ MSA footprint optical cables can be used with optical transceivers or active optical cables (AOCs) that require transceivers within the cable.

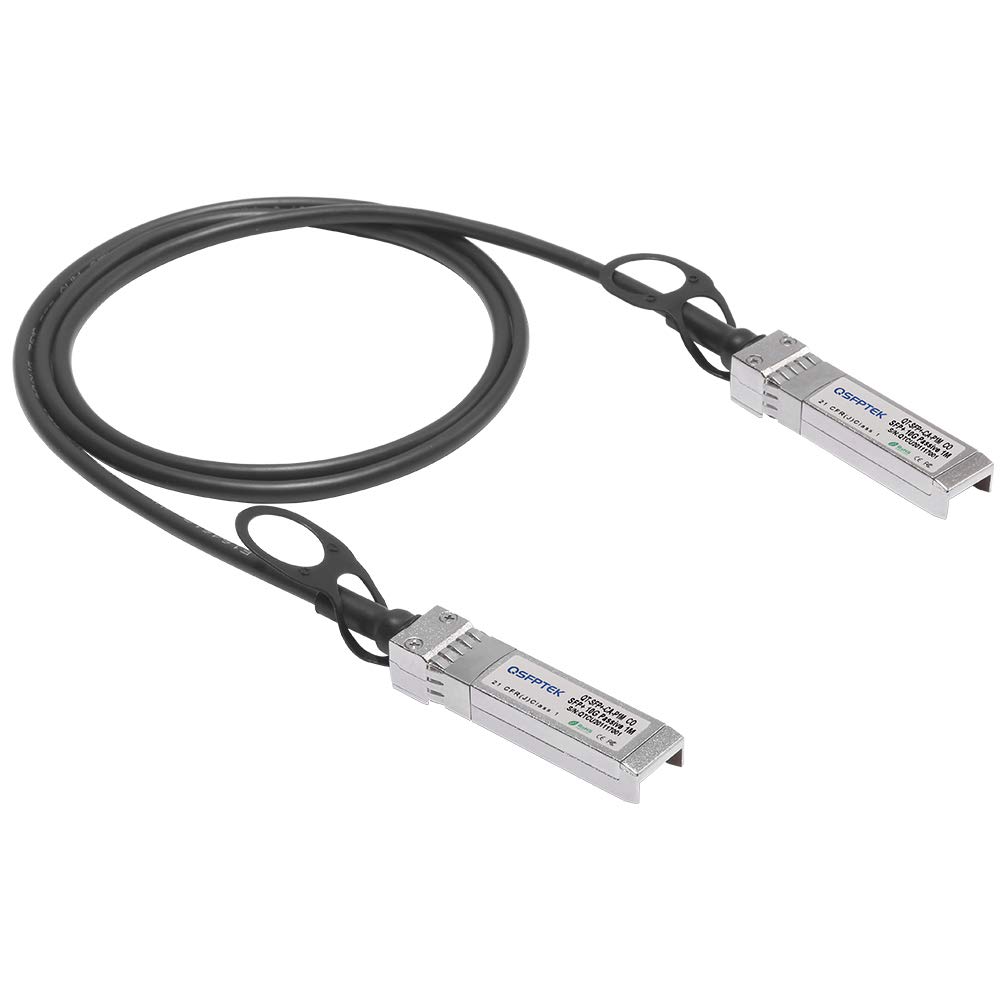

10G SFP+ DAC Twinax Cable for Cisco, Ubiquiti, D-link, Netgear, Mikrotik, and Open Switch Devices

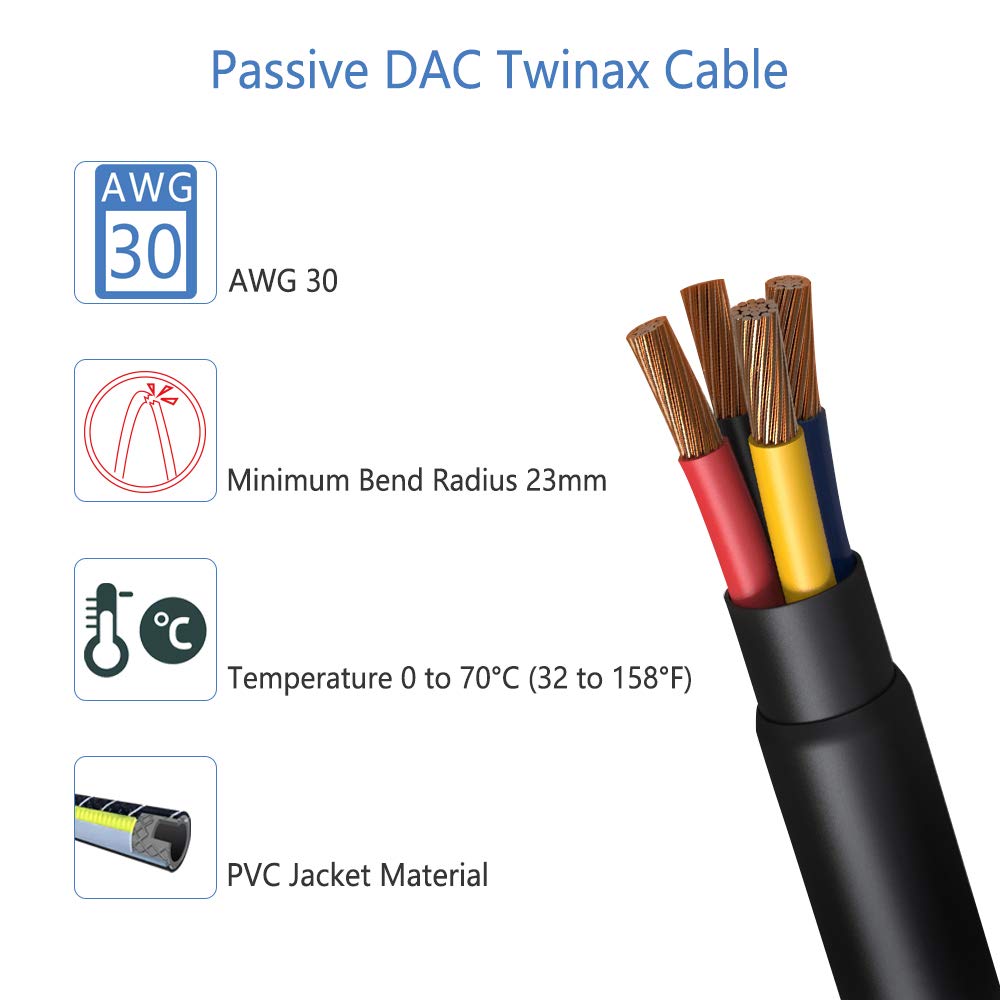

Connector Type: SFP+ to SFP+
Maximum Data Rate: 10Gbps
Minimum Bending Radius: 23mm
Wire AWG: 30AWG
Cable Length: 1m (3 feet)
Jacket Material: PVC (OFNR)
Temperature: 0~70℃ (32~154℉)
Protocol: 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel
Installation:
A. Installing the SFP+ Module
1. Remove the protective ESD cap from the connector.
2. Slide the end of the SFP+ cable into the slot until it locks into place (you will hear a click when the connector is properly seated).
B. Removing the SFP+ Module
1. Pull the SFP+ latch pull lanyard.
2. Grasp both SFP+ connectors and remove from the system.
3. If possible, replace the ESD protective cap or place the SFP+ in an ESD protective bag.

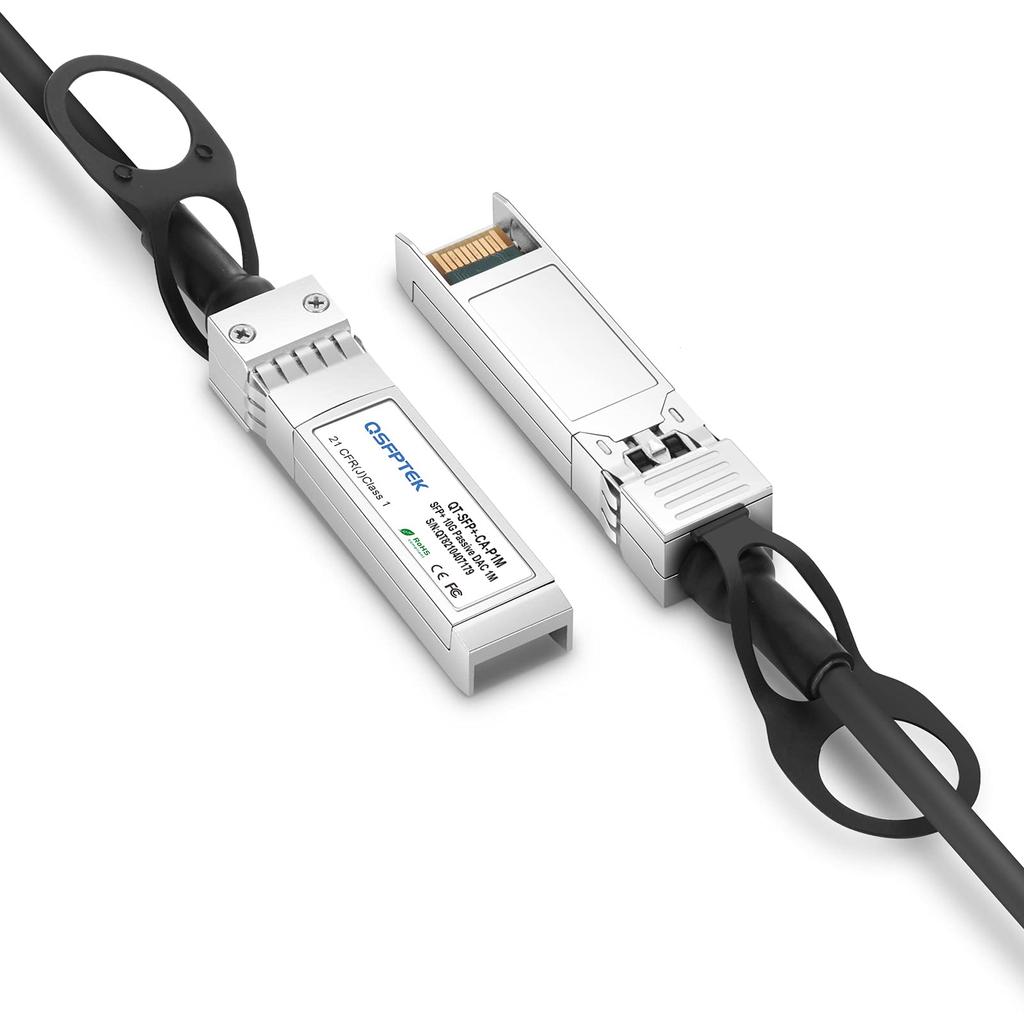

10Gb SFP+ to SFP+ Direct Connection Copper Twinax Cable, Passive, 1 Meter, AWG30. Widely compatible with devices such as Cisco, Ubiquiti, D-link, Netgear, Mikrotik, and other Open Switches.
10G SFP+ DAC Twinax Cable can connect switches, routers, servers, NICs, and other fiber optic equipment with SFP+ ports for network-attached storage, storage area networks, and high-performance computing.

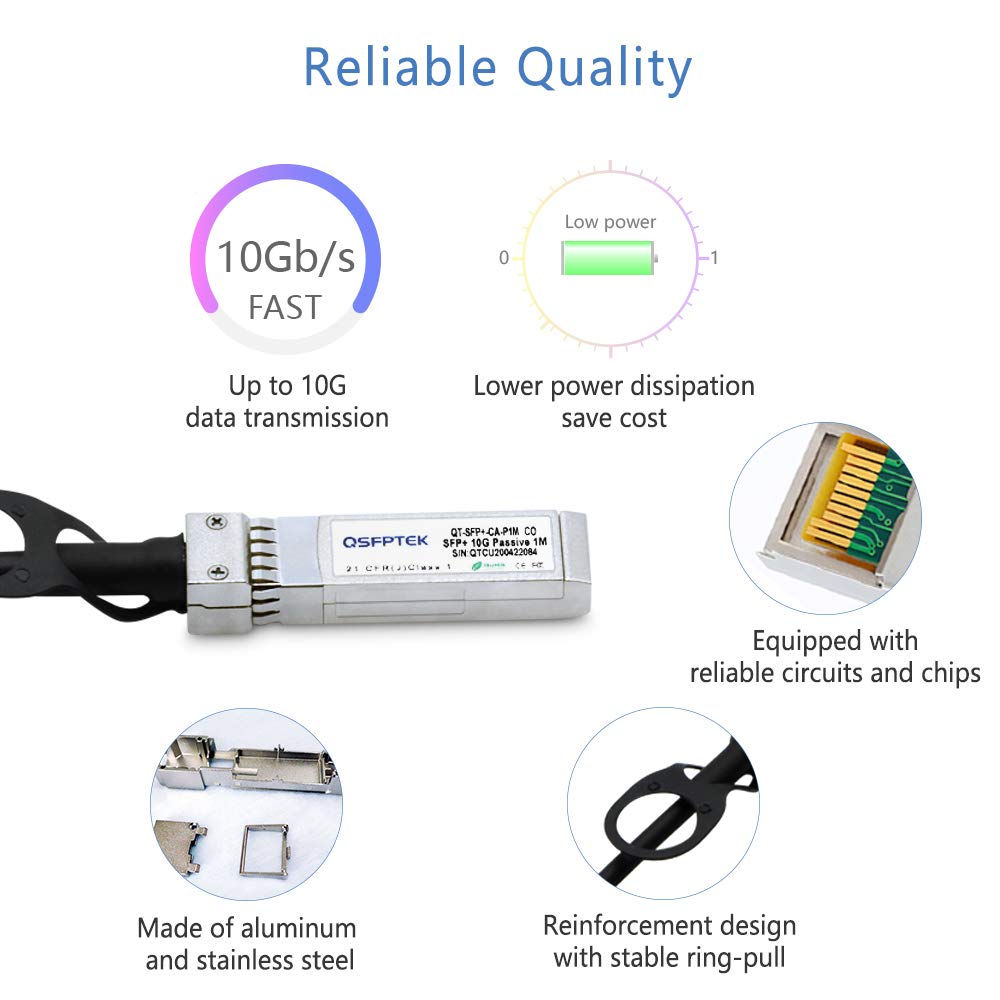

Low Power Consumption: Passive SFP+ DACs have low power consumption of less than 0.5W with EEPROM. Business Temperature Range: 0~70℃

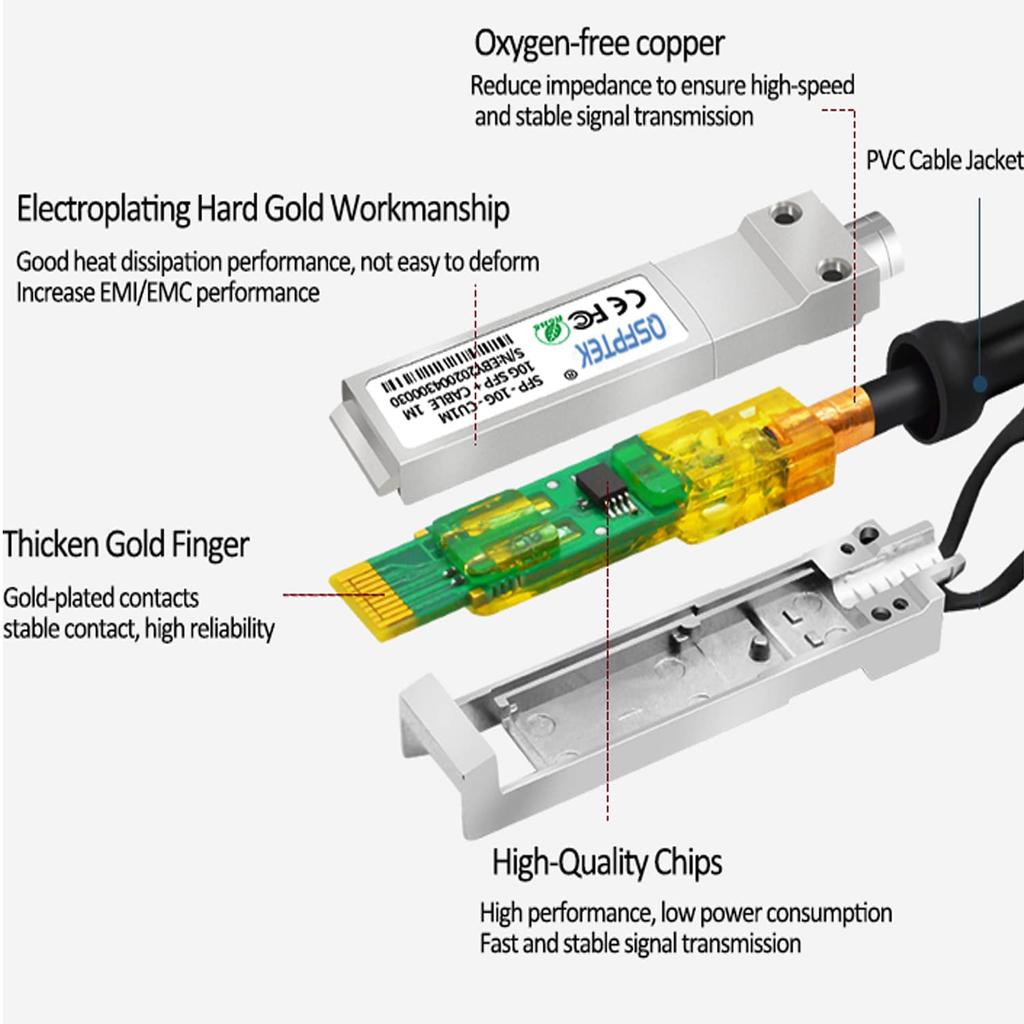

Easy to Use: Plug and play, hot-plug compatible. No software or drivers are required. It features a standard gold-plated plug for repeated plugging and unplugging.
Customized 10GBASE SFP+ PCCs are available in various lengths. Wire gauges can be customized as needed, including AWG24, AWG26, AWG28, and AWG30.
