Product Description

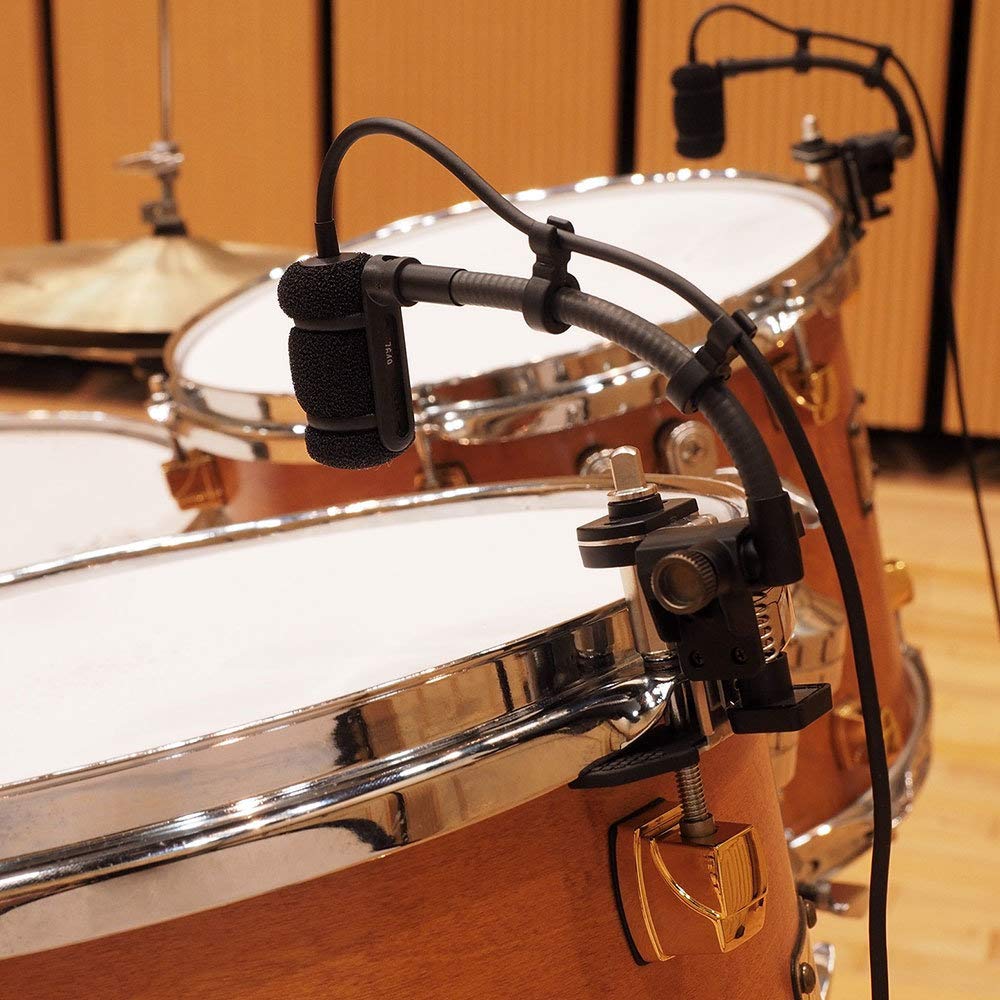

A compact condenser microphone for musical instrument recording.
Includes a standard gooseneck mount that securely grips snare drums and toms.
〈Mount〉
Unique drum mount designed to securely grip snare drums and toms.
Allows for easy tuning of the drum even when the mount is attached.
Detachable gooseneck can be mounted vertically or horizontally.
〈Microphone〉
High input level design with a maximum input sound pressure level of 159dB.
Delivers clear, well-defined, and balanced response even at high sound pressure levels.
Features a low-cut switch to reduce ambient noise (※).
Single-directional (cardioid) pickup pattern isolates unwanted sounds from the rear and sides.
Captures the desired sound source accurately and provides high feedback margin.
● Technical Data
Model: Back-electret condenser type
Polar Pattern: Cardioid
Frequency Response: 40–20,000Hz
Low-cut: 80Hz, 12dB/oct (※)
Sensitivity: -49dB (3.5mV) (0dB=1V/Pa, 1kHz)
Output Impedance: 200Ω
Maximum Input Sound Pressure Level: 159dB SPL (1kHz THD 1%)
Dynamic Range: 130dB (1kHz at Max SPL)
Signal-to-Noise Ratio: 65dB (1kHz at 1Pa, A-weighted)
Phantom Power: 11V–52V DC, 3.5mA
Switch※: Flat, Low-cut※ (powered via AT8543 power module)
Weight: Microphone unit: 14.5g, Power module: 90g
Dimensions: Microphone unit: 37.8mm long, 12.2mm diameter
Power module: 92mm long, 18.9mm diameter
Output Connector: 3-pin XLR-M (Power module)
Cable: 4.0m long (fixed to microphone), diameter 3.2mm,
Uses HIROSE HR10 connector
Included Accessories
Gooseneck/Standard AT8490, Drum Mount AT8491D, Power Module AT8543, Violin Mount AT8468, Hard Case
Please note (disclaimer) > Please read carefully
※ Returns not accepted except for initial defects.
A small condenser microphone for musical instrument recording.
Includes a standard gooseneck mount that securely grips snare drums and toms.
Power supply: Powered via power cord
[Important Notice - For Overseas Customers]
Thank you for purchasing this product. Before using it overseas, please carefully read the following important notices.
1. Laws, Regulations, and Safety Standards
This product complies with Japanese safety standards. Before use in your country, please check its compliance with local laws, regulations, and safety standards.
Certain product categories (electronics, cosmetics, food, etc.) may require certification in the importing country.
2. Regarding Electrical Products
【Voltage Compatibility】
When using electrical products, please note that they are designed to match Japanese voltage specifications (90-110V). Using them with a different voltage may cause malfunction.
【Plug Type】
Our products use Japanese plug types (Type A or Type B).
Please use a conversion adapter as needed.
【Important Notes Regarding Transformers and Adapters】
Transformers adjust the voltage to match the requirements of the equipment.
Conversion adapters only change the plug shape and do not adjust the voltage.
Using only a conversion adapter without a transformer may damage the product.
[Regarding Liability]
We are not responsible for any malfunctions or damage caused by improper use, such as operating the product without a transformer.
3. Language and Manual
Product instructions and displays may be in Japanese only.
An English version of the manual can be downloaded from our website.
4. Regarding Product Returns and Exchanges
Please note that if you wish to return or exchange a product, you will be required to submit a video of the unpacking process.
