Fastest mid-range hammer drill (domestic / November 2020 survey). High efficiency with high-speed rotation of 2,200 min-1 and constant speed control.
Approximately 35% faster stone drilling speed* (compared to Makita 18V models). *When using a carbide drill bit φ8mm, drilling into brick to a depth of 30mm. *The photo shows a stone drill bit φ13mm.

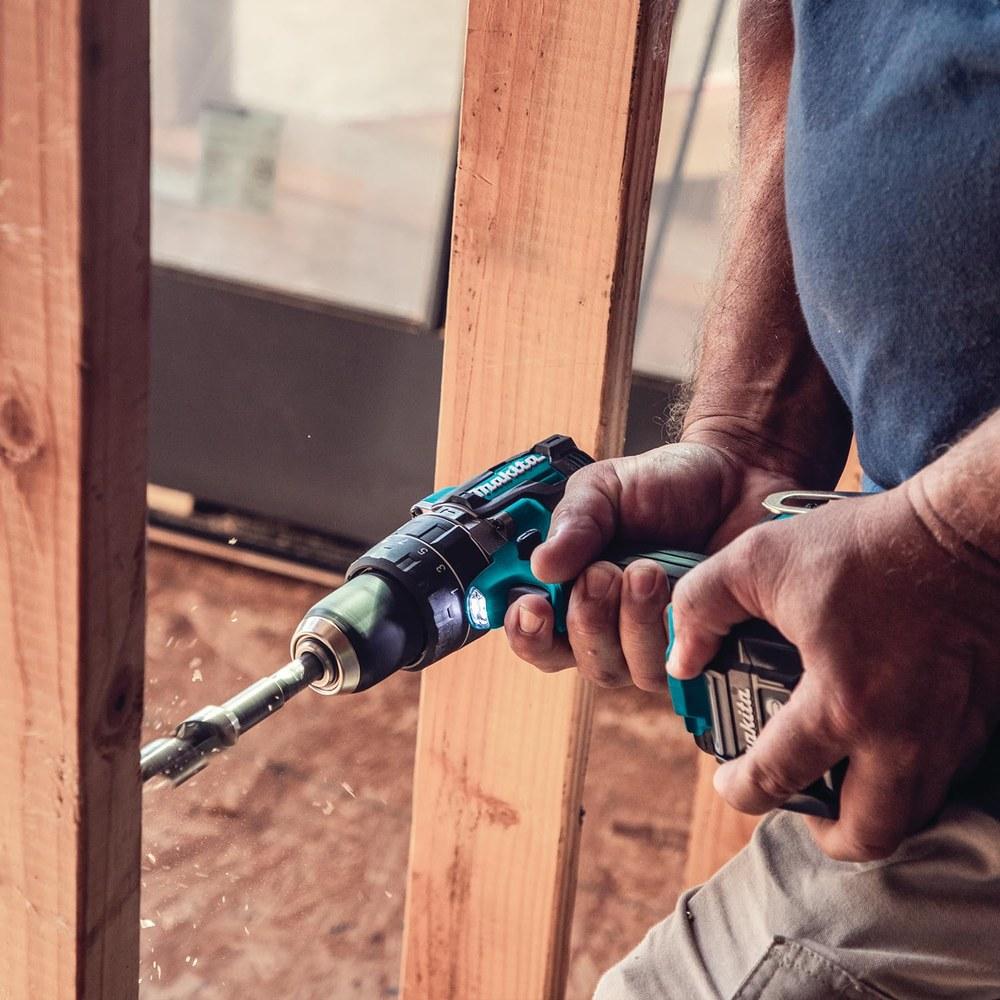

Approximately 30% faster woodworking drilling speed* (compared to Makita 18V models). *When using a woodworking drill bit φ27mm, drilling into plywood 30mm thick. *The photo shows a woodworking drill bit φ38mm.
Equipped with durable all-metal gears and a high-power brushless motor. Maximum torque of 65N·m.
Constant speed control, less affected by battery charge level or load, enabling stable drilling.
Waterproof protection level IPX6*. This applies to both the tool and the battery. *Designed to be resistant to dust and water, but not guaranteed to be failure-free. When the battery is attached, the protection level conforms to that of the main body.
DC 36V (40V max), slide-type Li-ion battery. Battery and charger sold separately.
Maximum drilling capacity (mm): Concrete block 13mm / Steel 13mm / Wood 38mm.
Screw driving capacity: Wood screw φ10×90mm / Small screw M6.
Maximum torque (N·m): 65.
Chuck capacity (mm): 1.5mm to 13mm.
No-load speed (min-1): High speed 0–2,200; Low speed 0–600.
Impact rate (min-1): High speed 0–33,000; Low speed 0–9,000.
Estimated work per charge: About 360 bricks with carbide drill φ8mm (depth 30mm) at high speed.
Estimated work per charge: About 960 pieces of plywood with φ15mm drill (30mm thick) at high speed.
Main body dimensions: Length 174mm × Width 86mm × Height 265mm.
Weight: 1.9kg (including battery).
Fastest mid-range hammer drill (domestic / November 2020 survey). High-speed rotation of 2,200 min-1 + constant speed control for high efficiency. About 35% faster stone drilling speed* (compared to Makita 18V models). *When using a carbide drill φ8mm, drilling into brick to a depth of 30mm. *The photo shows a φ13mm stone drill.
About 30% faster woodworking drilling speed* (compared to Makita 18V models). *When using a φ27mm woodworking drill, drilling into 30mm thick plywood. *The photo shows a φ38mm woodworking drill.
Equipped with durable all-metal gears and a high-power brushless motor. Max torque 65N·m. Constant speed control, less affected by battery charge or load, enabling stable drilling.
Waterproof protection level IPX6*. This applies to both the tool and the battery. *Designed to resist dust and water, but not guaranteed to be failure-free. When the battery is attached, protection level conforms to the main body.
DC 36V (40V max), slide-type Li-ion battery. Battery and charger sold separately.
[Important Notice - For Overseas Customers]
Thank you for purchasing this product. Before using it overseas, please carefully read the following important notices.
1. Laws, Regulations, and Safety Standards
This product complies with Japanese safety standards. Before use in your country, please check its compliance with local laws, regulations, and safety standards.
Certain product categories (electronics, cosmetics, food, etc.) may require certification in the importing country.
2. Regarding Electrical Products
【Voltage Compatibility】
When using electrical products, please note that they are designed to match Japanese voltage specifications (90-110V). Using them with a different voltage may cause malfunction.
【Plug Type】
Our products use Japanese plug types (Type A or Type B).
Please use a conversion adapter as needed.
【Important Notes Regarding Transformers and Adapters】
Transformers adjust the voltage to match the requirements of the equipment.
Conversion adapters only change the plug shape and do not adjust the voltage.
Using only a conversion adapter without a transformer may damage the product.
[Regarding Liability]
We are not responsible for any malfunctions or damage caused by improper use, such as operating the product without a transformer.
3. Language and Manual
Product instructions and displays may be in Japanese only.
An English version of the manual can be downloaded from our website.
4. Regarding Product Returns and Exchanges
Please note that if you wish to return or exchange a product, you will be required to submit a video of the unpacking process.
