Feature:
1. 4 in 1 Meter Design: The gauge has multifunctions, including water temperature gauge, oil temperature meter, voltmeter and time function.
2. Characteristic: LCD digital display is adopted, with strong brightness, strong waterproof, high measurement accuracy, and longer service life.
3. ℃ or ℉ Unit: The display unit of working temperature can be ℃ or ℉, and you can adjust the unit as required to obtain better adaptability.
4. 0‑120 ℃ Range: The temperature display range is 0‑120 ℃. When the temperature of your motorcycle exceeds 120 ℃, the thermometer will flash for warning.
5. Applicable Model: The working voltage of this meter is DC12V, can be used for most motorcycles, with blue backlit for night use.
Specification:
Item Type: Motorcycle Thermometer
Material: Plastic + LCD
Temperature Unit Display: ℃ or ℉
Temperature Display Range: 0-120℃ (32-248℉)

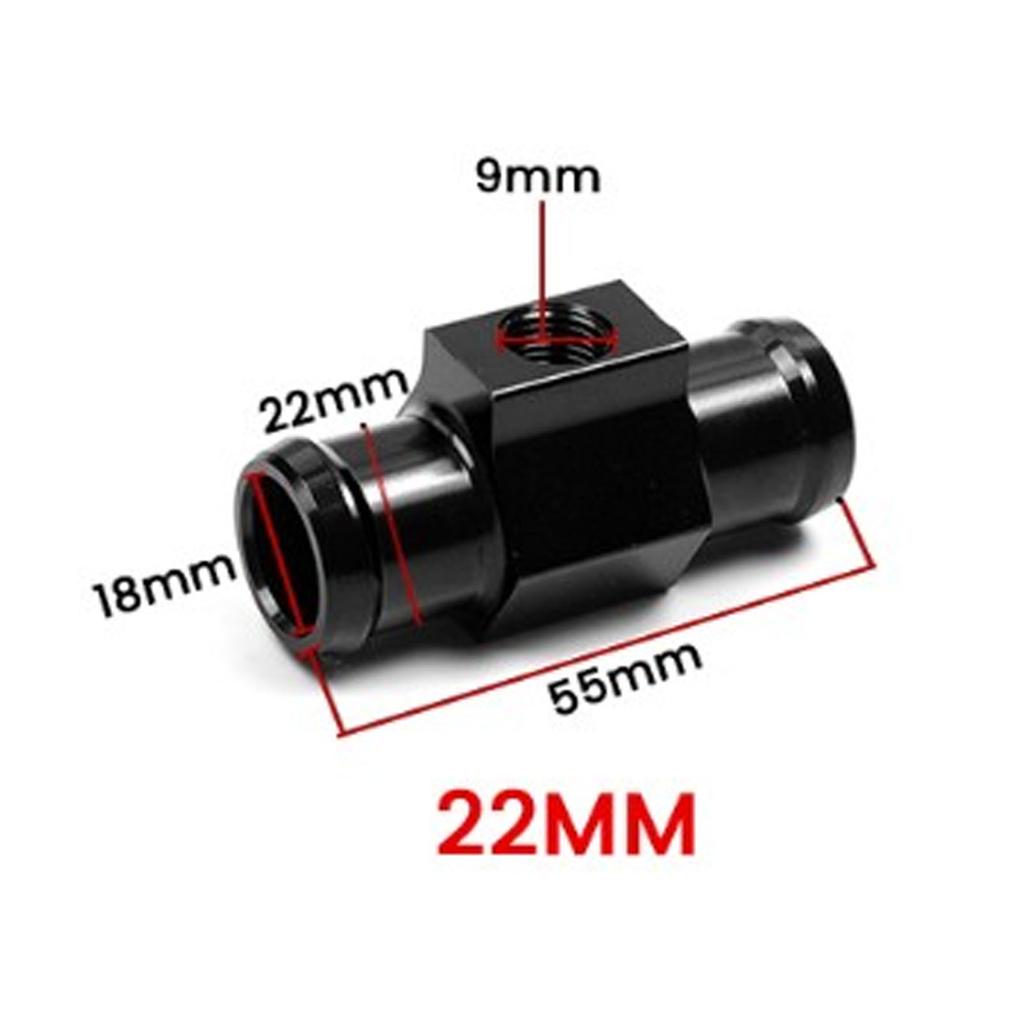

Tee Adapter Size: Approx. 22mm / 0.87in
Dimension of Thermometer: Approx. 60 x 30 x 13mm / 2.36 x 1.18 x 0.51in
Temperature Warning: Flashing when the temperature is higher than 120℃, 248 ℉
Effective Working Voltage: DC12V
Backlight: Blue
Applicable Model: Universal for motorcycles
How to Use:

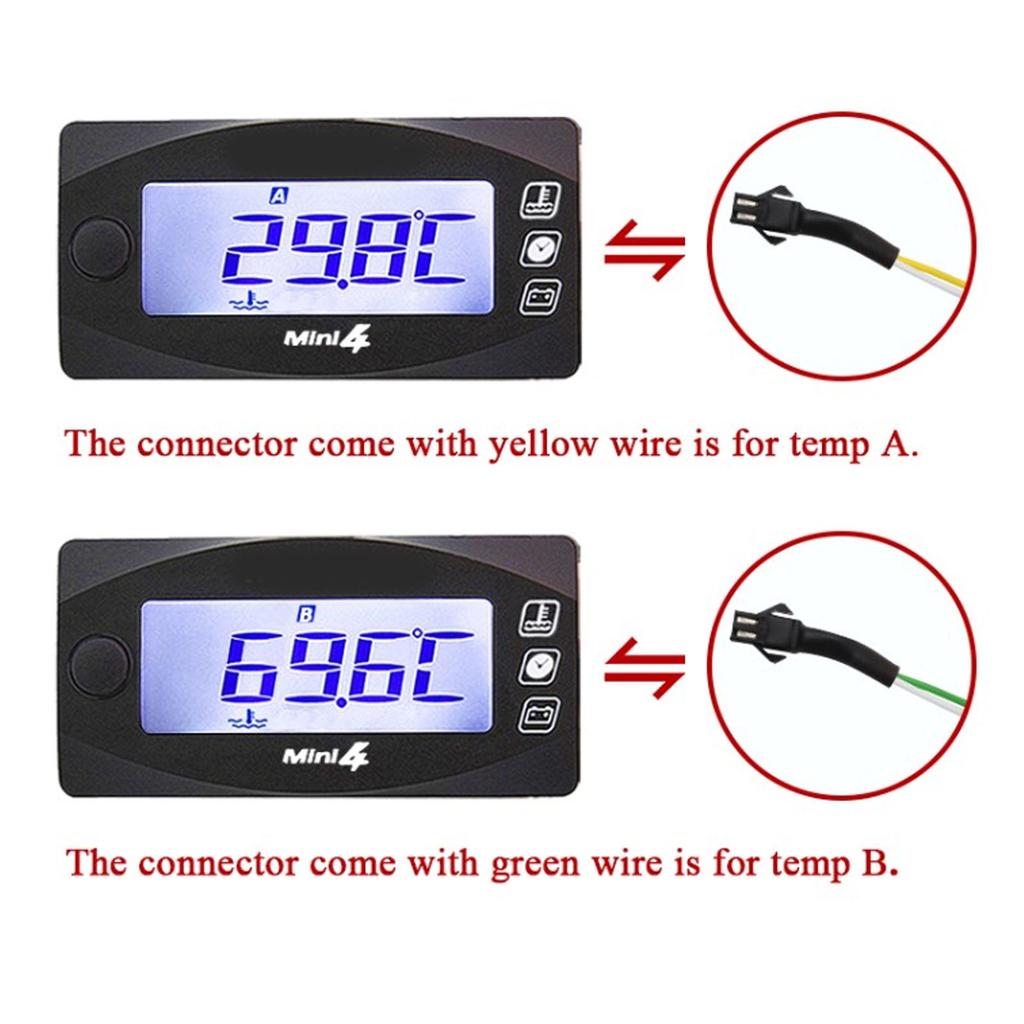

Wiring method:1. Temp A‑Yellow wire and white wire.2. Temp B‑Green wire and white wire.3. Blue wire connect to key on DC 12V main power switch.(+)4. Black wire connect to the vehicie body.(‑)5. Red wire connect to the battery DC12V.(+)

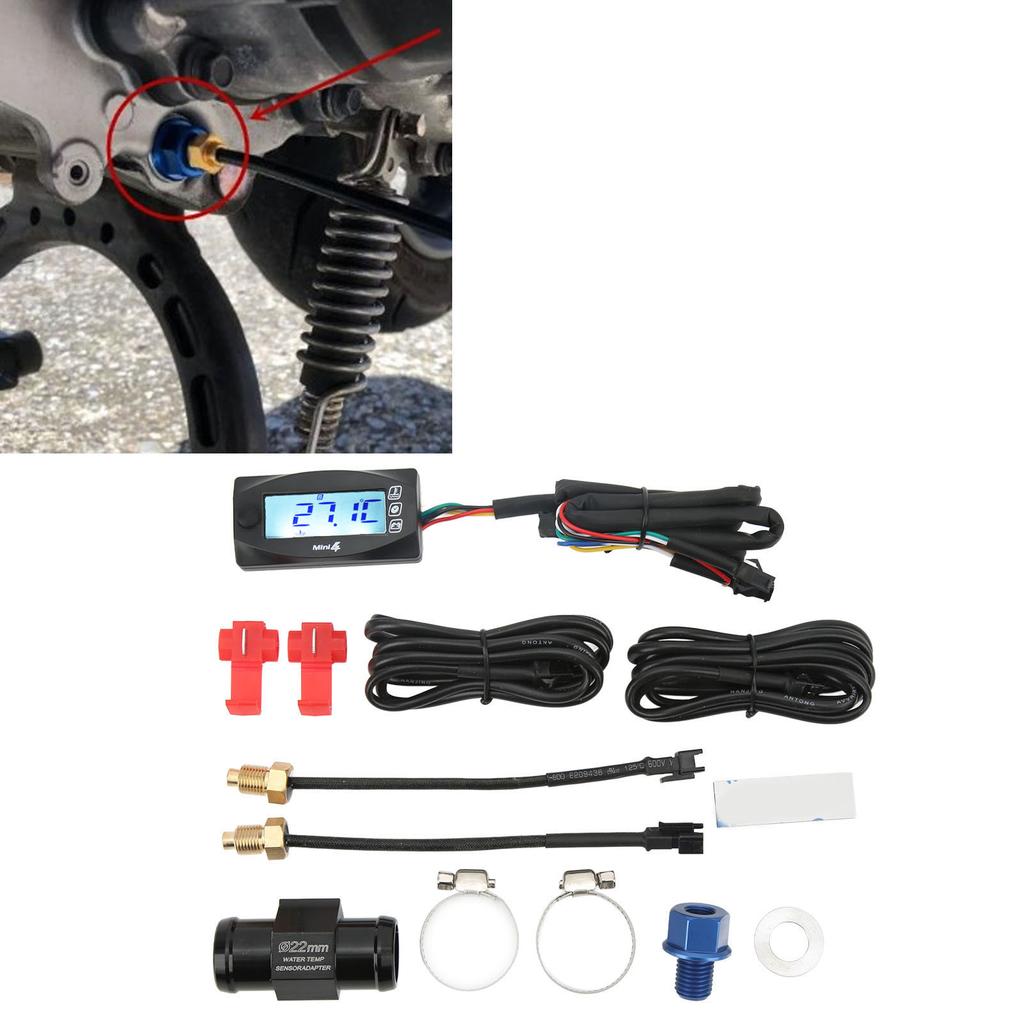

6. Water temperature: the tee needs to be connected to the cooling water tank pipe, and then the sensor is connected to the tee7. Oil temperature: install the oil temperature screw at the oil outlet, and then connect the sensor with the screw

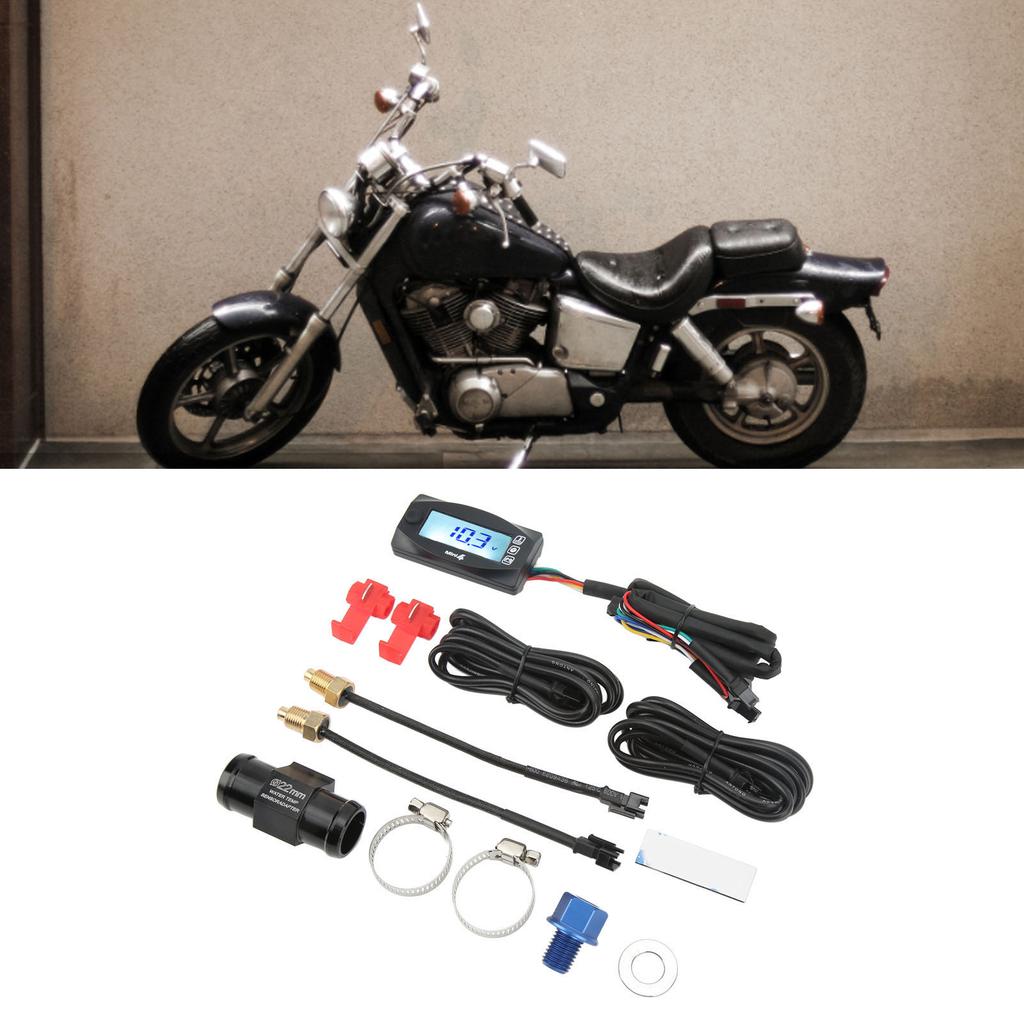

Package List:
1 x Motorcycle Thermometer
2 x Sensor Harness
2 x Extension Cable
1 x Instructions
1 x Tee
1 x Oil Outlet Screw
2 x Clamp
2 x Wire Terminal
1 x Gasket
1 x Double Sided Adhesive Block
Note:
If the temperature display is abnormal after installation, check whether the sensor wire plug connector is normal
