Advanced GQ EMF-390 3-in-1 EMF Meter RF Spectrum Analyzer Black

The GQ EMF-390 multifunctional digital EMF meter is designed by GQElectronics in Seattle, USA, as a portable and convenient device. The meter can identify common sources of EMF from measured EMFs, such as power lines, smart meters, Wi-Fi, microwave ovens, and cell towers. It also comes with audible and visual alarms and can be used for detecting and monitoring EMF, ELF, EF, and RF both indoors and outdoors, as well as in other similar environments. Connecting the device to a PC allows the PC software to download radiation data to the computer, which users can then analyze later.

Features: ★ The meter is equipped with multiple sensors to ensure maximum scale/range measurement and the highest accuracy. ★ The device also features a high-contrast black/white LCD module and one front LED indicator. ★ Automatic identification of possible EMF radiation sources: The G-Q EMF meter can identify common EMF radiation sources when it collects valid data from the source. ★ It can be used as an industrial, commercial maintenance, research, evaluation, simulation, or other analytical or scientific application in fields such as industrial plants, utilities, universities, research institutes, and electronic repair shops.

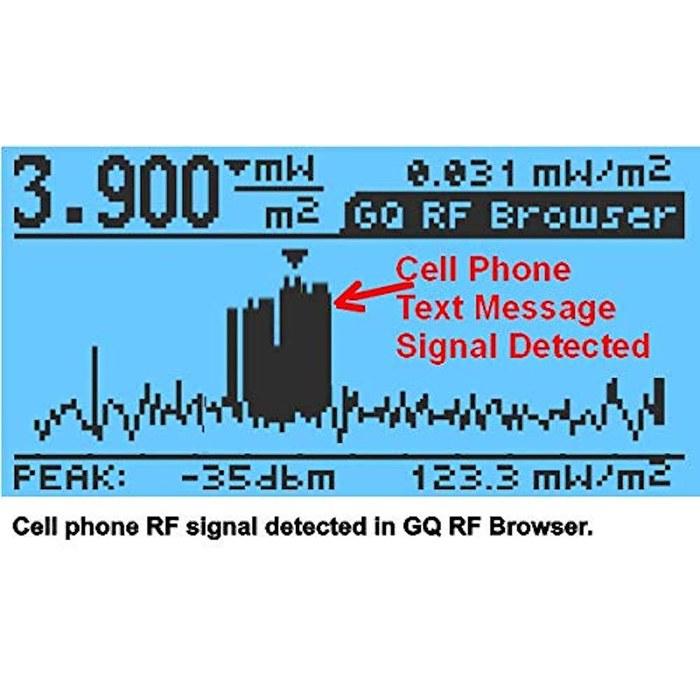

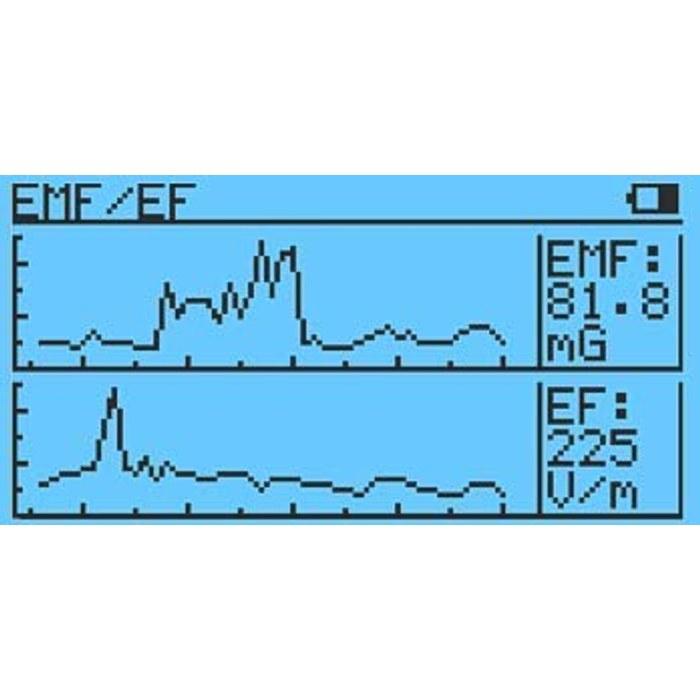

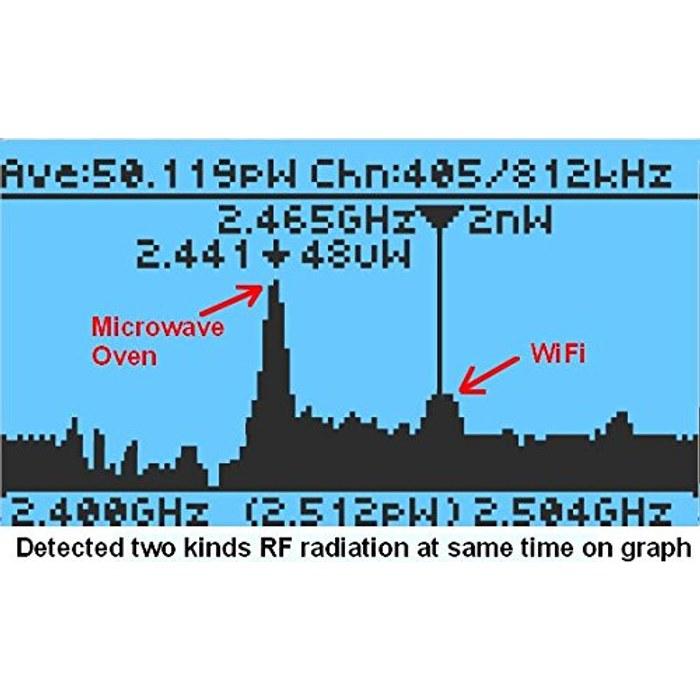

Function Guide: Audible Alarm: Beep/Siren Visual Alarm: Green, Red LED Display: LCD dot matrix, backlit Three-Axis EMF: Yes RF Radiation: Up to 10 GHz RF Spectrum Power Analyzer: 2.40 to 2.5 GHz, 240 to 1040 MHz, 2.30 to 23.00 MHz, 64 to 108 MHz, 520 to 1710 kHz, 150 to 531 kHz Data Logging/Storage: Yes EMF (Electromagnetic Field): 3-axis (X, Y, Z) up to 400 kHz Range: 0.0 to 500 mG EF (Electric Field): Range: 0 V/m to 1000 V/m RF Field (Radio Frequency Field): Frequency: Up to 10 GHz RF Spectrum Power Analyzer: Frequency Band 1: 150 kHz to 531 kHz Frequency Band 2: 520 kHz to 1710 kHz Frequency Band 3: 64 MHz to 108 MHz Frequency Band 4: 2.3 MHz to 23.00 MHz Frequency Band 5: 240 MHz to 1040 MHz Frequency Band 6: 2.4 GHz to 2.5 GHz

Specifications: Name: G-Q EMF Meter Operating Temperature: 5 to 40°C Operating Humidity: Less than 80% RH Operating Voltage: 3.6-3.7V Power Consumption: 25mW to 125mW (depending on backlight) Powered by: 1 * 3.7V, 1500mAh Lithium-ion Battery / USB power (both included) Product Size: 135 * 78 * 25 mm Package Size: 200 * 100 * 50 mm Package Weight: 400 g

Package Contents: 1 * G-Q EMF Meter 1 * USB Cable 1 * Guidelines * A PDF version of the Japanese instruction manual is available.

・✅【Made in the USA, a leading country in electromagnetic wave countermeasures】The EMF-390 is a high-precision, high-performance electromagnetic wave measuring instrument (electromagnetic wave meter) developed by GQ Electronics, an American company that handles cutting-edge electronic protection equipment. It can be used in a wide range of applications, from measuring electromagnetic waves in the home to professional and research purposes. ・✅【Simultaneous display of three types of waves: electromagnetic waves, electric fields, and electromagnetic fields】The EMF-390 is an electromagnetic wave meter that can measure three types of waves – high-frequency electromagnetic waves (microwaves), electric fields, and electromagnetic fields – simultaneously with a single unit. The all-in-one display mode, not found in typical electromagnetic wave meters, allows you to view the three measured values simultaneously on one screen. ・✅【Battery-powered and USB rechargeable】A unique feature of the EMF-390 is that it can also be charged via a USB cable. This eliminates the hassle and running costs of replacing batteries, allowing for continuous use. A USB cable is included. ・✅【Data logging and storage】The EMF-390 is equipped with flash memory for data logging and storage, a feature not found in typical electromagnetic wave meters. It also supports downloading in CSV format with free software, making it useful for continuous monitoring of electromagnetic waves and data acquisition in professional fields. ・✅【For various electromagnetic wave measurements】It can be used to measure various electromagnetic waves both indoors and outdoors, from electromagnetic waves from mobile phones, smartphones, and microwave ovens to outdoor power lines, high-voltage lines, 5G base stations, and facilities such as factories and research laboratories. ・✅【Reliable Japanese manual】You can download a Japanese manual, quick start guide, and glossary. Everything is in Japanese, from a quick start guide and glossary for first-time users to a detailed manual for optimal use in professional fields, so anyone can use it with confidence.

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device's requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
