Feature:

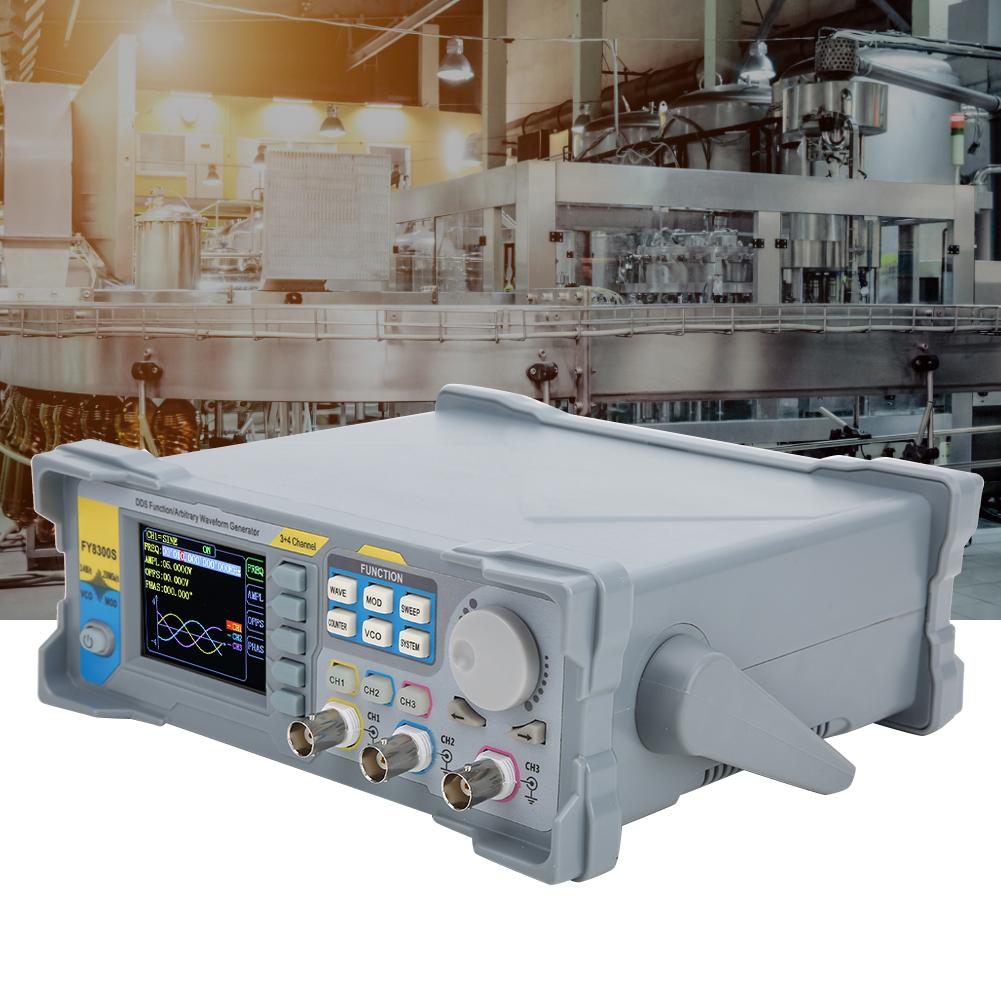

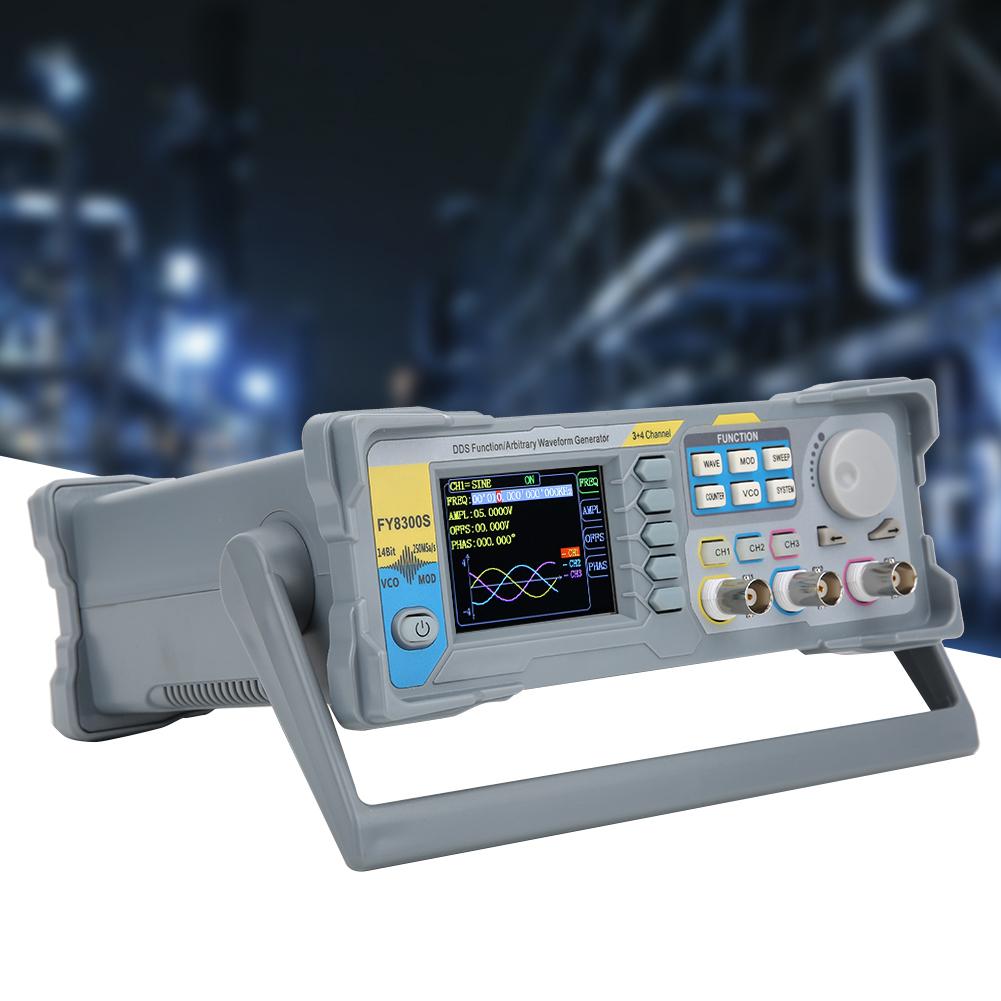

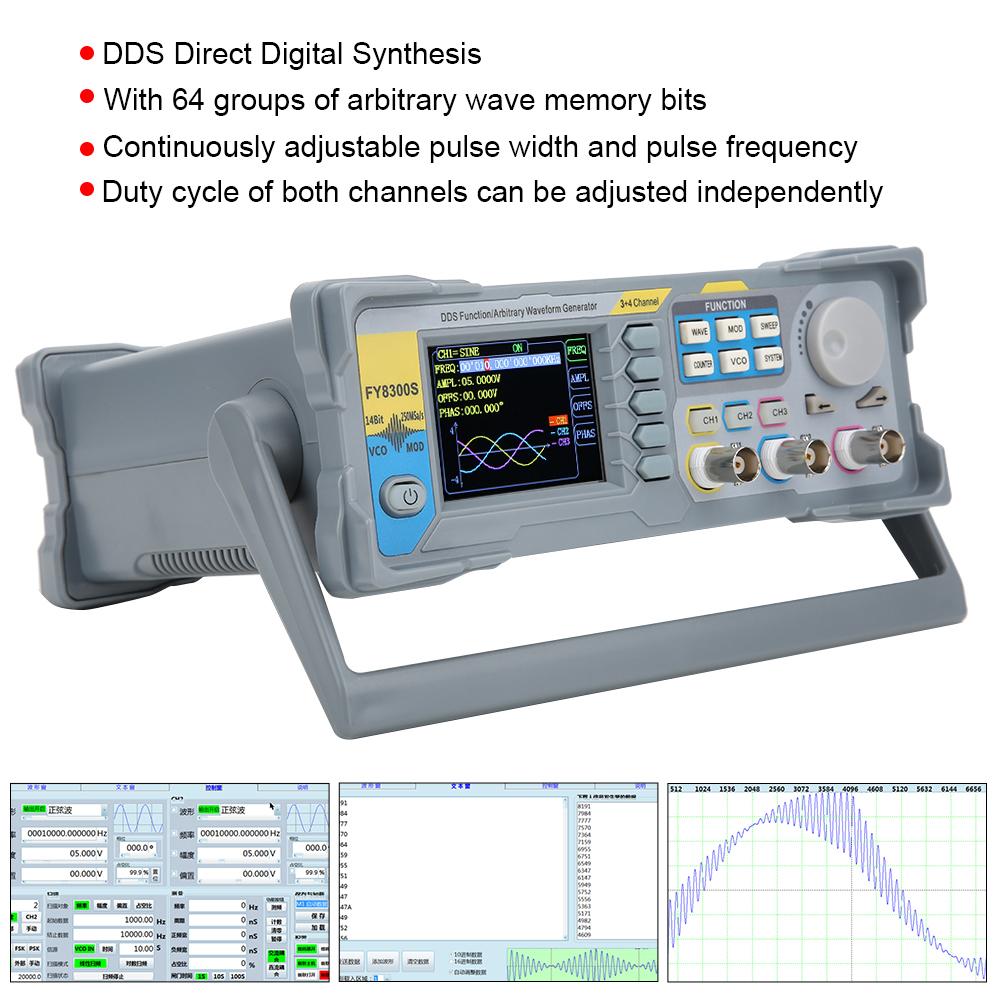

1. FY8300 / FY8300S series three-channel function / arbitrary waveform generator is a set of function signal generator, arbitrary waveform generator, pulse signal generator, four-channel TTL signal generator, VCO, frequency sweeper, counter and frequency meter, etc. All-in-one high-performance, cost-effective and versatile signal generator.
2. The instrument uses DDS direct digital synthesis technology to produce accurate, stable and low-distortion output signals. All parameters are calibrated by internal procedures. All software of the instrument is equipped as standard. All functions of the instrument can be controlled by the software of the host computer. Machine software to edit arbitrary waveforms and save them to the signal generator to output waveforms.
3. Rich shortcut keys greatly simplify the complicated operation process and greatly enhance the operability of the instrument.
4. Communication protocol is open, making secondary development very easy.
5. Large-scale integrated circuits, surface mount technology, high reliability, long service life.
6. With output short-circuit protection, all signal output terminals can work under load short-circuit conditions 60S.
7. Completely independent three-channel output (equivalent to three independent signal sources), capable of working synchronously, with precisely adjustable phase difference.
8. Adopt DDS direct digital synthesis technology to produce accurate, stable and low distortion output signal.
9. Press and hold the OK key during use, you can quickly save the parameter information currently output by the instrument, and the saved parameters can be automatically loaded at the another boot.
10. Standard channel tracking function, when the tracking is on, all parameters of the three channels can be updated at the same time according to the user's configuration.
11. Can output up to 98 groups of functions / arbitrary waveforms, including 34 preset waveforms and 64 user-defined waveforms (arbitrary waveform editing software supporting the instrument can be used to edit arbitrary waveforms and download to the instrument output).
12. With 64 groups of arbitrary waveform storage bits, each group has a storage depth of 8192 * 14bits (the longer the waveform storage depth, the more waveform details are saved, and the signal details can be restored with high accuracy)
13. Scanning function: Four attributes of the signal: frequency, amplitude, offset, and duty cycle can be scanned separately. It has two scanning modes, linear scanning and logarithmic scanning.
14. 100M frequency meter function: It has four measurement methods: frequency measurement, period measurement, positive and negative pulse width measurement, and duty cycle measurement. The maximum measurement frequency of the instrument can up to 100MHz, and the minimum measurement frequency is 0.01Hz.
Specification:
Item Type: Signal Generator
Display: 2.4 inches (320 X 240) color
Maximum Output Frequency: 60MHz (sine ), 250MSa / s sampling rate, 14bits vertical resolution
Frequency Accuracy: The frequency accuracy can up to the order of 10-6
Frequency Resolution: Full range frequency resolution 1uHz (0.000001Hz)
Output Amplitude: Up to 24Vpp, amplitude resolution up to 1mV (0.001V)
No Range Limitation: Full range frequency without binning, direct digital setting
DC bias function of -12V ~ + 12V (The duty cycle of the two channels can be adjusted independently, and the adjustment accuracy can up to 0.01%
The pulse width and pulse frequency are continuously adjustable, and the adjustment range is 20ns-1S. The pulse amplitude can be continuously adjusted between 0-12V, and the adjustment accuracy is 0.001V
The phase adjustment range of the three channels is 0 ~ 359.99 °, and the adjustment accuracy is 0.01 °
With digital signal output function, can realize any CMOS level with amplitude of 0 ~ 12V
Package List:
1 x Signal Generator Host
1 x Host Power Cord
3 x Clip Line
3 x BNC-BNC Cable
1 x USB Cable
Note:
Computer software and instructions are sent by mail or downloaded by yourselves.
