Feature:

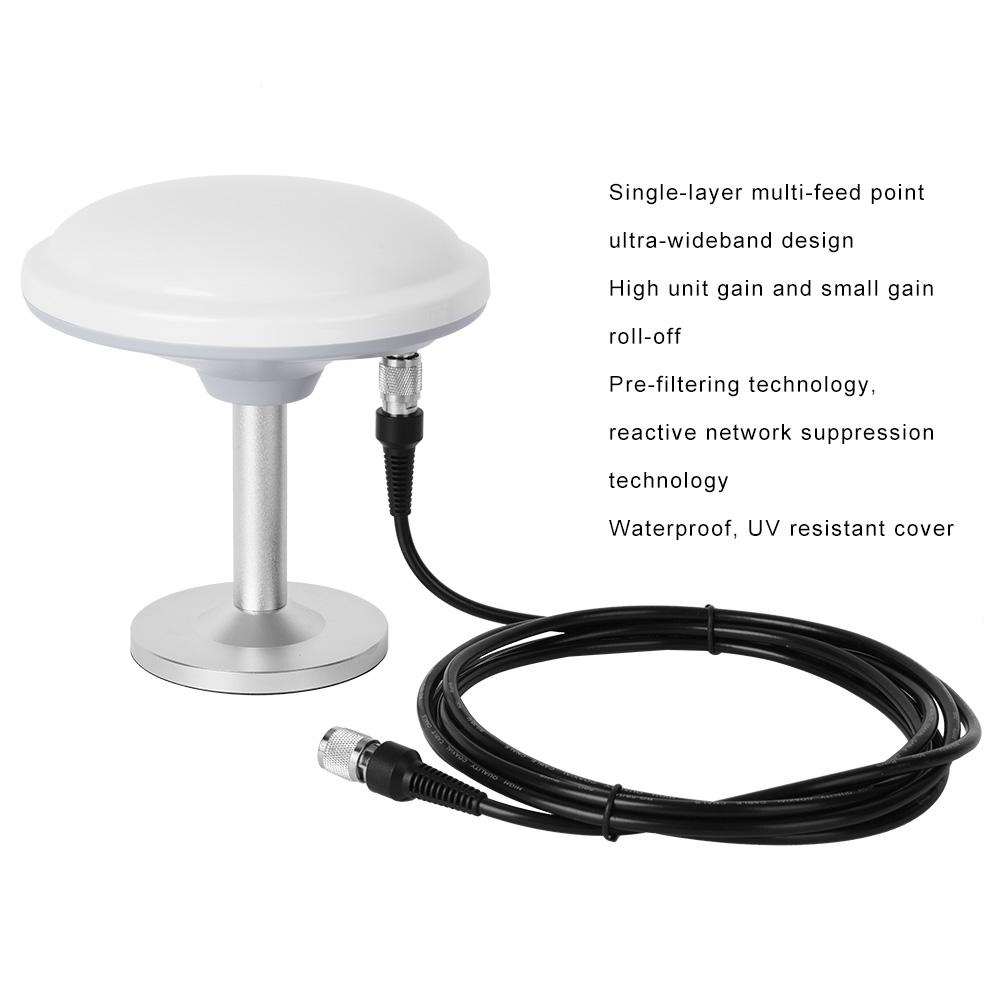

1. The antenna adopts a single-layer multi-feedpoint ultra-wideband design, so that the phase center elevation difference is the smallest in the entire working frequency band.
2. The antenna unit has high gain and small gain roll-off, and has good reception effect on satellite signals with low elevation angles, ensuring that the satellite can still be normally collected in some occasions where the occlusion is severe.
3. Low noise amplifier uses pre-filtering technology to effectively suppress out-of-band interference signals and improve system reliability.
4. Reactive network suppression technology effectively reduces the impact of multipath signals on measurement accuracy.
5. The waterproof and UV-resistant cover provides a guarantee for the antenna to work in the field for a long time.
6. The external full-band GNSS measuring antenna supports satellite navigation signal reception of Beidou II, GPS and GLONASS systems, and meets the needs of current multi-system compatibility and high-accuracy measurement. It can be widely used in geodesy, ocean measurement, agriculture, and deformation. Monitoring and other high-accuracy navigation and positioning occasions.
Specification:
Item Type:Antenna Receiver
Supported Satellite Signal
BDS: B1, B2, B3;
GPS: L1, L2, L5;
GLONASS: G1, G2, G3:
Galilco: El, E2, E5a, E5b, E6, L-Band
Working Frequency Band: 1154MHz-1300MHz; 1551MHz-1615MHz
Impedance Matching: 50 Ohms
Polarization Mode: Right Circular Polarization
Antenna Shaft Ratio: ≤3dB
Horizontal Coverage Angle: 360 Degrees
Phase Center Error: ≤2.0mm
Low Noise Amplifier Gain: 40±2dB
Noise Figure: ≤2.0dB
Output Standing Wave Ratio: In-Band Flatness: ±2dB
Working Voltage: 3.0~16VDC
Working Current: ≤35mA
Working Temperature: -40°C~+80°C
Storage Temperature: -45°C~+85°C
Humidity: 95% Non-Condensing
Protection Level : IP67

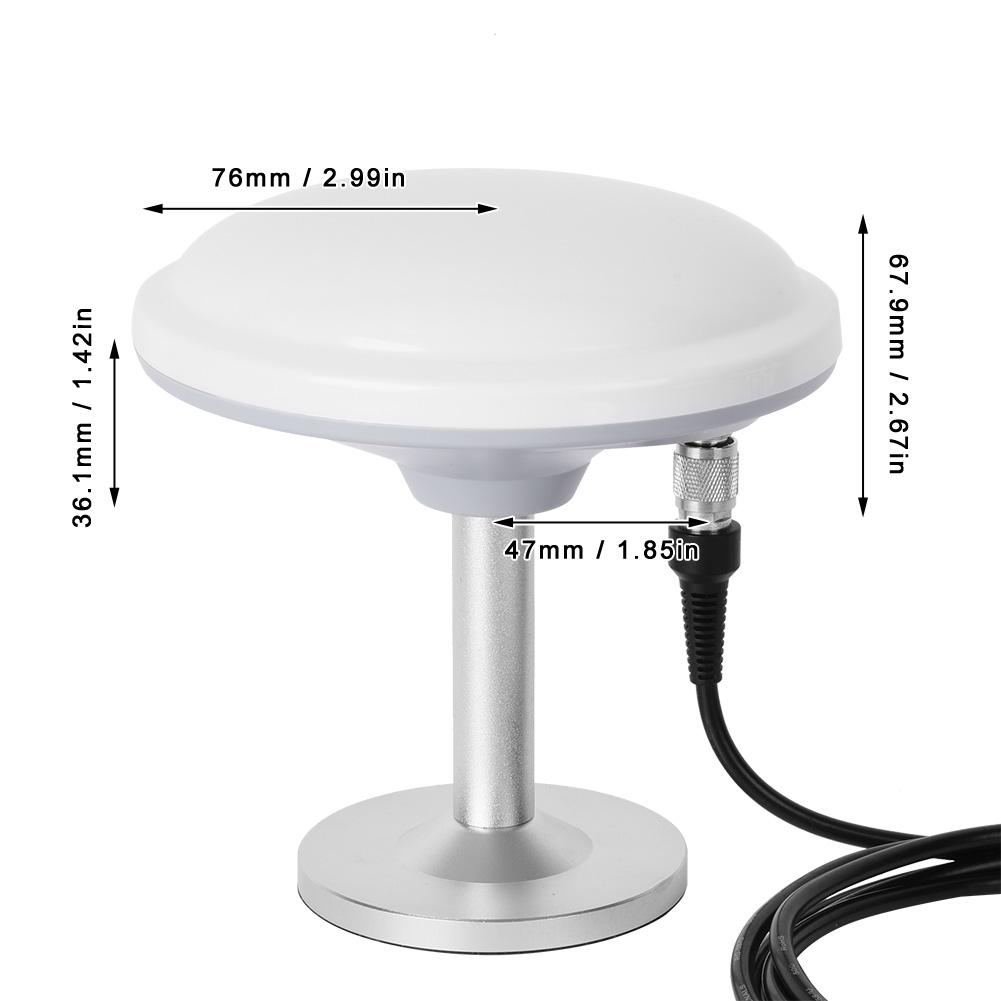

Antenna Size : Φ152 x 67.9mm / 5.98 x 2.67in

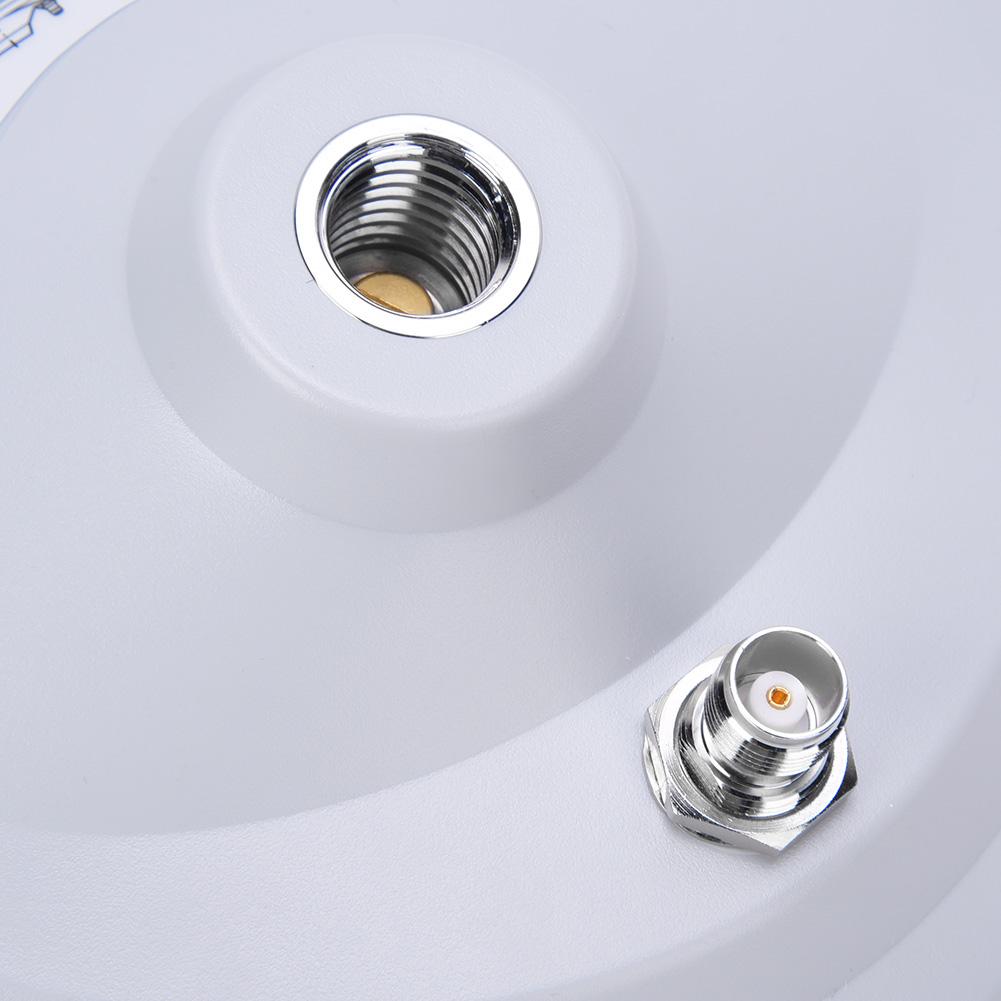

Output Interface : TNC
Weight: ≤430g/15.17oz
Package List:
1 x Receiving Module

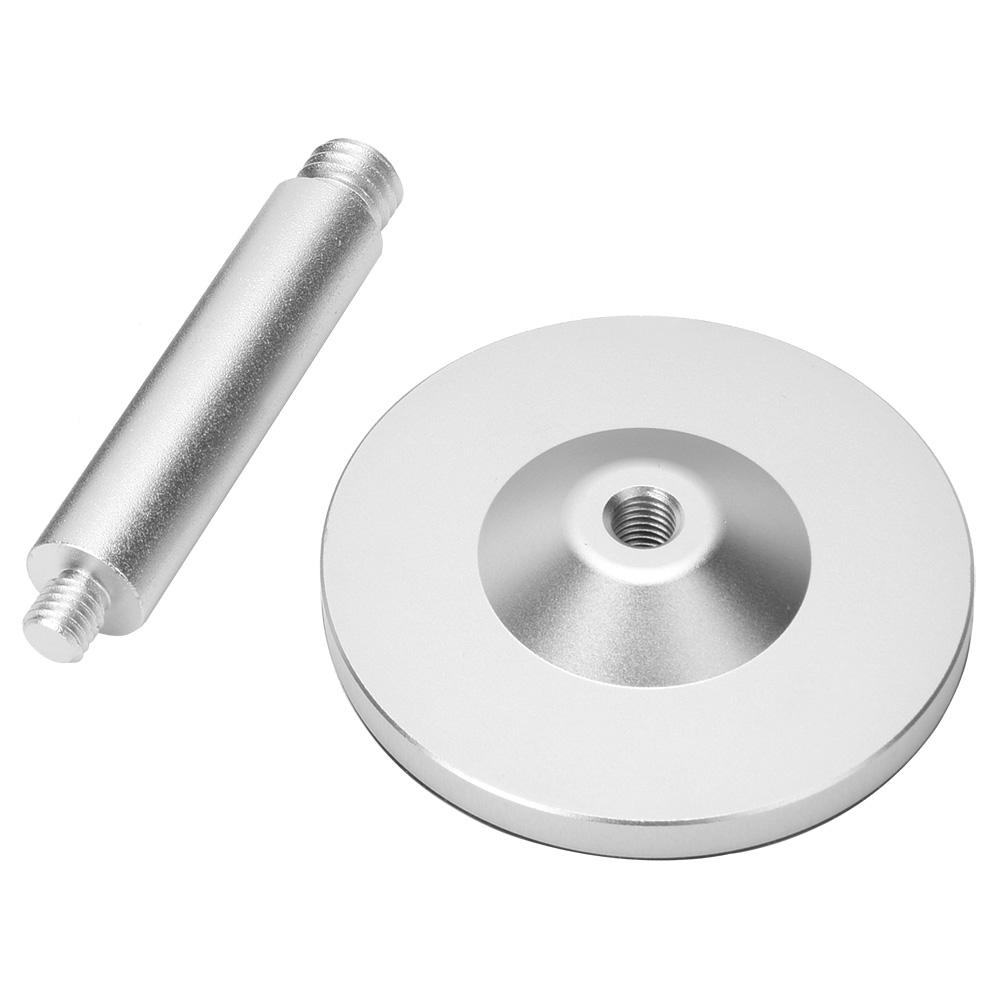

1 x Base
1 x 3 meters Feeder
