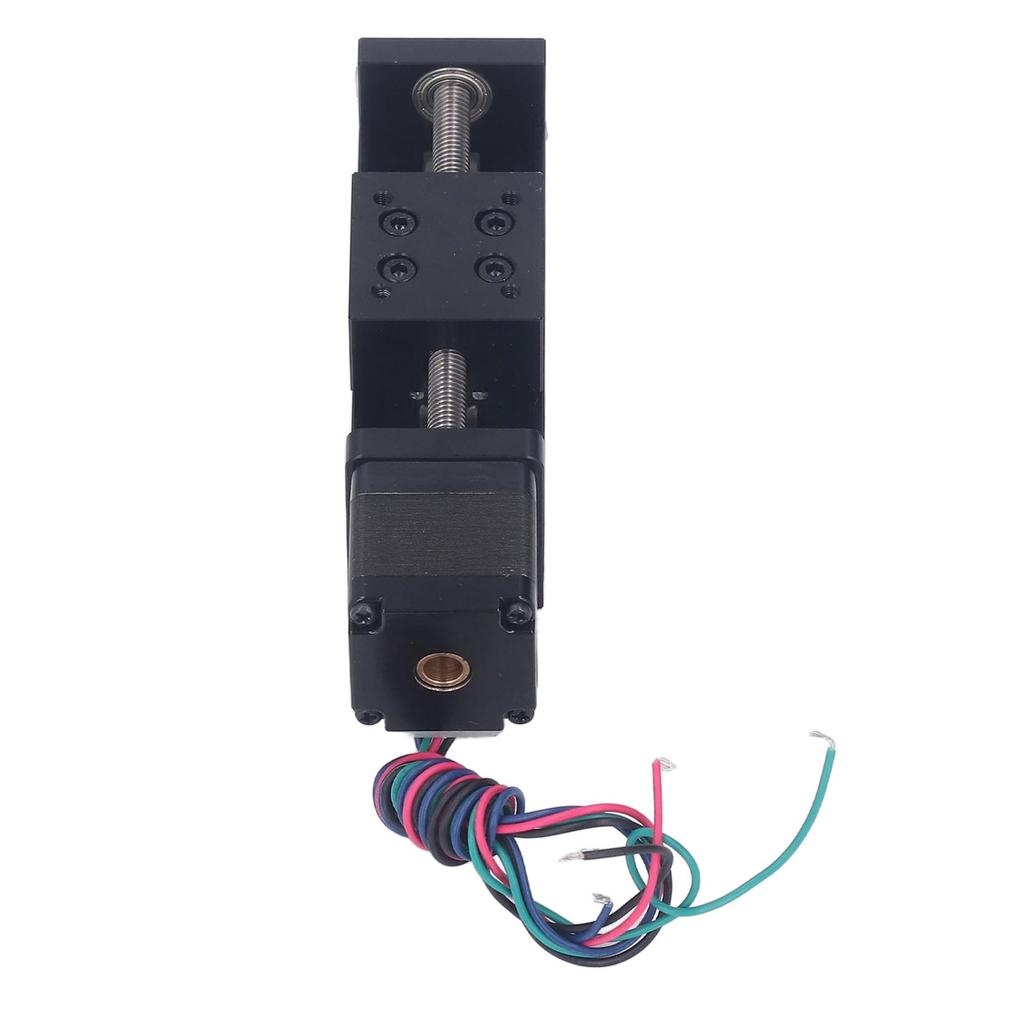

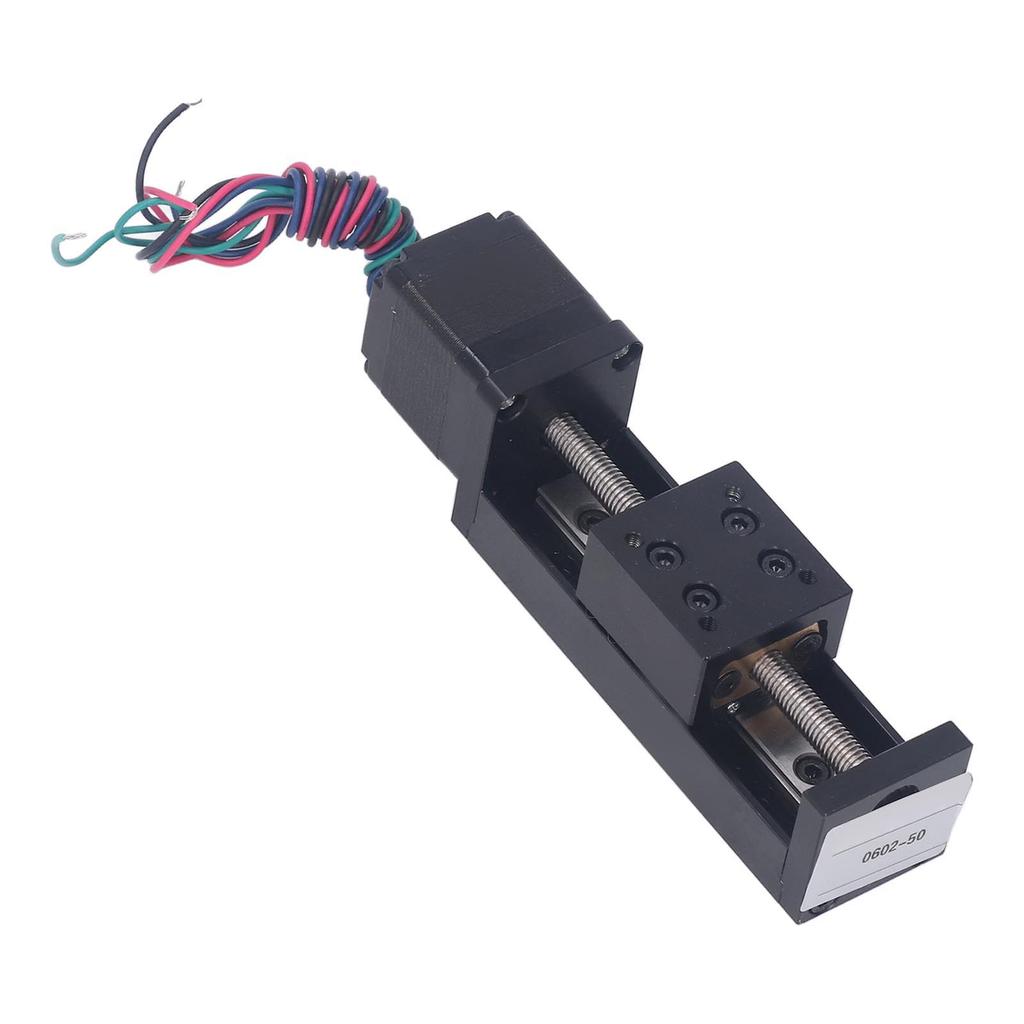

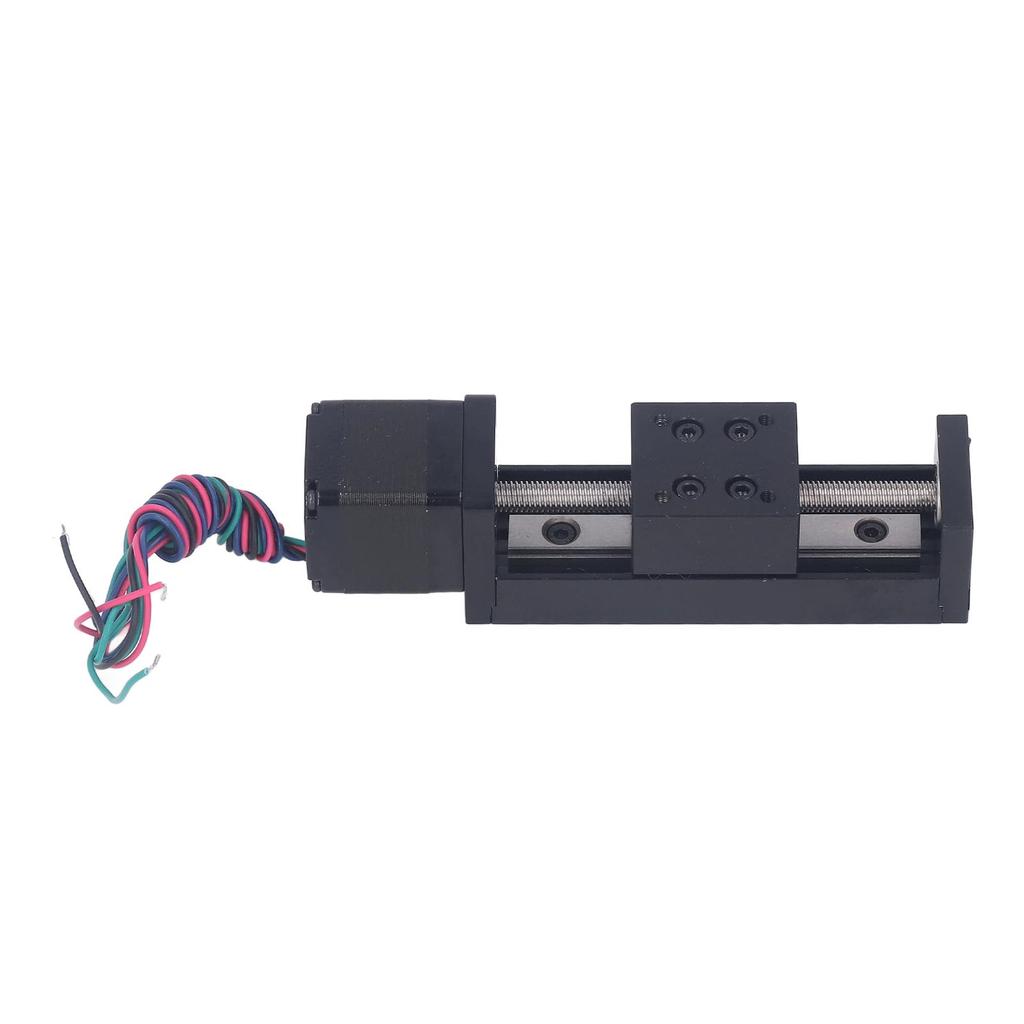

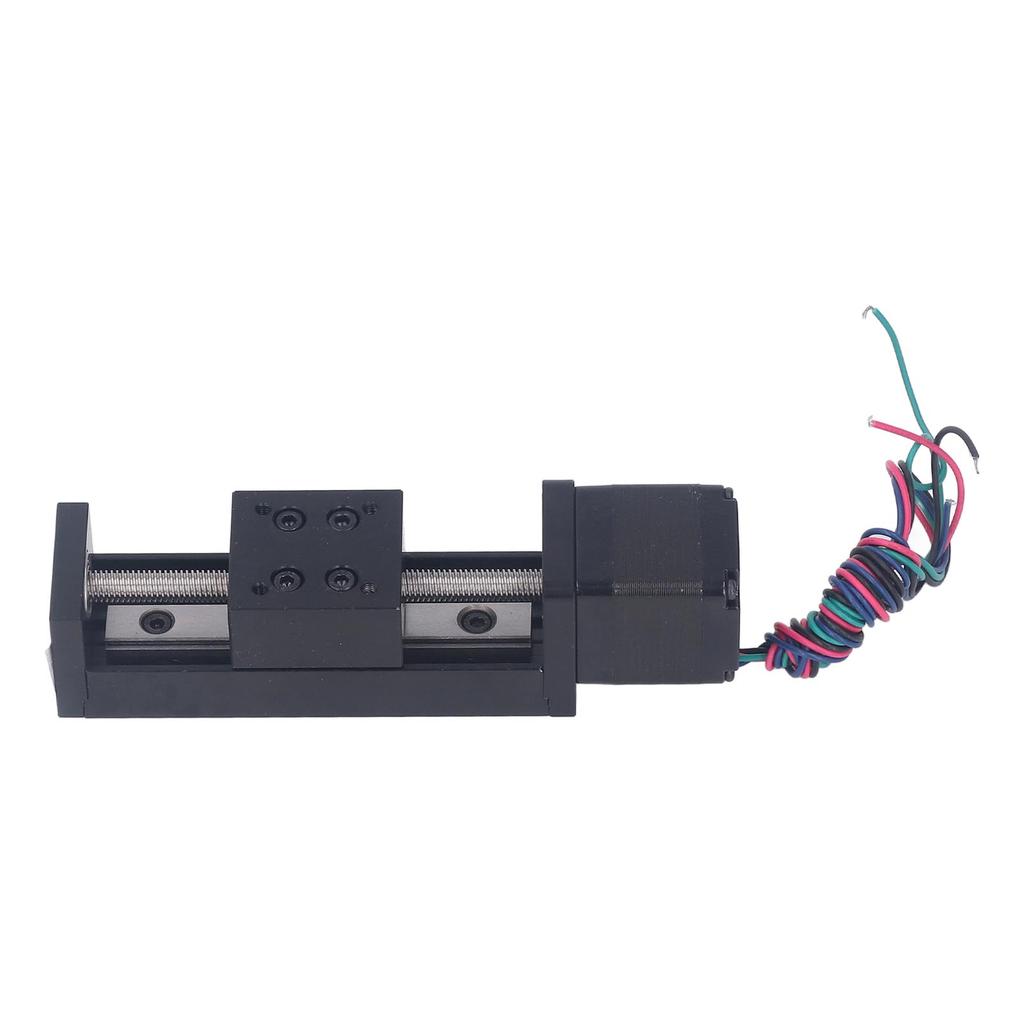

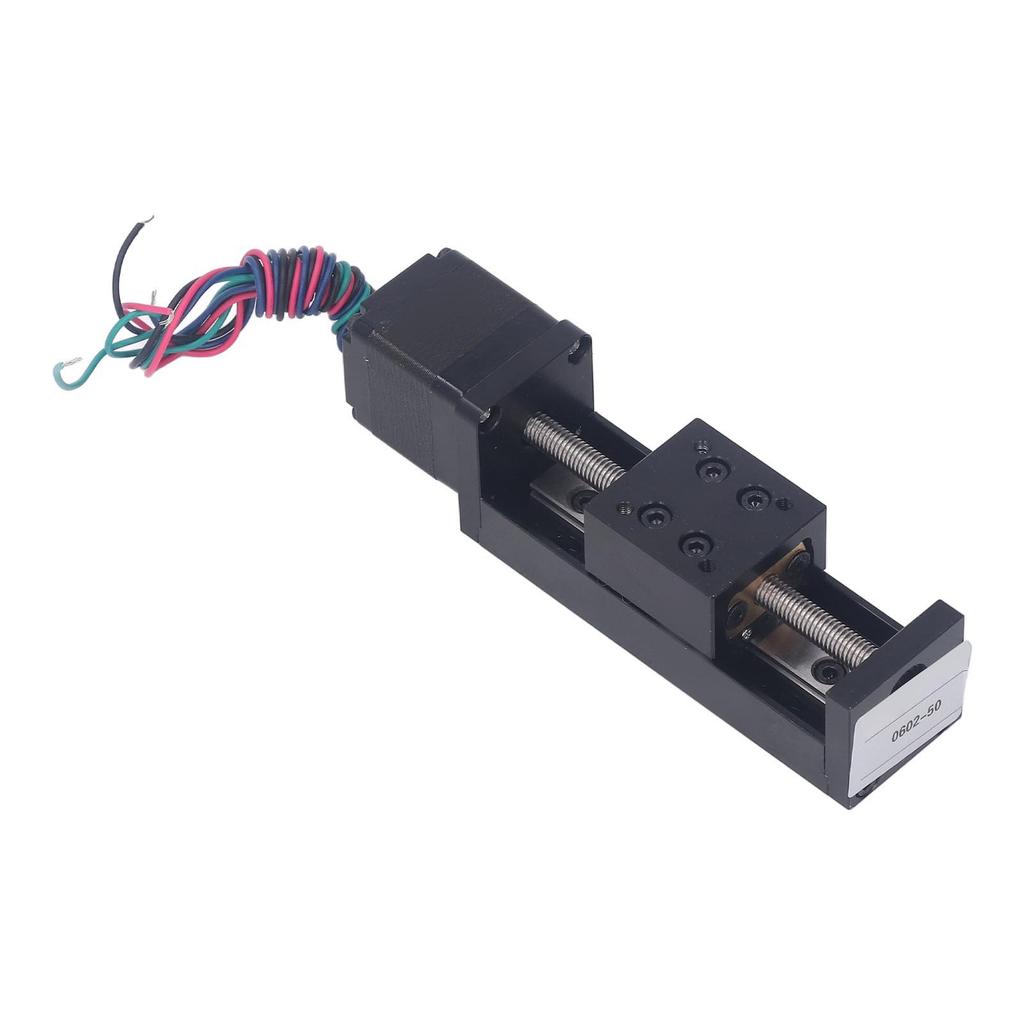

Mini Linear Rail Guide Slide Actuator 28 Stepper Motor 50mm Stroke DIY CNC Router Parts X Y Z Stage with T Screw Rod

Feature: 1. TECHNICAL PARAMETERS: Linear slide stage actuator effective travel for 50mm, step angle for 1.8 degrees, Diameter 6mm, helical pitch 1mm, pitch 1mm(guide screw can move 1mm a circle) 2. LOW NOISE MONORAIL: Linear slide adopt single guide design, bring stable operation, low noise, suitable for X, Y and Z axes 3. STABLE METAL STRUCTURE: The linear motion table is made of excellent alloy with a thickened bottom plate to ensure stability during operation 4. ACCURATE AND EFFICIENT: The slide table has the advantages of large horizontal and vertical load, high positioning accuracy, high efficiency and good stability 5. APPLICABLE SCENARIO: Mini linear rail guide slide actuator is widely used in DIY CNC milling machine, inspection equipment, optical measurement, fine tuning displacement, mechanical positioning and so on Specification: Item Type: Mini Linear Rail Guide Slide Actuator Material: Alloy Effective Travel: Approx. 50mm 1.97in Load: Horizontal: less than 5KG; Vertical: less than 1KG Positioning Accuracy: + 0.1mm Holding Torsion: 6N.cm Current: 0.6A Resistance: 5.5 Ohm Inductance: 3.2MH Speed: 0 120mm s Step Angle: 1.8 Degrees Diameter: Approx. 6mm 0.24in Helical Pitch: Approx. 1mm 0.04in Pitch: Approx. 1mm 0.04in. Package List: 1 x Mini Linear Rail Guide Slide Actuator
