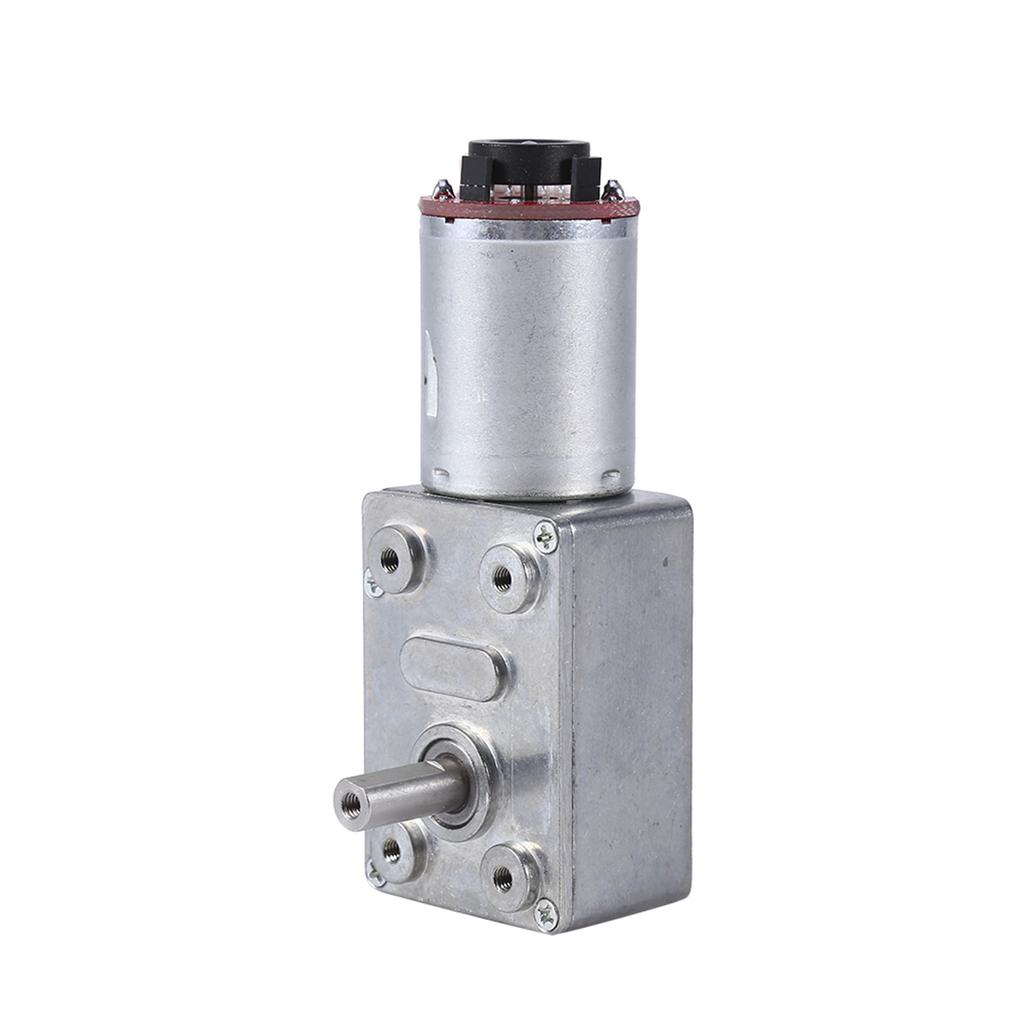

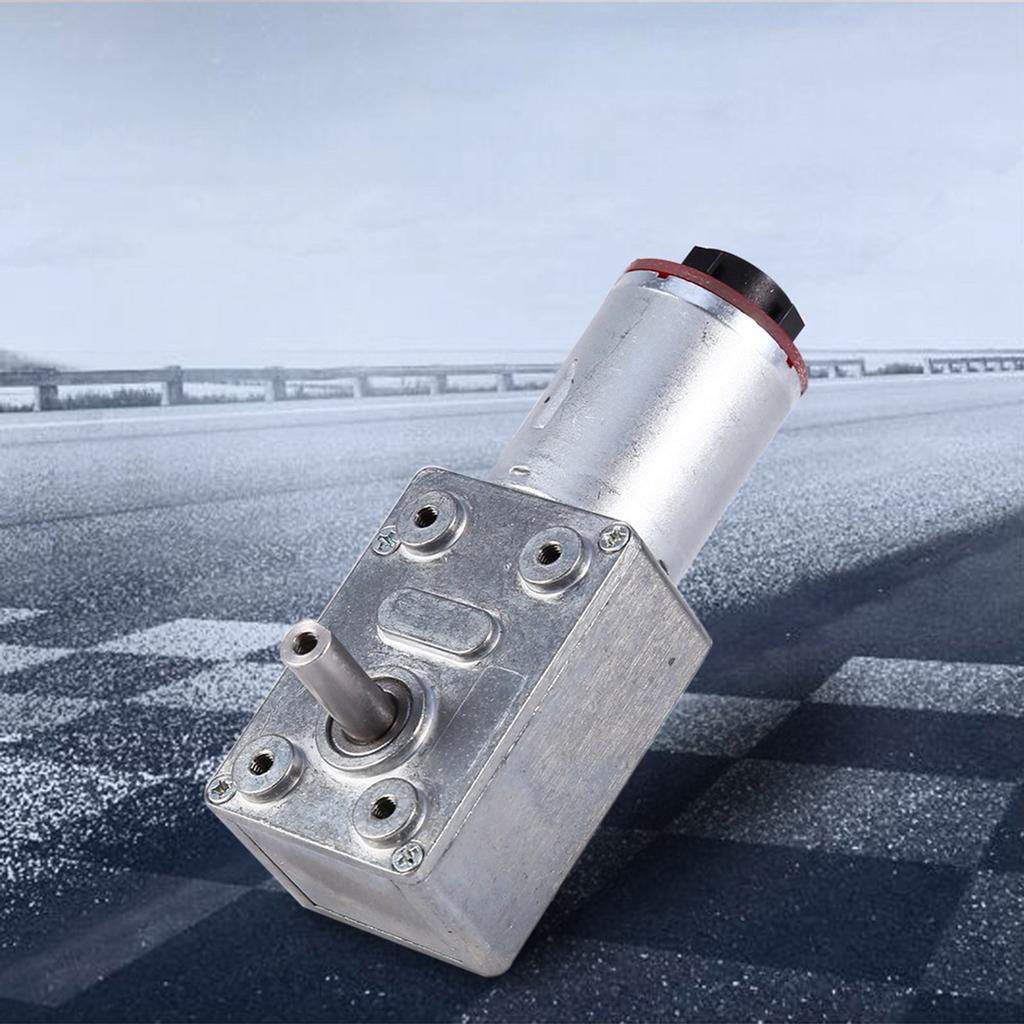

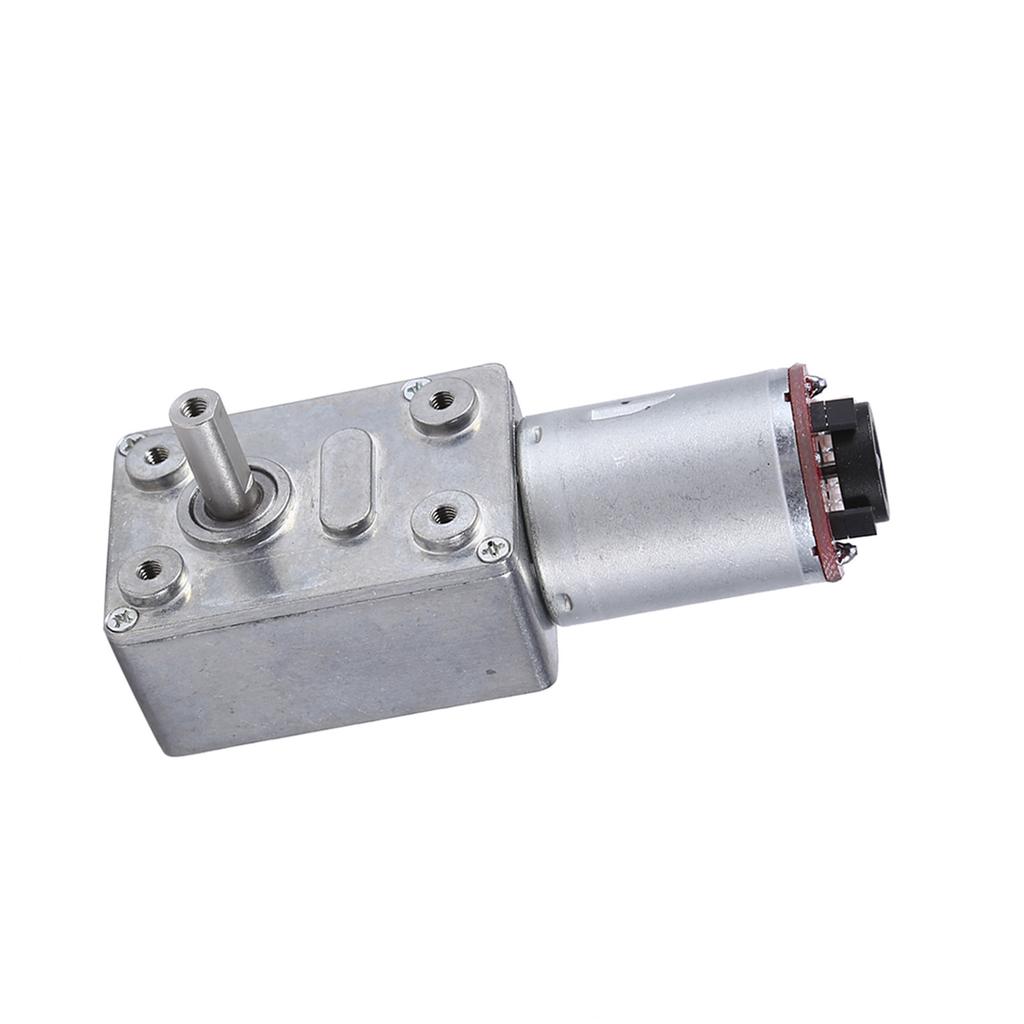

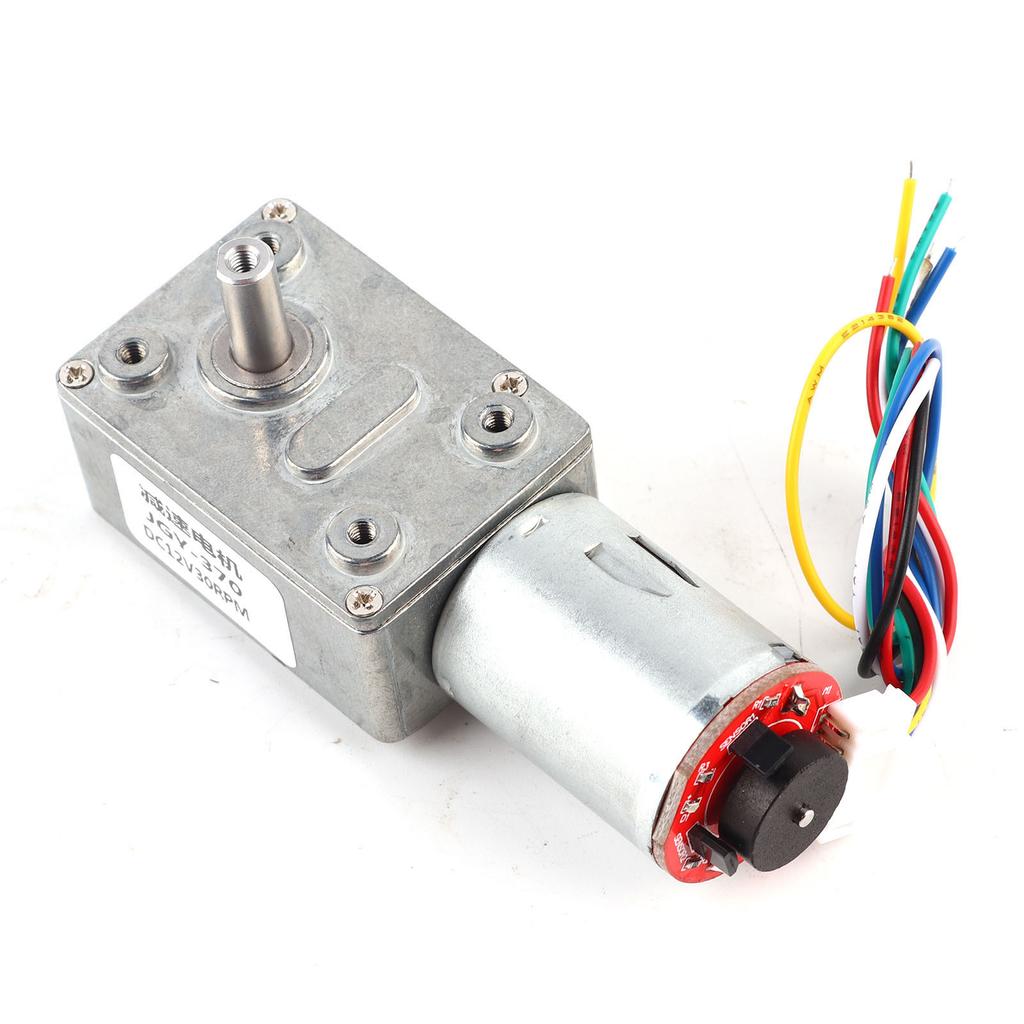

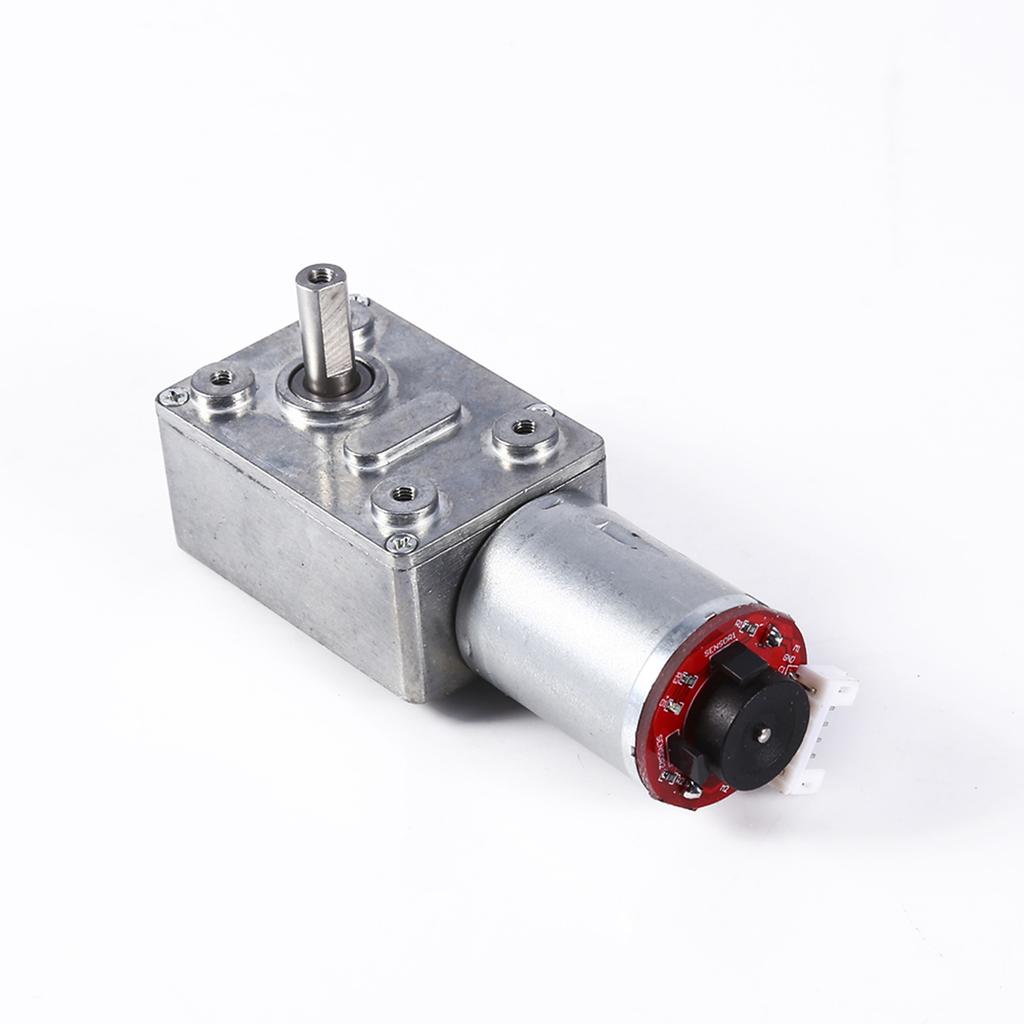

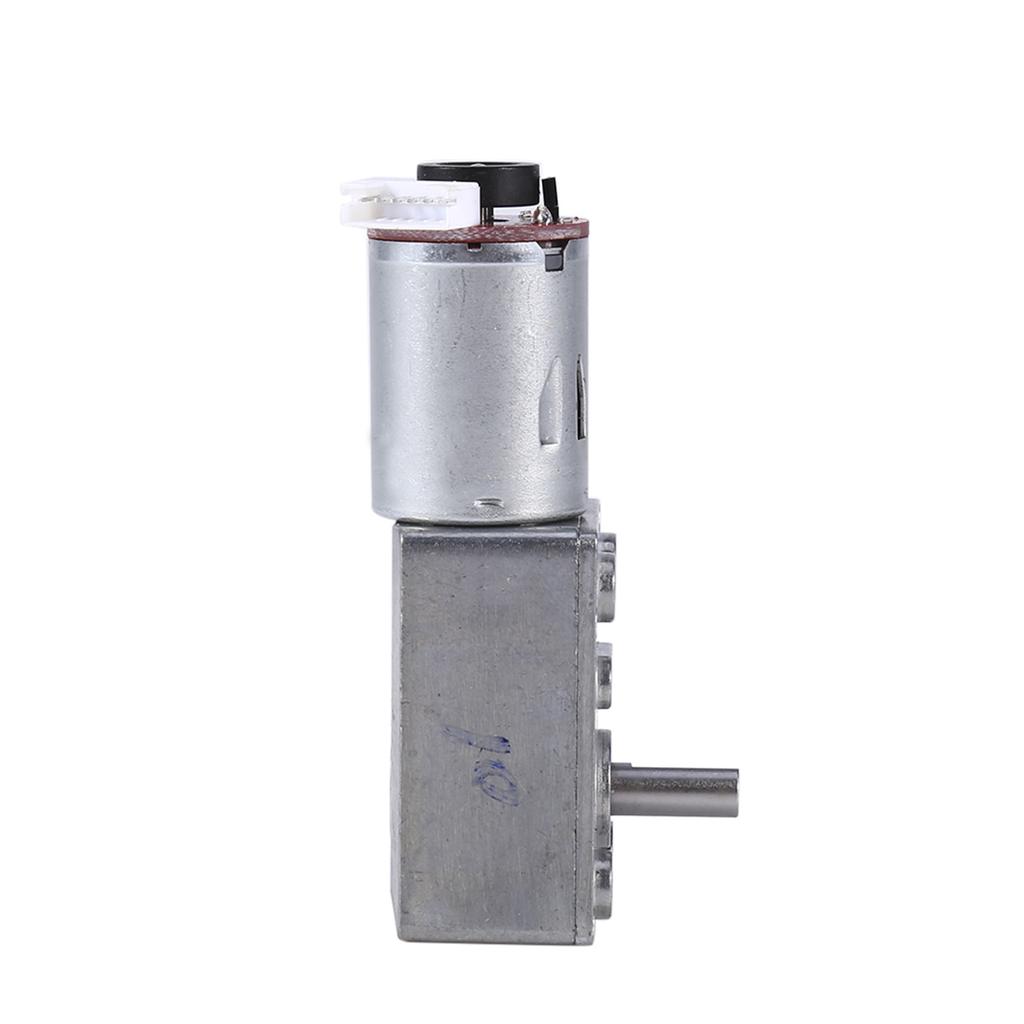

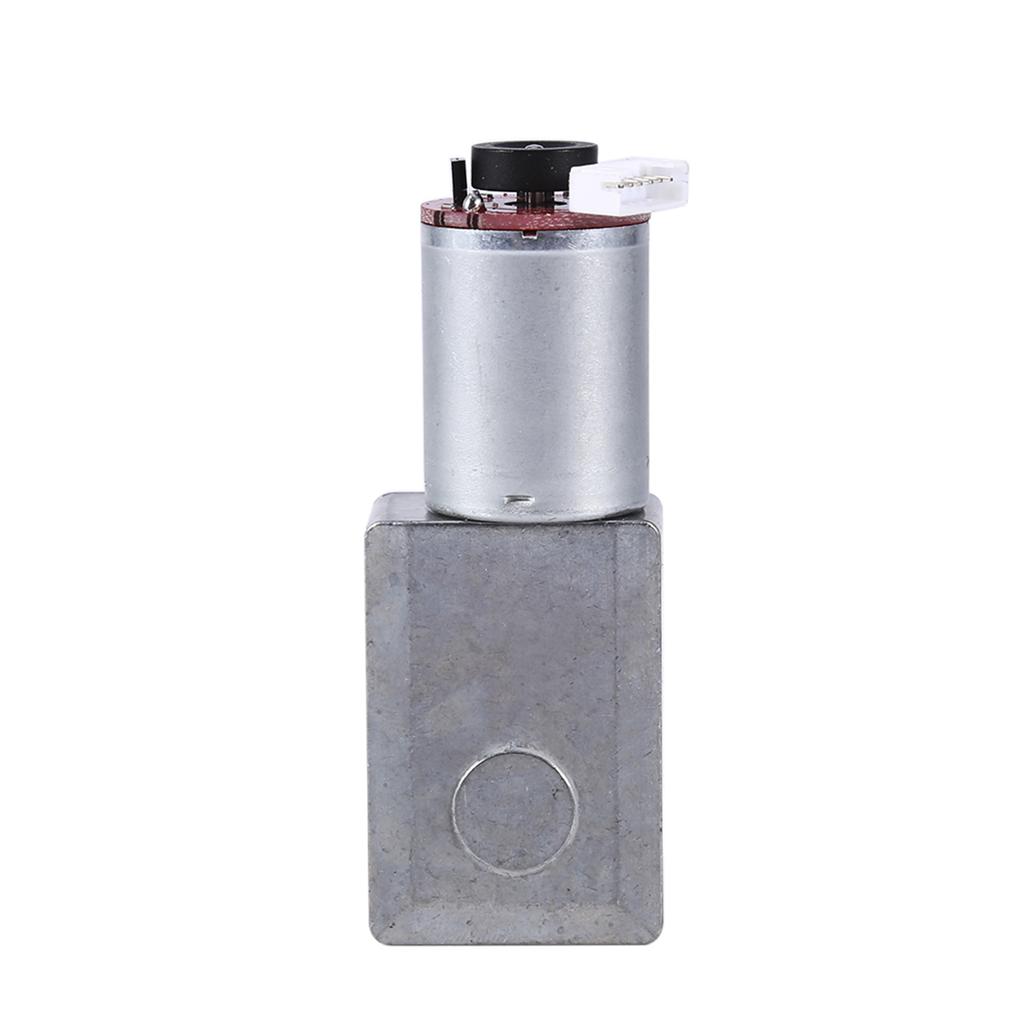

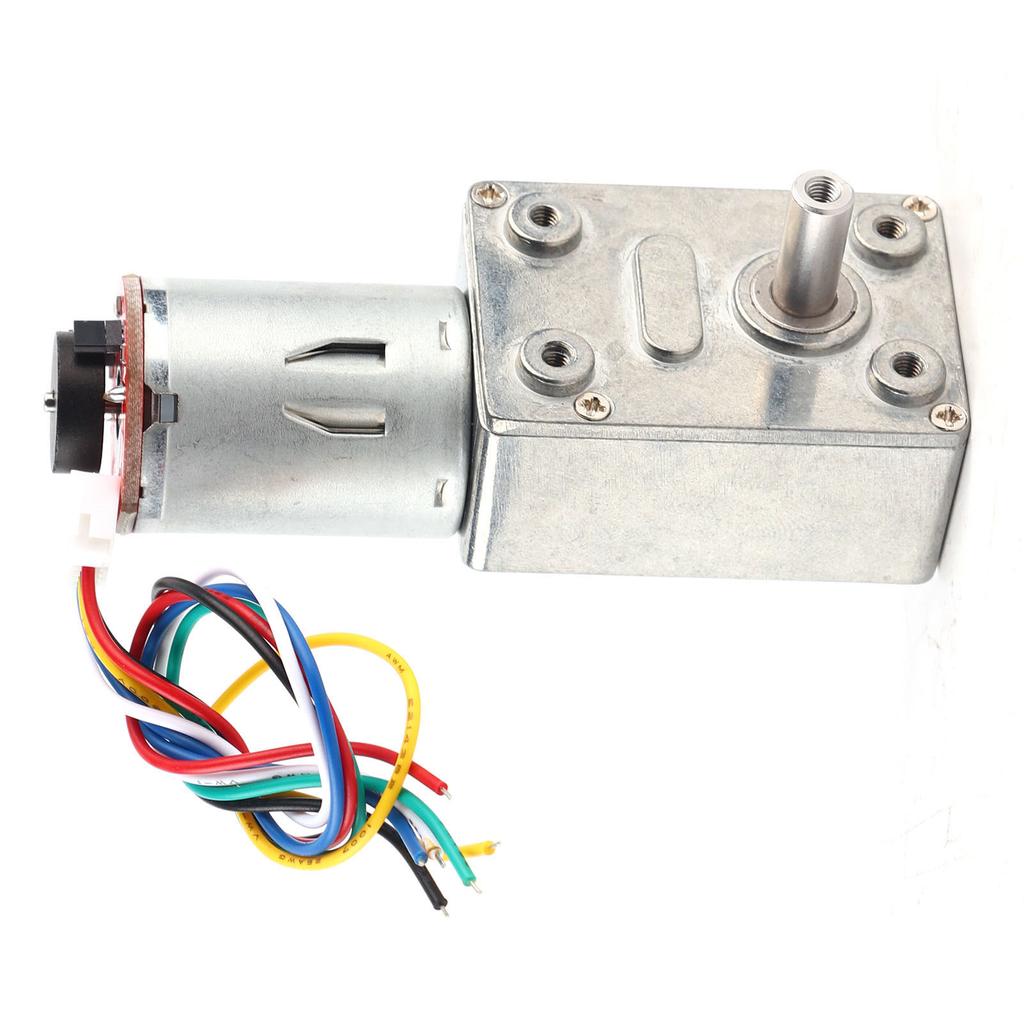

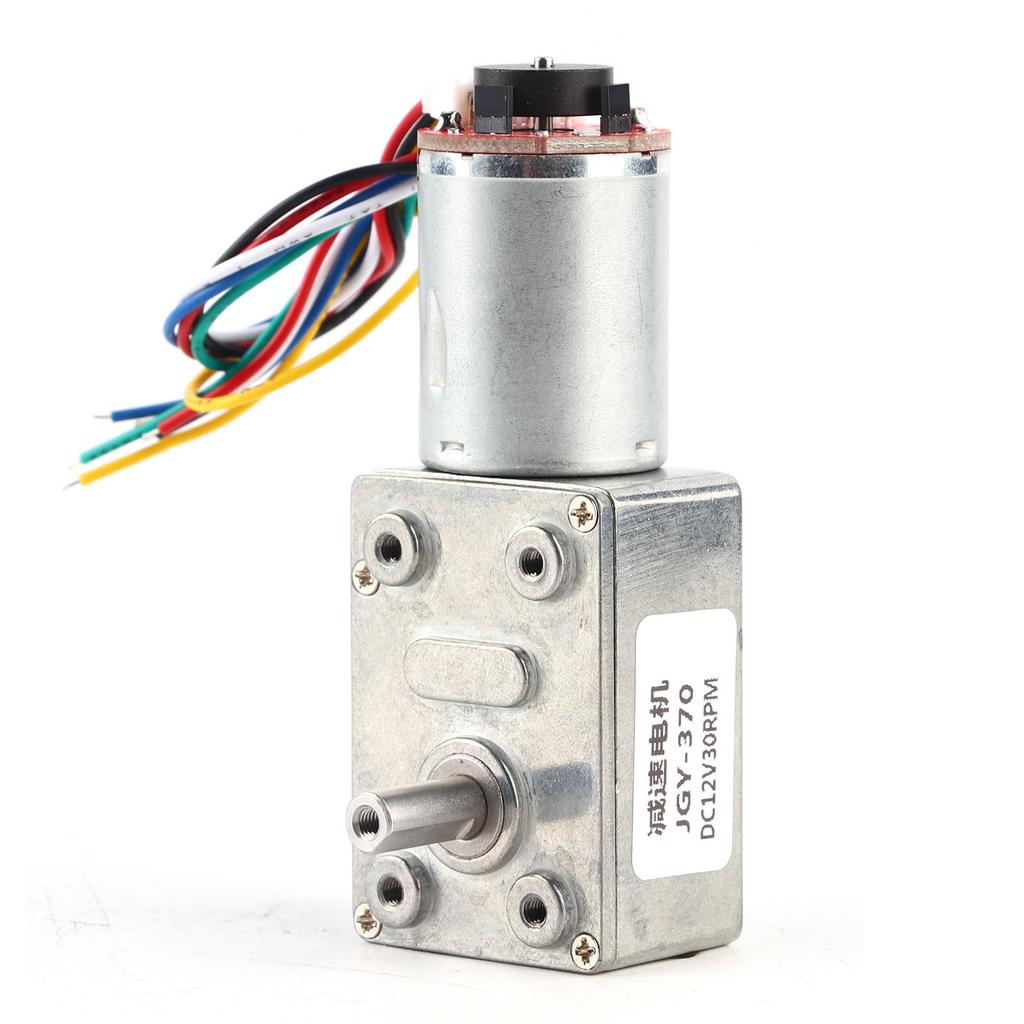

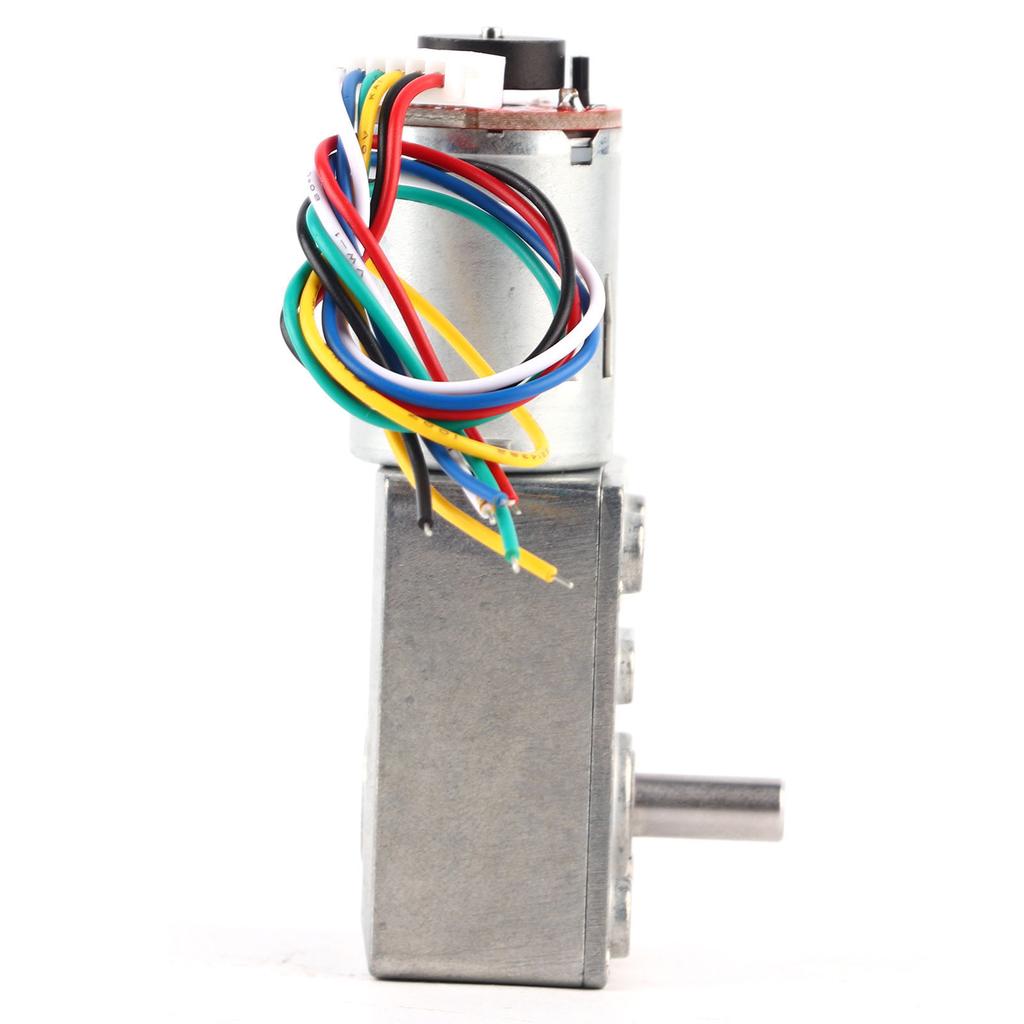

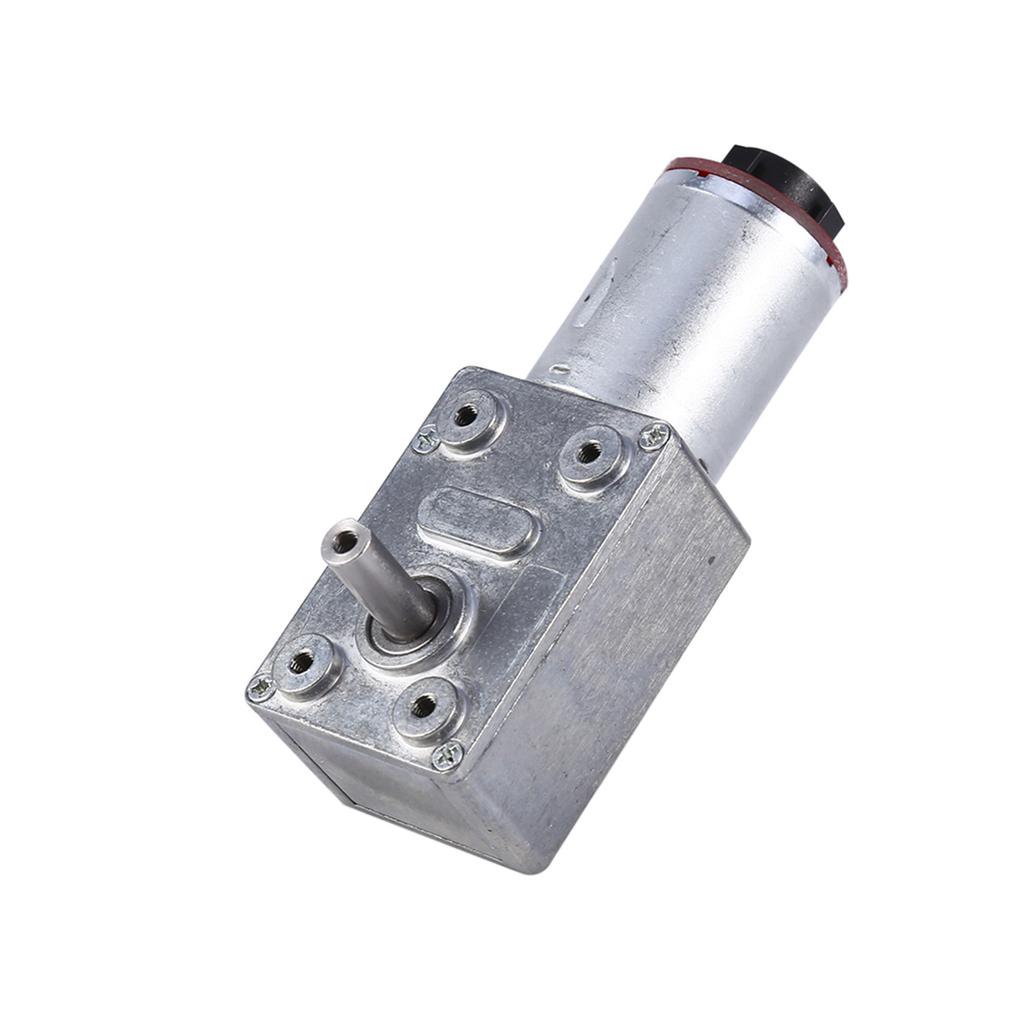

Gr Box High Gred Motor Reduction Motor with Encoder Srong Self locking(10RPM)

Two-phase reduction gr motor with encoder Using metals carbon brush

service life, low noise, large Description: Grbox output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the general direction of gr motor short, widely adapted to a number of installation of the requirement ocn. Ftures: Two-phase reduction gr motor with encoder. Using metals carbon brush.

service life, low noise, large . Stable and performance. Can rotate and reversal, work more accurate. Specifications: Rated Voltage: 12V No-loading Revolving Speed: 100rpm / 40rpm / 30rpm / 20rpm / 10rpm(optional) Speed(rpm) 10 20 30 40 100 Rated (kg.cm) 22.5 12 7.4 5.6 1.5

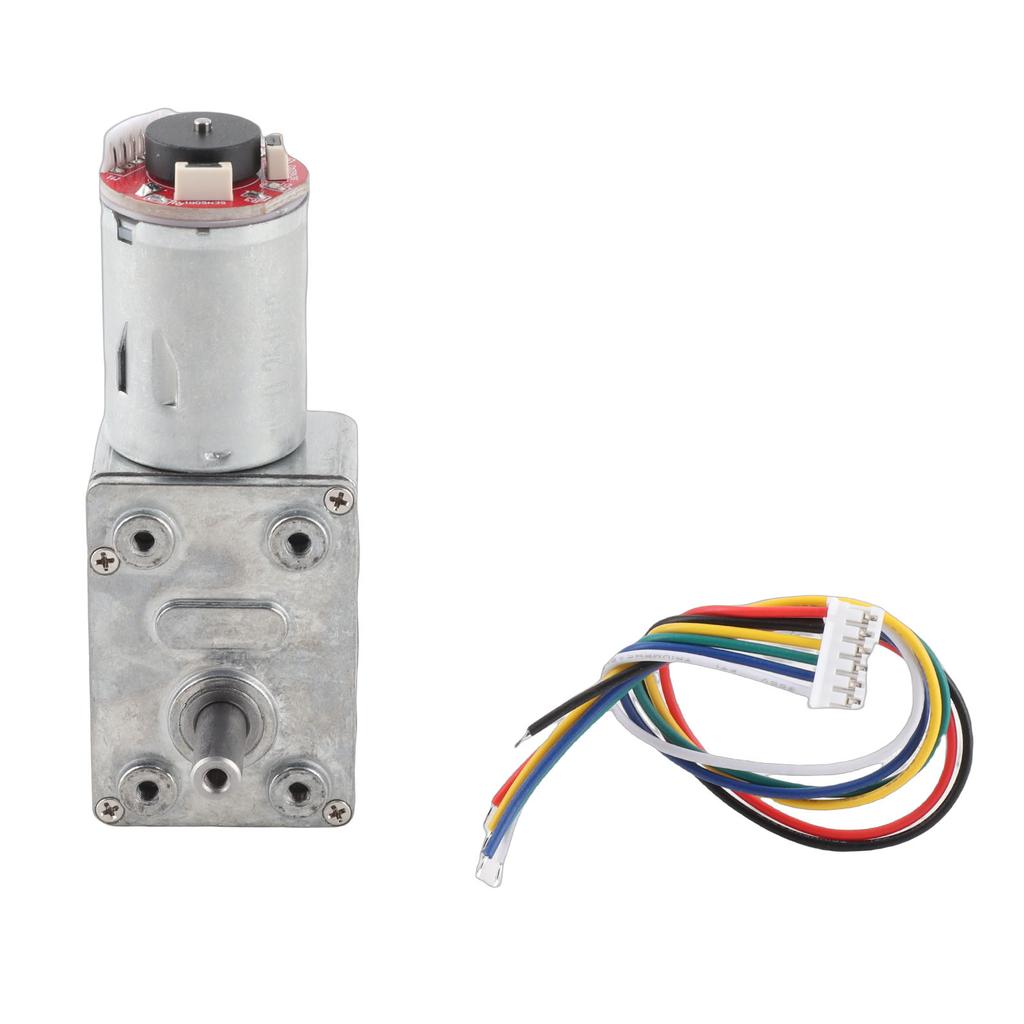

. (kg.cm) 25 25 25 24 6.4 Reduction Ratio 600 340 200 150 40 No-load Current(MA) Less than and equal to60 Rated Current(A) Less than and equal to0.6 Stall Current(A) 1.3 Weight: 165g(approx.) Wiring Methods: Red: Motor power + (exchange can control rotating and reversing) Black: Coding power- negative (3.3-5V) NaPolarity cannot be wrong Yellow: Signal feedback Green:Signal feedback Blue:Coding power + (3.3-5V)NaPolarity cannot be wrong White:Motor power - (exchange can control rotating and reversing) Package Includes: 1 x Motor 1 x Wiring Harness
