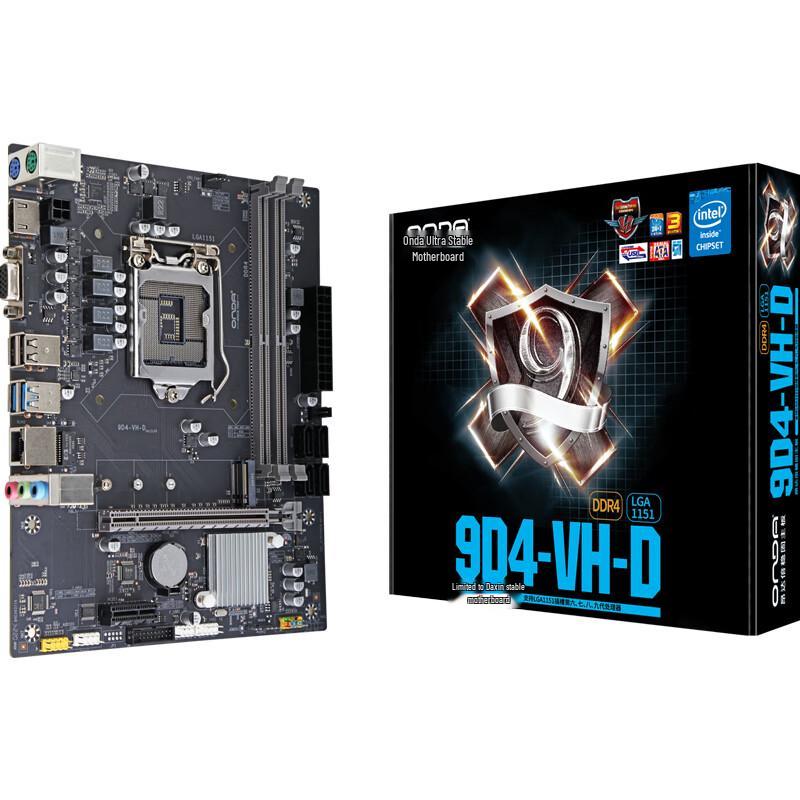

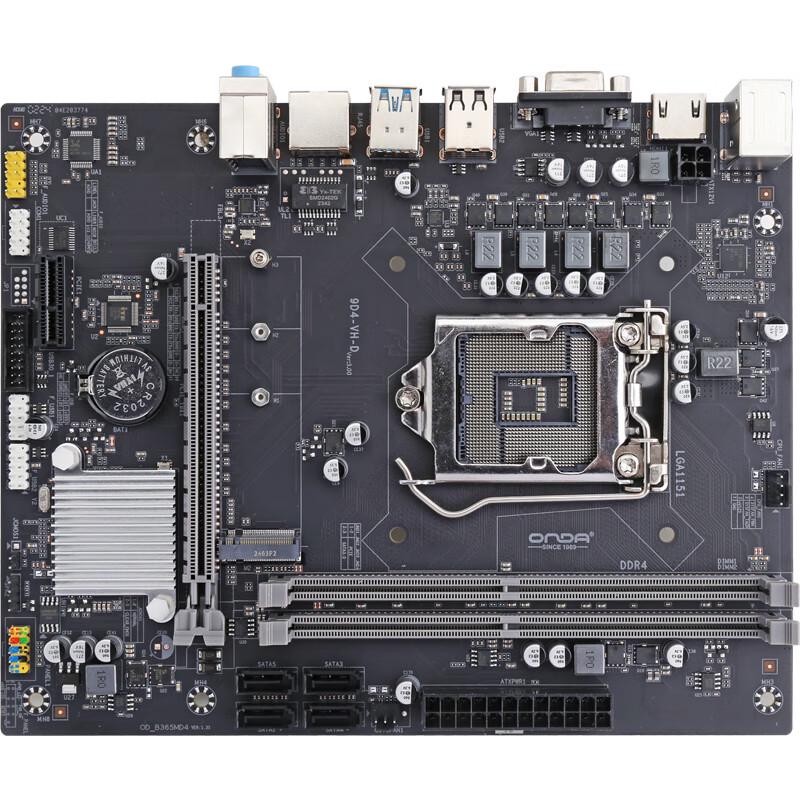

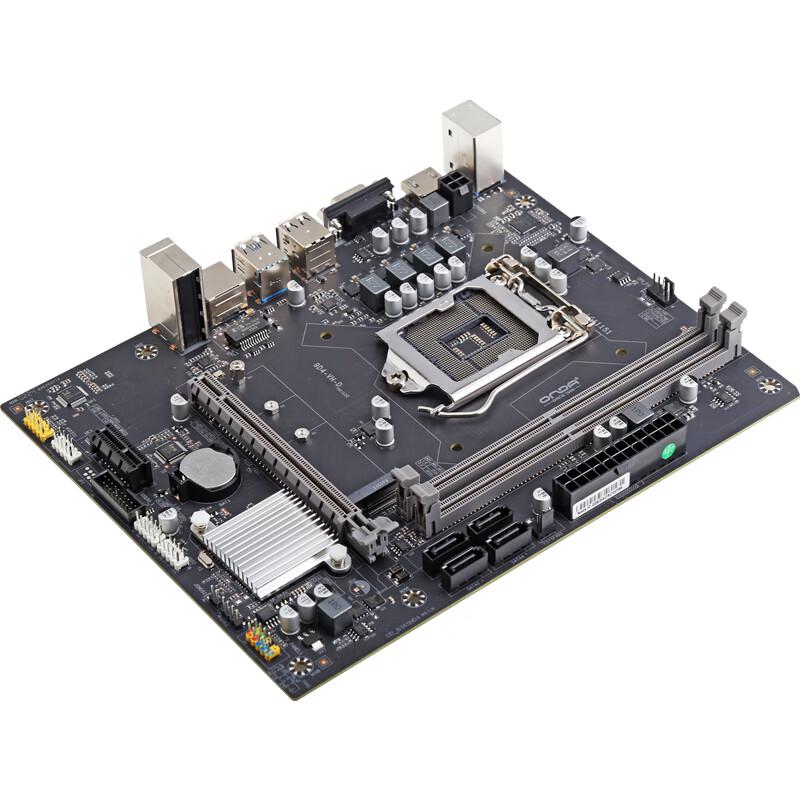

ONDA 9D4-VH-D Intel LGA 1151 Motherboard

The ONDA 9D4-VH-D is an M-ATX motherboard designed for Intel LGA 1151 processors (6th-9th generation). It features two DDR4 memory slots supporting up to 32GB, a PCIe 3.0 x16 slot, one M.2 NVMe interface, and integrated Gigabit Ethernet. Ideal for compact and cost-effective builds.

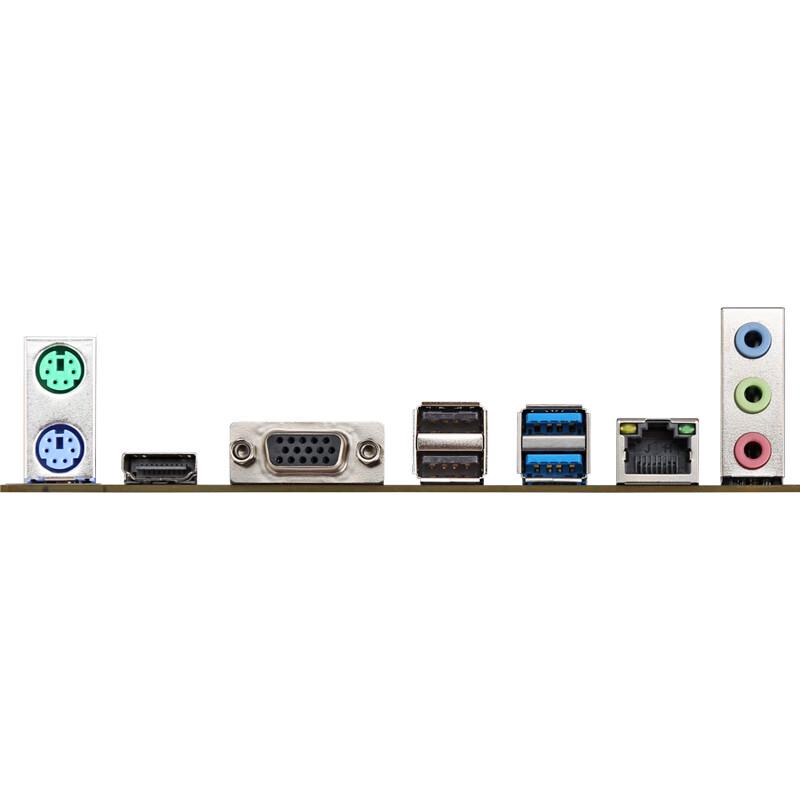

Plate type: M-ATX (Compact Type) SSD interface: M.2 interface (NVMe protocol) Number of memory slots: 2 Platform type: Intel platform Maximum network speed: 1000M Onboard Wi-Fi: not support PCI Express x8: 0 PCI Express x4: 0 Power interface: 24+4 DisplayPort: 0 Number of SATA interfaces: ≤4 Supports PCIe protocol: Supports PCIE3.0 Applicable CPU Interface: INTEL1151 (9th Gen) INTEL chip: other DDR algebra: DDR4 Memory frequency: 2400/2666MHz HDMI interface: 1 PCI Express x16: 1 RJ 45 network interface: 1 RGB: Non-RGB Wi-Fi connection: Wi-Fi connection not supported PCI Express x1: 1 Number of M.2 interfaces: 1 model: 9D4-VH-D USB Expansion Interface: 3 groups System fan socket: 1 group AMD chip: not support Memory Capacity: 32GB Number of USB ports: 4 Type-C interface: 0 Audio Interface: 3 x 3.5mm interface PS/2: 1 x PS/2 Keyboard Port, 1 x PS/2 Mouse Port
