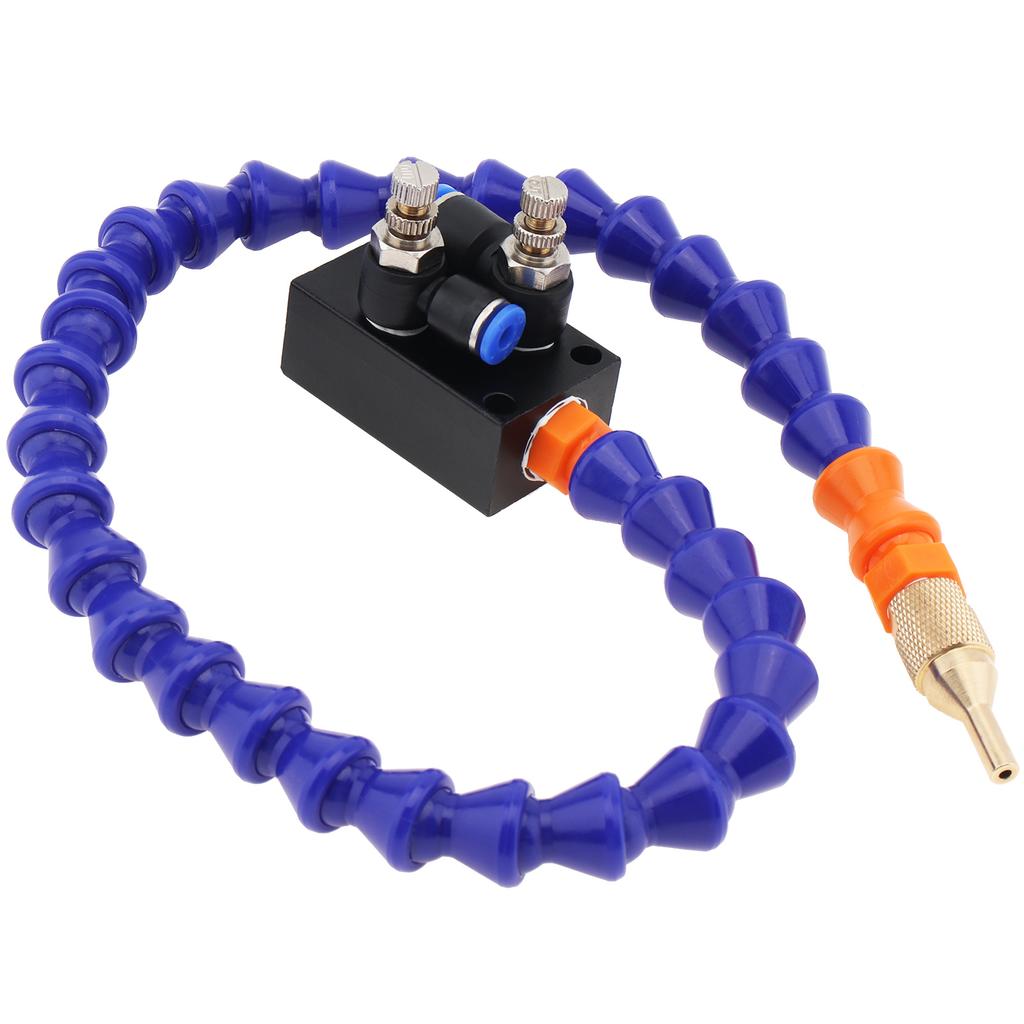

Product Name: 520mm Fully Sealed Spray System
PU Tube Length: 1.5M
Type: Coupling

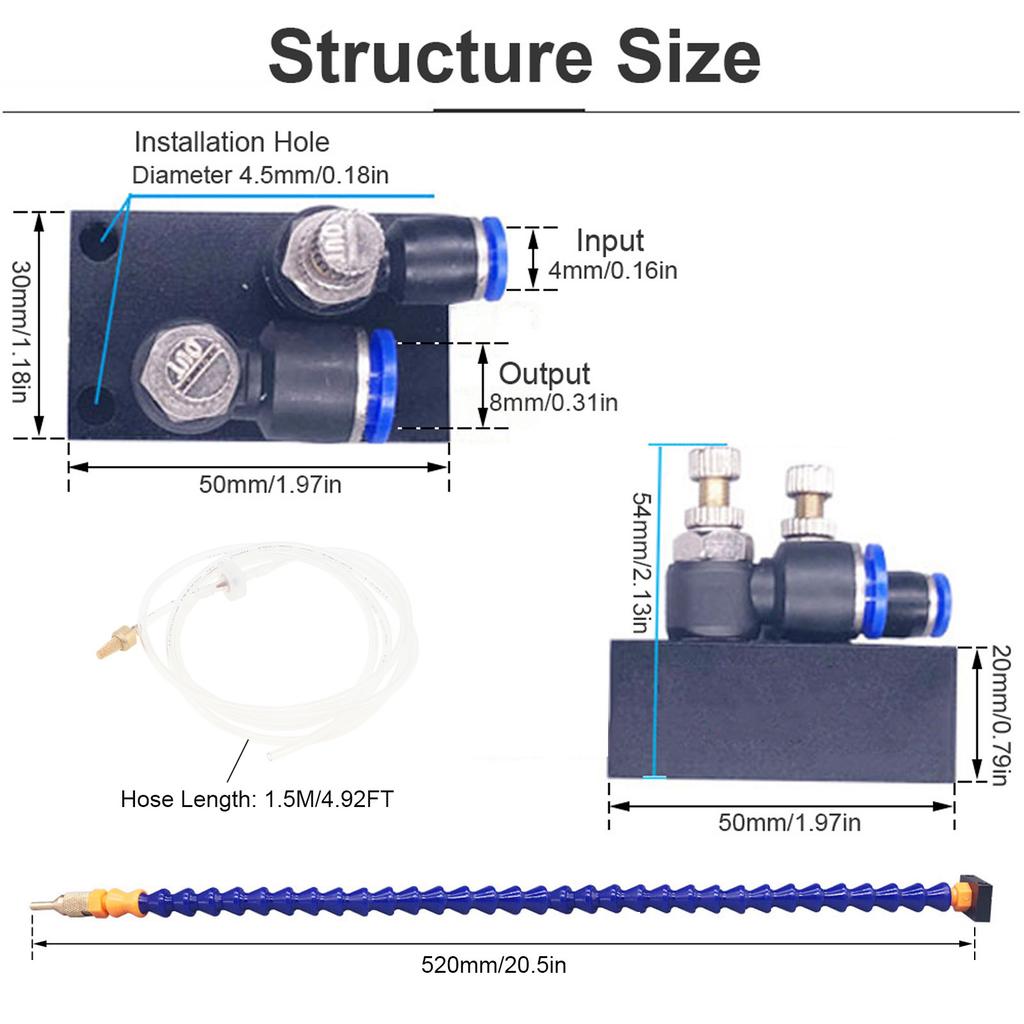

Cooling Pipe Length: 520mm
Air Inlet Port Size: 8mm
Filter: Yes
Oil Inlet Port Size: 4mm
Check Valve: Yes
Cooling Tube Material: Plastic
Features:
- Can be used to blow away metal fragments, making your work safer; A lot of water problem solving tools, easier to clean up.
- Easy to use. Air flow and spray mist volume adjustable design, easier to use on different processing conditions.- Fully sealed structure design. The air is directly sealed inside the pipe, and will not leak at the contact surface when bent at will, real realize no air leakage.
- No air leakage, stable air suction. Ensure that the machine will not restart frequently due to high gas consumption, save energy and long service life.
- Application to: metal cutting engraving, cooling stone metal ceramic tile engraving machine, CNC lathe milling drill machine, 8mm air pipe.
- Can be installed on CNC lathes and milling machines to improve processing capacity and cutting speed, Save time, reduce machining cost and tool wear.
- In the liquid without pressure output required to ensure that the air pressure in the range 5-7KGF / CM2 (atomization and gas, associated gas pressure).
Common Product Problems：
- Question 1: I find it produces a mist, not a fine spray.
Cause: Too much atomization.
Solution: Turn down your breath, you need to give some air pressure to the liquid at the same time as the gas supply.
- Question 2: Coolant doesn't seem to be sprayed as much.
Cause: Need to pressurize the fluid.
Solution: Turn the gas down a bit, and give the liquid a certain amount of power. Maybe you need a pressure barrel.
- Question 3: The valve is not fully closed. There is some air and some liquid making the mess.
Cause: Water tank to prevent too high.
Solution: The liquid is left in the pipeline, so that it can start faster next time, otherwise it will take a while. You can lower the tank a little bit lower than the sprinkler.
Note:
- Be sure to use filtered clean air source and clean liquid spray to avoid clogging.
- Do not use corrosive liquids, can use the liquid viscosity at 68cSt or less.
- Please predict the location of the sprayer hole first, so that the nozzle is too far away from the cutter.
Package Including:

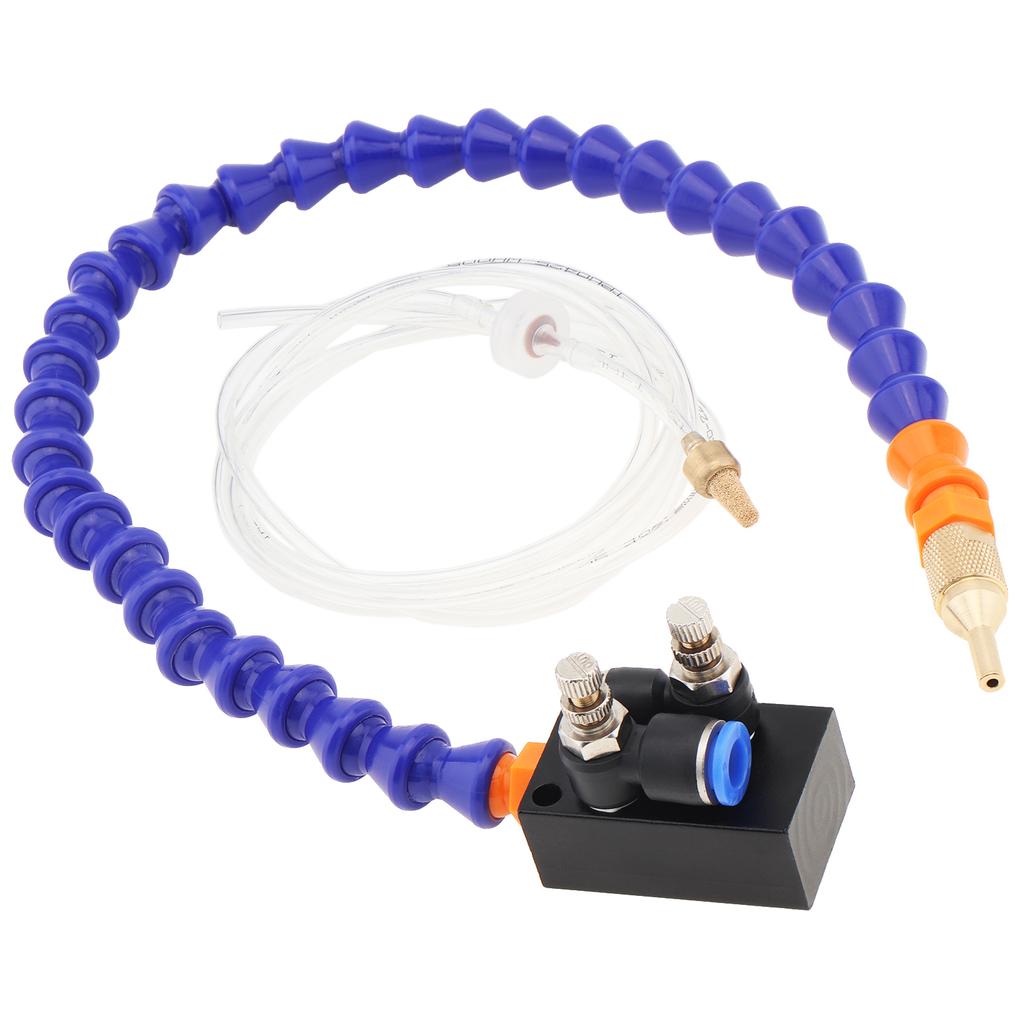

1 x Mist Coolant Spray System
Retail Packaging: Yes, Colored Box
