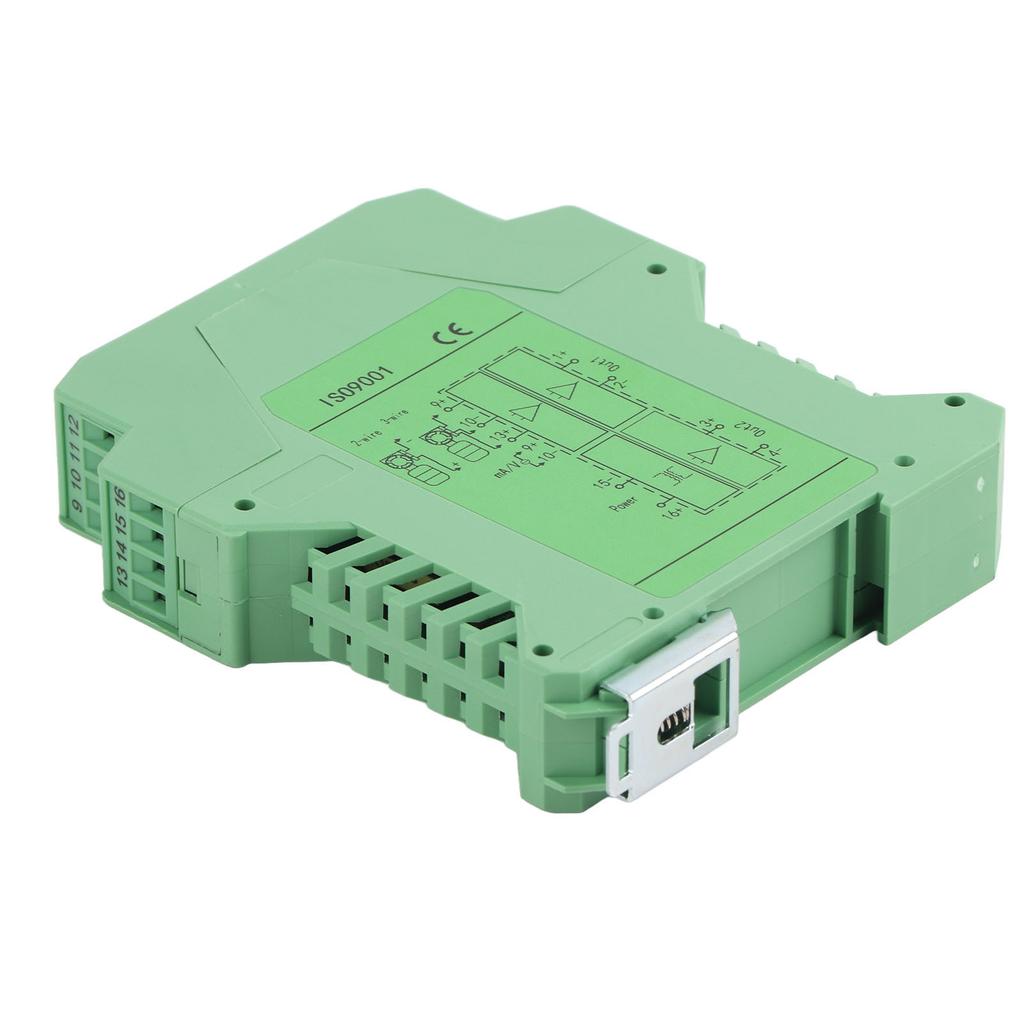

DC 24V DC Current Signal Isolator Transmitter 4 20mA PLC Detect Signal Conditioner(#4)

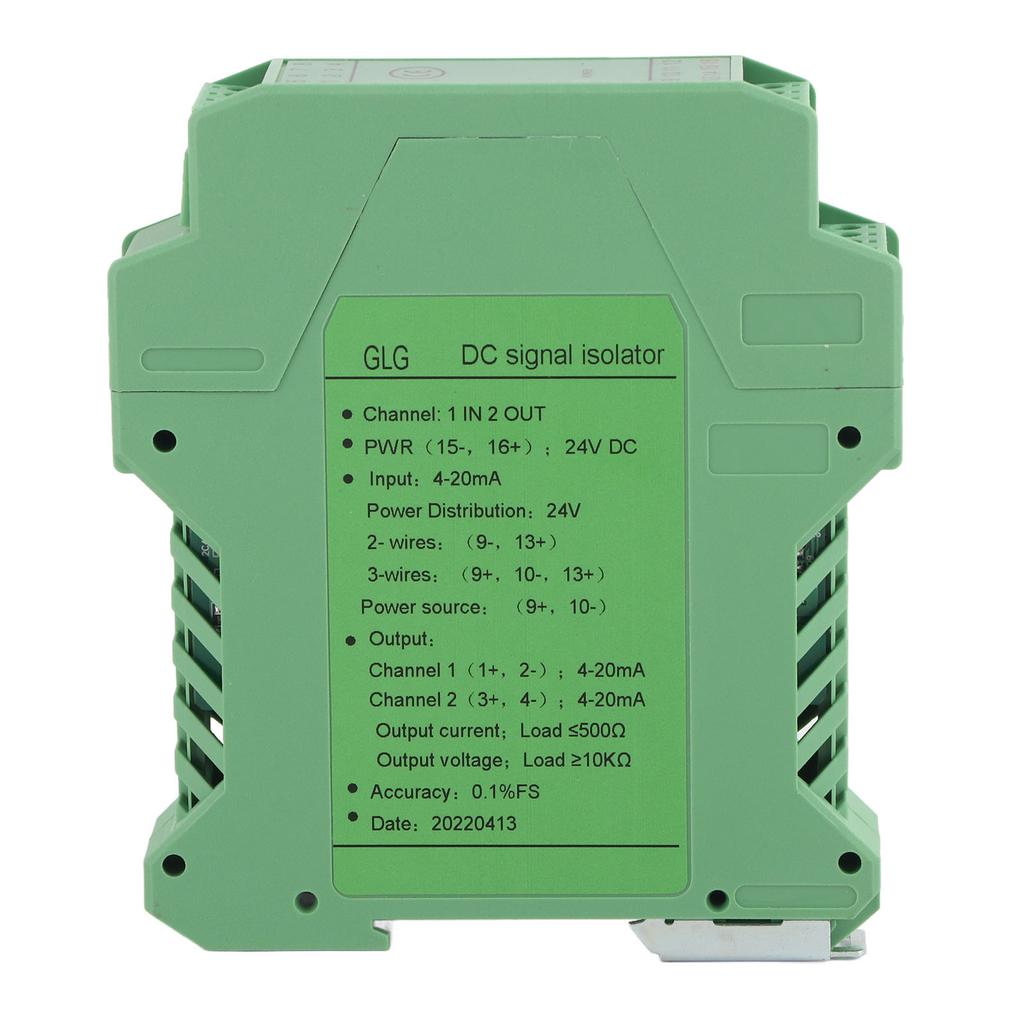

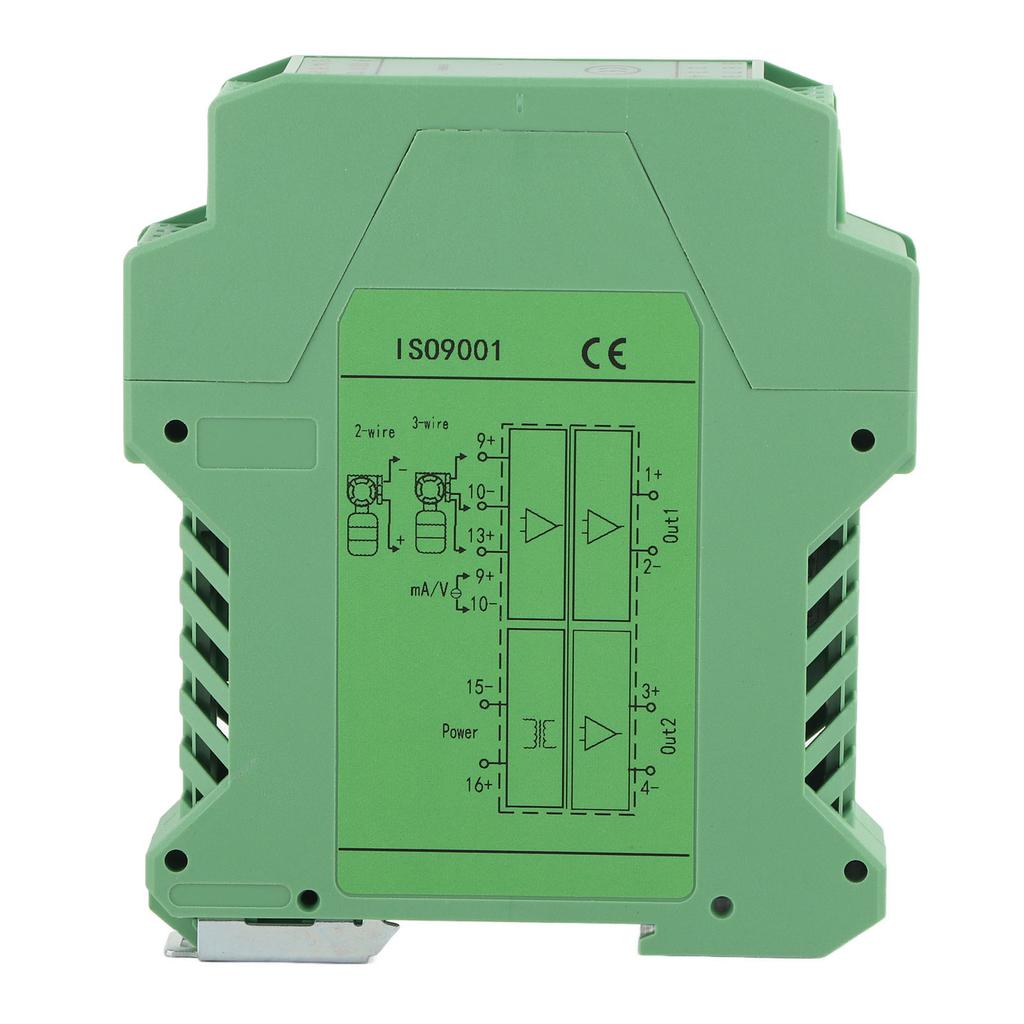

Feature: The product is made of high quality electronic components with high precision. Built in multi types of security protection functions, safe to use. Low power consumption, theoretically rated power consumption is less than or equal to 1W. Product channels are configured as one in, one out. Products are widely used in industrial equipment, such as large motors, medical equipment, etc. Multi channel input and output, ultra thin, intelligent, isolated safety grids. Specification: Product Name: DC current signal isolation transmitter Model: GLG Channel configuration: 1 in and 1 out, 1 in 2 out #1, 1 in 1 out, 4 20mA to 0 5V #2, 1 in 1 out, 4 20mA to 0 10V #3, 1 in 1`out. 4 20mA to 4 20mA #4, 1 in 2 out, 4 20mA to 4 20mA Rated power consumption: less than 1W Response time: less than 100MS Insulation strength: 2000V AC 1MIN Input impedance: less than 50 Ohm Ambient temperature: 20 55 ( degrees C) Dimensions: 100*22.5*114.5(mm) Package list: 1 * Signal Isolator Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product.
