Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.

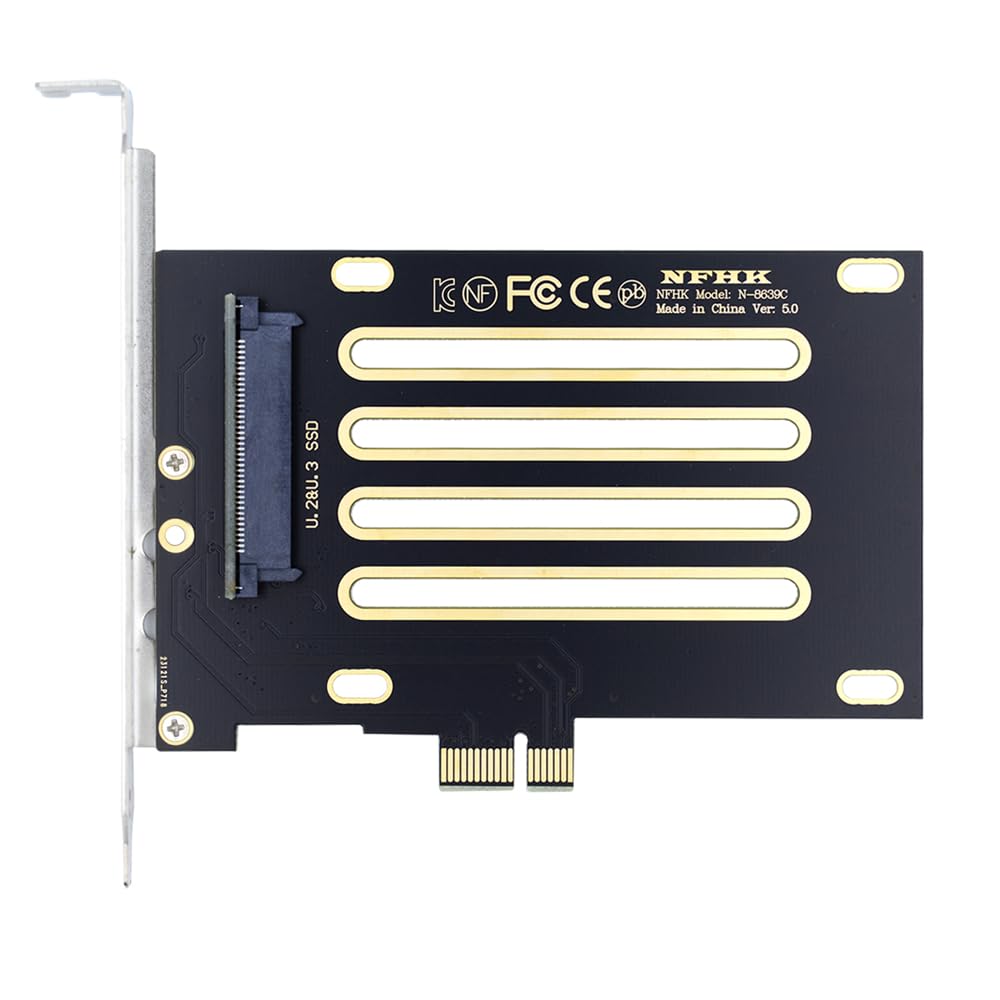

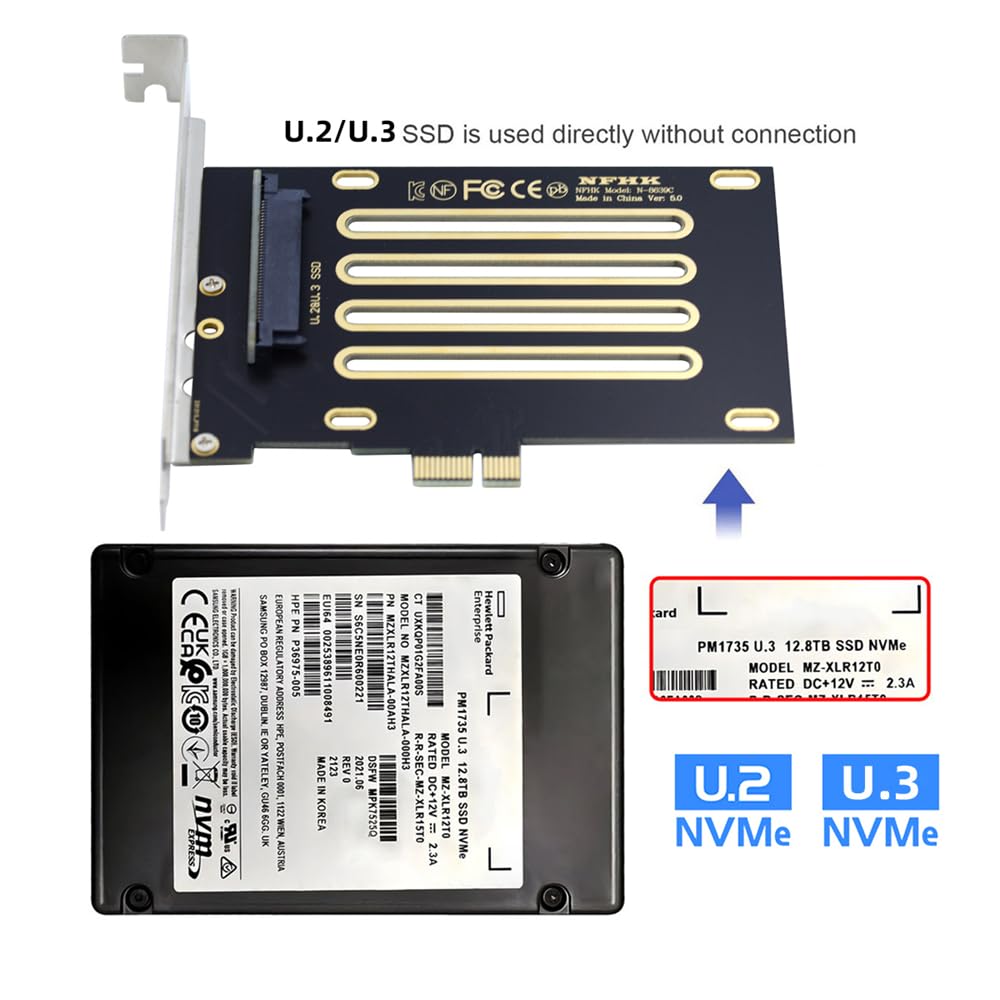

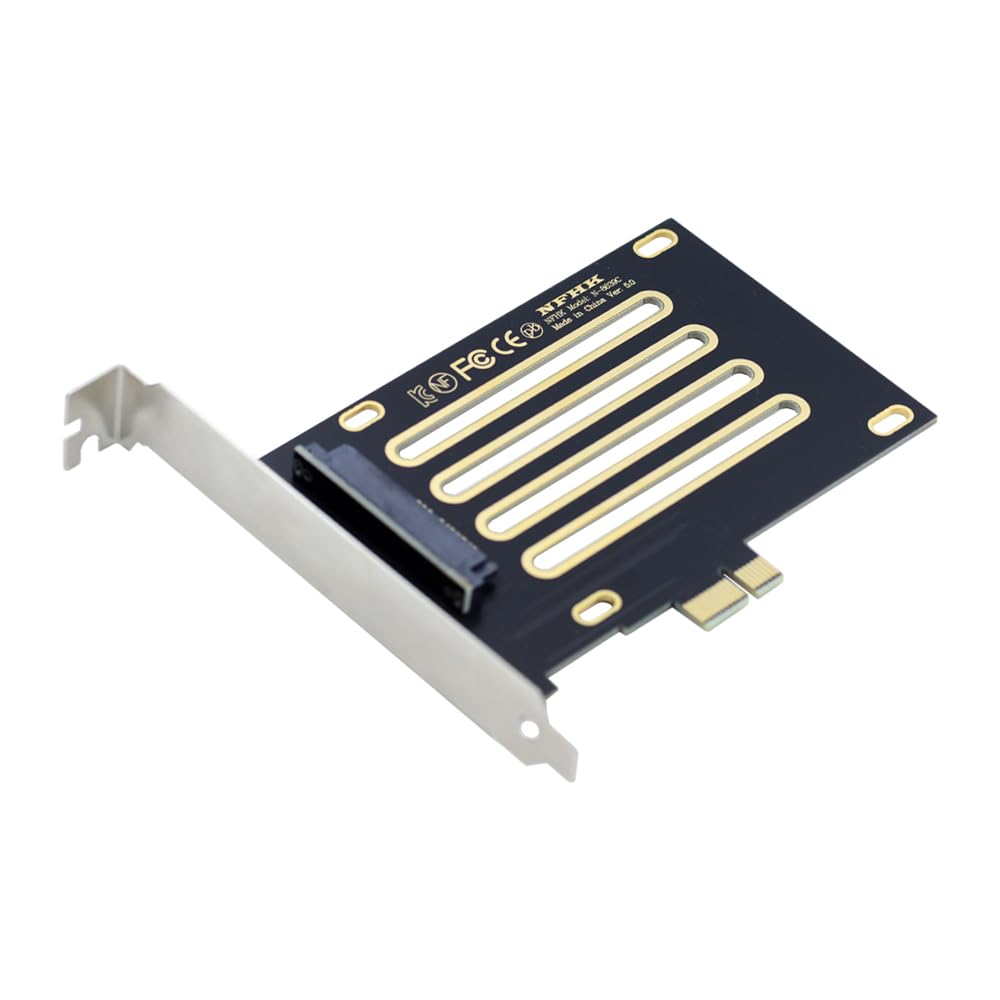

This PCI Express card expands your PC with a single U.2/U.3 SFF-8639 interface. For example, you can connect a U.2/U.3 PM1735 series SSD.

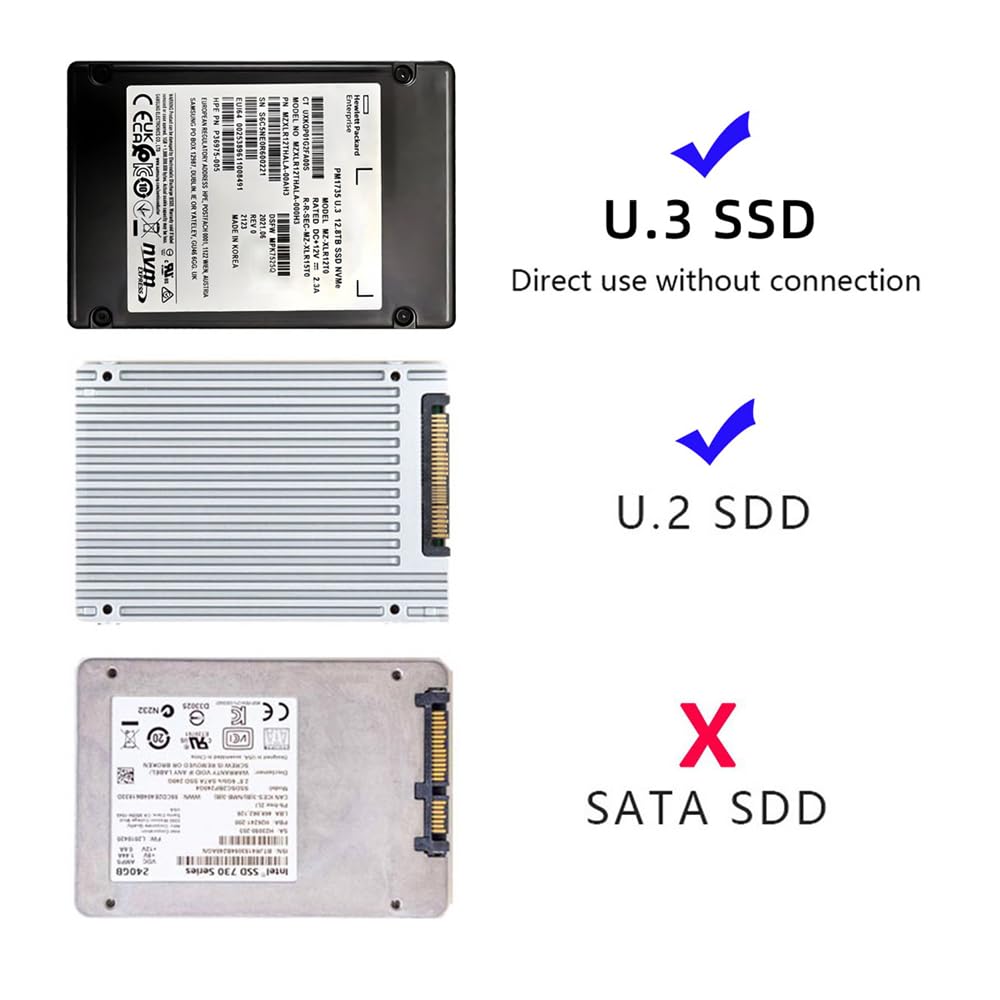

PCI-E 1x cards are compatible with U.2 and U.3 SSDs, but not with SATA/SAS SSDs.
Speed and other characteristics remain unchanged; it only forms a conversion interface. It is transparent to the operating system and does not require any software drivers.

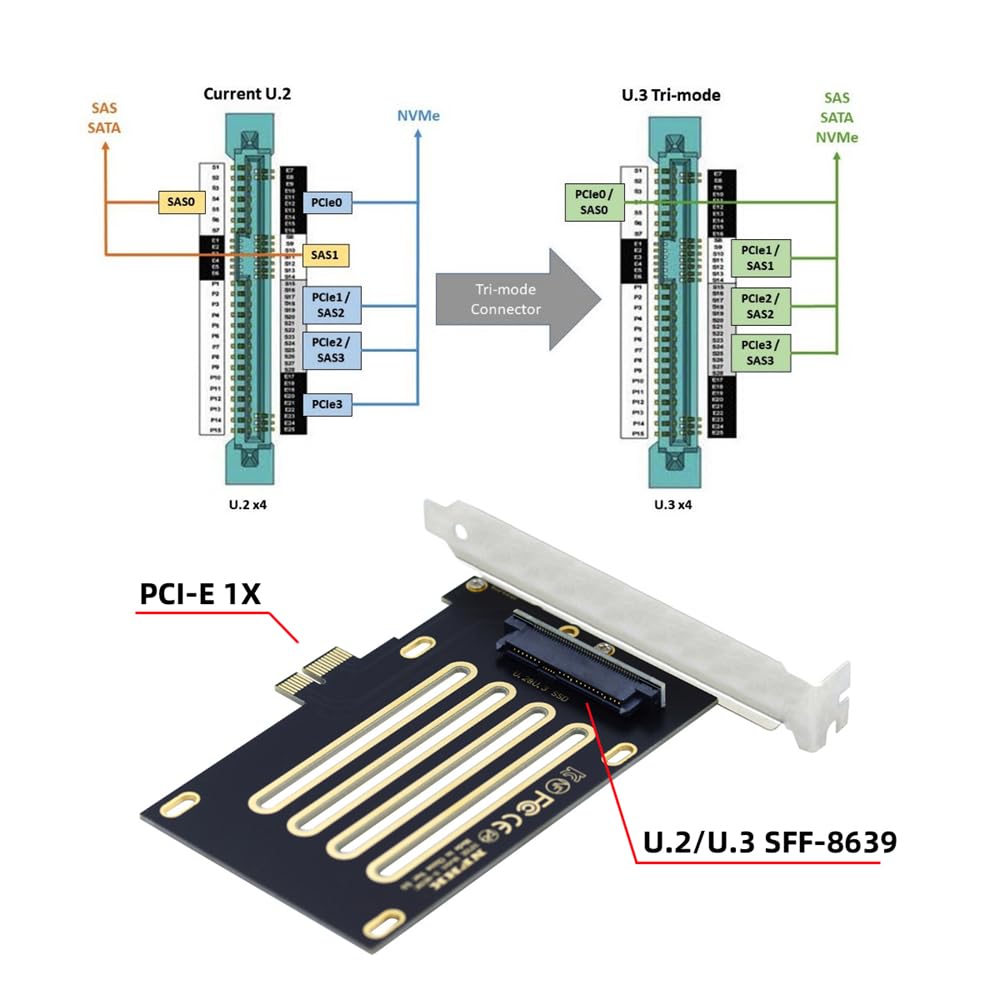

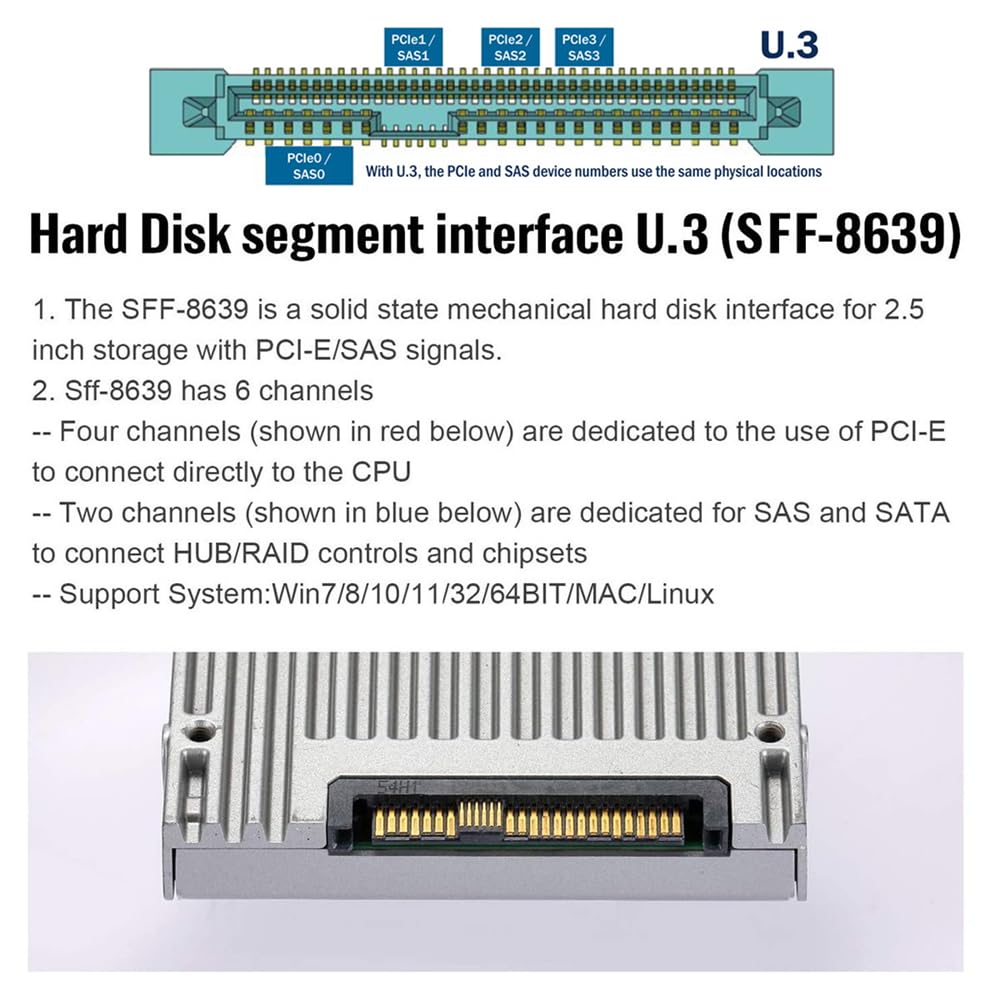

U.3 is a tri-mode standard based on the U.2 specification and uses the same SFF-8639 connector. It integrates support for SAS, SATA, and NVMe into a single controller. When firmware support is available, U.3 can also support hot-swapping between different drives.
However, U.3 drives are backward compatible with U.2 drives. U.3 drives determine the host type to insert them into (by using different combinations of HPT0 and HTP1 open or ground) and configure the data lanes at power-up. U.3 drives function as dual-port NVMe drives in supported systems.
U.2 drives are not compatible with U.3 hosts.
PCI-E 1x cards are compatible with U.2 and U.3 SSDs, but not with SATA/SAS SSDs.
This PCI Express card expands your PC with a single U.2/U.3 SFF-8639 interface. For example, you can connect a U.2/U.3 PM1735 series SSD.
Speed and other characteristics remain unchanged; it only forms a conversion interface. It is transparent to the operating system and does not require any software drivers.
U.3 is a tri-mode standard based on the U.2 specification and uses the same SFF-8639 connector. It integrates support for SAS, SATA, and NVMe into a single controller. When firmware support is available, U.3 can also support hot-swapping between different drives.
However, U.3 drives are backward compatible with U.2 drives. U.3 drives determine the host type to insert them into (by using different combinations of HPT0 and HTP1 open or ground) and configure the data lanes at power-up. U.3 drives function as dual-port NVMe drives in supported systems.
