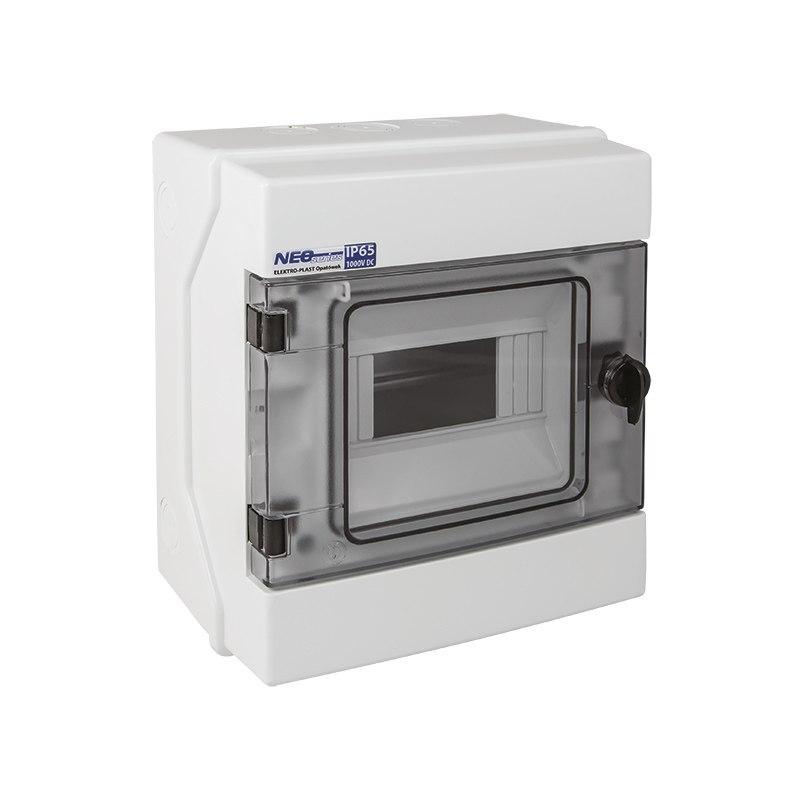

Hermetic Distribution Board Rh-6, Terminal Blocks, Th35 Bracket, Ik07, 1000V Dc, Ip65

RH "NEO" series hermetic distribution boards

are designed for both residential and industrial use, enabling the installation of circuit breakers and various types of electrical devices. They are available in a surface-mounted version and are widely used in outdoor installations. Technical characteristics of RH "NEO" distribution boards

:

Transparent, tinted door

opens sideways (left or right), suitable for mounting a key lock

Available in white

Made of high-quality ABS plastic

, which is resistant to high temperatures up to 960°C (the glow-wire test applies to the terminal strip)

Operating stability in a temperature range from -25°C to +60°C

Impact resistance

(IK 07 rating)

Available for installation depths of 68 and 75 mm

Models with a width of 12 modules or more

Equipped with knockouts for cable and conduit entries

Door sealing possible

Equipped with terminal blocks for N and PE conductors

and mounting bracket

TH 35

Self-adhesive label for labeling

Technical specifications:

Mounting method:

Surface mount

Housing material:

Plastic

With transparent cover:

Yes

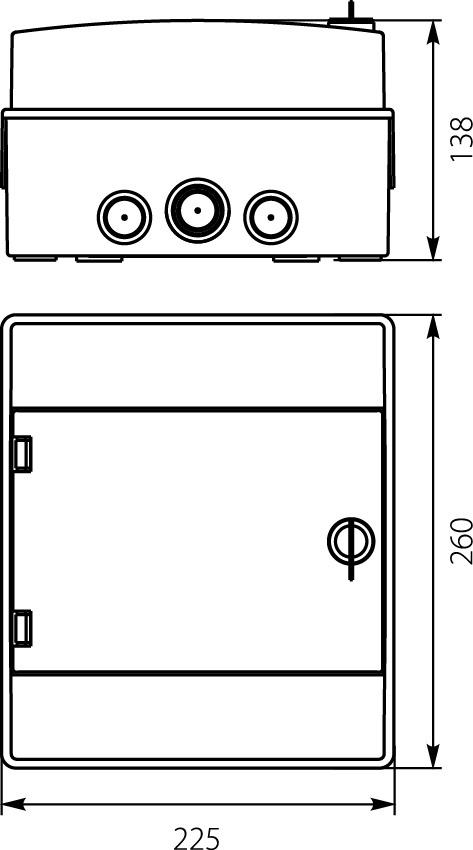

Depth:

138 mm

Ingress Protection (IP) Rating:

IP65

Width expressed in number of modules:

6

Installation depth:

0

DIN Rail:

Yes

Cover Type:

Closed

Number of Rows:

1

Compliant with the EMC Directive:

No

Extensibility:

No

RAL Number:

9003

With mounting plate:

No

Height (mm):

260

Series:

RH

Width:

225 mm

Color:

White

RH "NEO" series hermetic distribution boards are a robust and reliable

solution for outdoor applications. They offer convenient functions and mounting options for various types of electrical devices, ensuring safety and protection for electrical installations in various types of buildings.
