GEPRC GEP-M10 Series GPS Module Support GPS+BDS+LALILEO+QZSS+SBAS Joint Positioning u-blox M10050 Chip For FPV Drone NEW

Welcome to Bepan store! We provide high-quality daily goods, trendy accessories and lifestyle products. Strict quality control, favorable price and fast shipping. We focus on reliable shopping experience and sincere service for every customer!High-concerned chemical : None Compatible Drone Model : GEPRC Package : Yes Model Number : GEP-M10 Series GPS Module Compatible Drone Brand : GEPRC Brand Name : CACHALOT Origin : China High-concerned chemical : None Compatible Drone Model : GEPRC Package : Yes Model Number : GEP-M10 Series GPS Module Compatible Drone Brand : GEPRC Brand Name : OKOUME Origin : China

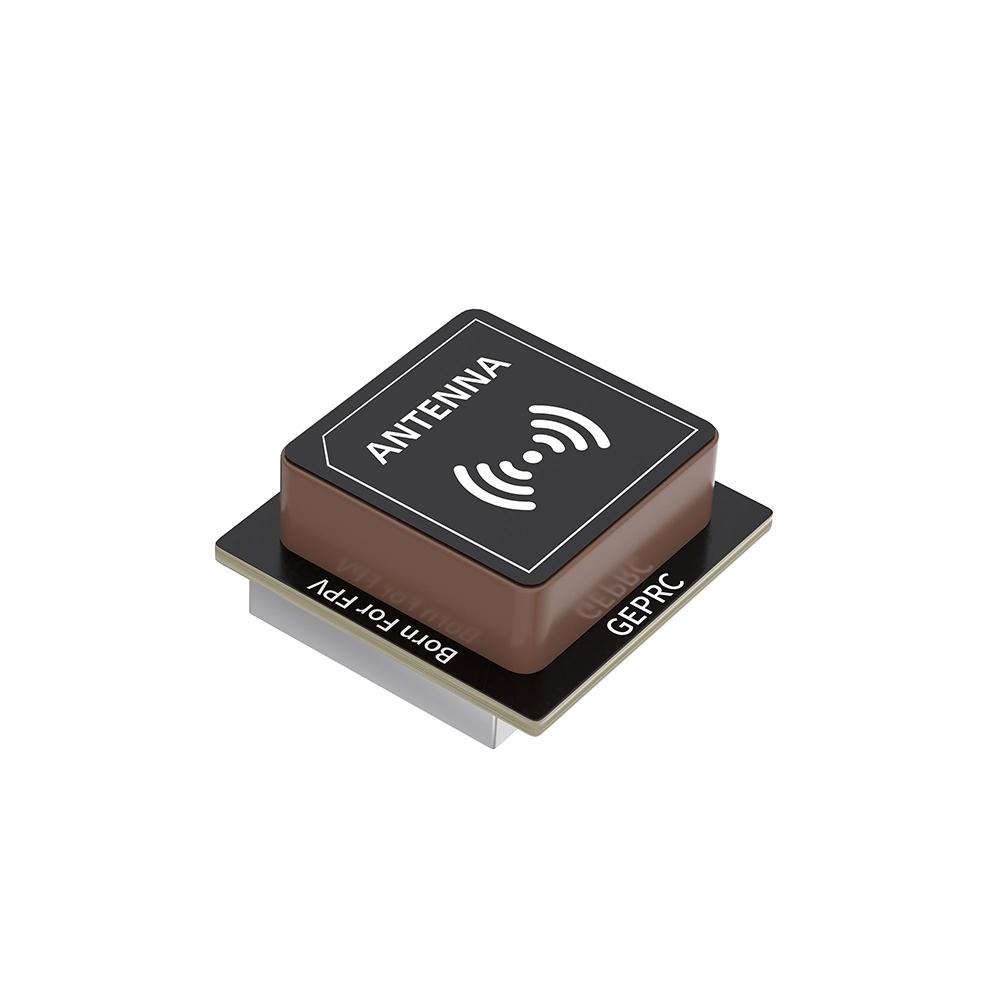

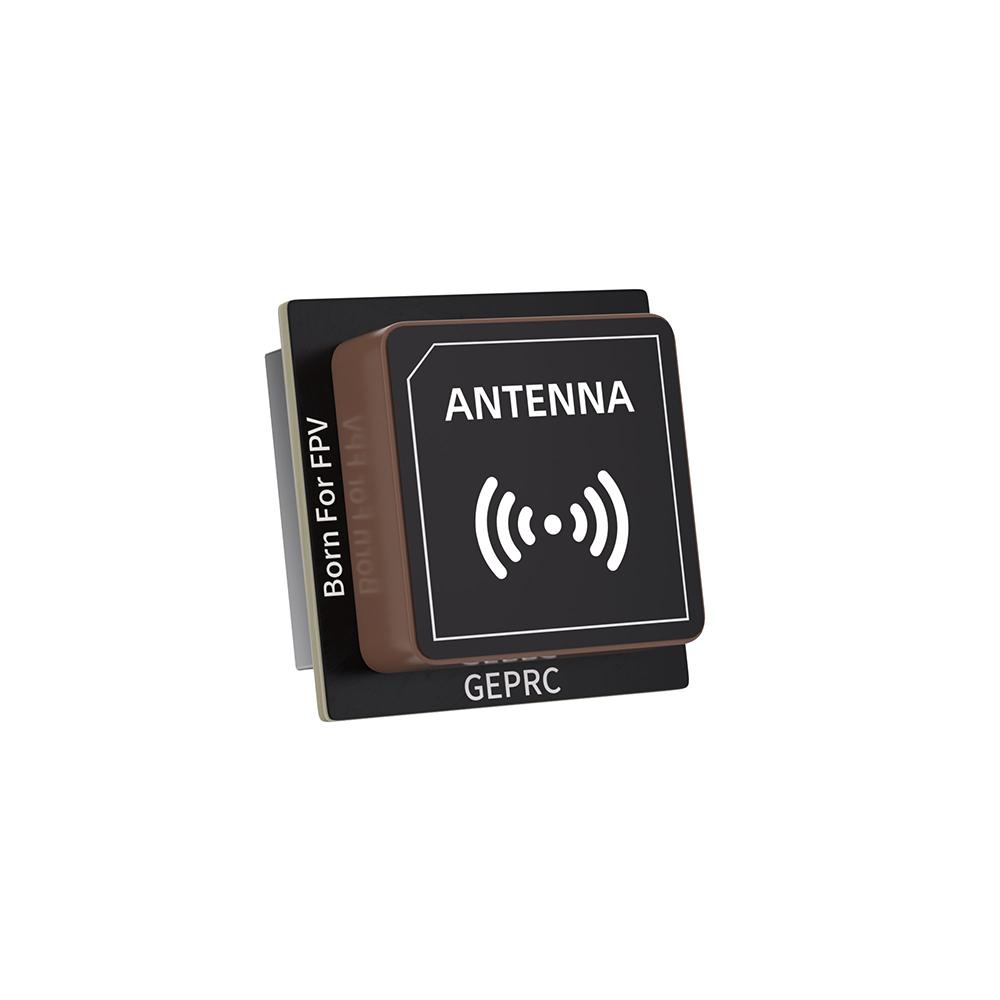

Summary The GEPRC GPS series product line has been fully upgraded. The GEP-M10 series of GPS products based on u-blox M10050 chip are now launched. The GEP-M10 series GPS positioning module uses u-blox’s M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. There are 12*12mm and 18*18mm ceramic antenna versions, providing better receiving ability. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start. Optional QMC5883L/IST8310 magnetometer and DPS310 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.

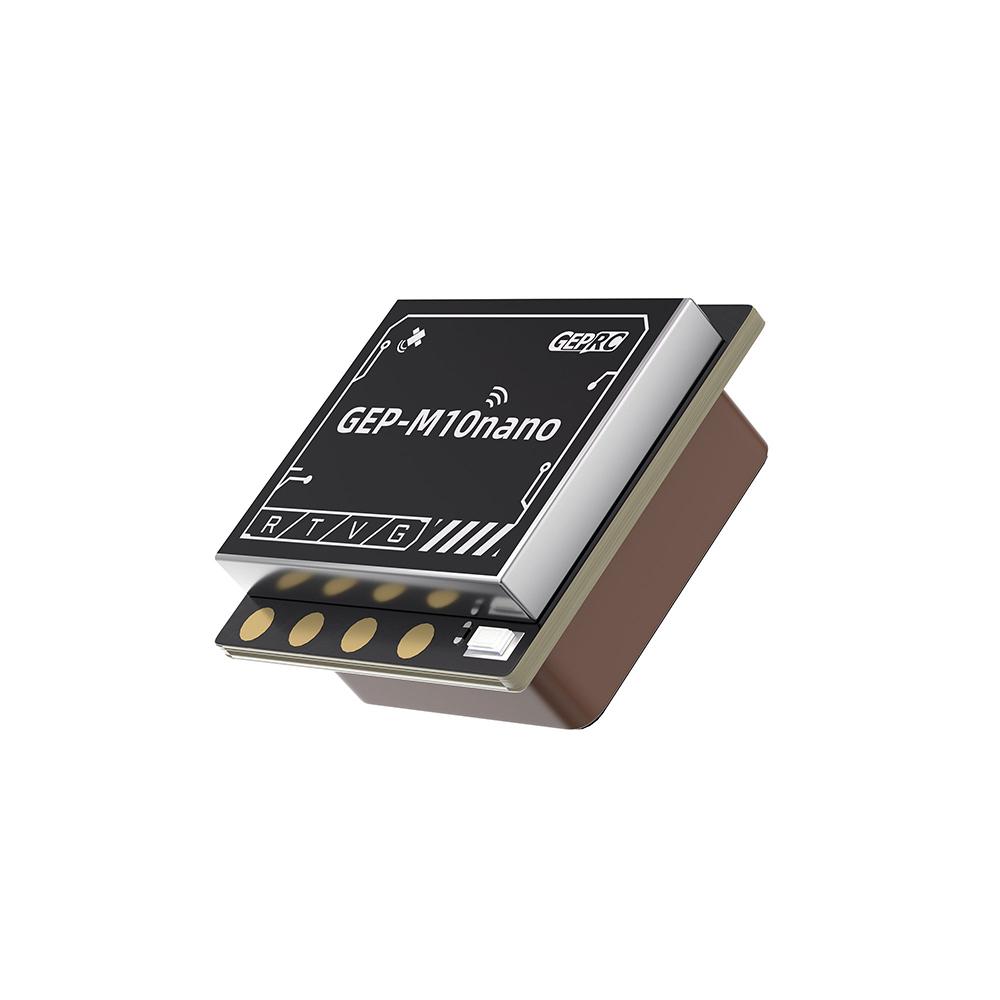

Note:Due to the current out-of-stock status of the DPS310 barometer, it will be replaced with the DPS368 barometer. There are no differences in performance or usage between the two barometers, and the old and new versions will be shipped randomly. Specifications GPS chip: u-blox M10050 Input voltage: 3.3V-5V Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1 Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning Channel: 72ch Navigation satellites: Up to 32 pieces Output protocol: UART(ublox), I2C(Baro,Mag) (Noted: Ublox output, you need to create the corresponding program yourself) Baud rate: 115200bps Output Frequency: 10Hz Speed Accuracy: 0.05 m/s Horizontal positioning accuracy: 2D ACC1.5m(Weather) Timing accuracy: 30 ns Receiver sensitivity: Trace-162dBm，Capture-160dBm Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s Maximum acceleration: 4G Mag: QMC5883L,IST8310 Baro：DPS310 Size: 15x15x7.5mm(GEP-M10nano),22x22x8.2mm(GEP-M10) Antenna size: 12x12mm(GEP-M10nano),18x18mm(GEP-M10) Weight: 4.1g(GEP-M10nano),7.8g(GEP-M10)

Features u-blox M10050 chip GPS+BDS+Galileo+QZSS+SBAS joint positioning Fast positioning speed,Up to 32 satellites Stable connection quality 12x12mm or 18x18mm antenna size, better signal receiving performance Built-in Flash chip and Farad capacitor Onboard indicator light, easy to use Optional integrated magnetometer + barometer, more collocation scheme Includes 1 x GPS module

1 x terminal wire

1 x GPS module instruction manual

1 x GEPRC sticker

1 x heat shrink tubing
