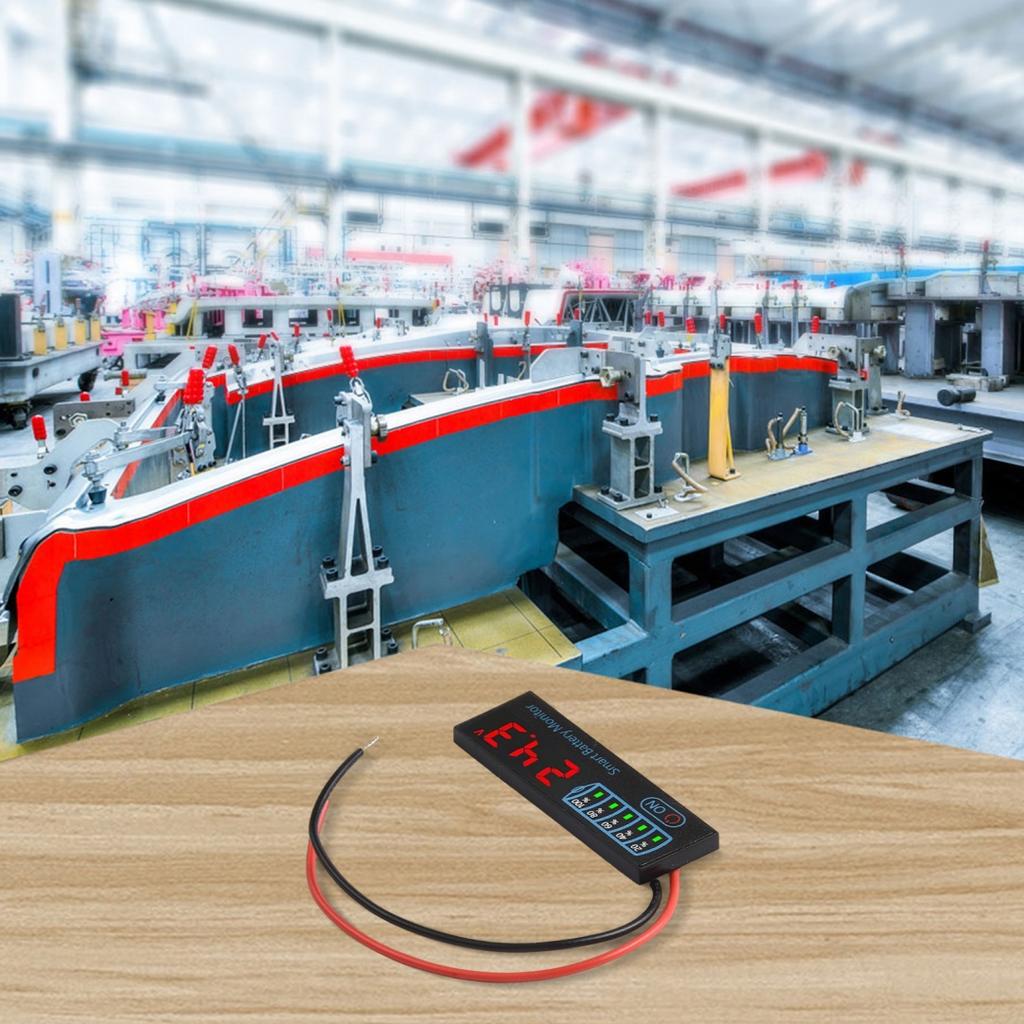

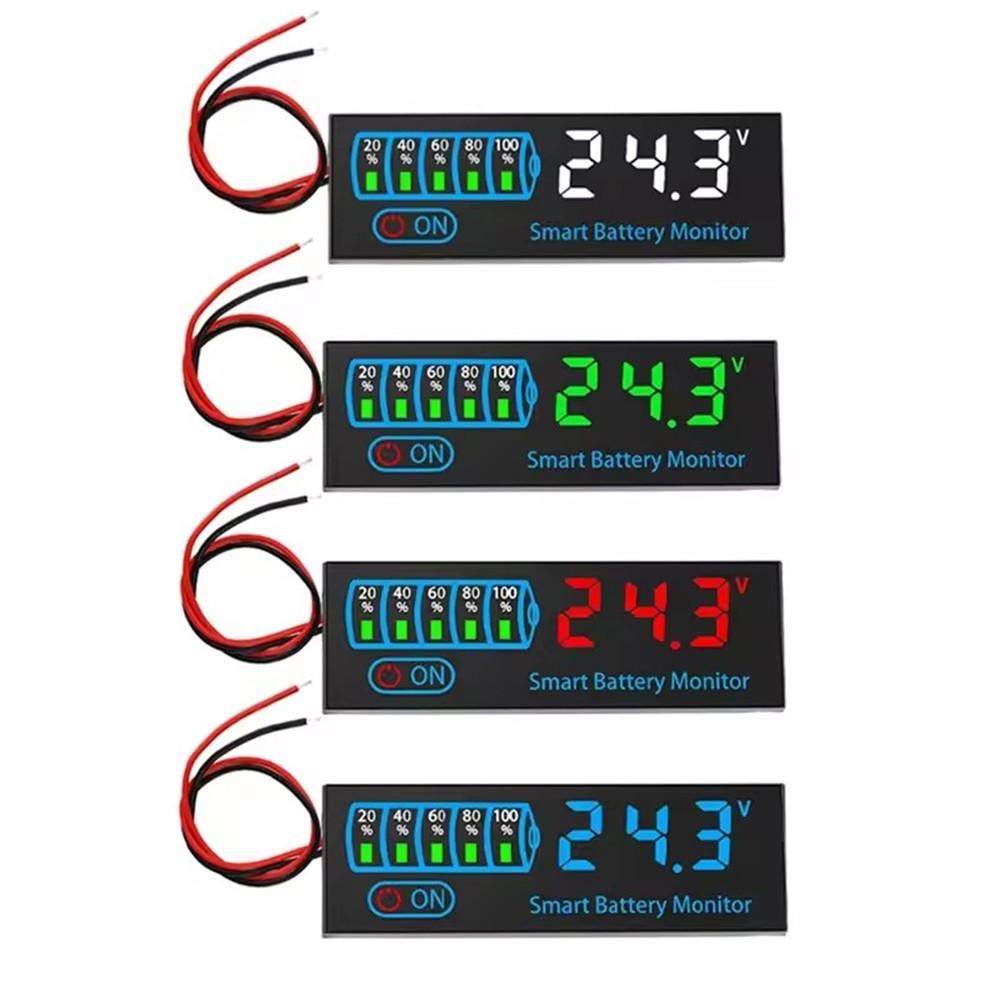

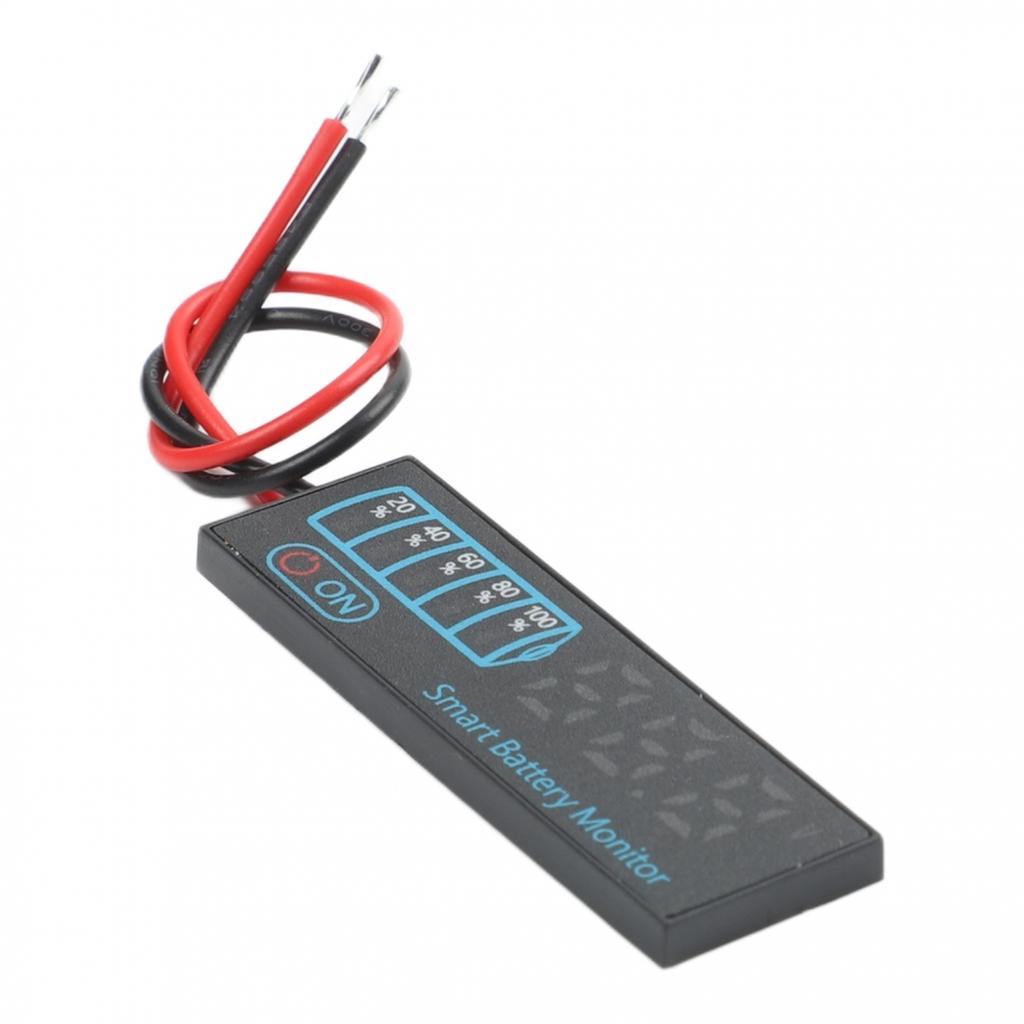

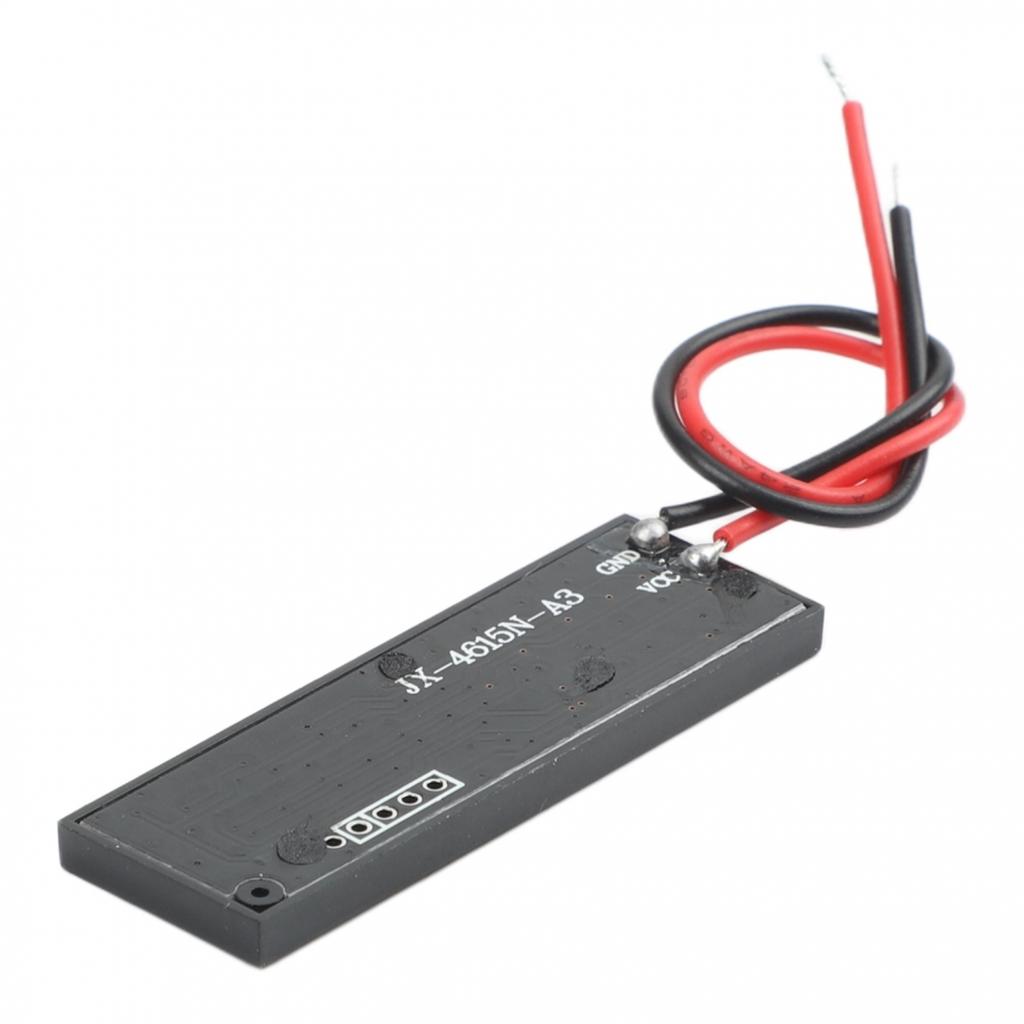

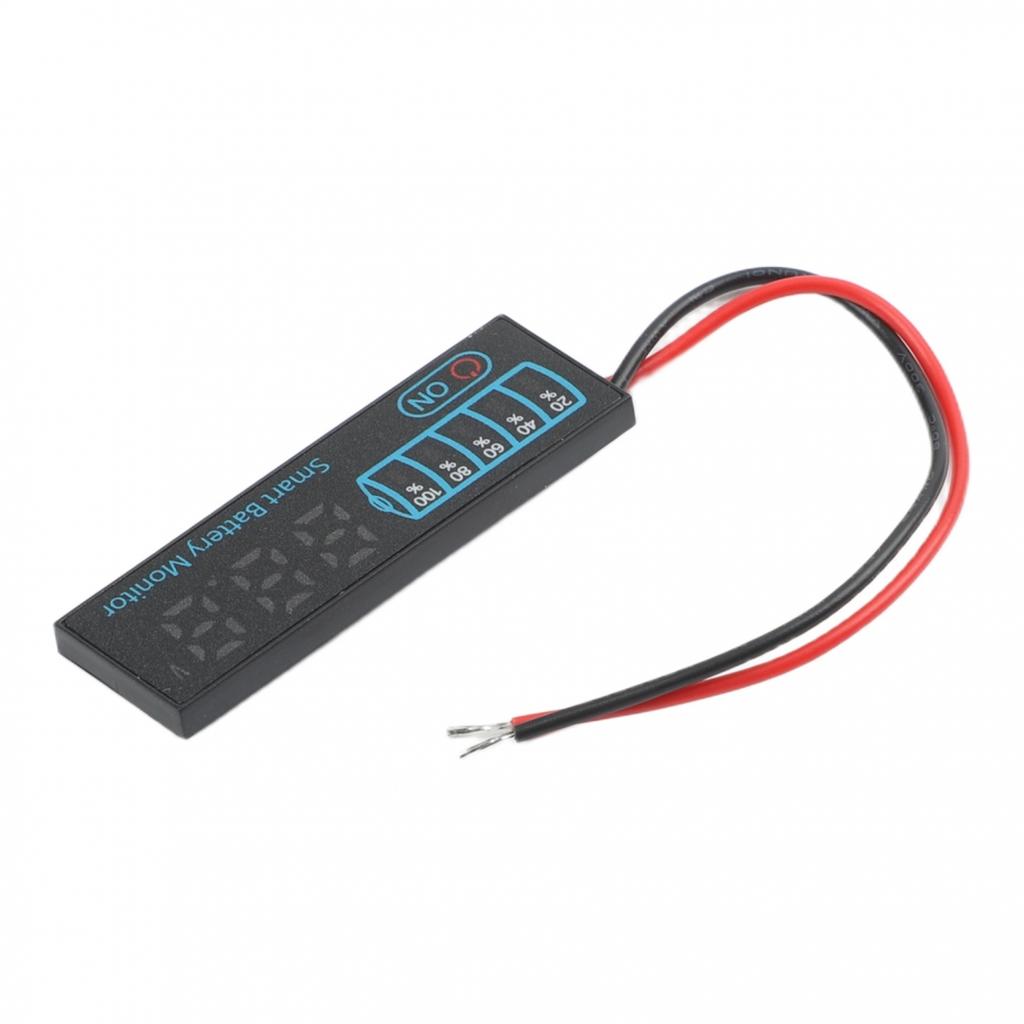

755V LiIon Battery Tester with LED for Ternary Lithium Measurements

Features: 1. The product defaults to the ternary lithium battery L03 S voltage (L03) when it is powered on for the first time. 2. Ternary lithium battery (L) measurement: from L03 for S to L12 S. 3. Iron lithium battery (F) measurement: from F03 for S to F14 S. 4. Acid battery (P) measurement: P12V/P24V/36V/48V. 5. Custom mode: high and low voltage settings, set the voltage value of full charge and full discharge. 6. Low voltage alarm function: When the battery power is equal to or lower than 10%, the red battery grid flashes. 7. With power-off memory storage function

Specifications: Product name: battery indicator Voltage measurement range: DC 7-55V (red display: DC 7-40V) Working current: ≤20mA Display mode: LED screen Ternary lithium iron measurement: 3S~12S Lithium battery measurement: 3S~14S Material: as shown in the picture Color: red, blue, white, green Size: 46*15*3mm

Package Content: 1* Battery indicator (optional color)

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
