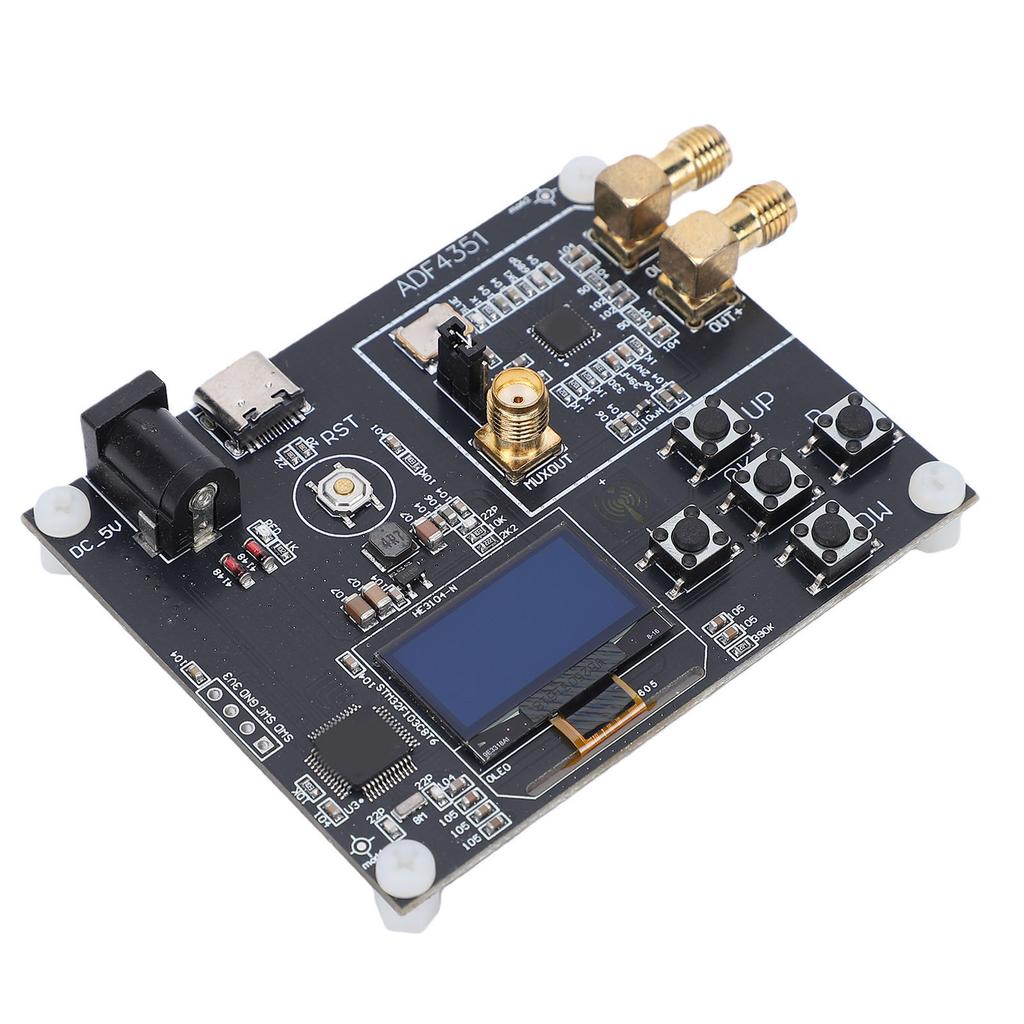

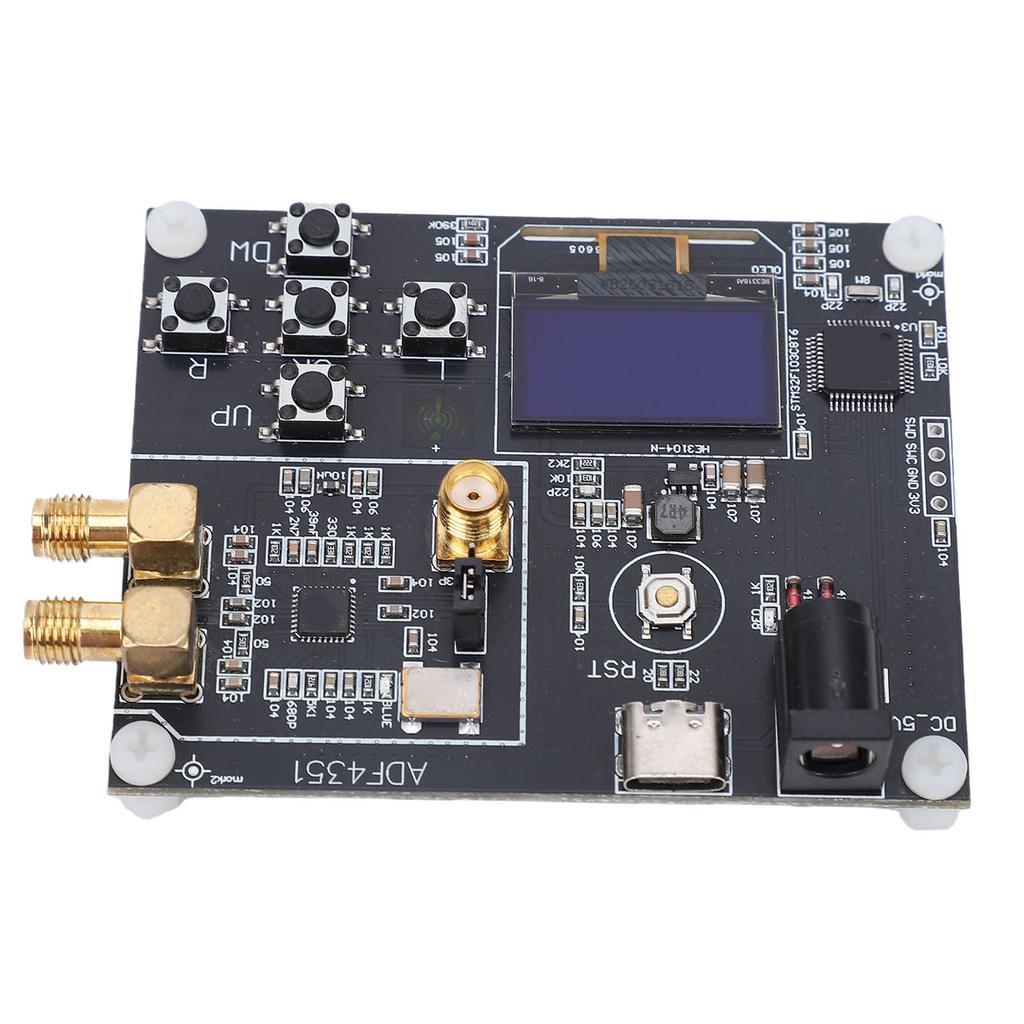

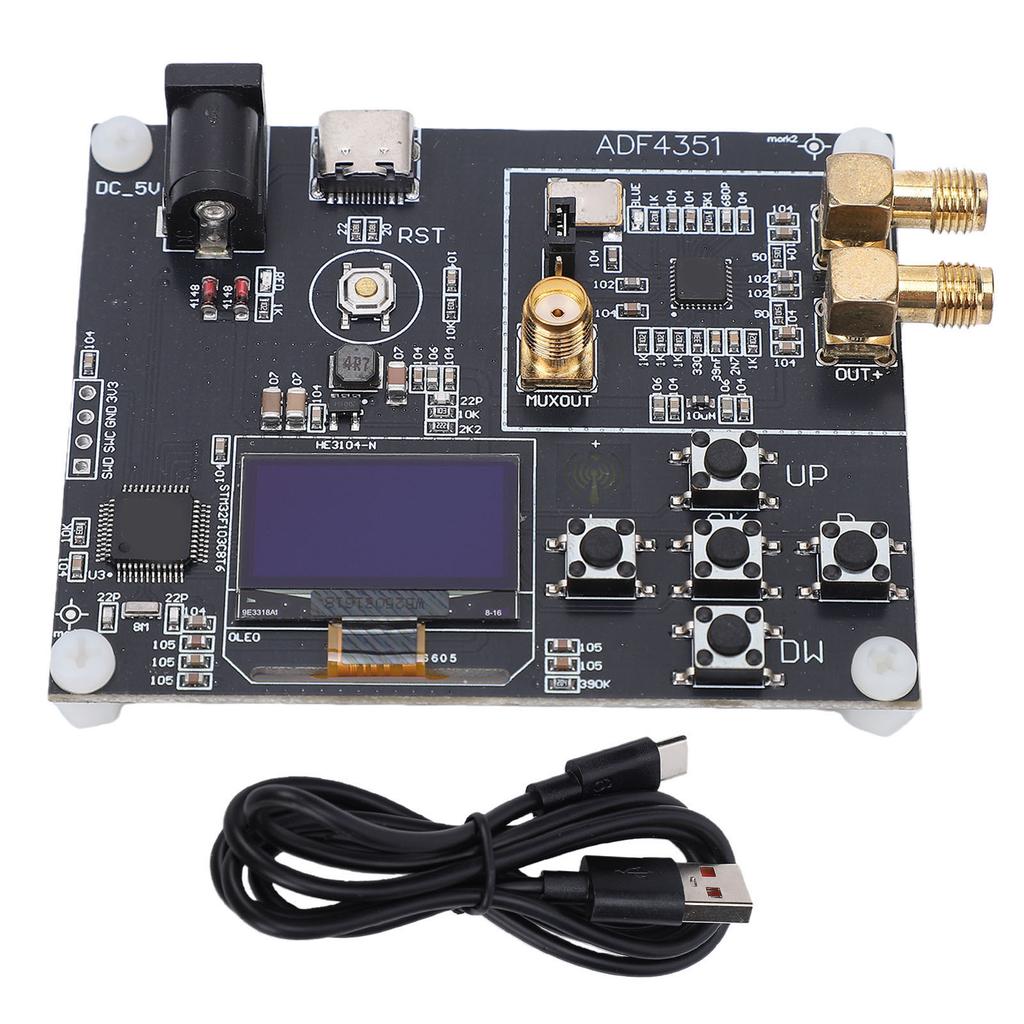

Phase Locked Loop Module Fit for ADF4351 Chip 35MHz 4. 4GHz RF Source Frequency Synthesizer Development Board

Feature: 1. Frequency Source: Fit for ADF4351 chip, this frequency synthesizer module delivers high frequency stability and low phase noise, ensuring dependable performance for precise applications 2. Multiple Functions: Offering versatile modes including fixed, sweep, and hop frequency, this module allows adjustable output power to cater to diverse RF testing and development needs 3. Wideband Coverage: With a broad frequency coverage from 35MHz to 4.4GHz, this module is practical for various applications like communication testing and signal analysis 4. User Friendly: Features intuitive organic LED display and physical buttons, support USB host communicating, simplifying operations and real time adjustments without complex setups 5. Signal Source: Equipped with SMA female connector and 50 Ohm impedance output, this module ensures dependable and stable signal transfer suitable for professional RF systems Specification: Item Type: Phase Locked Loop Module Product Material: PCB Module Type: Wideband Phase Locked Loop Frequency Source Module Function: Fixed Frequency, Sweep Frequency, Power Adjustment Module Current: 220mA (Maximum) Module Reference Frequency: 100MHz Reference Frequency Signal Amplitude: 700mVpp (Minimum) Frequency Stability: >25PPM Phase Noise: Varies by frequency point Module Output Frequency Range: 35MHz 4.4GHz Module Output Power: 7dBm (Maximum) Frequency Control Step: 0.1MHz Sweep Frequency Step: 0.1MHz 999.9MHz Sweep Time Step: 1mS 9999mS Output Power Adjustment: 0dB, 3dB, 6dB, 9dB Module Output Interface: SMA Module Output Signal: Sine Wave or Square Wave Module Output Channels: 2 (Differential Channels) Module Output Impedance: 50 Ohm . Package List: 1 x Module 1 x Supply Cable
