Comprehensive Introduction to ZMPT101B AC Voltage Sensor Module

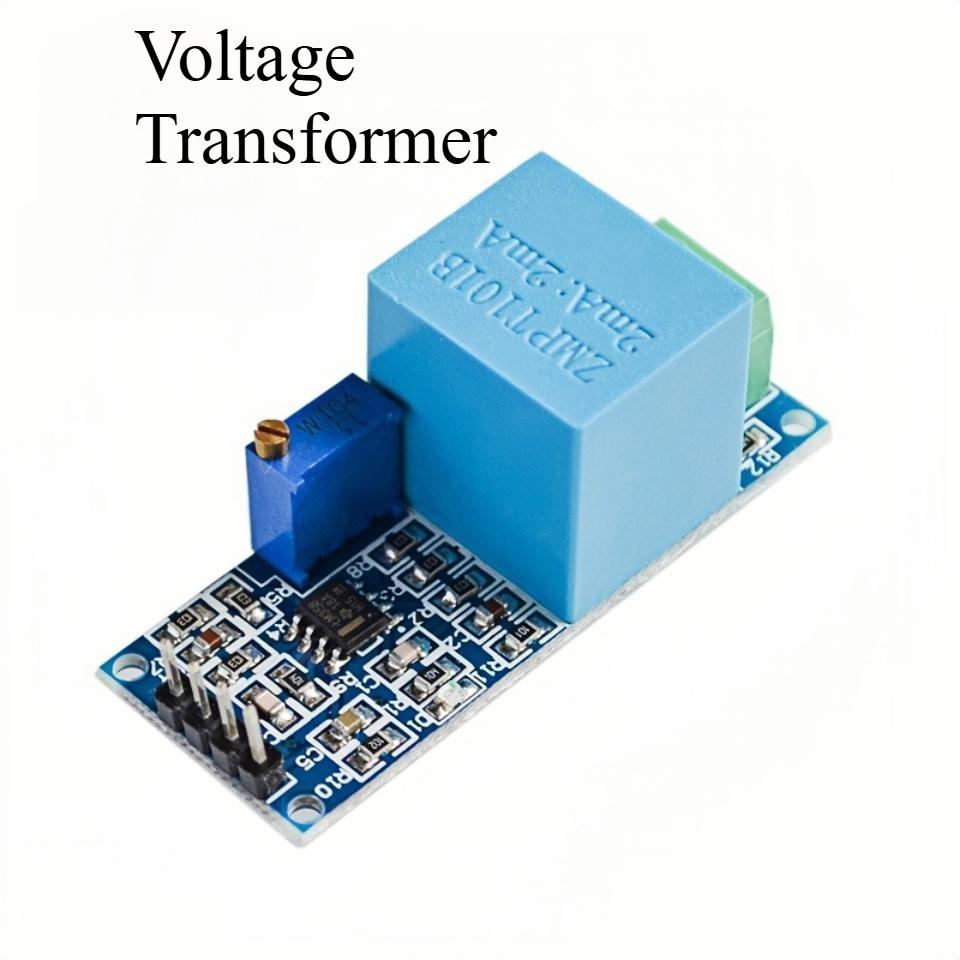

The image showcases a ZMPT101B-based AC voltage sensor module, a highly reliable, cost-effective, and widely used precision voltage detection solution for embedded systems, IoT projects, and industrial monitoring applications. Designed to accurately measure alternating current (AC) voltage, this module bridges high-voltage AC circuits and low-voltage microcontroller systems, enabling safe, real-time voltage monitoring in a compact, easy-to-integrate form factor.
Core Hardware & Chip Specifications
At the heart of the module is the ZMPT101B precision voltage transformer, a miniature, high-isolation AC voltage sensor rated for a maximum input of 2mA AC current (corresponding to a typical measurement range of 0-250V AC). This transformer provides complete electrical isolation between the high-voltage AC input side and the low-voltage output side, eliminating the risk of damage to connected microcontrollers (such as Arduino, STM32, or ESP32) and ensuring user safety during operation.
The module integrates a high-precision operational amplifier (op-amp) circuit for signal conditioning, which amplifies and filters the weak output signal from the ZMPT101B transformer, converting it into a stable, linear analog voltage signal compatible with microcontroller ADC (Analog-to-Digital Converter) inputs. A blue multi-turn potentiometer is included for precise gain calibration, allowing users to fine-tune the module’s output to match their specific voltage measurement range and microcontroller reference voltage, ensuring maximum accuracy.
Circuit Design & Interface Features
The module features a mature, optimized PCB layout with high-quality components to ensure long-term reliability and measurement stability:
Isolation & Safety: The ZMPT101B transformer provides up to 2000V of electrical isolation, creating a complete barrier between the high-voltage AC input and low-voltage control circuits, a critical safety feature for household and industrial voltage monitoring.
Signal Conditioning: The op-amp circuit includes precision resistors and capacitors for noise filtering and signal amplification, ensuring accurate, linear output across the entire measurement range, with minimal phase shift and distortion.
Interface Configuration: The module is equipped with a green screw terminal block for easy, secure connection to the AC voltage input line, and a set of 4 male header pins for direct connection to microcontroller systems, including power (VCC), ground (GND), and analog output (OUT).
Calibration & Tuning: The on-board multi-turn potentiometer allows for simple, precise calibration of the module’s output, ensuring accurate voltage readings that can be easily converted to actual AC voltage values via software in the connected microcontroller.
Key Advantages & Application Scenarios
This ZMPT101B AC voltage sensor module offers several key advantages that make it a top choice for voltage monitoring projects:
High Isolation & Safety: The built-in voltage transformer provides complete electrical isolation, protecting both users and connected microcontrollers from high-voltage hazards, making it safe for use in household and industrial environments.
High Accuracy & Linear Output: The precision transformer and op-amp circuit deliver a highly linear, accurate analog output, with a typical measurement accuracy of ±1% or better, suitable for both low-precision hobby projects and high-precision industrial monitoring.
Wide Compatibility: The module operates on a 5V DC power supply, making it fully compatible with all common microcontroller development boards, including Arduino, ESP32, STM32, Raspberry Pi Pico, and more.
Easy Integration: The compact form factor, simple interface, and calibration process make it easy to integrate into existing projects, with extensive open-source code and tutorials available online for quick setup.
Versatile Applications: The module is widely used in countless projects, including:
Smart home energy monitoring systems (measuring household AC voltage)
Industrial power quality monitoring and voltage detection
IoT-based remote voltage monitoring and alarm systems
DIY power meters and energy consumption trackers
Overvoltage/undervoltage protection systems for household appliances
Solar power system voltage monitoring and control
Conclusion
In summary, the ZMPT101B AC voltage sensor module is a reliable, high-performance, and user-friendly solution for AC voltage measurement and monitoring. Its combination of high electrical isolation, precise measurement accuracy, wide compatibility, and easy integration makes it an essential component for anyone working on embedded systems, IoT projects, or power monitoring applications. Whether you are a hobbyist building a DIY energy meter, a maker creating a smart home monitoring system, or an engineer developing an industrial power monitoring solution, this module provides the perfect balance of performance, safety, and affordability, making it a timeless staple in the world of embedded electronics.
