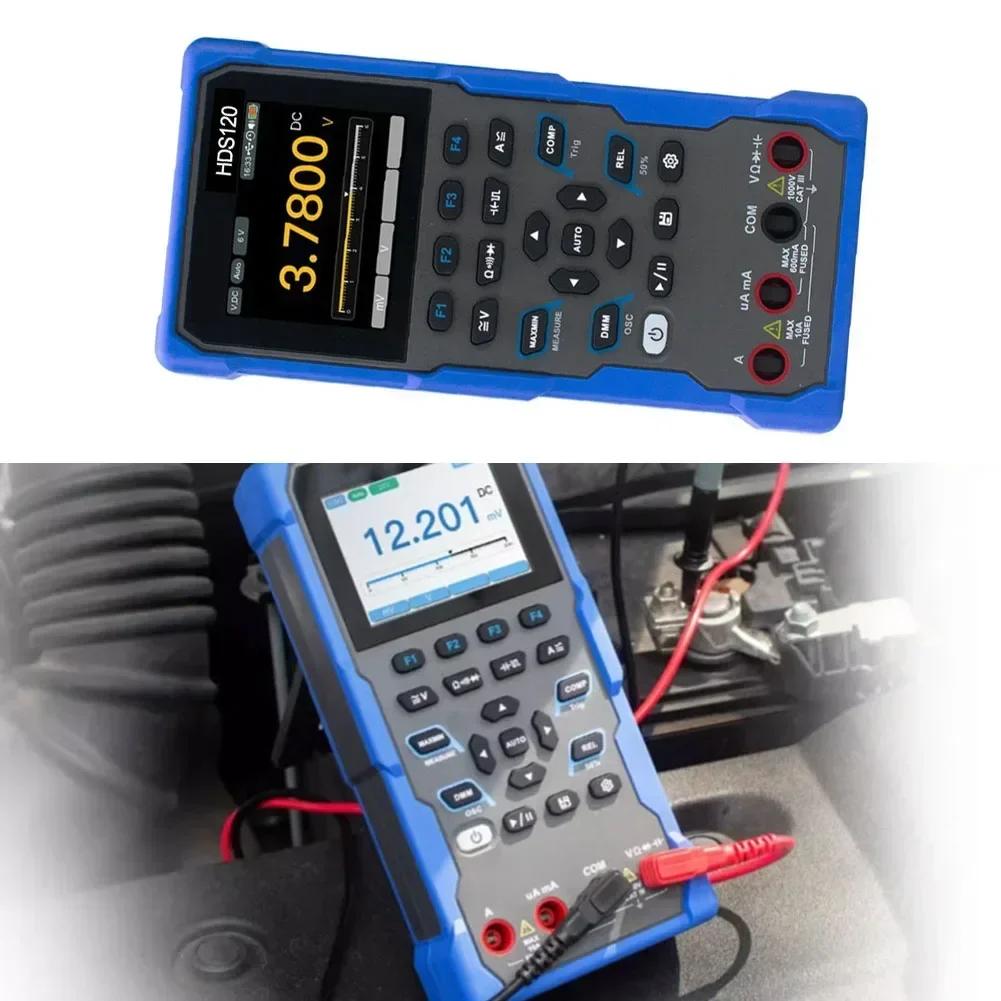

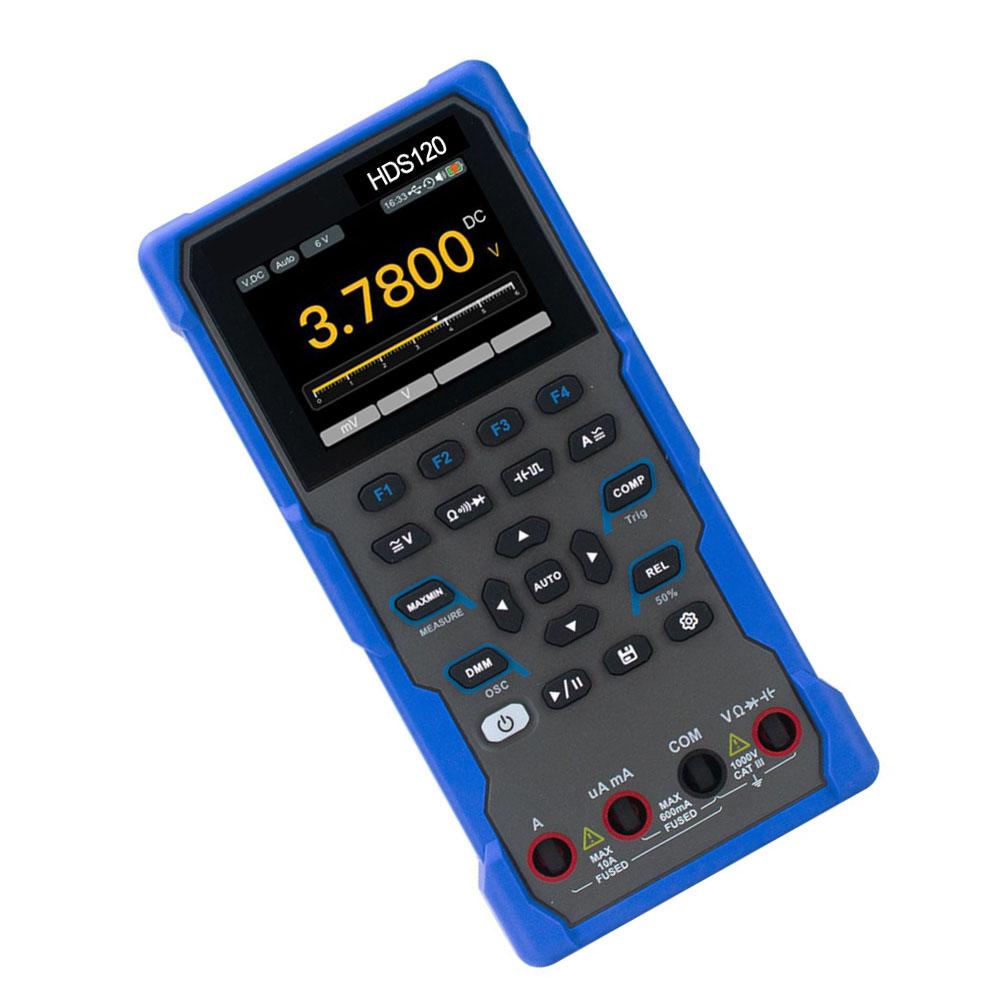

Features:
1. Multifunctional Measuring Instrument: 4.5-digit digital multimeter + oscilloscope.
2. Automatic Waveform Measurement: Includes Vmax, Vmin, Vp-p, Vavg, Vrms, and frequency.
3. User-Friendly Design: Full button layout for easy operation and extended lifespan.
4. Intelligent Probe Detection: Automatically switches measurement values based on probe insertion position, effectively instrument damage due to improper operation.
5. Efficient Power Management: Powered by a 2600mAh lithium-ion battery, providing longer operating time and extending your measurement tasks.
6. Compliant with CAT III 1000V standard, enabling safe and direct measurement of high-voltage waveforms up to 1000V, expanding application range.

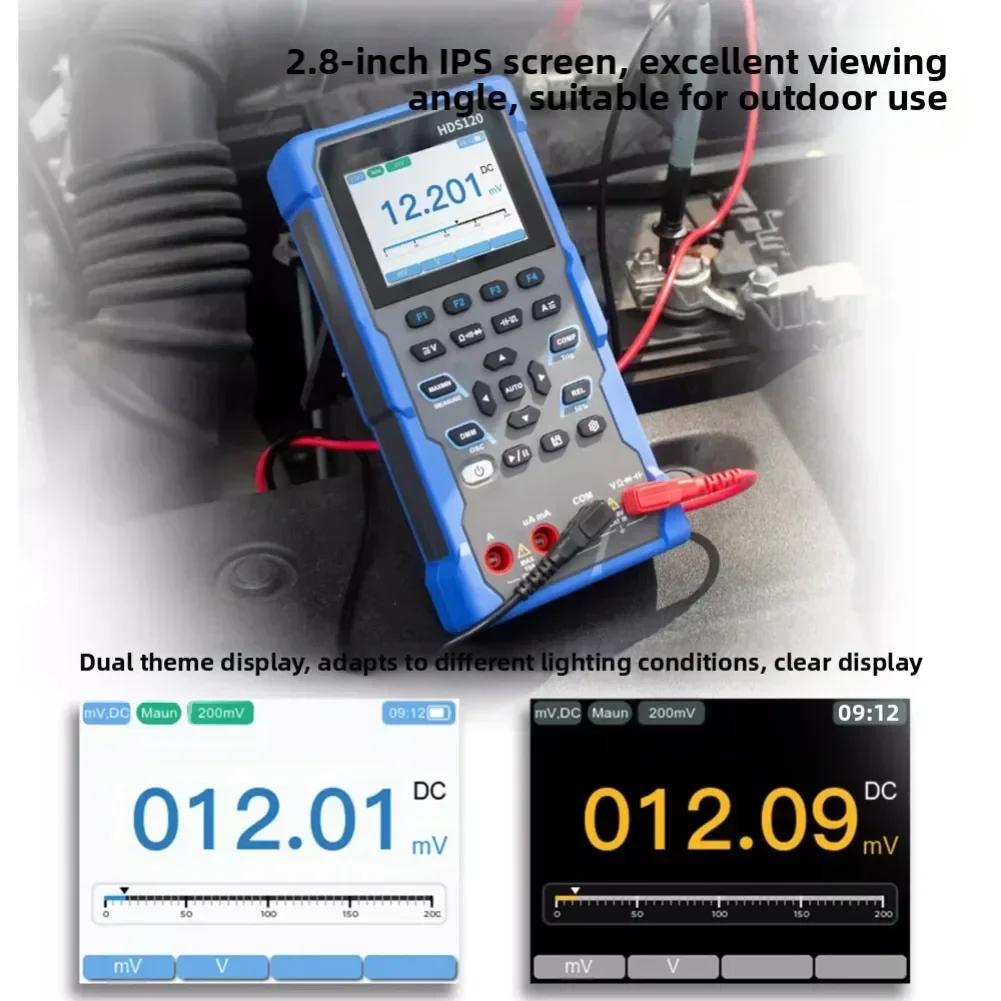

7. 2.8-inch IPS display provides a wide viewing angle and excellent display quality, clear data reading from any angle.
Specifications:
DC Voltage (V): 20.000mV, ±(0.1%+20 digits);
200.00mV, ±(0.1%+6 digits);
2.0000V/20.000V/200.00V, ±(0.1%+5 digits); 1000.0V, ±(0.15%+5 digits)
AC Voltage (V): 20.000mV/200.00mV/2.0000V/20.000V/200.00V, ±(0.6%+10 digits); 750.00V, ±(0.8%+10 digits)
DC Current (A): 200.00μA, ±(0.6%+10 digits);
2000.0μA, ±(0.5%+10 dig)
20.000mA, ±(0.6%+10 dig)
200.00mA, ±(0.5%+10 dig)
2.0000A, ±(1.0%+10 dig)
20.000A, ±(2.0%+10 dig)
AC Current (A): 200.00μA/2.0000mA, ±(0.8%+10 digits)
20.000mA/200.00mA, ±(0.8%+10 digits)
2.0000A, ±(1.5%+10 digits)
10.000A, ±(2.5%+10 digits)
Resistance (Ω): 200.00Ω, ±(0.8%+10 digits)
2.0000kΩ ±(0.3%+5 resistance (dig)
20.000kΩ/200.00kΩ/2.0000MΩ, ±(0.3%+5 dig) 20.000MΩ,
±(0.5%+10 dig)
100.00MΩ，±(5.0%+10dig)
Capacitance (F): 2.000nF, ±(5.0%+10 dig) 20.00nF/200.0nF/2.000μF/20.00μF, 200.0μF/2.000mF/20.00mF, ±(3.0%+10 dig)
frequency (Hz): 200.00Hz/2.0000kHz/20.000kHz/200.00kHz/2.0000MHz/20.000MHz, ±(0.1%+5 digits)
Duty Cycle: 0.1%~99.9% (Typical: Vrms=1V, f=1kHz), ±(1.2%+3 digits)
0.1%~99.9% (≥1kHz), ±(2.5%+3 digits)
Diode: 3.0000V, ±(1.0%+10 digits)
Switching Resistor: 1000.0Ω
Display: 20000 counters
Oscilloscope
Analog Bandwidth: 1MHz (AC voltage range only)
Maximum Sampling Rate: 5.0Msps
Number of Channels: 1
Input Impedance: ≈10MΩ
Time Base Range: 2.5μS~10S/division
Time Base Accuracy: ±(0.01% + 0.1 division)
Voltage vertical sensitivity range: 30mV~500V/division
Current vertical sensitivity range: 100μA~5A/division
Vertical amplitude accuracy: ±(5% + 0.2div)
Measurement functions: Vmax, Vmin, Vp-p, Vavg, Vrms, Hz
Maximum voltage limit: 1000V DC+AC peak
Maximum current limit: 15A DC+AC peak
Part name: Multimeter
Material: ABS
Color: Black
Size: 90 * 42 * 185mm / 3.54 * 1.65 * 7.28 inches
Package Content:
1*multimeter
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
