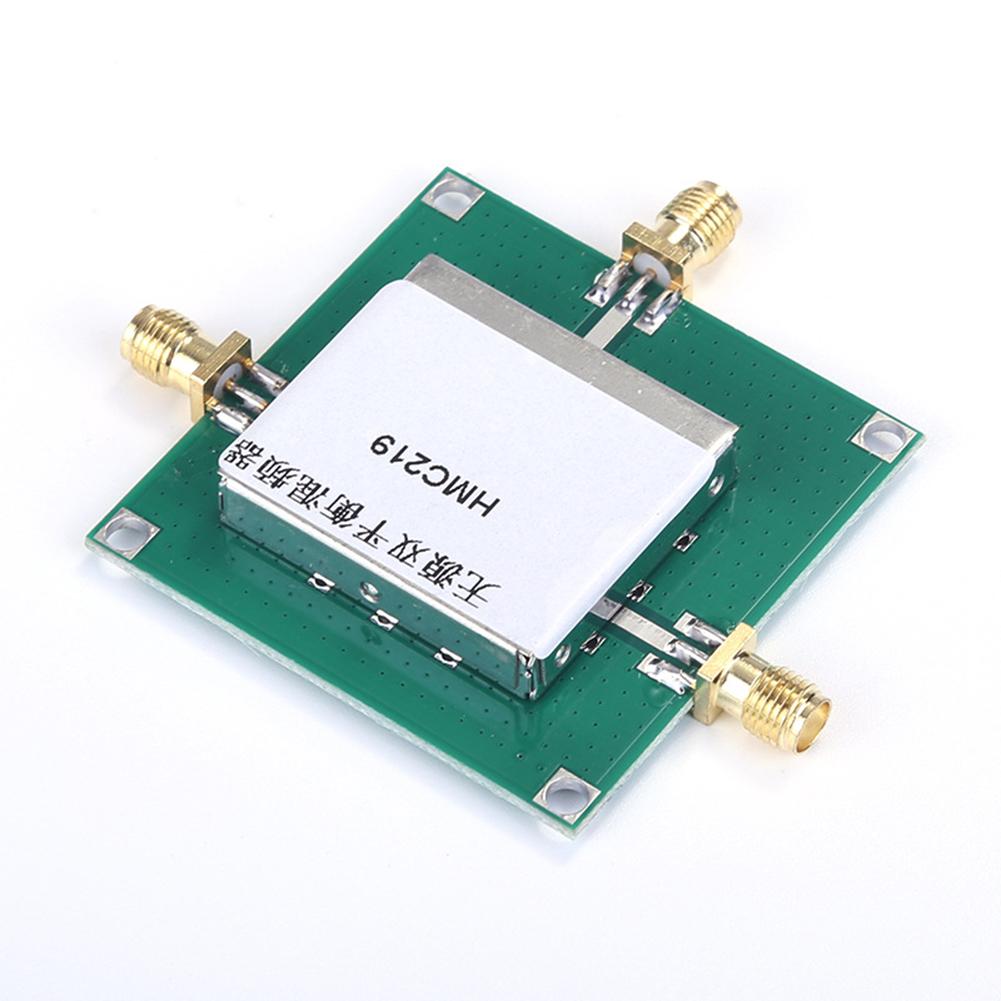

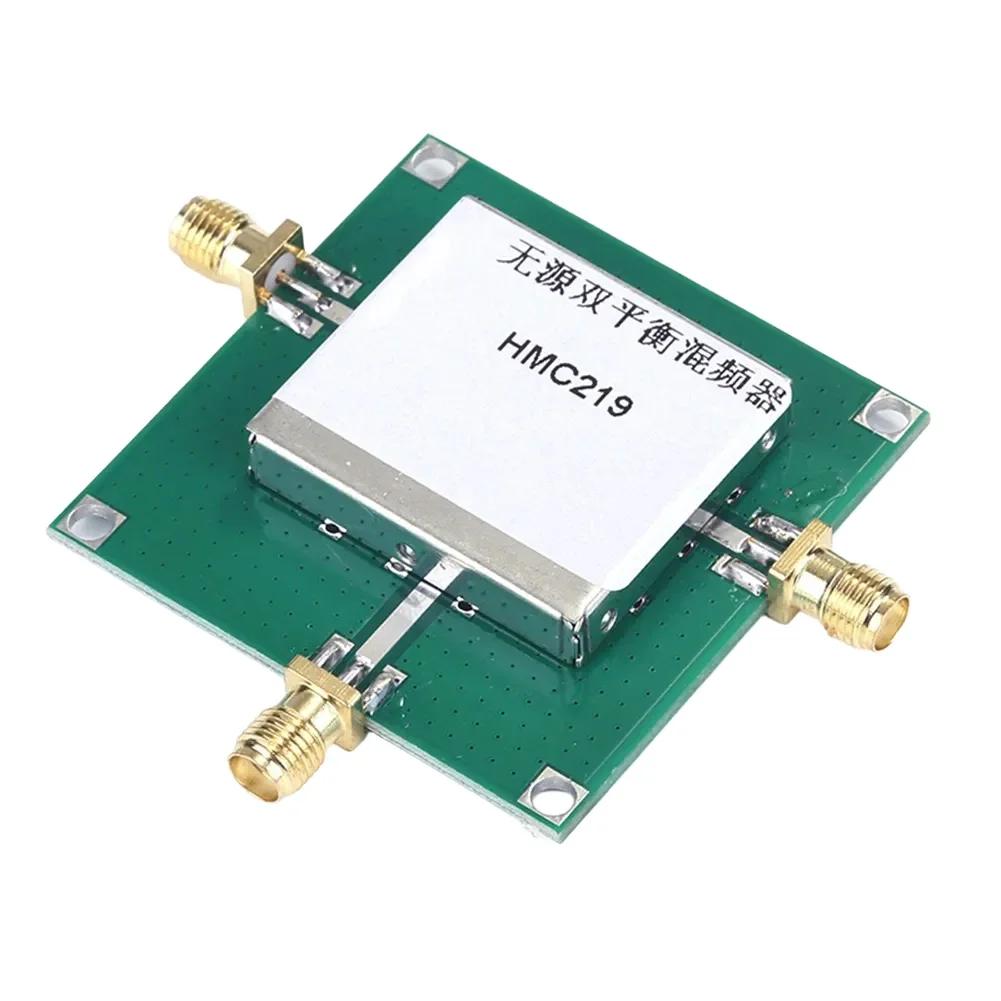

HMC175 And HMC213, HMC219 Dual-balanced Mixer, Dual-phase Modulator, Microwave Communication System Frequency Conversion Module

Features: *HMC219 is a high-performance passive double-balanced mixer that adopts GaAs Schottky diodes and an innovative planar transformer Balun structure design. It features a wide operating frequency range and stable performance. It is applicable to various application scenarios such as up-conversion, down-conversion, dual-phase modulation/demodulation and phase comparison. It is packaged in an 8-pin MsOP for surface mount plastic package, which is convenient for integration and mass production.

Advantages over models of the same series *Compared with HMC175 and HMC213, HMC219 features a wider operating frequency range (up to 7GHz), higher isolation (LO/RF 40dB), and lower mixing loss (9dB), making it suitable for high-frequency and high-linearity applications.

Application field *Microwave communication system  *satellite communication *Testing and measuring equipment *Wireless infrastructure (5G/4G base stations) *Modulation, demodulation and phase detection circuit Specifications: Part Name:Frequency conversion module Material:pcb Size:As the picture Color:As the picture Frequency range RF/LO: 2.5 GHz to 7 GHz IF: DC ~ 3 GHz Low mixing loss: Only 9 dB High isolation LO/RF isolation: 40 dB LO/IF isolation: 35 dB Low noise figure (NF) : 8 dB High linearity (P1dB) : 11 dBm LO Drive power: 13 dBm Passive design, no external bias required

Package Content: 1 x Frequency conversion module

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
