Features:
*Wide voltage adaptation: 12V - 24V solar charging controller, make for sure the battery is fully charged for the first start.
*Multiple battery compatibility: compatible with lead-acid batteries (OP, EAGM, GEL), ternary lithium batteries, lithium iron phosphate batteries.
*Multiple protections: built-in short circuit, open circuit, reverse, and overload for protection to for ensure safe use.
Intelligent charging management: industrial-grade for mini controller with full 3-stage charging management, adjustable parameters, and large-screen display.
*Convenient output: 4 USB outputs, single-channel maximum 2A current, support mobile phone charging, battery cables are recommended to be short-circuited to reduce losses.
* Product upgrade: Compared with the old model, the screen will automatically dim after 30 seconds without any operation, the new model will keep the screen on
Specifications:

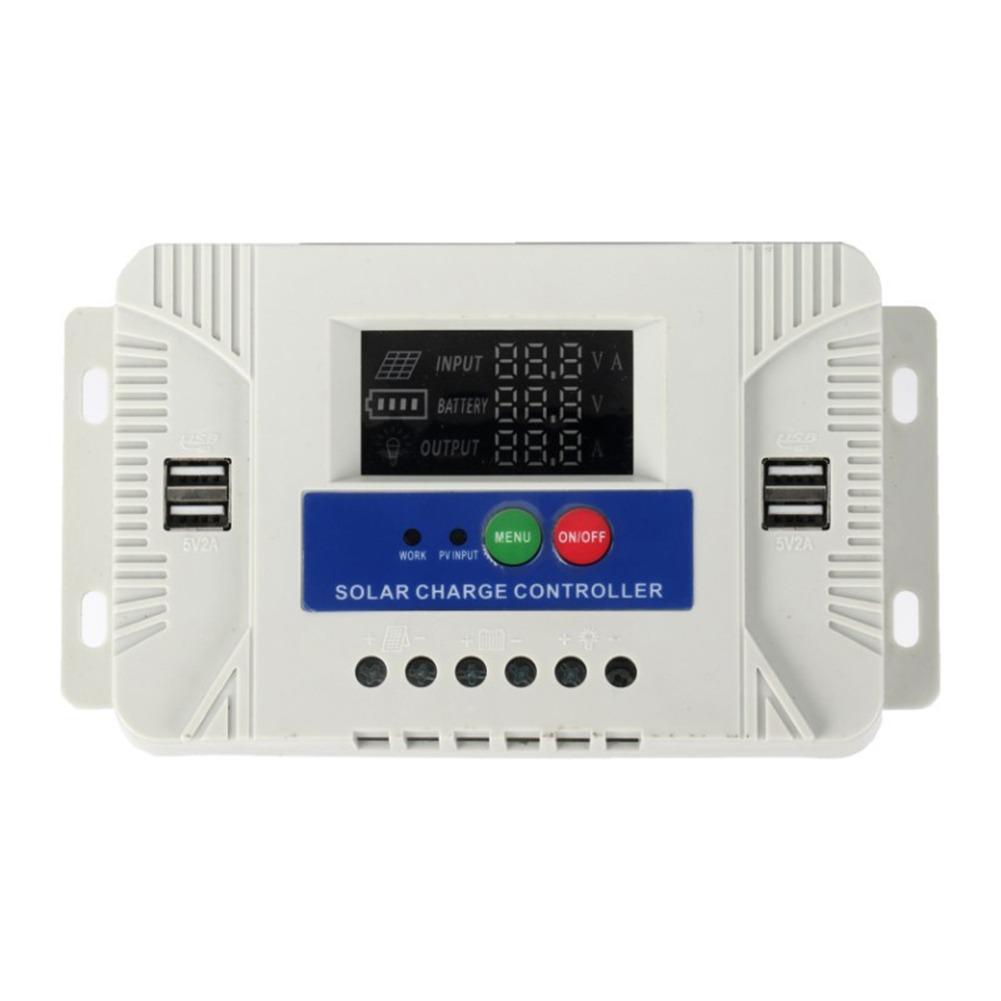

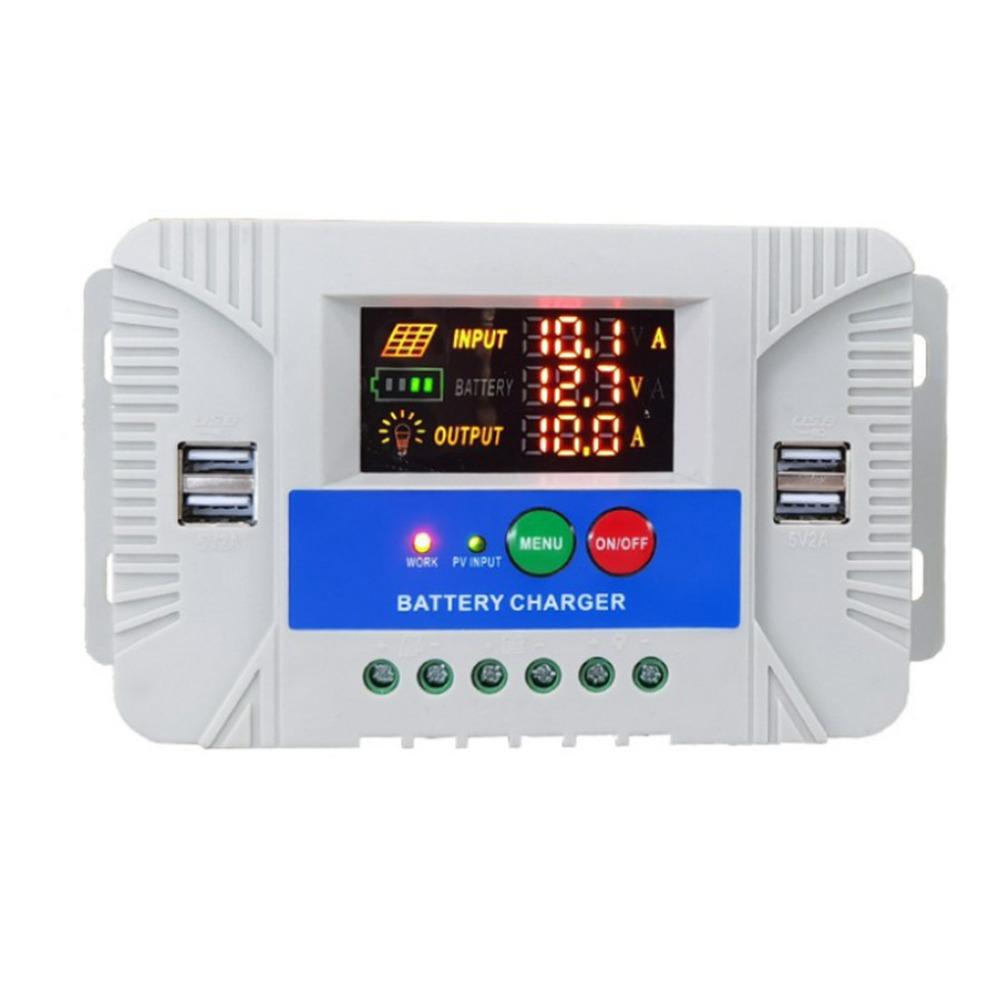

*Part Name: Solar Controller
*Material:ABS
*Size: 185*95*25mm
*Color:As the picture
Batt voltage： AUTO
Charge current：20A
Discharge current：10A
Max solar input:12V battery, the highest 23V;24V battery when the highest 46V
Battery type:b01=Leads acid battery 12V/24Vauto;b02=Lithium-ion battery (lithium battery) 3 strings 3.7V=1;b03=Lithium iron phosphate battery 4 strings 3.2V=12.8V
Equalization:14.4V(b01);12.6V(b02);14.6V(b03)
Discharge stop:10.7V(b01);9V(b02);10V(b03)
Discharge reconnect:12.6V(b01);10.5(b02);12V(b03)
Voltage of open light:Solar panel 8V(Light lights delay)
Voltage of close light:Solar panel 8V(Light off delay)
USB output:4 way USB output, 5V/2A(MAX)
Self-consume:<10mA
Operating temperature:-35 ~ +60℃
Package Content:
1 x Solar Controller
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
