Is Electric : No Battery
Is it battery/power supply : N
Is it charger/adapter : N
Is Batteries Included : No
Material : Metal
Origin : China
Recommend Age : 14+y
Description
Features:

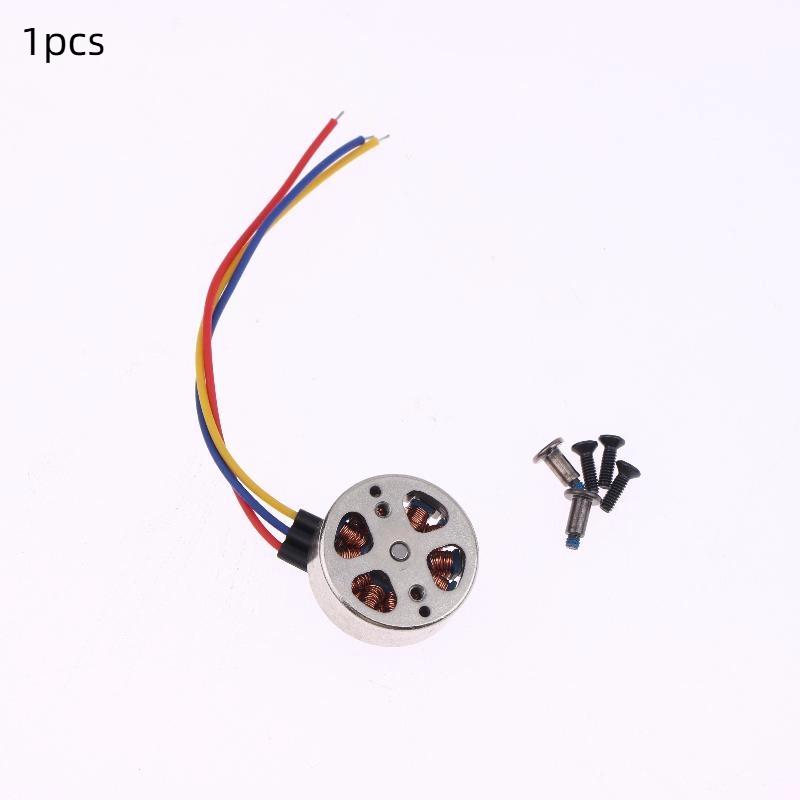

The 1103 high-speed aircraft model brushless motor, KV value is 15000, is commonly used in high-speed micro crossing aircraft, circle machines, and aircraft models, or as a modification for micro fixed wing aircraft models. The high-speed outer rotor has dynamic balance correction, neodymium magnetic steel or arc-shaped high-efficiency magnetic tiles, a standard shaft with a diameter of 1.5mm, and the fixed part of the outer rotor is thickened with steps.
The motor is suitable for operation in 1-2S lithium batteries, depending on the size of the blade you match. The recommended blade size for 2S is GF1635-4/GF1610-2/GF1608-3, and it is recommended to install it upside down. The front installation may be a bit loose. For 1S, the recommended blade size is GF1636-4.
Thrust test data (GF1635-4 for blade), 1S voltage: 50% throttle 22g, 75% throttle 41g, 100% throttle 50g.
2S voltage: 25% throttle at 26g, 50% throttle at 54g, 75% throttle at 85g, 100% throttle at over 100g.
Recommended racks: Mobula7 standard mount, ACK75 inverted mount, beta75pro, toothpick machine, and most commonly used three hole racks.
Generally, an electric regulator can use around 10A for 1 second, and 15-20A is recommended for 2 seconds. Note that some brushless electric regulators have poor compatibility with ultra-high KV, cannot move up or down at high speeds, or have light jitter. The current is abnormally large and may directly heat up and burn the motor. Pay attention to starting small current actual testing. If the Blheli electric regulator parameters are incorrect, they can be adjusted before use.
Specifications:
Material: Metal
Size: as shown
Color: As Shown In The Picture
Package Includes:
1 /2pcsx Motor
Note:
1. Please note that the photo does not show actual size please refer to Description for size details.
2. Please allow differences due to manual measurement thanks.
3. Due to the difference between different monitors the image may not reflect the actual color of the item.
