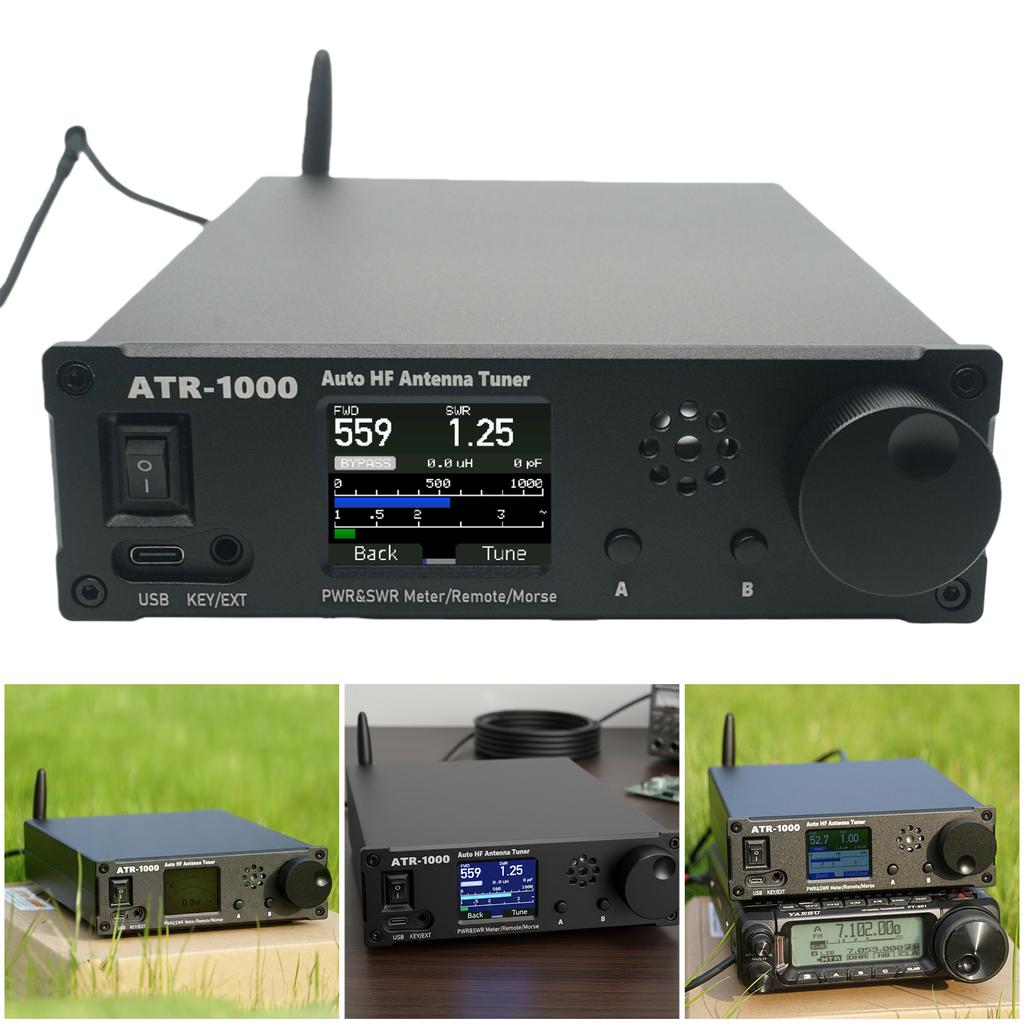

AMNVOLT ATR1000 1000W 1.8-30MHz Automatic Antenna Tuner Lightweight HF Shortwave Radio Tuner WIFI Remote Control Support
Features:
1.Compact High-Power Design:
This automatic antenna tuner is engineered for portability and power, measuring just 230 x 150 x 50 mm and weighing only 1.3kg, making it suit for field operations or limited-space setups.
2.Integrated Morse Code Practice:
Featuring a built-in CW trainer, this HF shortwave radio tuner supports external single/double paddle keys via 3.5mm jack, allowing customization of code speed and tone, and includes a comprehensive Morse code dictionary.
3.Smart Remote Control & Safety:
Equipped with WiFi, users can remotely monitor power and SWR or adjust settings from their phone or computer. The full waveband radio receiver allows convenient and secure operation even during high-power use.
4.User-Friendly TFT Display:
The 1.8-inch color screen on this mini radio equipment offers multiple display themes and English UI, with the ability to store and recall tuning parameters for quick frequency access.
5.Advanced System & Monitoring:

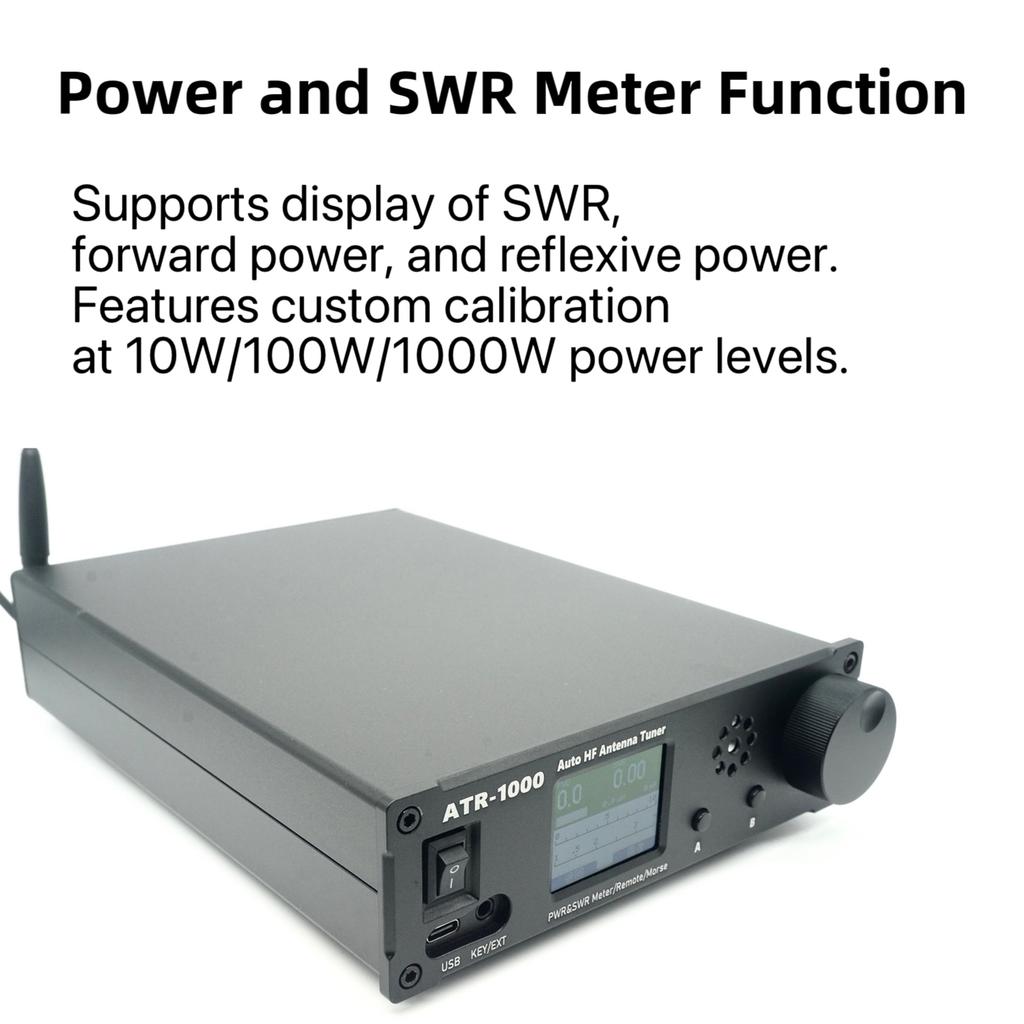

The antenna auto tuner features precise real-time SWR and power display with adjustable calibration (10W/100W/1000W) and advanced firmware upgrades via USB-Type-C or OTA, supporting up to 1000W SSB/CW and 300W FM/AM/FT8 modes.
Specification:
Origin: Mainland China
Product Overview:
Casing Material: ABS
Product Dimensions: Approx. 205x150x50mm / 8.07x5.91x1.97 (inch)
While ensuring a maximum power of 1000W, we have designed this high-power antenna tuner to be extremely compact. To achieve the goal of stably handling 1000W of power in such a small size, we invested heavily in experimentation and R&D. After six months of in-depth testing in various scenarios by 50 experienced HAMs in China, we finally successfully developed this compact high-power antenna tuner.
To make the product more sturdy and solid, the exterior has also undergone meticulous CNC design, including the smooth tactile treatment of each corner, and the thickness and diameter of the large knob, all precisely calculated to ensure a comfortable grip.
The biggest highlight of this product is achieving a maximum power handling of 1000W within an extremely compact body, and innovatively incorporating remote control functionality, allowing operation via the network. In addition, it also includes a built-in power meter, VSWR meter, and CW training function.
Important Safety Precautions:
1. Please read the instruction manual carefully before operating the equipment. Do not operate blindly.
2. The product casing may be under high voltage while the radio is transmitting. Do not touch it directly with your hands.
3. When using the power amplifier, please start with low power and gradually increase the power level for testing. Use it only after the power has stabilized.
4. Please use the equipment within its rated power range. Prolonged operation beyond the rated power may damage the equipment.
5. The sound emitted when the equipment is shaken while powered off is the normal contact sound of a relay. It will disappear after power is applied.
Parameters:
Brand: AMNVOLT & ANTUNER
Frequency Range: 1.8 - 30 MHz
Maximum Power: SSB/CW 1000W; FM/AM/FT8 300W
Important: Please strictly adhere to the power limits. Exceeding the power limit may cause permanent damage to the equipment.
Tuning Power: 1- 20W (Recommended 5- 10W)
Operating Voltage: 11- 15V DC (12V recommended)
Tips: Please use a compatible power adapter. Overvoltage may damage the device.
Standby Current: 0.2A
Full Power Current: Approx. 1A
Display Screen: 1.8-inch TFT Color Screen
Speaker Power: 3W
Wireless Function: WiFi 2.4G (Supports Hotspot/Client Mode)
Remote Control: Web Control (LAN/Internet)
Morse Tracking: Supports Single/Dual Propeller Keys
ADC Accuracy: 16-bit
Interfaces: ANTENNA Antenna Interface, TX Radio Interface, Grounding Post, DC Voltage Interface 1 (KF2EDGRC 5.08 Quick Release), DC Power Interface 2 (DC 5.5-2.1), USB-C, 3.5mm Key/Extend
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
1 x Main Unit
1 x DC Power Cord
1 x WIFI Antenna
