DIYmall 24-bit RGB LED Ring 24 x WS2812B WS2812 5050 Lamp Light with Built-in Driver, Full Color Light Addressable Ring for Arduino Raspberry Pi ESP32

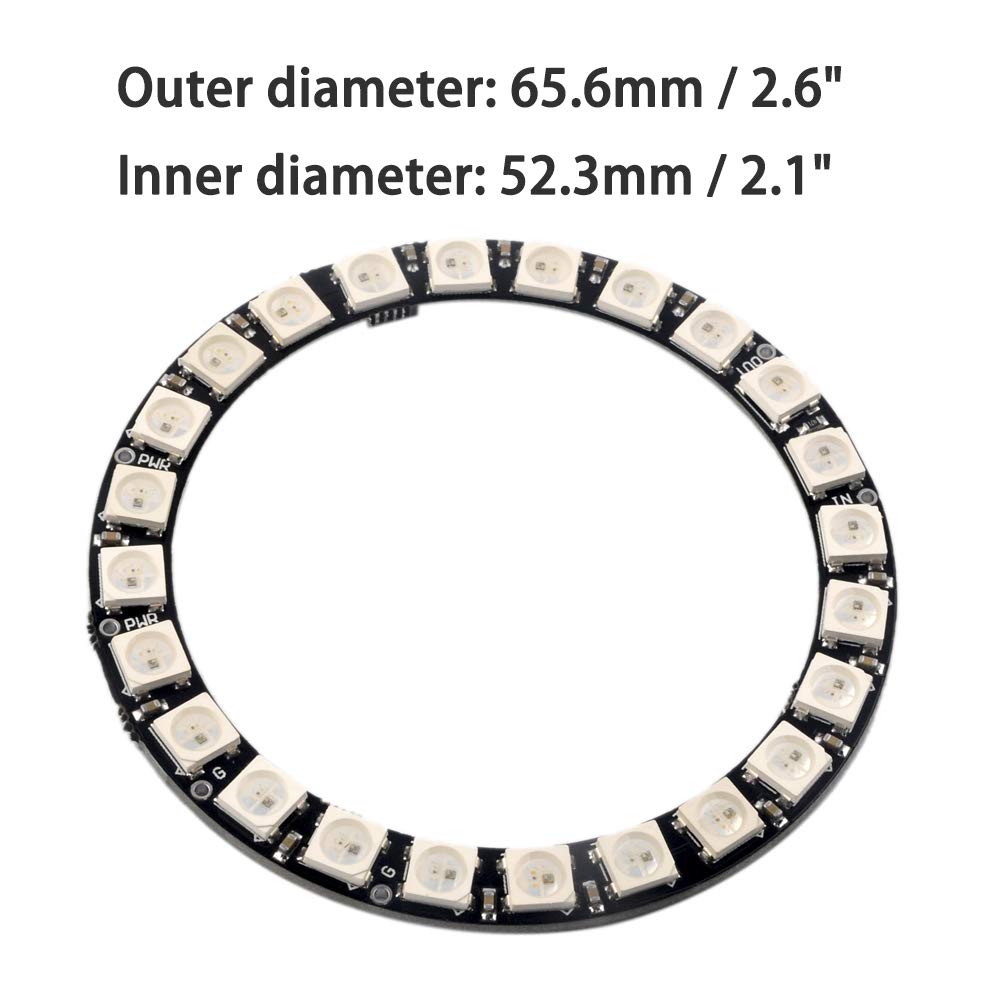

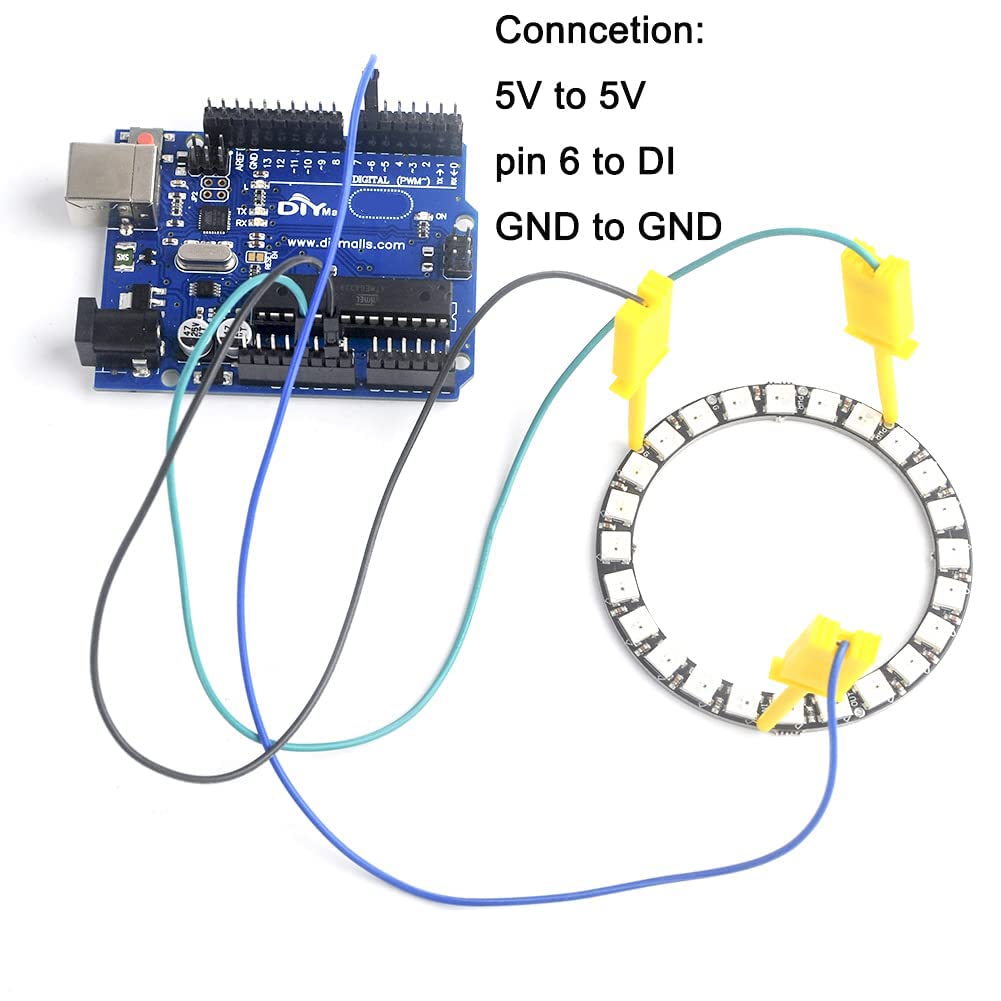

Product Description: 24 ultra-bright smart LED pixels are arranged in a 2.6-inch (66mm) outer diameter circle. The ring is "cascadable" - connect one output pin to another input pin. You can control as many as you can chain using just one microcontroller pin. Each LED is addressable as the driver chip is inside the LED. Constant current drive of 18mA each ensures very consistent color even with voltage fluctuations, and the design is compact with no external resistors required. Powering the entire ring with 5VDC will make it light up instantly. There is a single data line with a highly timing-sensitive protocol. Because the protocol is very timing-sensitive, a real-time microcontroller such as AVR, Arduino, PIC, or Mbed is required. It cannot be used with Linux-based microcontrollers or interpreter microcontrollers such as netduino or Basic Stamp. This driver is compatible with the NeoPixel library for Arduino and Fast-LED. An 8MHz or higher processor is required. Specifications: Voltage: DC4-7V, Communication Interface: Single-wire communication, LED Chip: WS2812B, Inner Diameter: 5cm, Outer Diameter: 6.5cm, Connection: 5V~5V pin, 6~DI GND to GND, Package Contents: 5 x 24-bit WS2812 5050 RGB LED

▶ SK6812 LED, same brightness, color, and protocol.

▶ This RGB LED ring can be used with AVR, Arduino, Raspberry Pi, PIC, Mbed, etc.

▶ Full-color programmable LED strip, WS2811 IC with built-in 5050SMD. LED brightness can be set with Arduino code, and each light can also be programmed individually.

▶ Communication Interface: Single-wire communication, LED Chip: WS2812B, Voltage: DC4-7V, normally powered using USB 5V. Current consumption at 5V is approximately 1.44 amps (60mA per LED, 24 x 0.6 = 1.44 amps).

▶ Contents: 5 x 24-bit WS2812 5050 RGB LED rings. Please feel free to contact us if you have any questions when using our products.
