Technical Specifications
For the DFC15 Controller:
Controller Power Requirement: 12VDC
Power Adapter: Input: 100-240VAC; Output: 12VDC, Max. 2A
Adapter Lead Length: 1m
Measurement Accuracy: ±1%
Solenoid Valve Output: 12VDC, Max. 5A
Temperature Sensor: 0-125°C/32-257°F, NTC3950, Accuracy: ±1°C/±1°F
Thread: M8
Maximum Total Volume: 999,999 g/L
Measuring Range: 0-9999.99 g/L
Flow Rate Range: 0-9999.99 g/LPM (GPM)
Cable Length: 1m
Dimensions: 88mm x 126mm x 30mm
Weight: 200g
Operating Environment: Temperature: 0-50°C/32-122°F; Relative Humidity: <85%

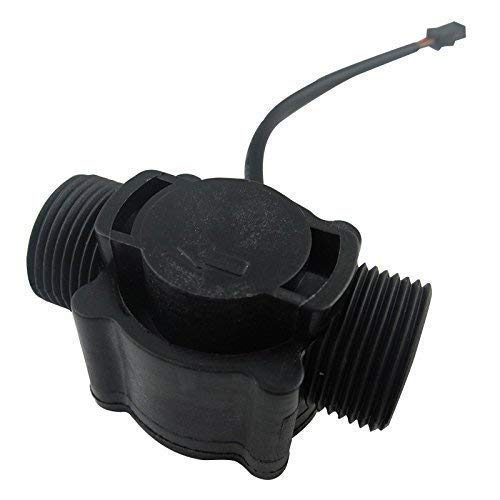

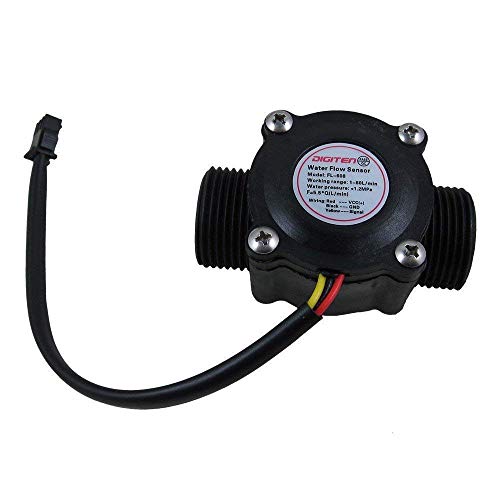

For the G3/4" Flow Sensor:
Frequency: F = 5.5 * Q (L/min)
Flow Range: 1-60L/min
Compression Allowed: Water Pressure 1.75 MPa or Less
Sensor: Hall Effect
Cable Length: 15cm
Error: ±2%
For G3/4" Solenoid Valve:
Operating Pressure: 0.02-0.8 MPa
How to Use:
1. Set the K value, constant value, and maximum alarm value, and properly install the flow sensor and solenoid valve.
2. Press the RUN/STOP button to activate the controller. The total will continuously display the current flow rate and the current flow rate, and the faucet will begin to animate.
3. When the flow rate reaches the constant setting, the controller will automatically turn off the solenoid valve, the total will stop, the faucet animation will stop, and the flow rate will return to zero.
4. Pressing the RUN/STOP button again will cause the controller to repeat the same task.
Notes:
1. This controller works with solenoid valves up to 5A, but this kit comes with a 2A power adapter. If driving a larger solenoid valve, use an appropriate power adapter.
2. Make sure the solenoid valve and flow sensor are aligned with the water flow.
3. Avoid directing water into the controller.
Package Included:
1 x DFC15 Controller
1 x G3/4" Flow Sensor
1 x G3/4" Solenoid Valve
1 x Power Adapter
1 x Temperature Sensor
1 x Manual

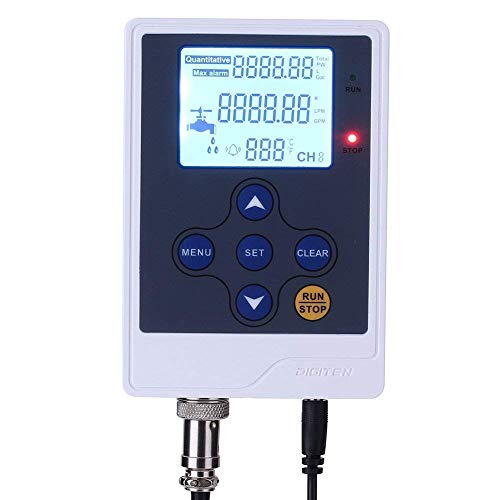

★【Large LCD Screen & Flow Rate Monitor】: Supports readings in liters and gallons, with LPM/GPM switchable. The DFC15 clearly displays the flow rate (the real-time amount of liquid passing per minute), total flow, and detected temperature.
★【Quantity Control & Alarm Function】: The controller automatically turns off the solenoid valve when the flow rate reaches the desired setpoint, making installation and control easy. It can automatically stop the water filling of your concrete mixer. When the total volume reaches the set value, the controller will sound an alarm.
★【Compatible with All Hall-Effect Flow Sensors】: By adjusting the K value, it can be used with a variety of flow sensors. High-quality, it comes with a temperature sensor to measure liquid temperature.
★【Wide Range of Applications】: For example, if you need 5 liters of water, you can set 5 liters of water on the DFC15 controller. When the water in the container reaches 5 liters, the controller will control the solenoid valve to close, automatically stopping the water flow and giving you 5 liters of water. Please select the appropriate flow meter. An oil flow meter is required for liquids other than water.
★【Package Accessories & Warranty】: Thread Type: BSP, but can also be used with NPT threads. The controller comes with a G3/4" flow sensor, a G3/4" solenoid valve (N/C), a temperature sensor (capable of measuring liquid temperature), and a 12VDC power adapter. 12-Month Warranty!
