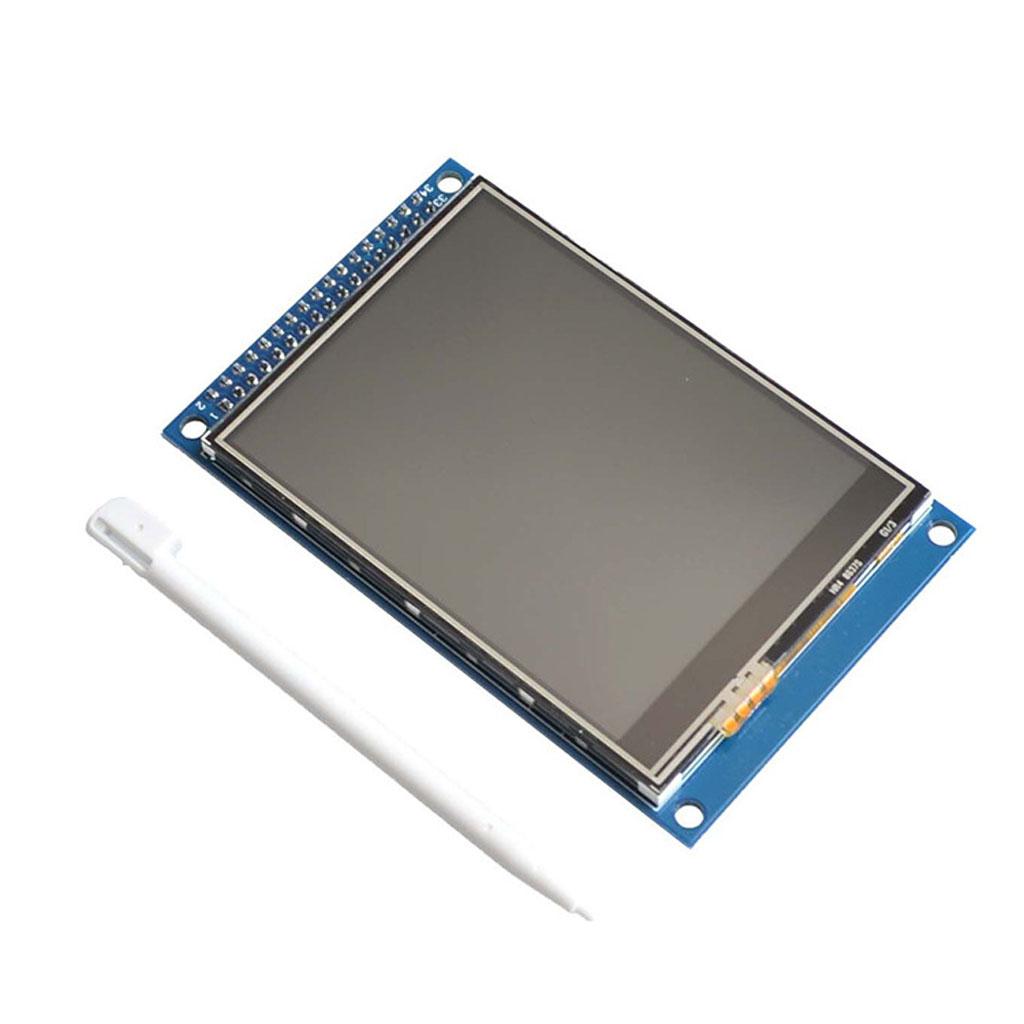

brand new and high quality
Features:
Made of high quality material, solid, durable and good performance, long service life.
LCD control chip ILI9341, for touch panel control chip XPT2046.
Adopts industrial grade TFT LCD module;
for atomic development board routines, download cd for image to display normally.
for atomic 34PIN LCD interface, suitable for all development boards of atoms, plug and for play.
Application examples are completely open source.
Provide LCD technical support for the underlying drive.
for Touch Screen only, other accessories demo in the picture is not included!
Specification:
Material: Integrated Circuit Board
Resolution: 240×320 pixel

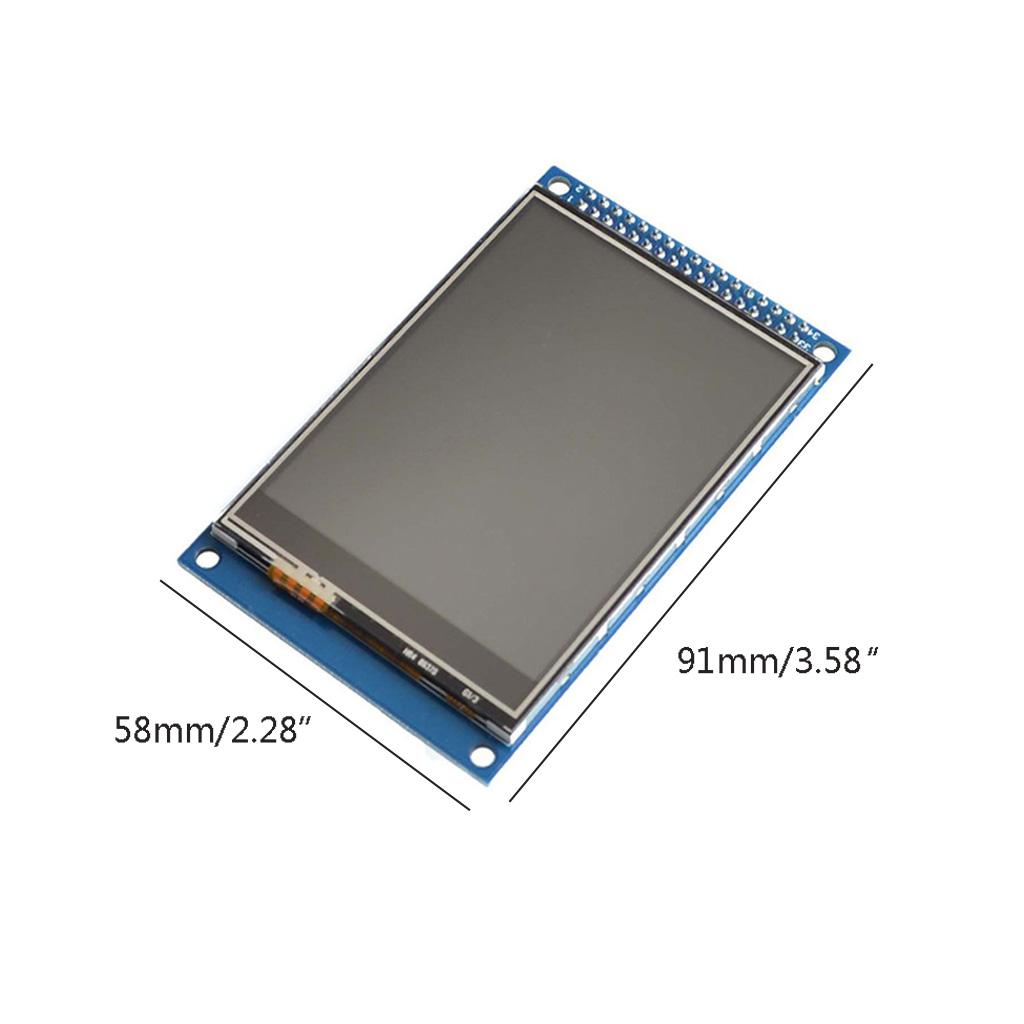

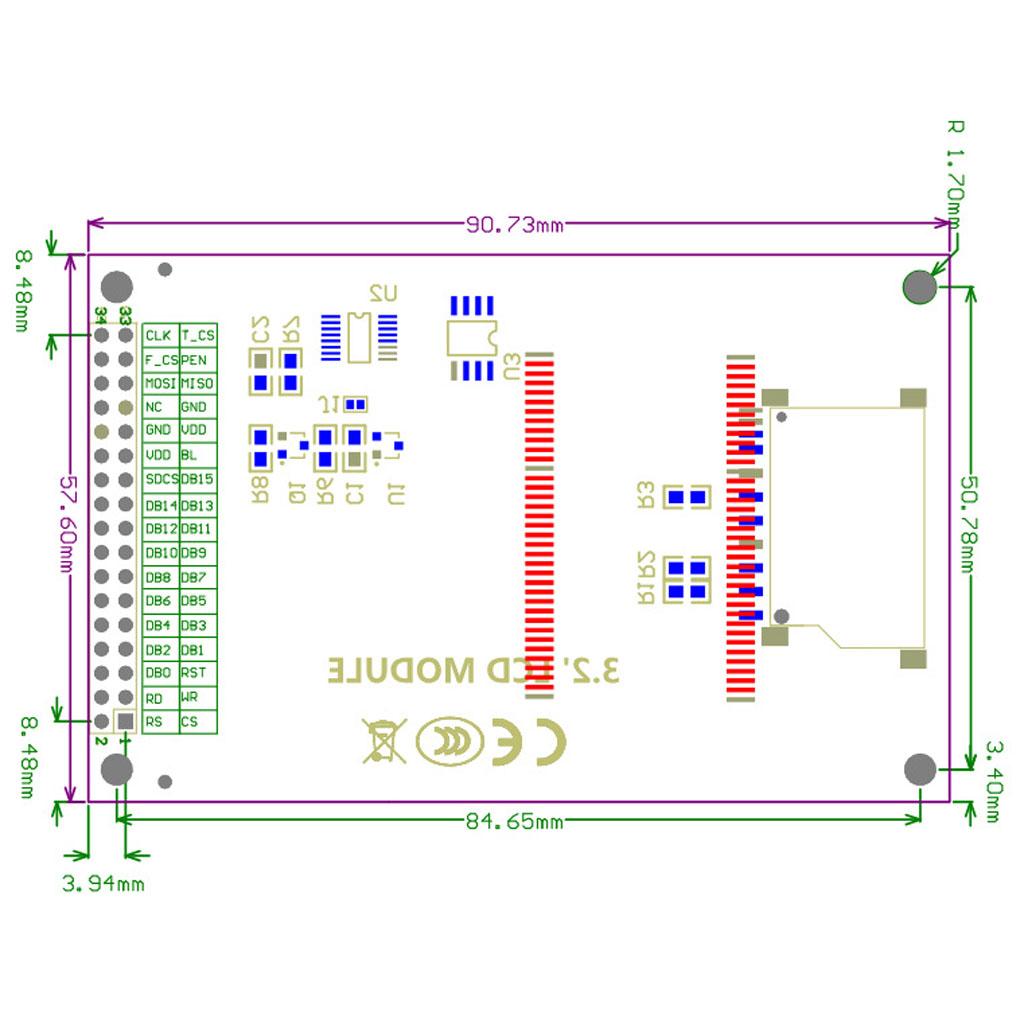

Size: app.5.8 x 9.1cm/2.28 x 3.58in
Color: Black and Blue
Quantity: 1 Pc

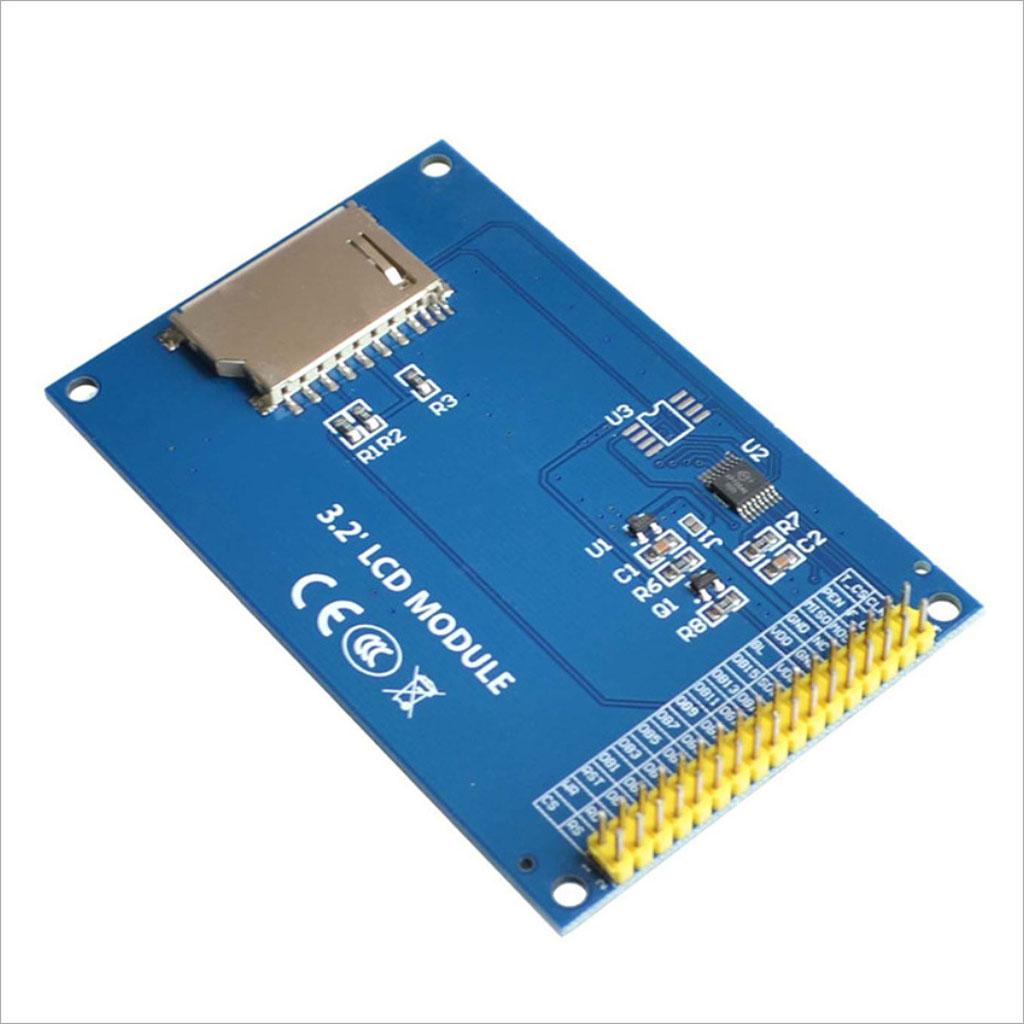

Hardware Resources:
3.2 inch, 240x320 resolution with TFT for touch screen;
The display driver chip is SSD1289/ILI9341, and the for touch screen driver chip is XPT2046.
The display interface is 16bit parallel interface, supports 6800 and 8080 bus interfaces, supports STM32 FSMC bus interface, and the screen speed is fast.
The for touch screen interface is an SPI interface with few data lines and simple driving;
Onboard low dropout high current LDO regulator, for 5V and 3.3V power supply;
On-board PWM backlight control circuit, can support IO control and PWM dimming control;
The module has an SD card holder, which can be used for experiments such as digital photo frames;
The SPI FLASH pad is reserved to extend the solder font chip;
Support horizontal screen display and vertical screen display, support screen split display;
Supports 262,000 color RGB display, showing good picture quality;
The screen controller comes with a 172,800-byte graphic display data storage area;
The interface is for the punctual atomic series development board interface;
Machine patch production, hardware is stable and reliable;
Software Resources:
C51 microcontroller integrated test source code;
- STM32 comprehensive test source code;
Supporting other Resources:
Module design schematic diagram;
LCD controller data sheet;
XPT2046 chip data sheet;
Module schematic diagram;
Module size chart;
LCD package library;
Text modulo software;
Picture modulo software;
C51 code wiring tutorial;
STM32 code wiring tutorial;
Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

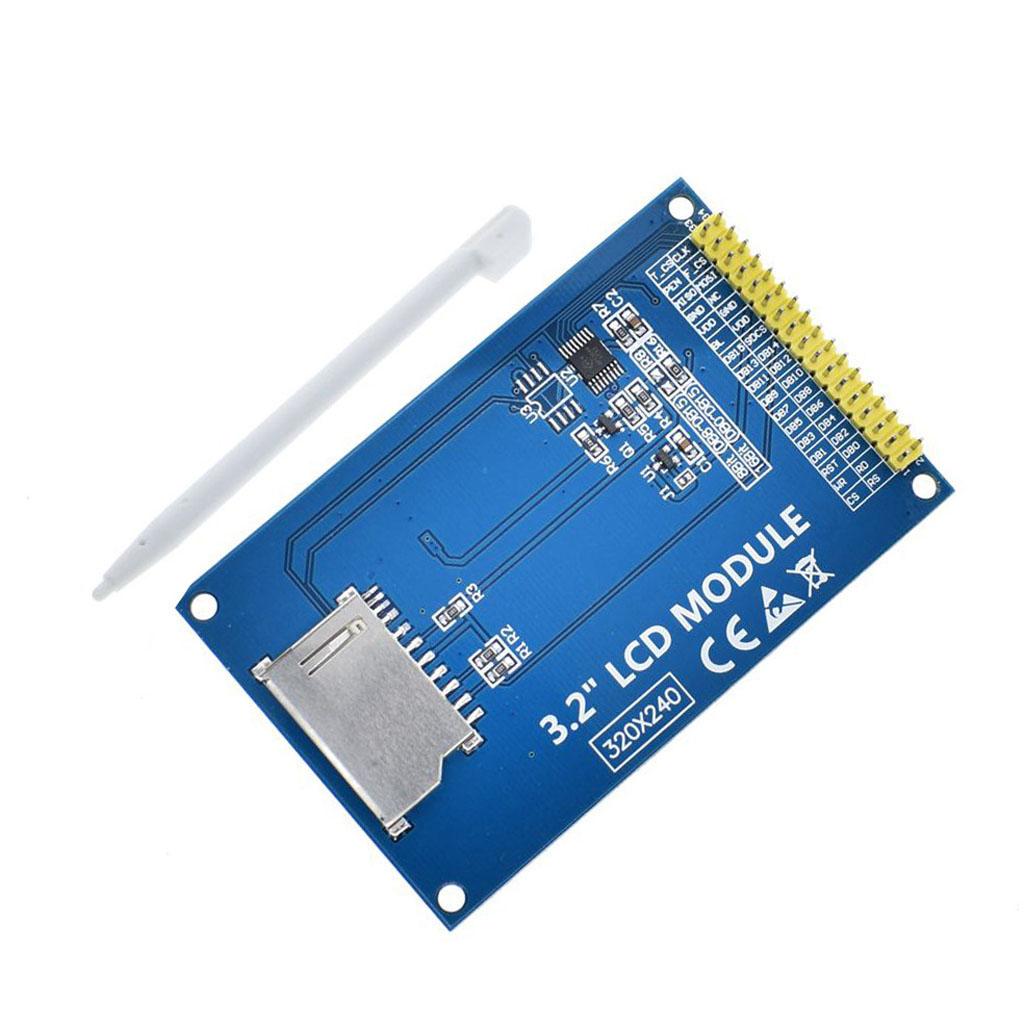

Package includes:
1 x LCD for Touch Screen Module
1 x Pen
