Product parameters:
1. Product Features:
Beautifully designed, simple and elegant appearance
Using PC material panel and acrylic screen film is not easy to crack
Use dot matrix screen to indicate working status
Anti-power supply reverse design, even if the power supply is reversed will not burn the product, AC and DC
2.Bluetooth is based on CLASS 2 power level, adopts Bluetooth 2.1+EDR specification, compatible with Bluetooth 3.0 and below versions, transmission distance greater than 10 meters.
3. Specifications:
Power Type: AC and DC
Appearance size: 140(L)*55(W)mm
Weight: 90g
External interface mode: USB, SD
Output amplitude: "600MV
Rated input: 12V/1A
Rated power consumption: USB playback current "120MA
Other states "80MA
Working temperature: -20°C～60°C
Standard configuration: 1PCS ultra-thin 21-key slim remote control
4. Application range:
Used in home stereo, car audio and computer multimedia audio, professional active audio, IPOD audio, AV power amplifier, massage chairs, electronic gifts, electronic toys and so on. Particularly suitable for speakers (sound) DIY enthusiasts
Electrical Specifications:
Operating voltage: 12V Operating current: <200Ma;
Output range: >600mV, Bluetooth effective distance is greater than 10 meters.
Features:
Support U disk and SD/MMC card playback, support three formats decoding (MP3/WAV)
Support FAT16, FAT32 file system.
Support MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song.
Supports 32-320kbps MP3 songs
Support FM radio (FM)
Support infrared remote control
Bluetooth is based on the CLASS 2 power class, uses the Bluetooth 2.1+EDR specification, is compatible with Bluetooth 3.0 and below, and has a transmission speed of up to 3 Mbit/s
Bluetooth supports L2CAP/A2DP (AVCTP/AVDTP/AVRCP) protocol for receiving stereo audio signals. Through the protocol, you can control the up/down song and play/pause operation of the audio transmitter.
Debugged PCB antenna without rematching the antenna
Bluetooth module has been BQB certified.
Note:
1. Some mobile phones do not support the fade function, so there will be a POP sound when the playback pauses and the song is switched.
2. Bluetooth disconnection detection is non-real-time detection. Therefore, after the Bluetooth speaker is turned off for a period of time, the mobile phone is disconnected.
3. Some mobile phones press a song within 3 seconds of playback, and will return to the initial position of the current song, which requires two consecutive presses to have the previous function.
4. Some domestic mobile phones can only be paired and cannot be connected because mobile phone software needs to detect the hands-free device to connect.
5. Some mobile phones do not support simple pairing. For example, Symbian phone, you need to enter the pairing password 0000 when pairing.
Package included:

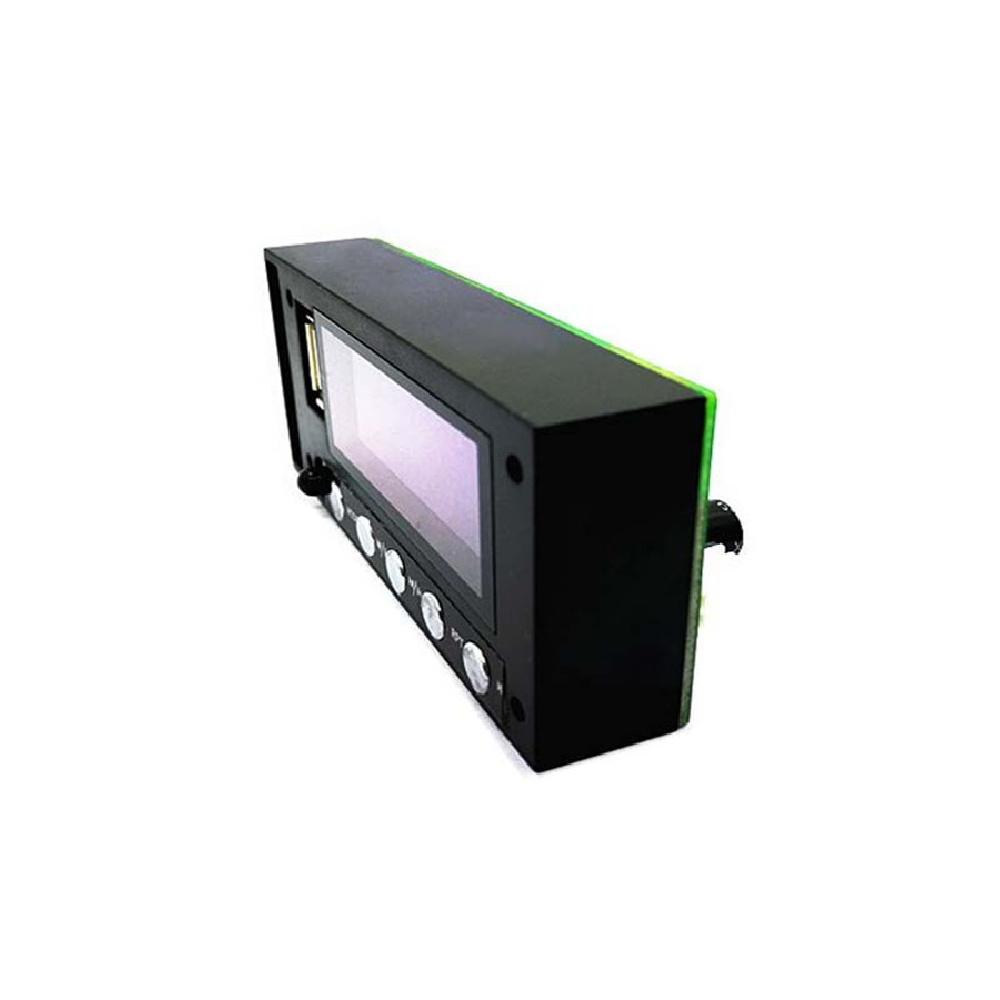

1 X MP3 decoder board
1 X remote control
3 X 3Pin Cables
2 X 2Pin Cables
