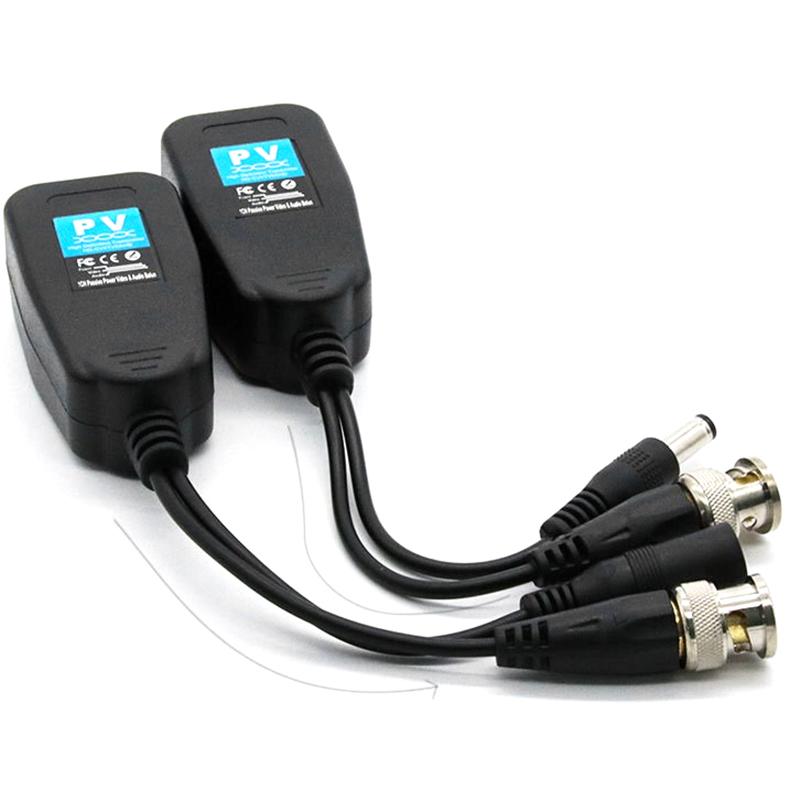

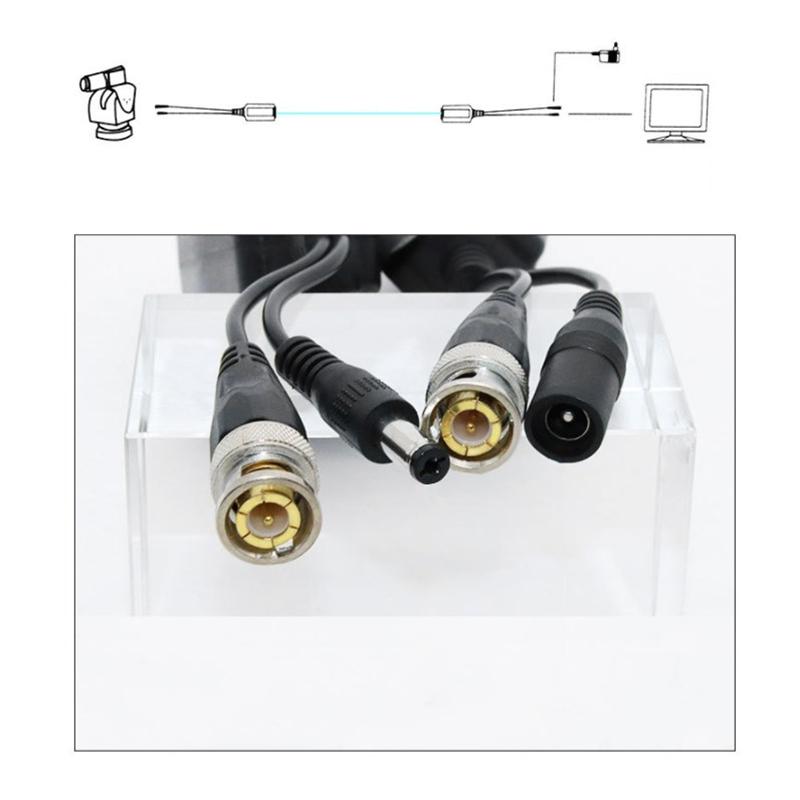

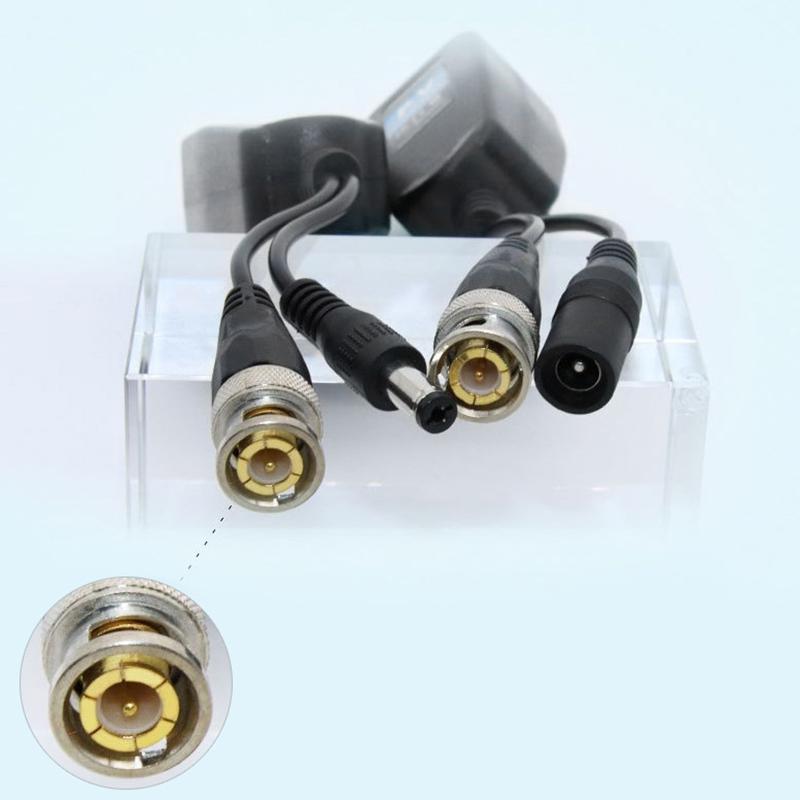

Passive Cctv Coax Bnc Power Video Balun Transceiver Connectors To Rj45 Bnc Male For Cctv Video Camera

Features: 100 brand new and high quality. Compatible with all HD-CVI, HD-TVI,HD-AHD. Up to 450m for 720P CVI cameras. Up to 250m for 1080P CVI cameras. Up to 250m for 720P/1080P TVI cameras. Up to 320m for 720P AHD cameras NTSC,PAL, and SECAM video formats. No power required. 60dB cross talk and noise immunity. Compact size and easy installation. Built-in transient suppression protection. Innovative combination design. Specifications: Item Type: 1CH Passive Power & Video Balun plug Shell Material: ABS Color: Black Size: 45×25×21mm/1.77×0.98×0.83in (Approx.) Cable length: 14cm/5.51in (Approx.) Frequency response: DC to 60Mhz Attenuation: 0.5dB type CMRR: 60dB Surge Protection: 4KV ESD: 8KV Connectors: Male BNC and "Prees-Fit" Terminal blocks Impedance: BNC: 75 ohmas Terminal: 100 ohms Working temperature: -10 degree to +70 degree Storage temperature: -30 degree to +70 degree Humidity: (non-condensing) 0-95 Quantity: 1 Set(1 Pair) ( accessories demo in the picture is not included) Power-Distance Chart: Using PVD product, cameras can be powered at extended distances, please refer to the chart below for more information. Power Supply Voltage: 24VAC 28VAC 13VDC Resultant Camera Voltage: 21VAC 21VAC 10VDC 100 mA Camera: 300m 700m 300m 300 mA Camera: 100m 230m 100m 500 mA Camera: 60m 140m 60m Note: 1.Transition: 1cm=10mm=0.39inch 2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid. 3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
