Note:
The relay controller is RF Receivers ,the wall switch is RF only. Wall switch itself cannot control lights on off. It needs to work with rf receiver together.

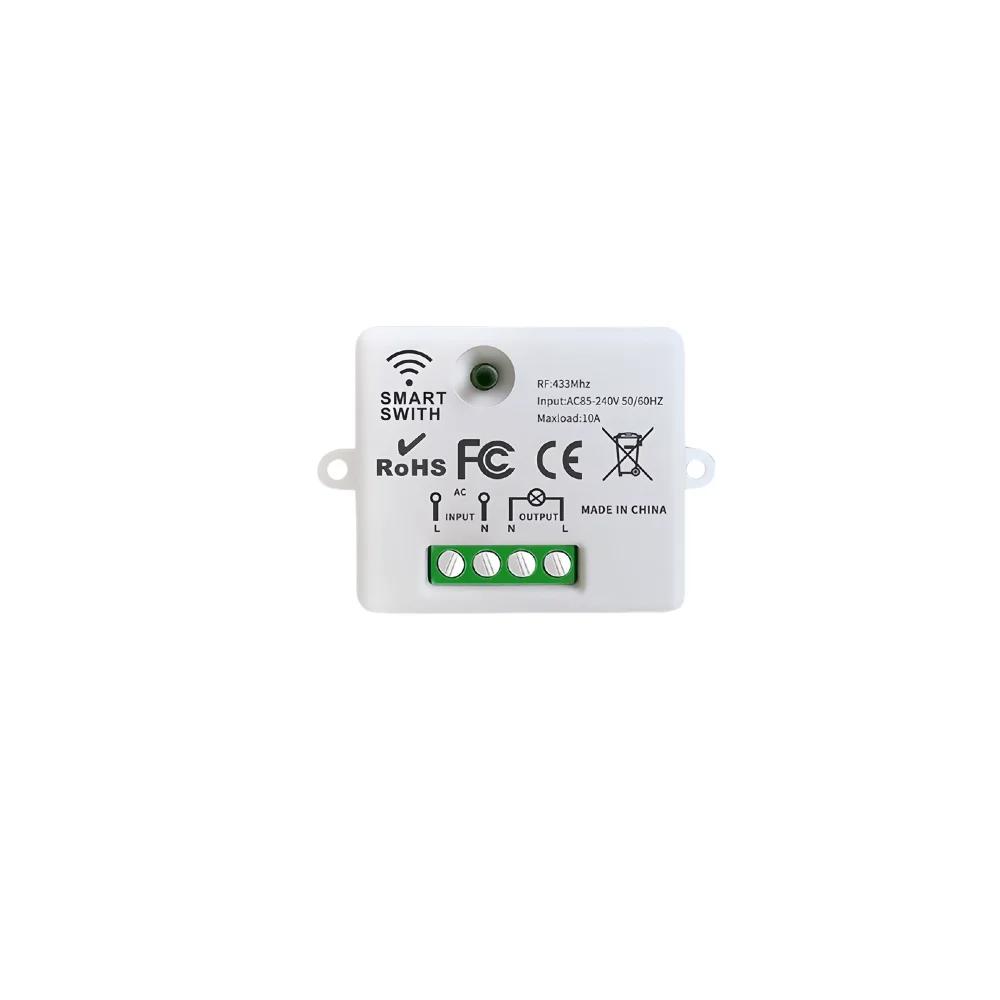

Relay Receiver Board Parameter
Working voltage : AC 85V 240V
Quiescent Current : <5MA
Max current : 10A
Max load: 2200W
Receiver Body Size : 47*42*27mm
Weight:35g
RF frequency : 433MHz
Pin : L / N
Working temperature : -10 +70 Celsius
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 20 pieces
Support encoding : EV1527 Leaning code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 100 meters
Remote operating mode : Toggle Mode / Latched Mode

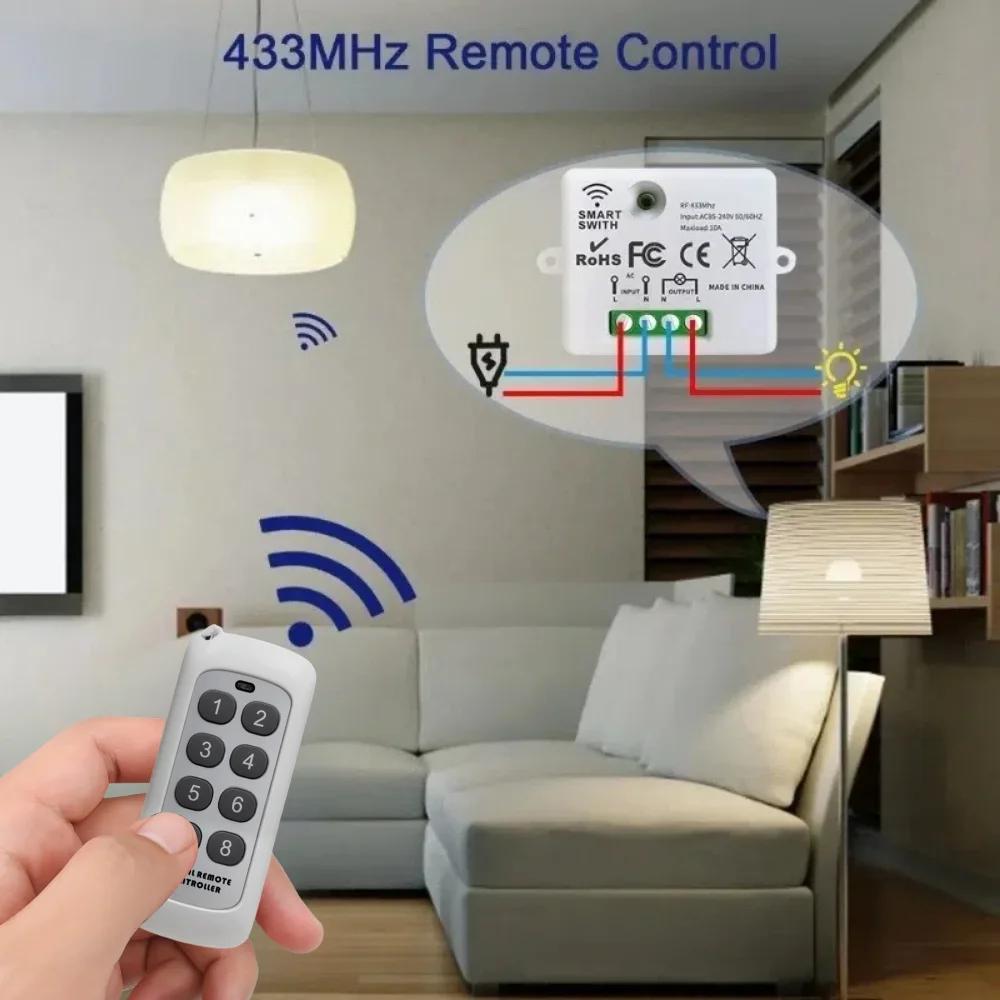

Easy connect and multi control oneThe receiver is easy to install, Multi switches can control different receivers or one receivers
strong signal and Long distance controlControl the light in the room, even outside the room, The receiver can be remotely controlled up to 1000 meters through a wireless switch and the signal can be controlled through the wall
Wide range of applicationProducts can be used in homes, farms, factories, offices, laboratories, supermarkets, and so onRemote control Water pump / Fan / Lamp / LED light / bulb / ventilation device/ Exhaust system, Kettle, water heaters / Signal transmission / Electrical equipment/Factory Home Office Ventilation Pump LED LightSmart Home, Feel free to use it together

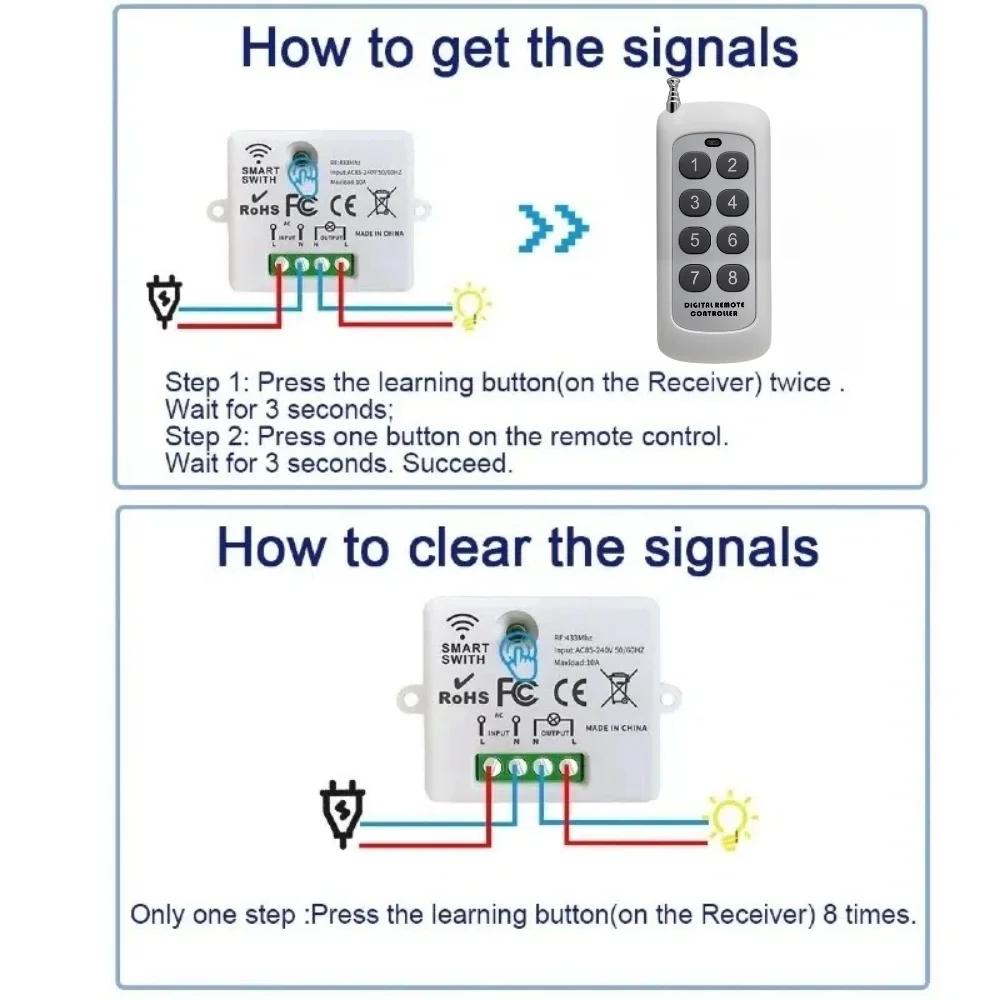

Learn to code:
1. Jog learning method:
Press the learning button of the controller once, the indicator light flashes quickly and it is in the learning state, and then press any button of the remote control you want to learn to send a code. At this time, the indicator light flashes three times and goes out, and the code matching is completed.
2. Self-locking learning method:
Press the controller learning button twice, the indicator light flashes twice quickly in the learning state, and then press any button you want to learn on the remote control to send a code. At this time, the indicator light flashes three times and goes out, and the code matching is completed.
3. Interlocking learning method:
Press the controller learning button three times, the indicator light flashes three times quickly in the learning state, at this time press the remote control A button, the indicator light flashes three times, and then press the remote control B button again, the indicator flashes three times and goes out, and the code matching is completed .
4. Learning method with a 5-second delay:
Press the controller learning button four times, the indicator light flashes four times and then press the remote control to send a code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, the relay will automatically disconnect after 5 seconds of closing.
5. Learning method with a 10-second delay:
Press the controller learning button five times, the indicator light flashes five times and then press the remote control to send the code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, and the relay will automatically disconnect after 10 seconds.
6. Learning method with 15 seconds delay:
Press the controller learning button six times, the indicator light flashes six times and then press the remote control to send a code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, and the relay will automatically disconnect after 15 seconds of closing.
7. Learning method with a delay of 20 seconds:
Press the controller learning button seven times, the indicator light flashes seven times and then press the remote control to send the code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, and the relay will automatically turn off after being closed for 20 seconds.
Clear data:
Press and hold the learning button for 8 seconds without letting go, the indicator light flashes once until the receiver indicator flashes 6 times quickly, the code clearing is successful

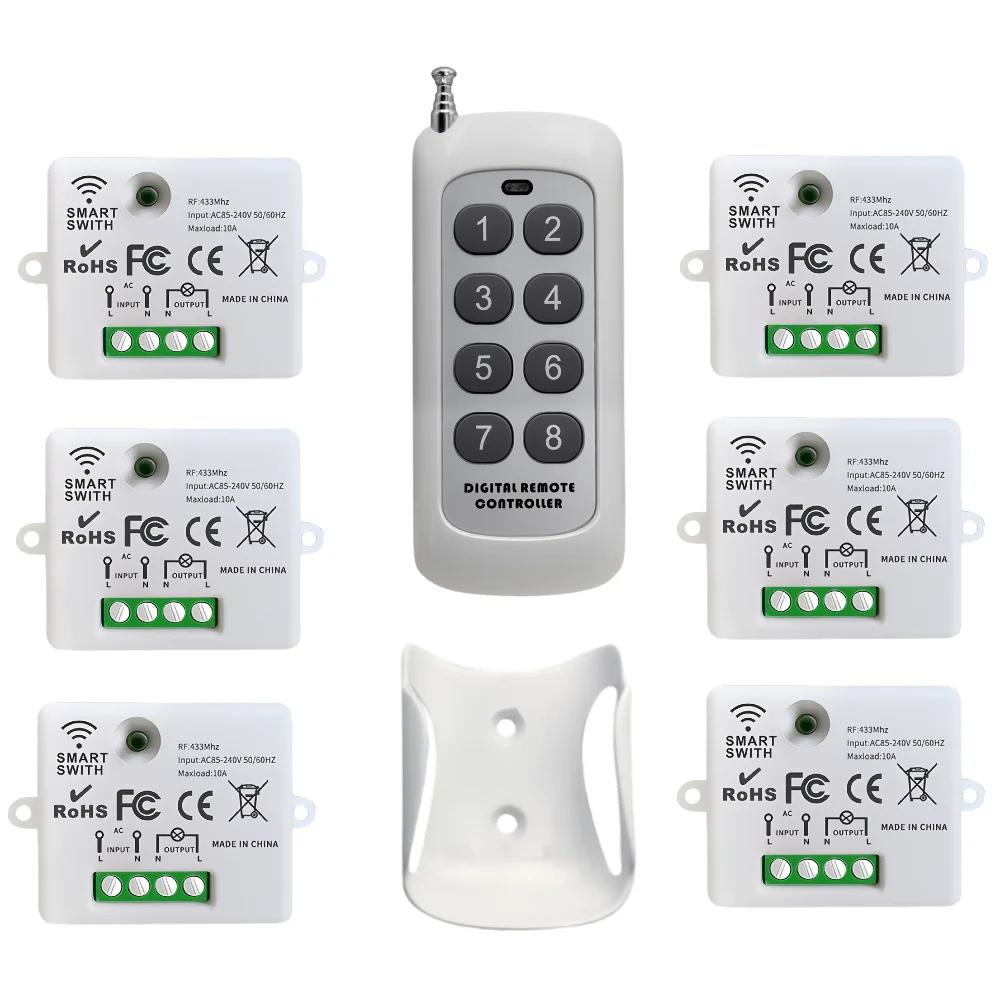

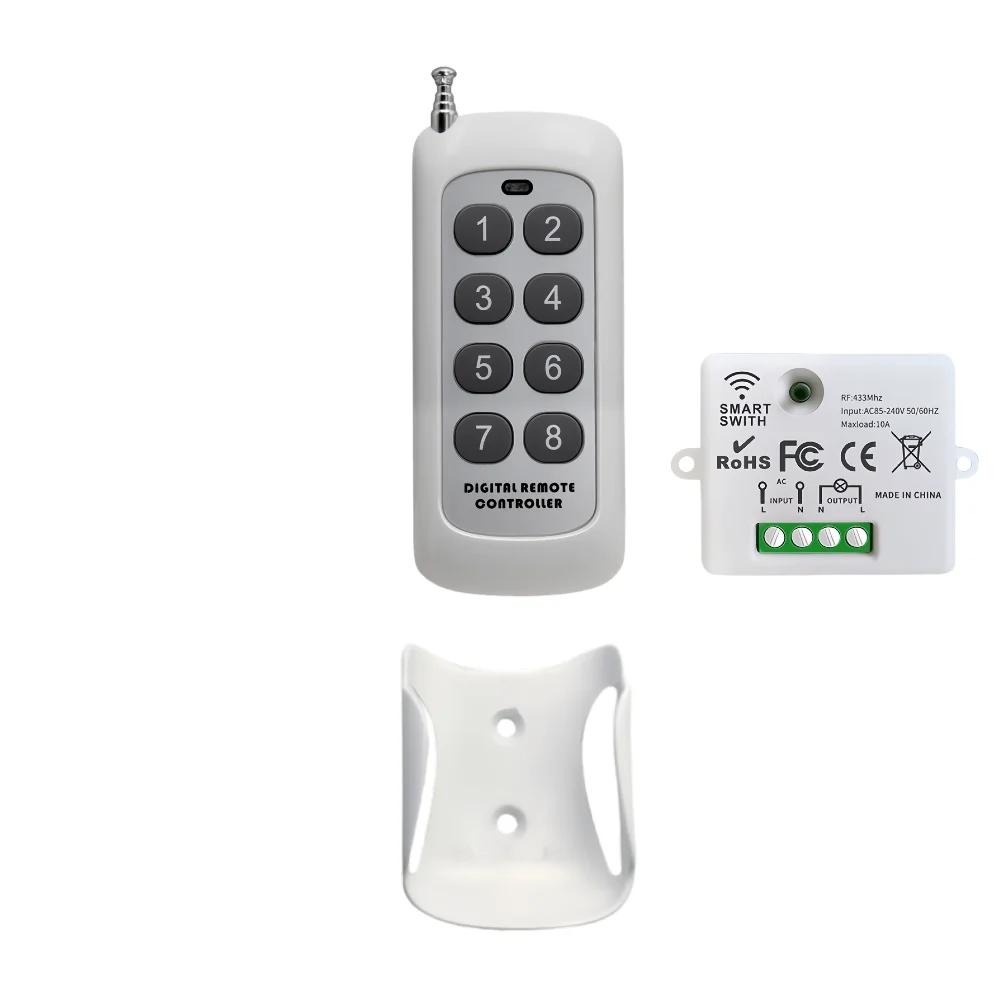

Package Includes:

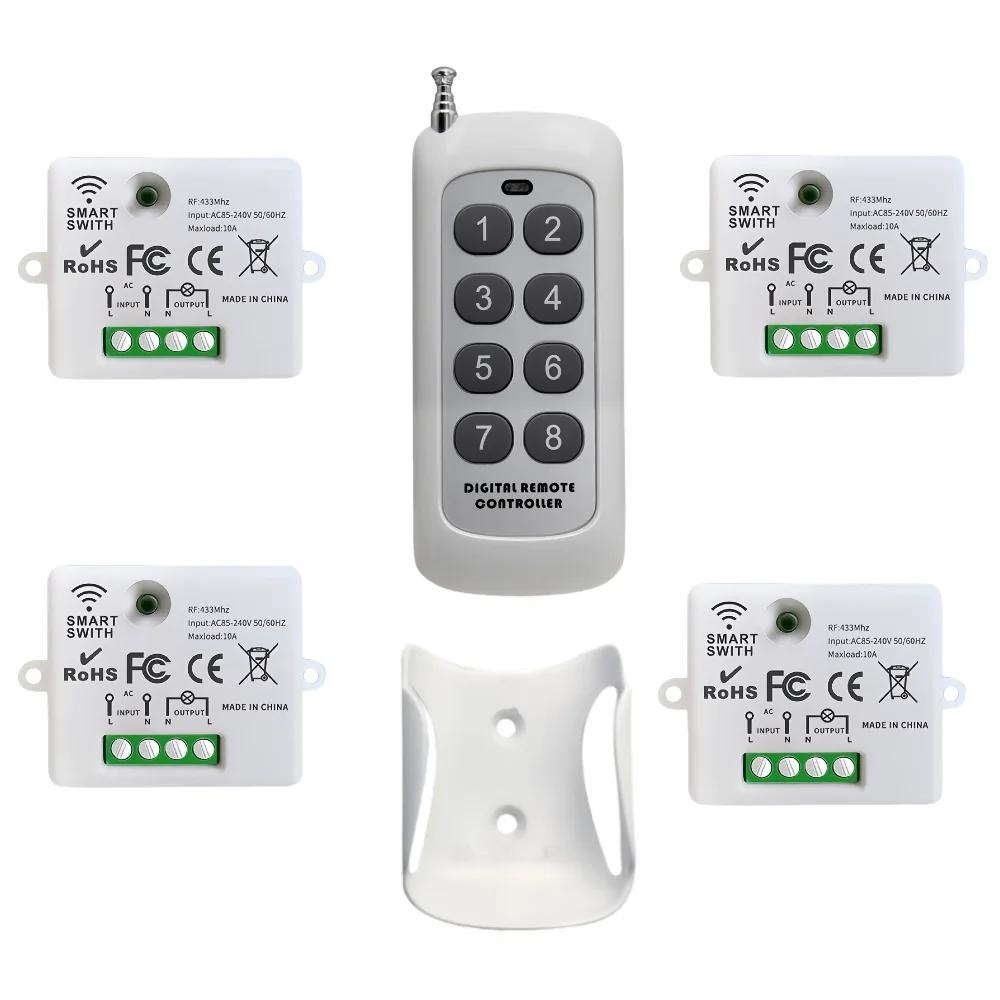

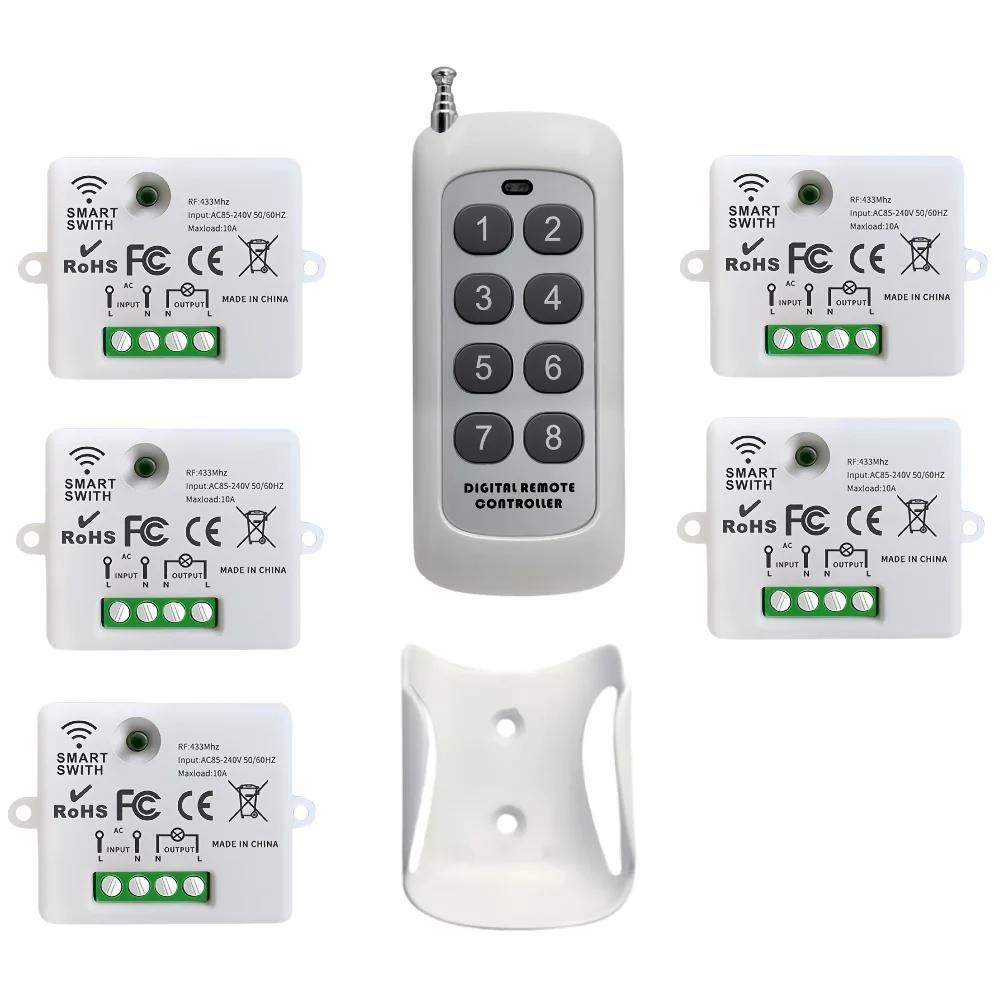

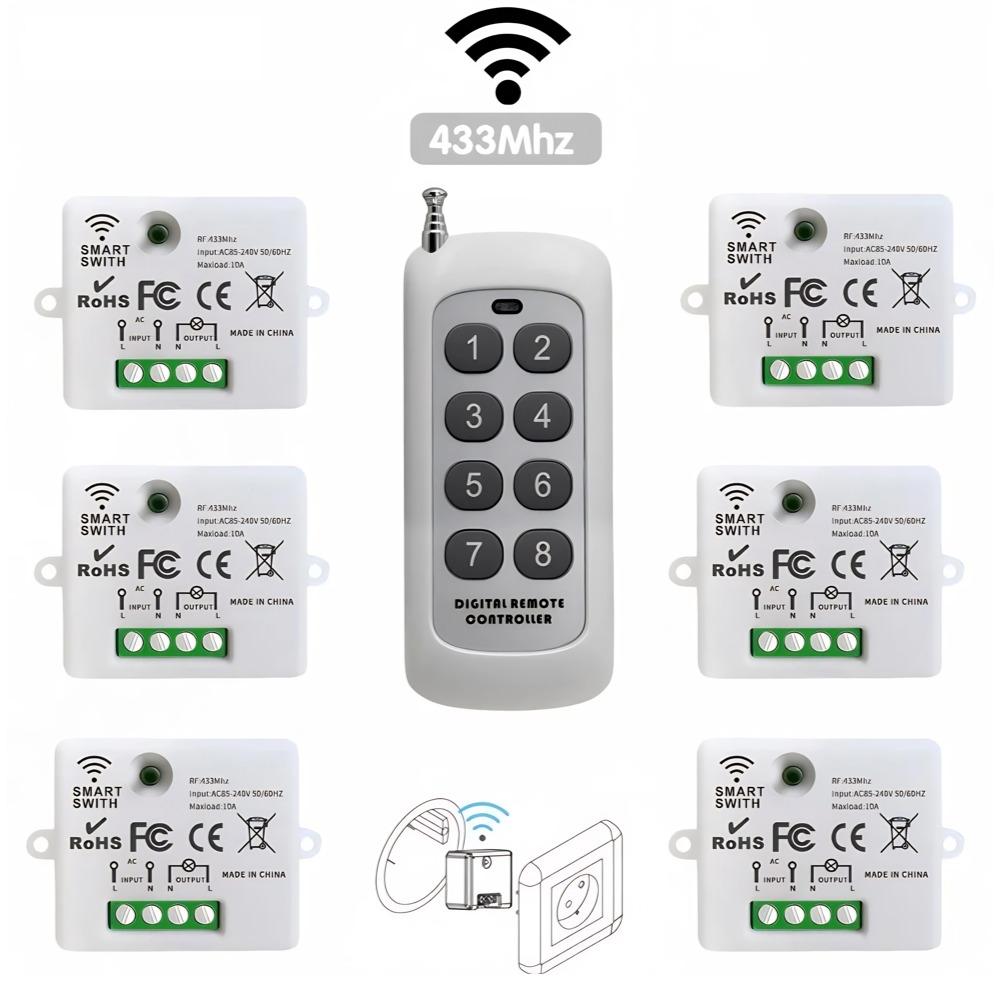

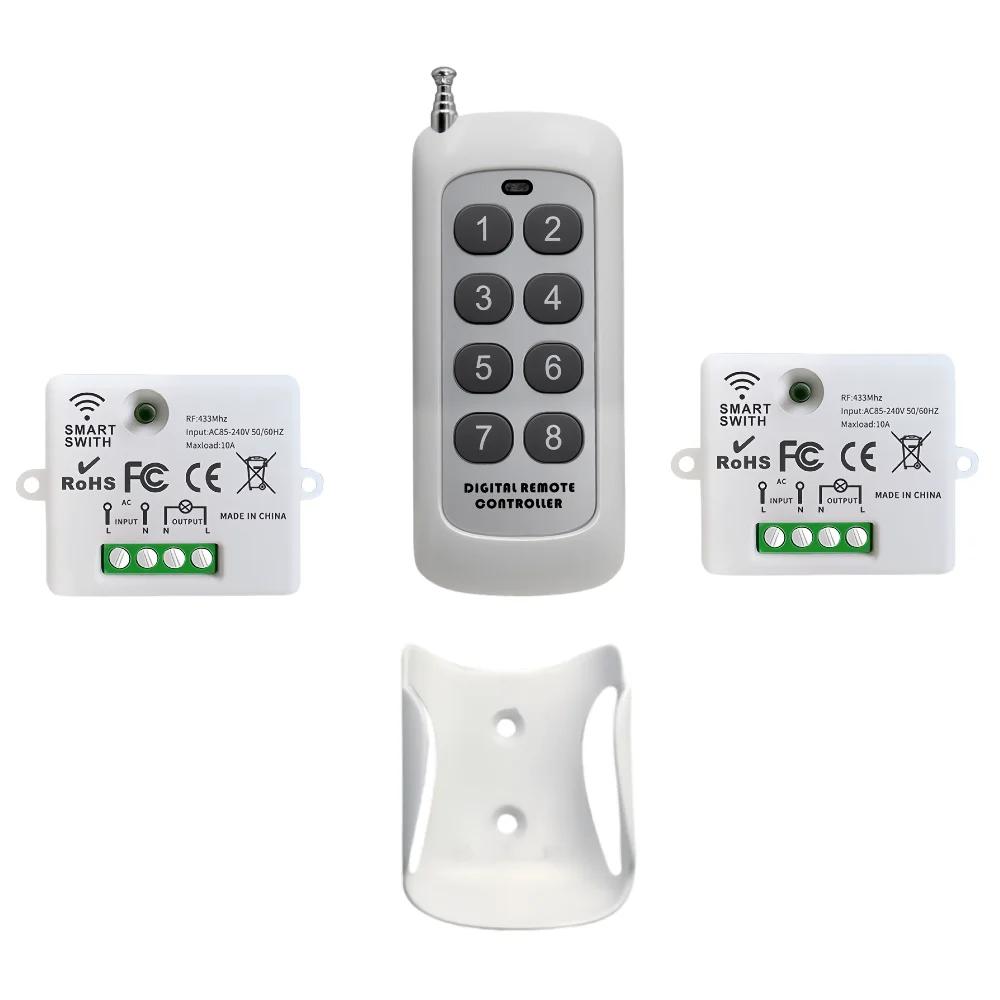

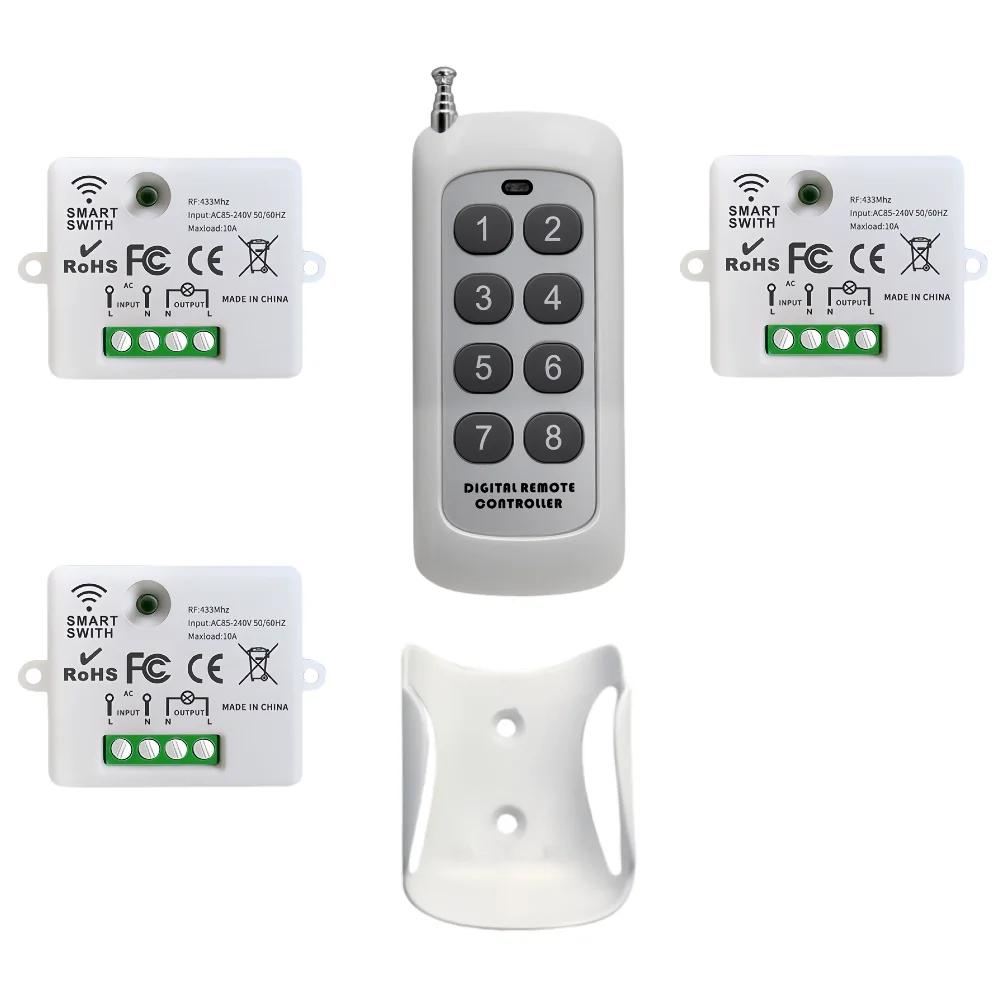

AS the picture
NOTE:
①Images on this page are for illustration only and due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
②Please allow 1-3cm measuring deviation due to manual measurement.
