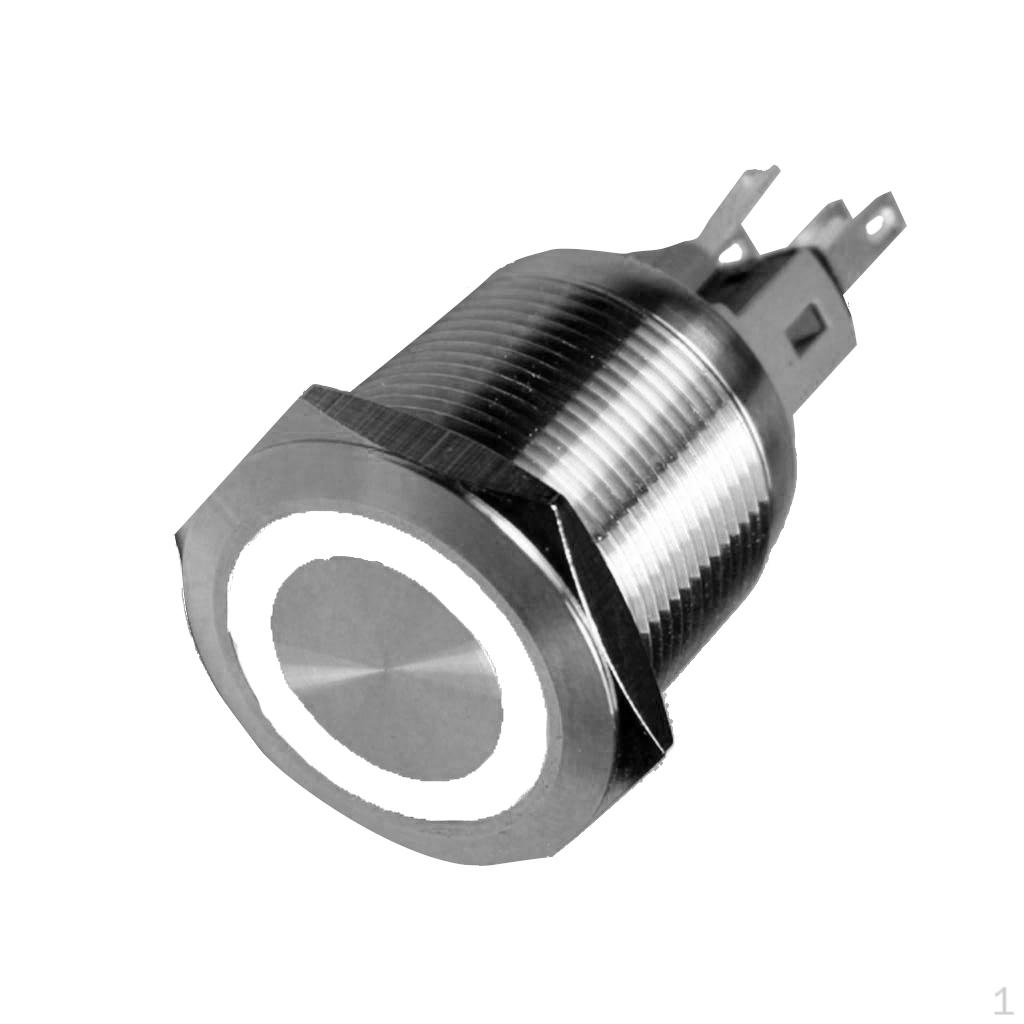

1 Piece Push Button Switch LED Illuminated 25mm 12V Metal 5AC

Description:

- Great for electronmagnetic Starter, relay, Horn Button Switch, PC Power Switch or any circuit controls on over 500,000 cycles.

- Mounting Hole Size: Φ25mm, Switch Rating: 5A/250AC, Switch Combination : 1NO1NC

- Momentary Type: Resetable [Push & Hold ON, Release OFF]

- Ring LED can be on all the time or only when switch is on which depends on how you wire it.

- High quality metal material & IP67 waterproof protection can be used in wet or dusty enviroment.

Specification:

- Mounting Hole Size: Φ25mm

- Switch Rating: 5A/250AC

- Switch Combination : 1NO1NC/2NO2NC

- Momentary Type: Resetable [Push & Hold ON, Release OFF]

- Head Shape: Flat

- Enclosure Material: Nickel Plated Brass/ Stainless Steel

- Lamp Type: Ring Illuminated

- LED Voltage: 12V

- Degree of Protection: IP67, IK10

- Pins: 6

- Operation Pressure: about 4N

- Mechanical Life: 500,000 cycles

- LED Life: 40,000 hours

Package Includes: 1 Piece Push button switch
