Feature:
1. Unique Spot Compression Laser: Uses the latest 5.5W diode spot compression laser, with an ultra fine squares laser focus, cutting penetration and accuracy are twice that of general lasers, engraving traces are also finer, and the cutting and penetrating ability is stronger
2. Fast Fixed Focus Design: Has the fastest focus design on the market, combines a fixed focus lens and sliding design. You only need to slide the laser and tighten the screws to complete the focusing, which makes the use of the laser very simple
3. Sturdy Structure Design: All metal structure design makes the machine sturdy, and improves the accuracy of engraving. The whole structure is designed for quick installation, can be completed within 10‑20 minutes. The structural frame is very durable and remains open
4. Eye Protection Design: The laser filter cover filters the ultraviolet light to the eyes, so you and the people around you can watch laser engraving without wearing goggles. At the same time, can prevent animals from catching the laser spot.
5. Extensive Compatibility: The machine is compatible with various mature engraving software, such as for LaserGRBL, for LightBurn, for Benbox, for GrblController, for LiteFire, supports PWM mode engraving, supports for Windows system, engraving file format supports for JPG, PNG, DXF, AI, SVG, etc.
6. Safe Design: The machine is equipped with very comfortable power switch, which is not available in others. The 4 feet and the body structure are reserved for fixing holes to facilitate the fixing of the machine and the data cable
7. A4 Steel Pad: Free A4 size steel pad protects table from laser damage. Isolate the sealed fire hazard, and the X , Y axes contain precise graduation lines, convenient for quick measurement of size of engraving, large area engraving interval meet your various engraving needs
Specification:
Item Type:

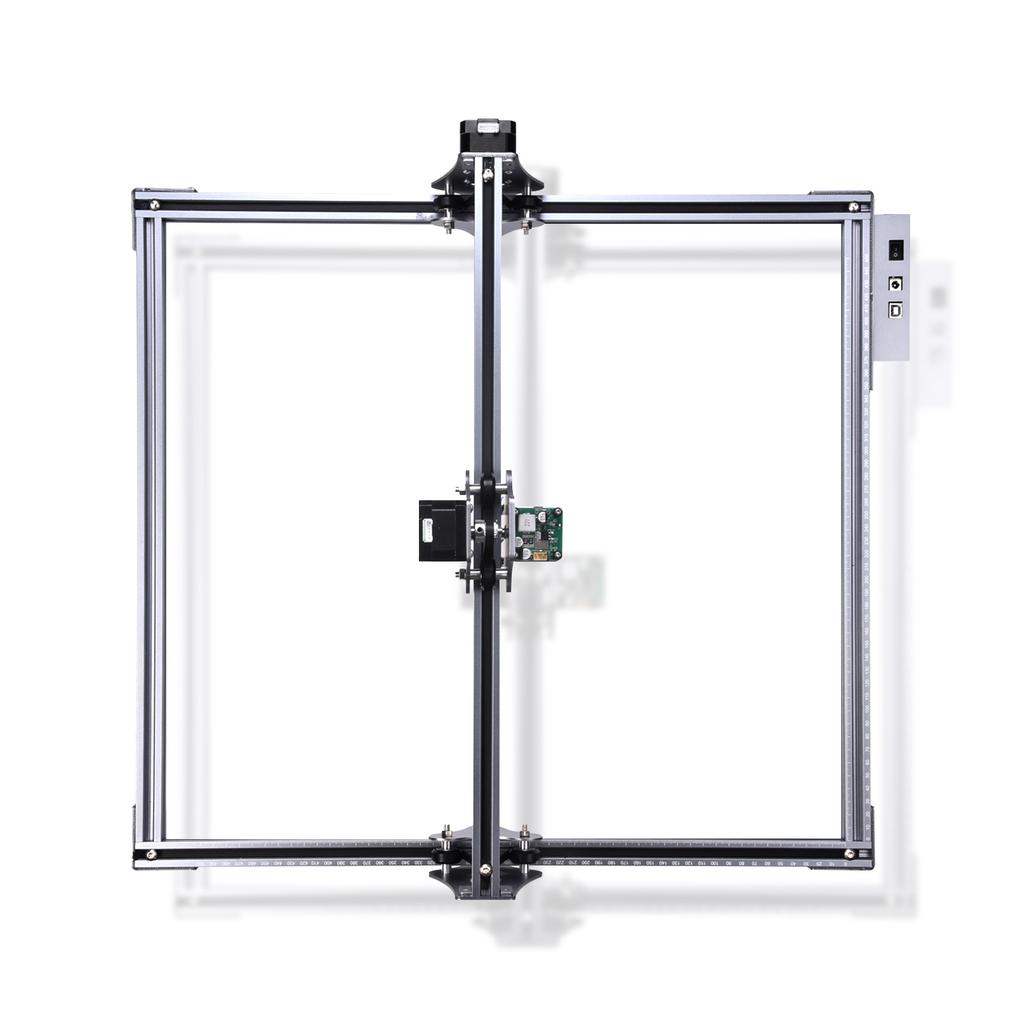

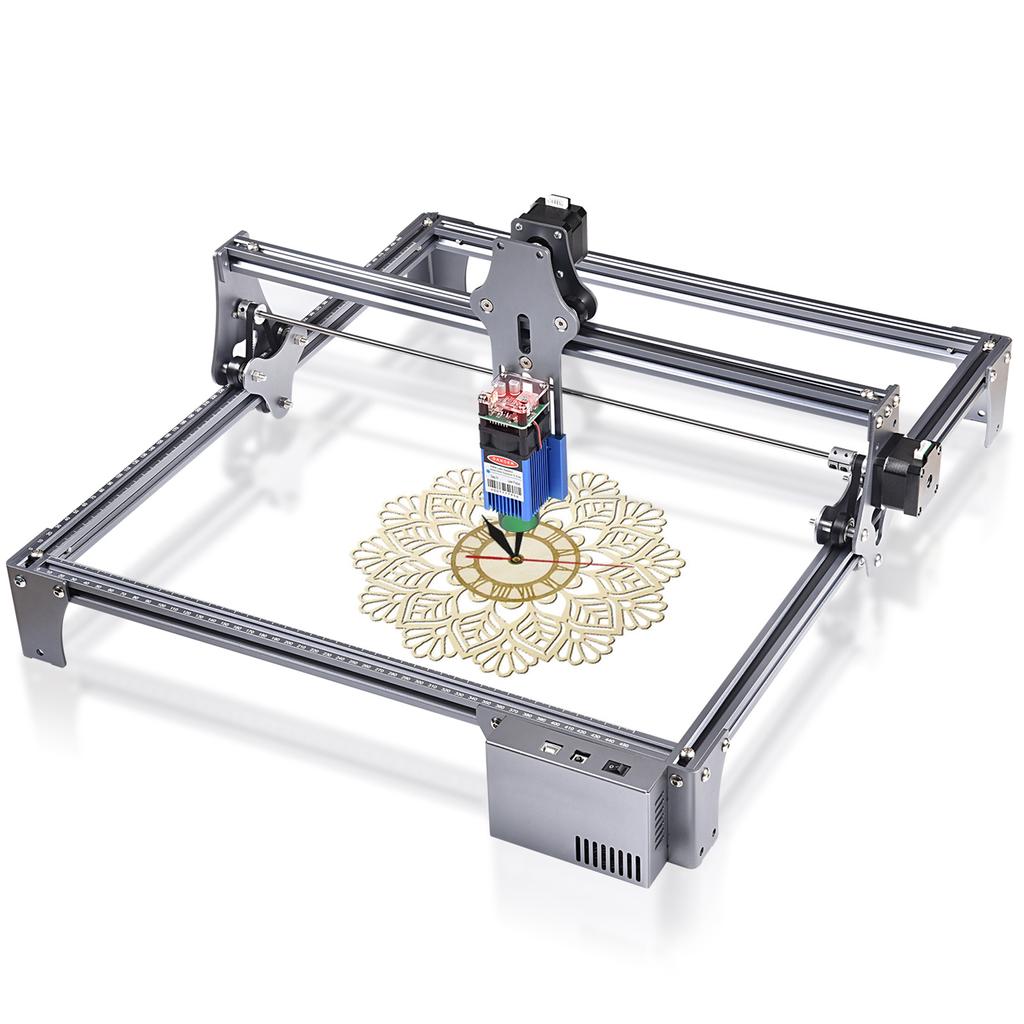

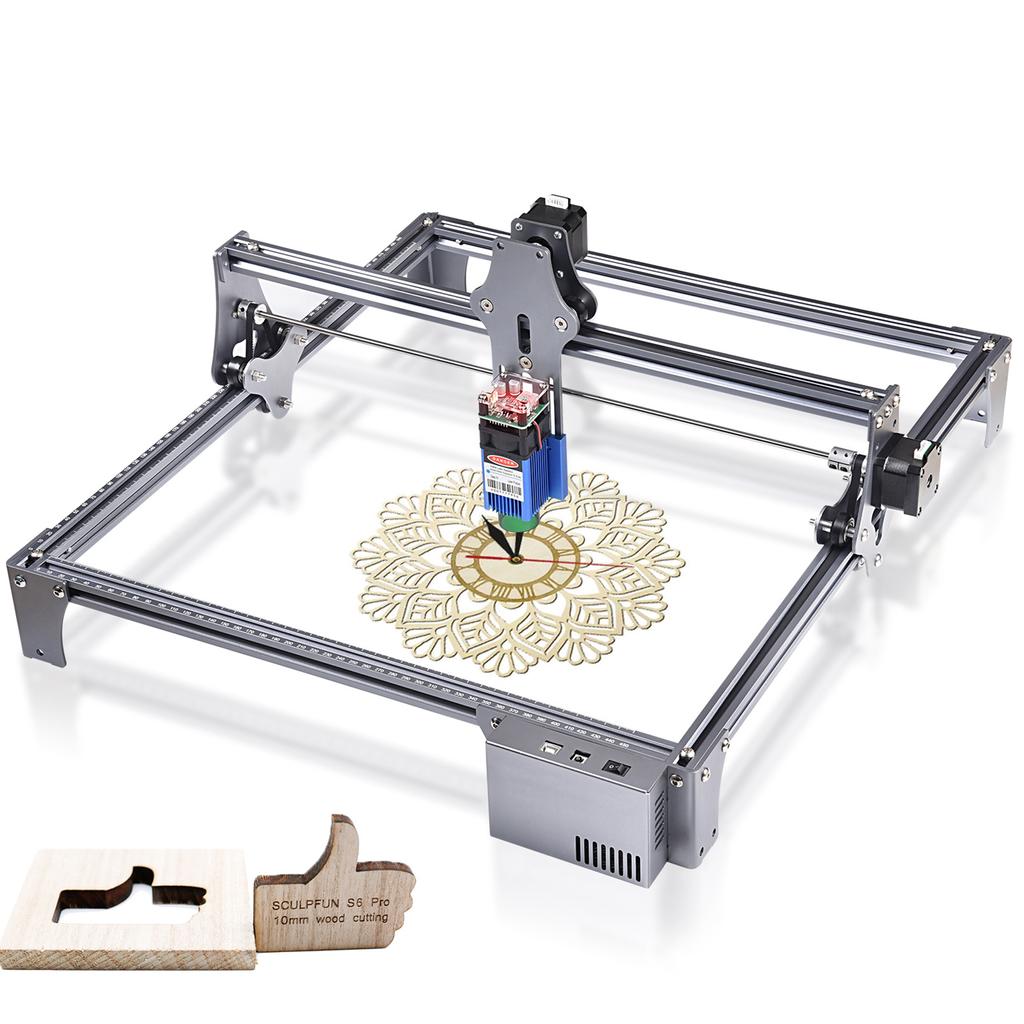

Model: SCULPFUN S6 Pro
Engraving Size: Approx. 410 x 420mm 16.14 x 16.54in
Engraving Materials: For wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, pitch black metal, dark ceramic
Cutting Material: For thin board, acrylic board, cardboard, non woven fabric, bamboo, some plastic board
Laser Effect Power: 60W (Cutting effect comparable to 60W CO2 laser)
Machine Maximum Electrical Power: 30W (Nothing to do with the engraving or cutting performance, but the power consumption)
Diode Laser Output Power: 5.5 6W (Please note that this is light energy, not electrical energy)
Laser wave length 455+ 5nm
Engraving Accuracy: 0.01mm
Focusing Method: Fixed Focus Laser + Sliding Device
Laser Protective Cover: The purple light filter cover on the laser protects the user s eyes and prevents animals, etc. from contacting the laser spot.
Operating Software: for LaserGRBL, for LightBurn, for LaserGRBL, for LightBurn, for Benbox, for GrblController, for LiteFire, support for Windows system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data Transmission Method: USB Connection
Power Supply: International Universal Standard Power Input: 100 240V AC, 50 60HZ Output: 12V 5A
Certification: CE FCC RoHS FDA ICE Certification.
Package List:
1 x X Axes Component2 x X Profiles2 x Y Profiles1 x Control Box Components3 x Supporting Feet1 x Laser Assembly1 x 12V 5A Power Adapter1 x Power Cord1 x USB Cable1 x Step 1 5 Screw Installation Package2 x Belt1 x T Shaped M5 Hex Socket Screwdriver1 x T Shaped M4 Hex Socket Screwdriver1 x T Shaped M3 Hex Socket Screwdriver1 x 8 10mm Screw Wrench10 x Cable Tie1 x Brush1 x Laser Goggles2 x 3mm Thick 10x10cm Small Wood Chip1 x A4 Steel Desktop Protection Pad
Note:
1. For detailed machine instructions, please refer to the user manual for parameter settings.2. When operating the laser engraving machine, please install the laser protective cover, if not installed, you need to wear goggles.3. Do not touch the laser with your hands, otherwise may burn your hands.4. Please avoid strong impact on the machine.5. Children under 14 years old are prohibited from using. Children over 14 years old need adult supervision.6. Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
